BTC-S37 Mining Motherboard with CPU and SSD 128GB + DDR3 8GB RAM + Chassis + power supply 1850W Kit Mining crypto ETH Set

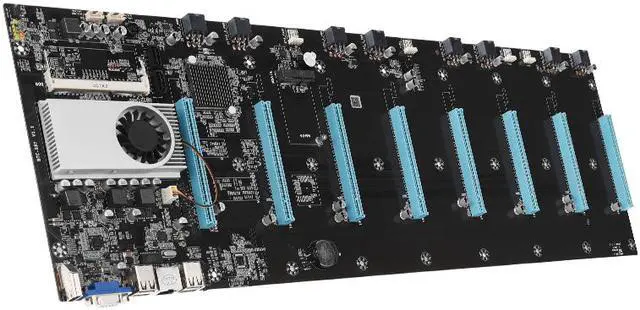

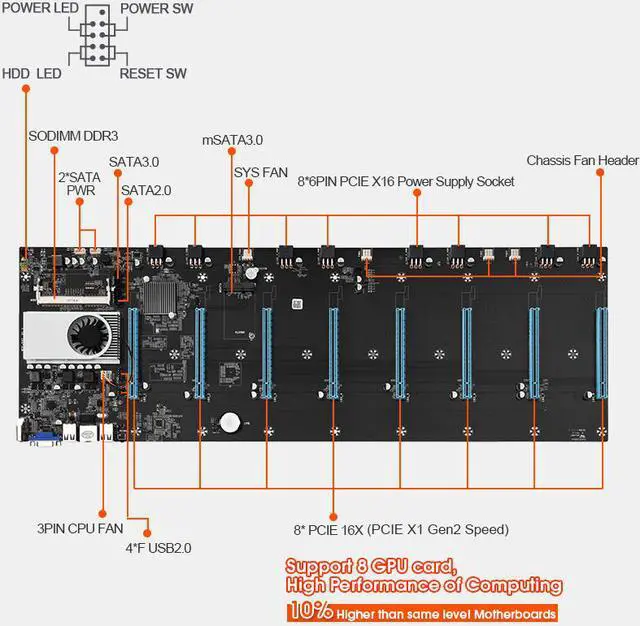

About the BTC-S37 motherboard:

CPU: lntel Celeron CPU 1037U 847 B8XX B9XX, random delivery
Display: Onboard VGA+HDMI+PCIE X16(For discrete graphics)
Memory: 1*DDR3 SODIMM Slot, support 1066/1333/1600MHz
Audio:no
Network: Onboard 1*Realtek RTL8111F chipset for Gigabit network (Support Network boot or PXE boot)
Storage: 1*SATA3.0+1*SATA2.0+1*mSATA3.0
USB: 8*USB2.0
Multi-funtion card :no
8*PCIE16X(PCIEx1GEN2 speed)
Expandable bort: 8 * PCIE16X + 1 * SATA 3.0 + 1 * SATA 2.0 + 1 * mSATA 2.0
PSU: DC 12V miner power supply (6PIN*8)

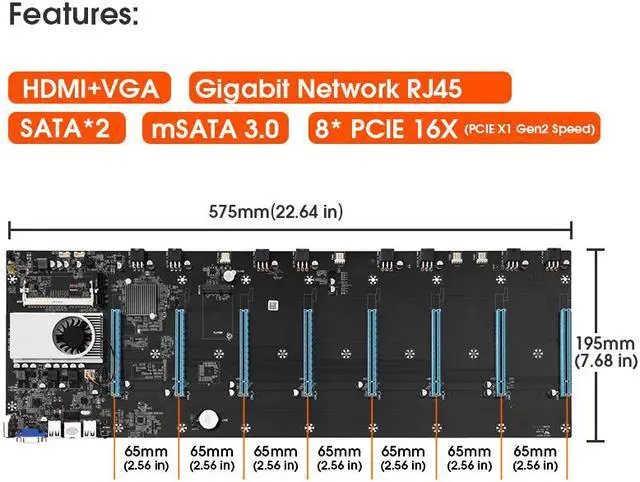

Size: 575*195mm (22.64*7.68in)

mSATA SSD:

Capacity:128GB
Dimension: 50 x 30 x 3mm
Power Requirement: DC3.3V/1A
Application: Desktop, laptop, server, mining matchine
Condition: New


Memory:

Chip: SEC / HY/ MT or others (ship randomly)
Type: NON ECC NON REG (laptop memory)
Frequency: DDR3 or DDR3L 1600MHz(ship randomly)
Capacity:8GB DDR3 1600MHz
Condition: New

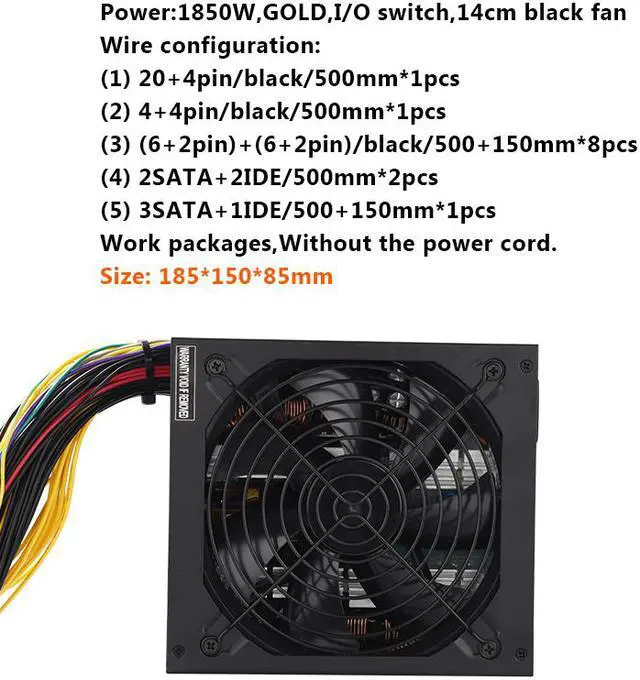

Power Supply:

Model Number: ATX Mining Machine Power Supply
Input Voltage: AC 180V~240V
Support graphics card :8
Rated power: 1800W
Maximum power:1850W


Power cable:

Wire Gauge: 18 AWG wire
length: 10.23 Inch / 260mm
8 pin Female end to connect to the power connector of the power supply
Two 8 pin(6+2) Male ends to plug into video graphics card and mining motherboard.

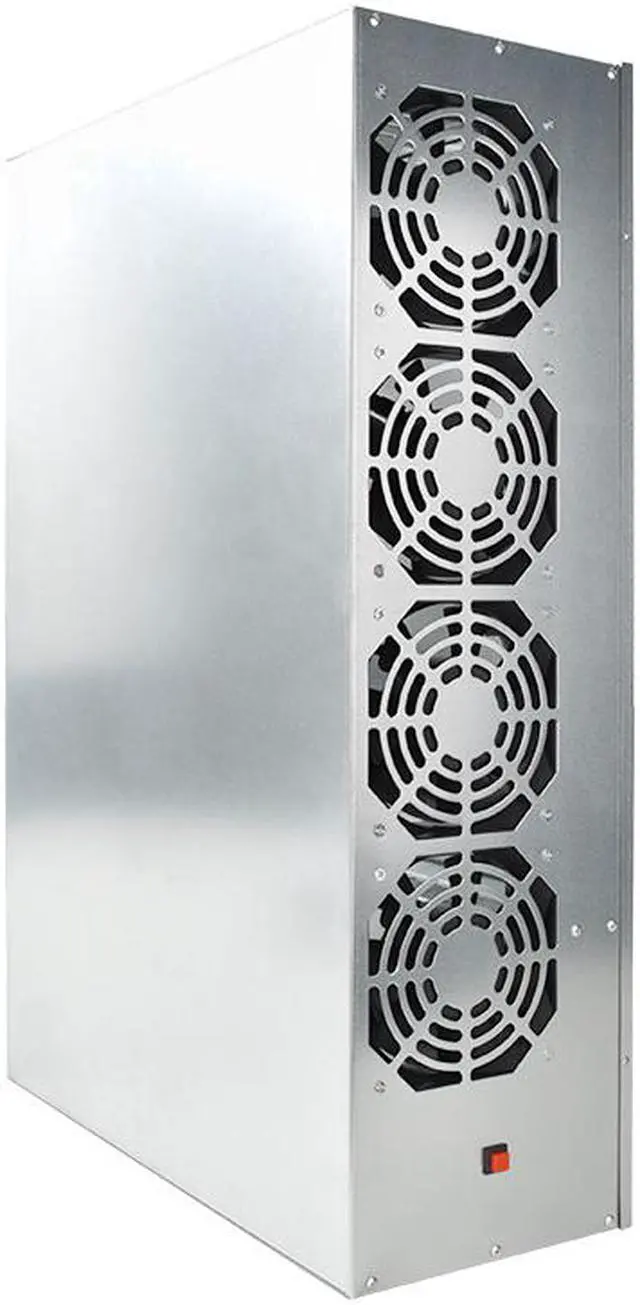

Chassis:
Size: 600*360*180mm
Fan: 4 fans in the box

Questions & Answers

Q : Which graphics cards can be used on this motherboard?
A : Except RTX3060, all other mainstream mining graphics cards can be used on this motherboard, such as RX580 / RX5500 XT / RX5700 / GTX1660 SUPER / GTX1660 Ti / RTX 2060 2070 3070 3080 3090, etc.

Q : Which cryptocurrencies can this motherboard mine?
A : Ethereum and Shib Coin

Q : What is the hashrate of the graphics card on this motherboard?
A : Except for RTX3060, all other mining graphics cards can release normal hashrate on this motherboard. For example, the hashrate of RX580 can reach up to 31MH/s.

Q : What operating systems does the motherboard support?
A : Mainstream operating systems are supported, such as windows 10, linux, HiveOS, RaveOS, etc.

Q : What is the spacing of the PCIe slots?
A : The PCIe slot spacing of BTC-S37 is 65mm (2.56in),the large spacing can meet the direct insertion of 8 large-size graphics cards without the need for riser transfer. If you are using RTX 2060 2070 3070 3080 3090 these large size cards, then BTC-S37 will be your best choice. (BTC-S37 65mm > BTC-D37 60mm > BTC-T37 50mm )

Q : What kind of power supply does this motherboard use ?
A : BTC-S37 can use ATX and DC power supply .When you use ATX power supply, you need to use an adapter to short-circuit the 24pin plug of the power supply.

Q : Is there a battery on this motherboard? What type of battery is used?
A : The motherboard does not have a battery, because the customs prohibits the battery. The battery model is CR2032 .

Q : How to get the video output, is there an onboard graphics card?
A : The motherboard has an onboard CPU and an integrated graphics card .

Q : Memory and storage interface ?
A : Support DDR3 notebook memory, mSATA and 2 SATA interfaces .


Q : What is the power supply voltage and power?

A : Input Voltage: AC 180V~240V , Rated power: 1800W , Maximum power:1850W.
