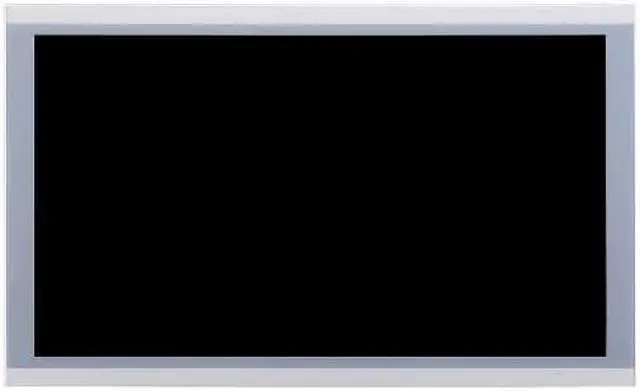

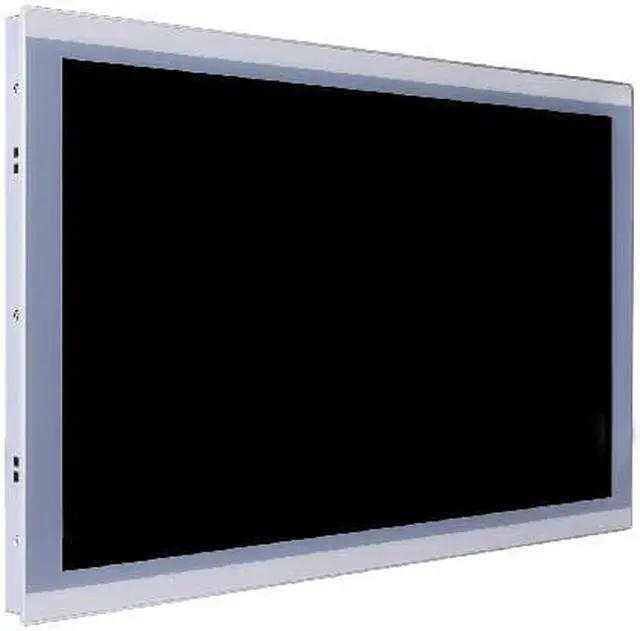

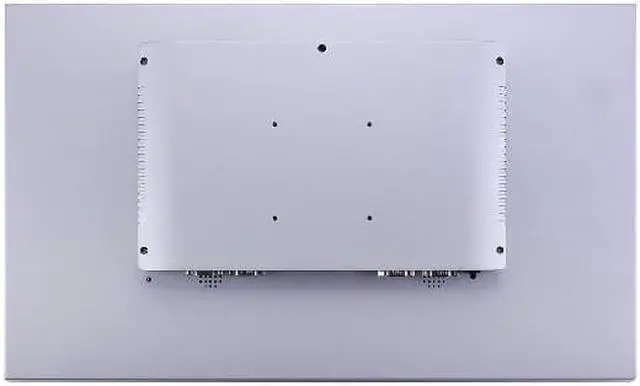

21.5 Inch TFT LED Industrial Panel PC, Intel J1900, HUNSN PW30, 10-point Projected Capacitive Touch Screen, VGA, 4 x USB, LAN, 3 x COM, Barebone, NO RAM, NO Storage, NO System
- 21.5 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1920 x 1080 resolution, powered by intel celeron quad core j1900 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
- HUNSN PW30 designed with 12v dc, vga, 3 x com, usb3.0, 3 x usb2.0, lan, audio-in&out, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kitsSize at 527.8 x 321 x 54.5mm, 5.7kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW30
Panel: 21.5" TFT LED panel, front panel protection IP65
CPU: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Memory: 1 x SODIMM DDR3L 1333, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, VGA, 3 x COM, USB3.0, 3 x USB2.0, LAN, AUDIO-IN&OUT, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 527.8 x 321 x 54.5mm
Weight: 5.7kgs
Opening Hole: 522 x 315mm
Resolution: 1920 x 1080
Perspective: 80(L), 80(R), 80(T), 80(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW30 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
Model Number: HUNSN PW30
Panel: 21.5" TFT LED panel, front panel protection IP65
CPU: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Memory: 1 x SODIMM DDR3L 1333, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, VGA, 3 x COM, USB3.0, 3 x USB2.0, LAN, AUDIO-IN&OUT, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 527.8 x 321 x 54.5mm
Weight: 5.7kgs
Opening Hole: 522 x 315mm
Resolution: 1920 x 1080
Perspective: 80(L), 80(R), 80(T), 80(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW30 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
