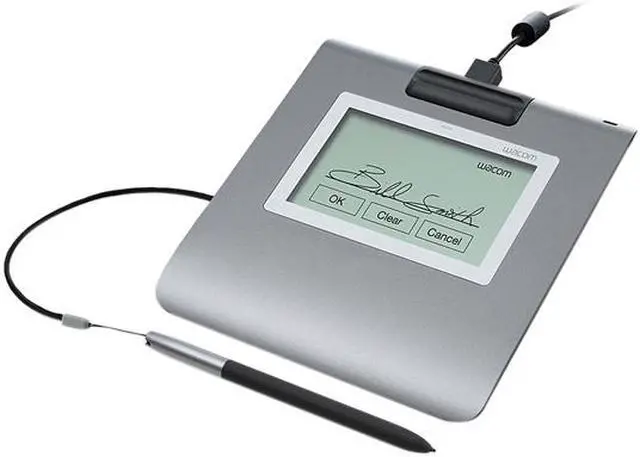

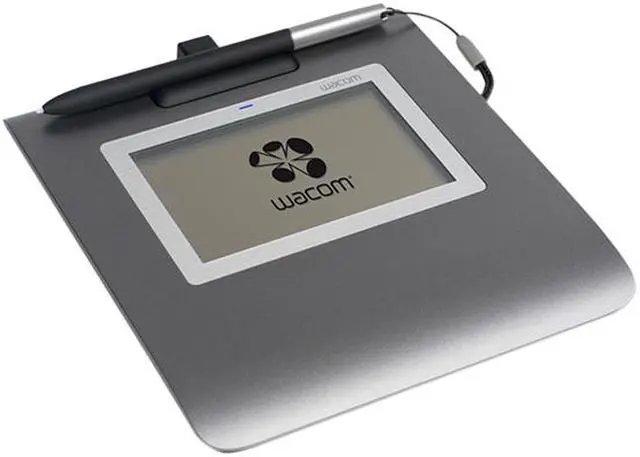

Wacom STU-430 4.5" Monochrome Signature Pad, 2540 lpi, 1024 Pressure Level, Pen, USB Interface

(3) Write a Review
  • 4.5", 320 x 200
  • The STU-430 is a full-featured, monochrome signature pad w/ a new thin design & a low-profile, flat surface
  • The 4.5’’ screen is large enough to capture longer signatures as well as to accommodate soft buttons in addition to the signature area
  • The transflective LCD is easily readable in varying light conditions
  • Patented cordless, battery-free pen w/ 1024 levels of pressure sensitivity to accurately capture the unique pen pressure profile of a signature to be included in the biometric data
  • State-of-the-art RSA/AES encryption to perform secure transactions

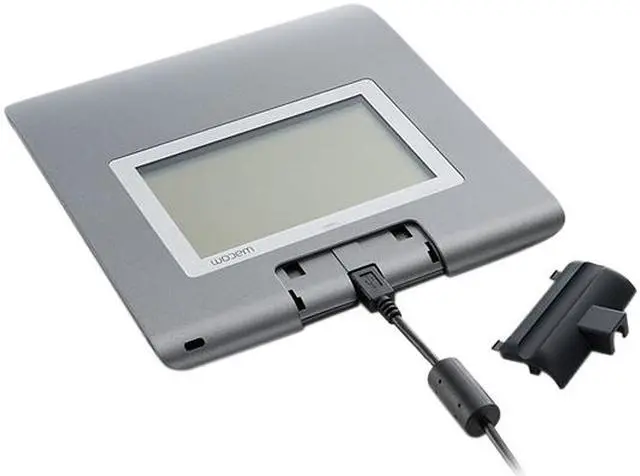

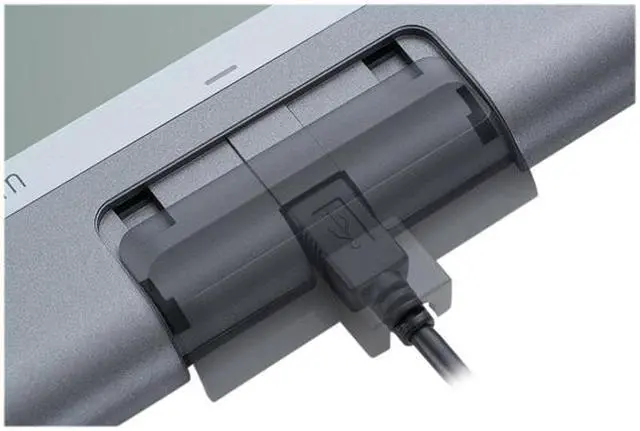

  • Pen holder/USB cable lock combination provides a convenient area to place the pen, plus USB lock prevents accidental disconnection of USB cable
  • Unique hardware ID so the exact device used for signing can be identified
  • Integrated lock slot to secure the unit when needed
  • Hardened glass protects the LCD & is highly scratch resistant
  • Software sold separately
+
+
Overview
Specs
Reviews (3)
Wacom for Contracts & Forms

STU-430 LCD Signature Tablet

The STU-430 features a 4.5" monochrome LCD display that is large enough to easily accommodate soft buttons in addition to the signature area. The transreflective screen makes it easily viewable in nearly any typical lighting condition in office environments. It offers a very comfortable signing experience with an improved, thin design and a low-profile, flat surface.

The 1024 levels of pressure sensitivity allow a natural signature capturing. For secure and safe transactions an AES 256 bit encryption and RSA 2048 bit key exchange is included in the pad. Additionally, each unit is assigned a unique hardware ID in order to determine the exact unit that was used for a particular signature.

  • 4.5" monochrome, reflective LCD display easily accommodates large signatures and soft buttons
  • Wacom's patented electromagnetic resonance technology has high durability because it has no active circuitry in surface glass. It supports pen pressure and has high sensor resolution for detailed signature data.
  • Hardened glass signing surface is extremely durable. Protects LCD and is highly resistant to scratches
  • Patented cordless, battery-free pen with 1024 levels of pressure sensitivity to accurately capture the unique pen pressure profile of a signature to be included in the biometric data
  • State-of-the-art RSA/AES encryption to perform secure transactions
  • Pen holder/USB cable lock combination provides a convenient area to place the pen, plus USB lock prevents accidental disconnection of USB cable
  • Unique hardware ID so the exact device used for signing can be identified
  • Integrate lock slot to secure the unit when needed
Compare Signature Accuracy: The pad's high sensor resolution and pressure levels produce a clear and true-to-life electronic signature.

100% Hand Rejection: Electromagnectic resonance (EMR) is used to capture the movements of the pen, not accidental touches by the hand or finger. EMR ensures that only the intended signature is captured.

User Acceptance: The ability to see your signature as it is captured provides an intuitive signing experience.

Lower Cost of Ownership: A durable signing surface and Wacom's cordless, battery-free pen technology contribute to a lower total cost of ownership.
Wacom Signature Solutions
  Compare Compare Compare Compare Compare
  STU 300 STU 430 STU 500 STU520 STU 530
General Specifications
Overall Dimensions (Excluding Stand) 6.1 x 5 x 0.6 inches
(156 x 127 x 17mm)		 6.3 x 6.8 x 0.4 inches
(161 x 174 x 11mm)		 6.2 x 7.2 x 1 inches
(160 x 183 x 25mm)		 6.5 x 7 x 0.6 inches
(166 x 177 x 16mm)		 6.3 x 6.8 x 0.4 inches
(161 x 174 x 11mm)
Weight 0.5lbs (0.25kg) 0.6lbs (0.27k)g 0.8lbs (0.4kg) 0.6lbs (0.3kg) 0.6lbs (0.27kg)
Power Management USB USB USB USB USB
Software No driver, integrated in signature applications from leading software vendors; C++, .Net and Java SDK/API available for developers No driver, integrated in signature applications from leading software vendors; C++, .Net and Java SDK/API available for developers No driver, integrated in signature applications from leading software vendors; C++, .Net and Java SDK/API available for developers No driver, integrated in signature applications from leading software vendors; C++, .Net and Java SDK/API available for developers No driver, integrated in signature applications from leading software vendors; C++, .Net and Java SDK/API available for developers
LCD Screen
Screen Type F-STN, monochrome, reflective F-STN, positive, reflective TFT LCD, monochrome, reflective TFT LCD, color Amorphous, TFT LCD, color
Screen Size 4.12" (99 x 25mm) 4.5" (99 x 60mm) 5" (100.2 x 76.6mm) 4.7" (103.92 x 60.48mm) 5" (108 x 64.8mm)
Maximum Resolution 390 x 100 320 x 200 640 x 480 800 x 480 800 x 480
Viewing Angle (H/V) 80° / 80° n/a 120° / 120° 160° / 160° 140° / 120°
Pen and Tablet
Reading Technology Electromagnetic resonance (EMR) Electromagnetic resonance (EMR) Electromagnetic resonance (EMR) Electromagnetic resonance (EMR) Electromagnetic resonance (EMR)
Pen Pressure Levels 512 1024 512 512 1024
Coordinate Resolution 2540lpi 2540lpi 2540lpi 2540lpi 2540lpi
Pen Report Rate 200 points/sec 200 points/sec 200 points/sec 200 points/sec 200 points/sec
Battery-Free, Cordless Pen Yes Yes Yes Yes Yes
Pen Tether Yes Yes Yes Yes Yes
