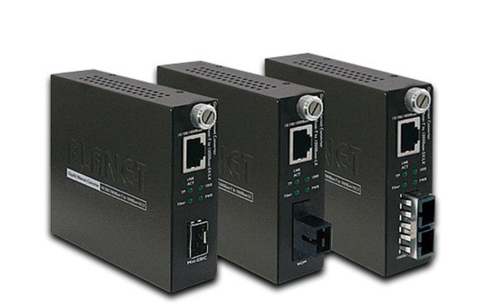

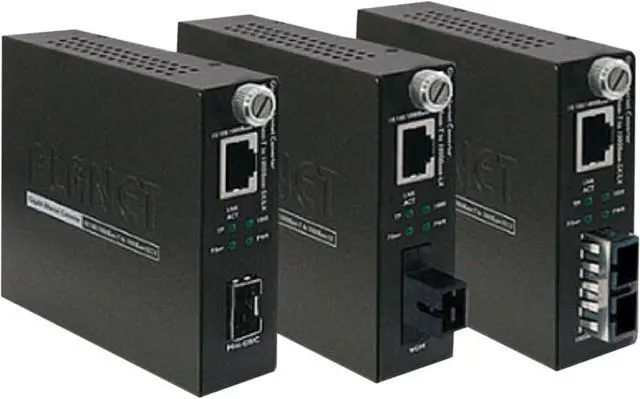

PLANET GST-802 10/100/1000TX to 1000SX Smart Media Converter (MM, SC, 2 km)

Be the first to review this product...
  • 10/100/1000TX to 1000SX
  • Mode: Multi-Mode
  • Wavelength: 850nm
  • Fiber Connection: SC
+
+
Overview
Specs
Reviews
PLANET TECHNOLOGY GST-802 10/100/1000Base-T to 1000Base-SX Smart Gigabit Converter To provide an easy use yet powerful solution for FTTX applications PLANET releases a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter GST-80x series featuring plug & play and smart media conversion functions. Â Distance Extension with High Performance and Steady Network CommunicationThe PLANET Smart Gigabit Media Converter - GST-80x series extends communication distance with highly Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m) single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM 15/60km) for various fiber optic applications.

 Enhanced Smart Management FeaturesThe GST-80x series provides Auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation / force for fiber interface and Link Pass Through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Also the LLR function can immediately alarm network administrator the media link issue and provide efficient solution to monitor the entire network.  Easy InstallationThe GST-80x series allows two type segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by it's DC adapter or used as a slide-in module to the PLANET 19-inch Web Smart / Managed 16-Slots media converter chassis (MC-1600MR/MC-1600MR48 & MC-1610MR / MC-1610MR48).

When working with the Web Smart / Managed media converter chassis the GST-80x is able to be managed and its status be monitored through the local RS-232 console and remote web interface. Â Ordering Information GST-802 10/100/1000Base-T to 1000Base-SX (SC MM) Smart Media Converter-220m/550m GST-802S 10/100/1000Base-T to 1000Base-LX (SC SM) Smart Media Converter-10km GST-805A 10/100/1000Base-T to 1000Base-LX/SX(mini-GBIC SFP) Smart Media Converter-distance depend on SFP module GST-806A15 10/100/1000Base-T to 1000Base-LX (WDM) Smart
Media Converter-TX: 1310nm-15km GST-806A60 10/100/1000Base-T to 1000Base-LX (WDM) Smart
Media Converter-TX: 1310nm-60km GST-806B15 10/100/1000Base-T to 1000Base-LX (WDM) Smart
Media Converter-TX: 1550nm-15km GST-806B60 10/100/1000Base-T to 1000Base-LX (WDM) Smart
Media Converter-TX: 1550nm-60km

general information

general information

GST-80X Series

10/100/1000BASE-T to 1000BASE-SX/LX Smart Media Converter

With high-performance data transmission, smart media conversion function, and plug-and-play feature, the PLANET GST-80X series smart media converter is an ideal solution for building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb), or FTTB (Fiber to the Building) for ISPs, campuses and enterprises.

Features

Distance Extension with High Performance and Steady Network Communication

The PLANET GST-80x series extends communication distance with highly Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m/550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM,15/60km) for various fiber optic applications.

Enhanced Smart Management Features

The GST-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions, including the auto-negotiation/force for fiber interface and Link Pass-through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Also, the LLR function can immediately alert network administrator to the media link issue and provide efficient solution for monitoring the entire network.

Easy Installation

The GST-80x series allows two segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch managed 16-slot media converter chassis (MC-1610MR / MC-1610MR48). When working with the Managed media converter chassis, the GST-80x is able to be managed and its status can be monitored through the local RS-232 console and remote web interface.

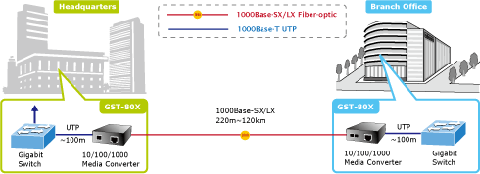

Applications

Fiber-Optic Networking for ISP, Enterprise, and Home

The PLANET GST-80x provides advanced media conversion technology - 10/100/1000Base-T and 1000Base-SX/LX interfaces to fulfill different kinds of demands as the current network grows and expands. The GST-80x provides diverse fiber connecting type options for different network applications. It is very flexible for the GST-80x to work as a standalone device or be installed in the central management media converter chassis for centralized management. When working with the management media converter chassis, the GST-80x is hot swappable to avoid network downtime.

general information

general information

Available in Multiple Models

GST-802 10/100/1000Base-T to 1000Base-SX(SC,MM) Smart Media Converter-220m/550m
GST-802S 10/100/1000Base-T to 1000Base-LX(SC,SM) Smart Media Converter-10km
GST-805A 10/100/1000Base-T to 1000Base-LX/SX(mini-GBIC, SFP) Smart Media Converter-distance depends on SFP module
GST-806A15 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter-TX:1310nm-15km
GST-806A60 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter-TX:1310nm-60km
GST-806B15 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter-TX:1550nm-15km
GST-806B60 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter-TX:1550nm-60km
