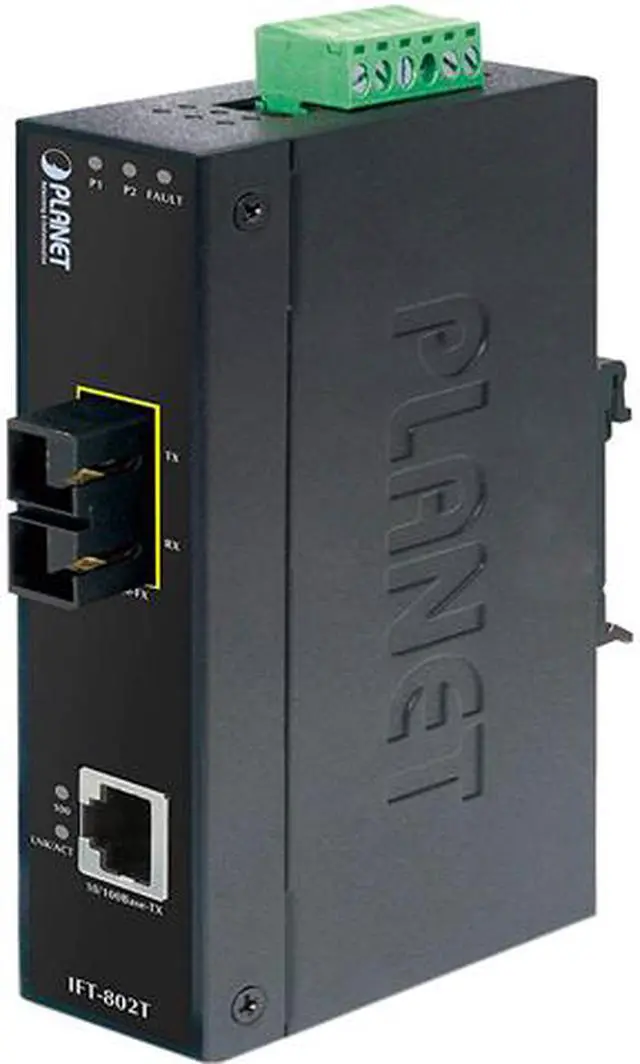

PLANET IFT-802TS15 Transceiver

Name: PLANET IFT-802TS15 Transceiver
Brand: PLANET
SKU: N82E16833322132
Price: 604.79 AED
Availability: InStock

Specs

Reviews

Learn more about the PLANET IFT-802TS15

Model
Brand	PLANET
Model	IFT-802TS15

Details
Device Type	Converter
Wavelength	1310nm
Fiber Cable	Single-mode Optical Fiber
Max Distance	15km
LEDs	System: Power 1 (Green) Power 2 (Green) Fault (Green) 1 x copper port: 10/100 (Green) LNK / ACT (Green) 1 x 100FX port: 100 (Green) LNK / ACT (Green)
Power Adapter	Power Input: 12 to 48V DC redundant power with polarity reverse protection function Power Consumption: 3 watts / 10 BTU (maximum)

Features
Feature	Interface: 1 x 100Base-FX SC interface, providing long distance for 15km on IFT-802TS15 Industrial Conformance: 12V to 48V DC, redundant power with polarity reverse protect function -40 to 75 degrees C operating temperature IP30 metal case Relay alarm for port breakdown Supports 6KV DC Ethernet ESD protection Supports 6KV DC EFT protection for power line Free Fall, Shock and Vibration Stability DIN-rail and wall-mountable hardware design Layer 2 Features: Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port Store-and-Forward Switching Architecture Features Store-and-Forward mode with wire-speed filtering and forwarding rates Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) Supports packet size of up to 1522 bytes CSMA / CD Protocol Automatic source address learning and aging

Dimensions & Weight
Dimensions	1.26" x 5.31" x 3.35"
Weight	0.95 lb.

Additional Information
Date First Available	December 28, 2018
