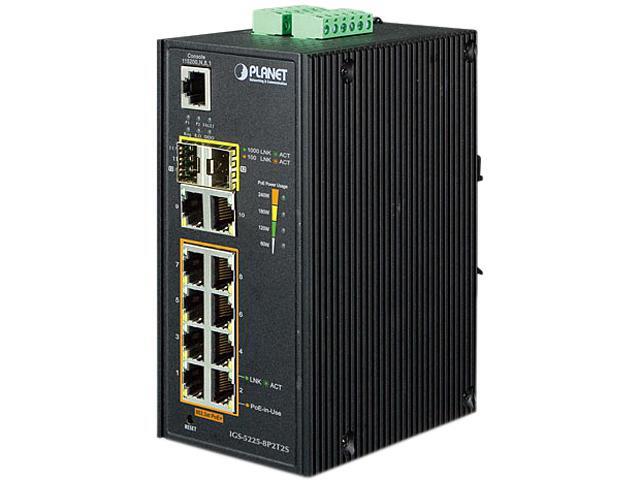

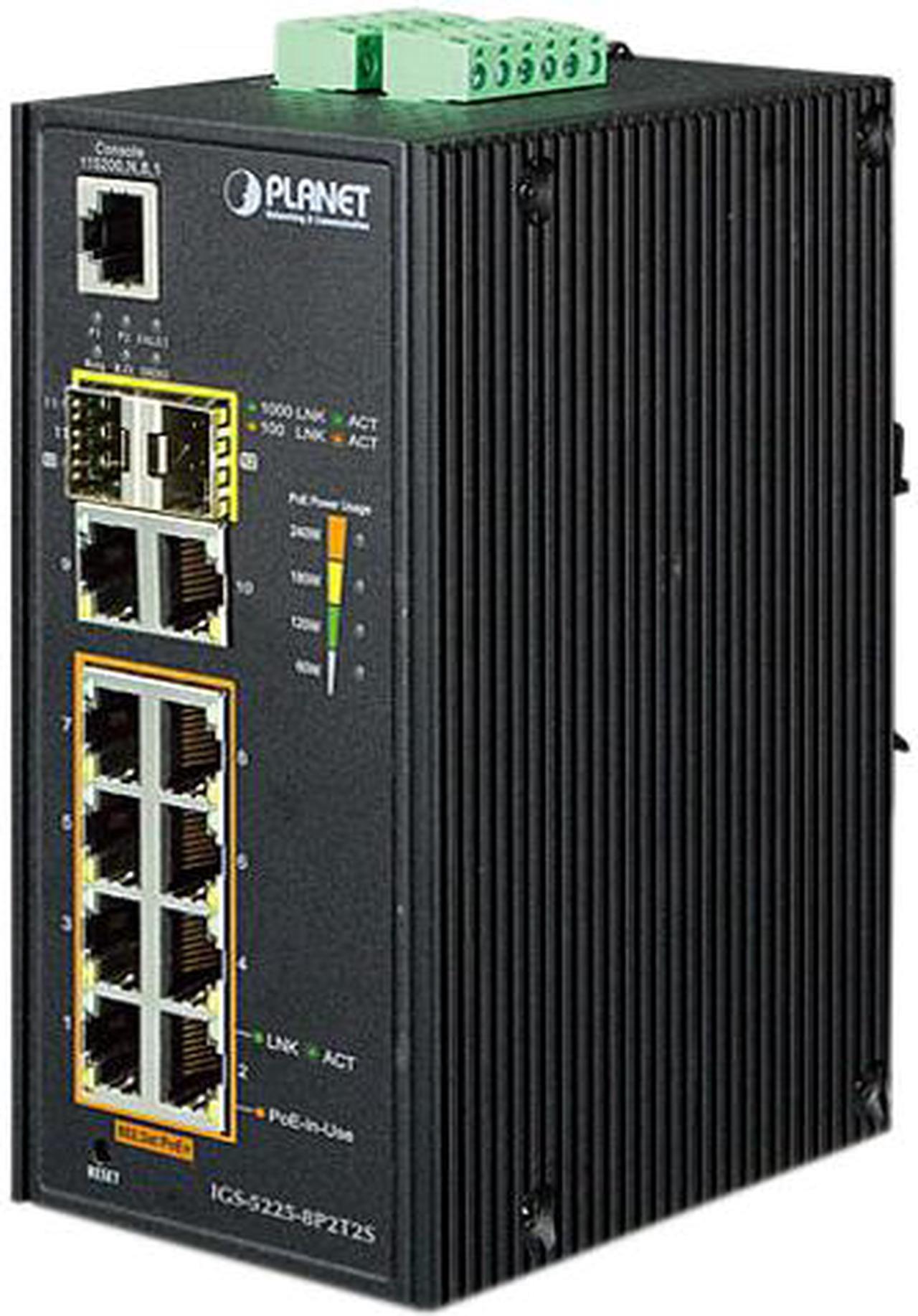

PLANET IGS-5225-8P2T2S L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T+ 2-Port 100/1000X SFP Managed Ethernet Switch
- 8K MAC Address Table
- Managed
- PoE
+
+
Specs
Reviews
Learn more about the PLANET IGS-5225-8P2T2S
| Brand | PLANET |
|---|---|
| Model | IGS-5225-8P2T2S |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX / 100BASE-FX IEEE 802.3z Gigabit SX / LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 1588 PTPv2 RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 ITU G.8032 ERPS Ring |
|---|---|
| Network Management Type | Managed |
| Primary Ports | 8 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector 2 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 x 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection One RJ45 console interface for basic management and setup |
|---|
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | Yes |
| Jumbo Frames | 9KB |
| PoE | Yes |
|---|---|
| SNMP | Yes |
| QoS | Yes |
| LACP | Yes |
| Port Mirroring | Yes |
| LEDs | System: Power 1 (Green) Power 2 (Green) Fault Alarm (Red) Ring (Green) Ring Owner (Green) DIDO (Red) Per 10/100/1000T RJ45 PoE+ Ports: PoE-in-Use (Orange) LNK / ACT (Green) Per SFP Interface: 100 LNK / ACT (Orange) 1000 LNK / ACT (Green) |
| Power | Power Requirements: Dual 48~56V DC (>51V DC for PoE+ output recommended) Power Consumption: Max. 7.3 watts / 25.04 BTU (Power on without any connection) Max. 252.3 watts / 865.64 BTU (Full loading with PoE function) |
| Features | Physical Port: 8 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector 2 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 x 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection One RJ45 console interface for basic management and setup Power over Ethernet: Complies with IEEE 802.3at Power over Ethernet Plus / end-span PSE Up to 8 IEEE 802.3af / 802.3at devices powered Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100m PoE management features - Total PoE power budget control - Per port PoE function enable / disable - PoE admin-mode control - PoE port power feeding priority - Per PoE port power limit - PD classification detection Intelligent PoE features - Temperature threshold control - PoE usage threshold control - PD alive check - PoE schedule Industrial Protocol: Modbus TCP for real-time monitoring in a SCADA system IEEE 1588v2 PTP (Precision Time Protocol) Industrial Case and Installation: IP30 aluminum case DIN rail and wall-mount design 48~56V DC, redundant power with polarity reverse protect function Supports 5000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature Digital Input and Digital Output: 2 x Digital Input (DI) 2 x Digital Output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via email and SNMP trap |
|---|
| Dimensions | 5.98" x 2.83" x 4.21" |
|---|---|
| Weight | 2.18 lbs. |
| Temperature | Operating Temperature: -40 ~ 75 degree Celsius Storage Temperature: -40 ~ 85 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| Date First Available | March 07, 2025 |
|---|
