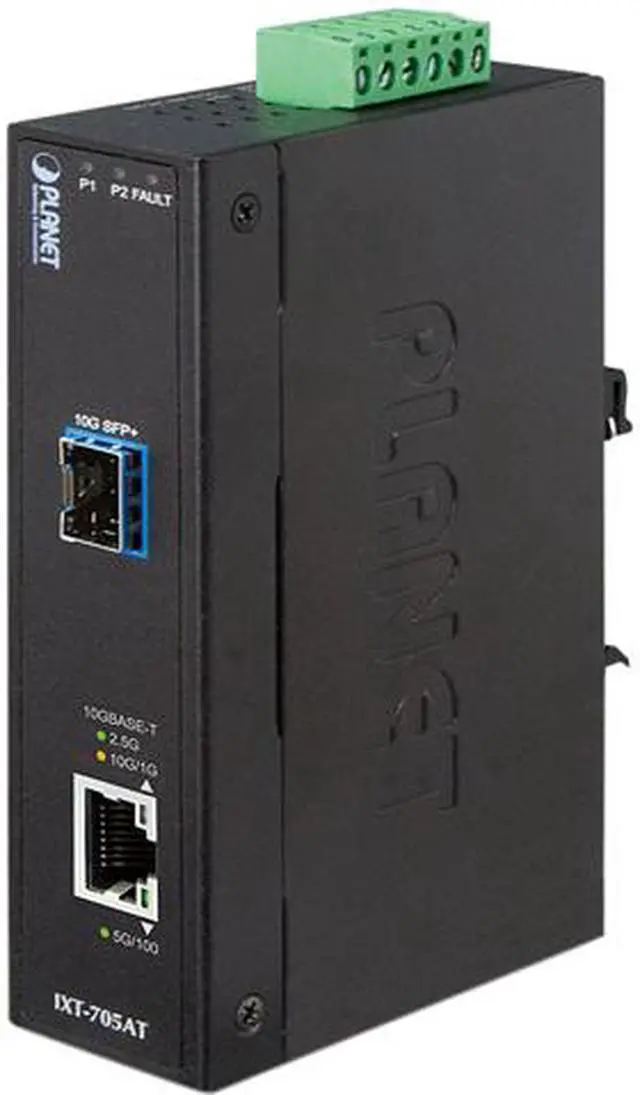

PLANET IXT-705AT Industrial 10G / 5G / 2.5G / 1G / 100M Copper to 10GBASE-X SFP+ Media Converter
+
+
Specs
Reviews
Learn more about the PLANET IXT-705AT
| Brand | PLANET |
|---|---|
| Model | IXT-705AT |
| Device Type | Converter |
|---|---|
| Standards | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G / 5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control |
| LEDs | System: Fault Alert (Red), PWR (Green) 10000/5000/2500/1000/100 BASE-T RJ45 Interfaces: 1/10G LNK(Orange) 5000/2500/100M LNK (Green) |
| Power Adapter | Power Requirements: DC 12~48V or 24V AC |
| Temperature | Operating Temperature: -40 ~ 75 degree Celsius Storage Temperature: -40 ~ 75 degree Celsius |
|---|---|
| Humidity | Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Feature | Physical Port: 1-port 10000/5000/2500/1000/100BASE-T RJ45 interface with auto MDI/MDI-X function 1-port 10GBASE-X SFP+ slot interface Layer 2 Features: IEEE 802.3u / 802.3ab / 802.3bz / 802.3ae Ethernet standard compliant Supports auto-negotiation and 100 Mbps half / full duplex and 1/2.5/5/10Gbps full duplex mode Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) 16K jumbo frame size support Automatic address learning and address aging Industrial Case and Installation: Slim-type IP30 metal case DIN rail and wall-mount design Redundant power design - 12 to 48V DC, redundant power with polarity reverse protect function - AC 24V power adapter acceptable Supports 6000 VDC Ethernet ESD protection 100 meters over Cat 6A at 10Gbps -40 to 75 degrees C operating temperature Plug and Play installation |
|---|
| Dimensions | 5.31" x 1.26" x 3.43" |
|---|---|
| Weight | 1.01 lbs. |
| Date First Available | December 28, 2018 |
|---|
