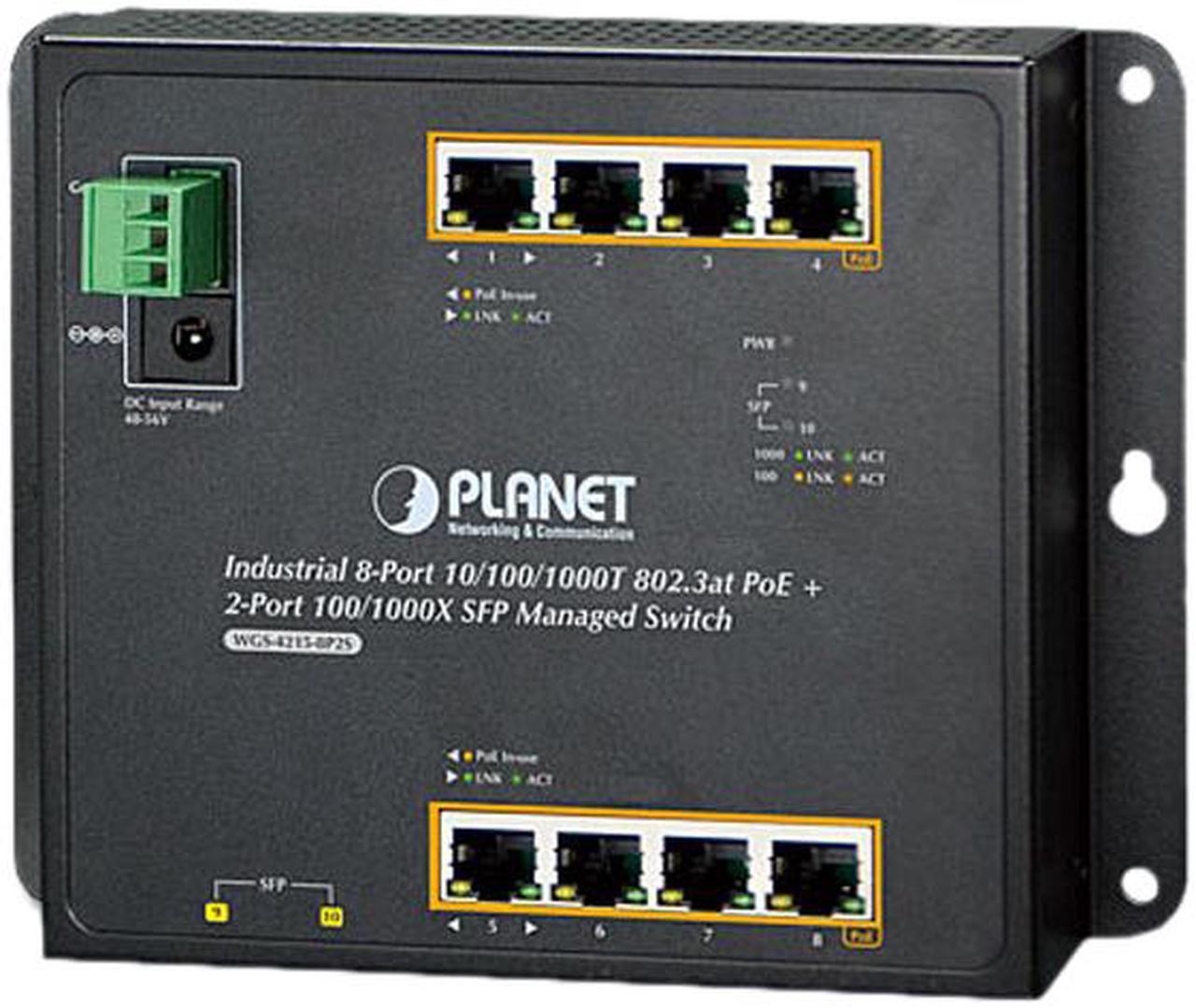

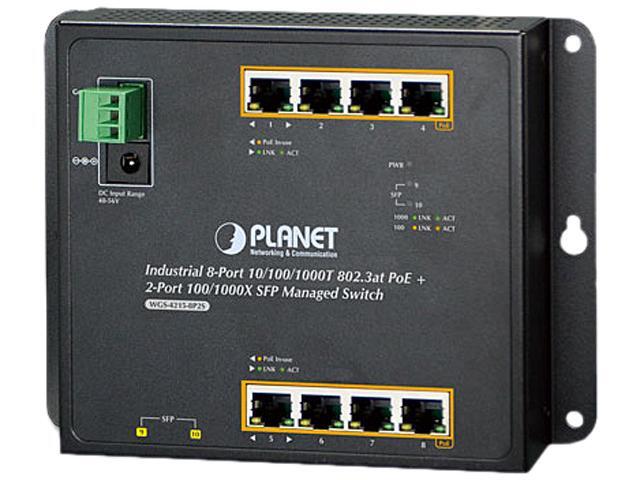

Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mounted Managed Switch (-40 - 75 degrees C)
- 8K MAC Address Table
- 4.1MB Buffer Memory
- Managed
- PoE
+
+
Specs
Reviews
Learn more about the PLANET WGS-4215-8P2S
| Brand | PLANET |
|---|---|
| Model | WGS-4215-8P2S |
| Format | Wall Mountable |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 |
| Network Management Type | Managed |
| Primary Ports | 8 x RJ45 + 2 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Jumbo Frames | 10KB |
| Buffer Memory | 4.1MB |
|---|---|
| Protocols | Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU guard, BPDU filtering and BPDU forwarding |
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS/TACACS+ authentication IP-MAC port binding MAC filtering Static MAC address DHCP snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support Broadcast/Unknown unicast/Unknown multicast |
| PoE | PoE Standard: IEEE 802.3af/802.3at Power over Ethernet PSE PoE Power Supply Type: End-span PoE Power Output: IEEE 802.3af Standard: Per port 48V - 56V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard: Per port 50V - 56V DC (depending on the power supply), max. 36 watts Power Pin Assignment: 1/2 (+), 3/6 (-) PoE Power Budget: 200 watts (depending on power input) Max. Number of Class 2 PDs: 8 Max. Number of Class 3 PDs: 8 Max. Number of Class 4 PDs: 7 |
| SNMP | Yes |
| QoS | 8 mapping IDs to 8 level priority queues: Port Number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| LACP | Yes |
| Layer | 2 |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| LEDs | Power LED: Power (Green) PoE Port (Port-1 to Port-8): PoE-in-Use (Orange), LNK/ACT (Green) 100/1000X SFP Ports (Port 9 to Port 10): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) |
| Button | Reset Button: < 5 sec: System reboot > 5 sec: Factory default |
| Power | 48 - 56V DC, 5A (max.) terminal block power input 48 - 56V DC, 5A (max.) DC jack power input Note: The two power input interfaces don’t support power redundant function. Max. 210 watts / 716 BTU |
| Features | Physical Port: 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function 2 100/1000BASE-X mini-GBIC/SFP slots Power over Ethernet: Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 8 ports of IEEE 802.3af/802.3at devices powered Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE management: Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection PD alive check PoE schedule Industrial Case and Installation: Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design IP30 metal case protection Supports -40 to 75 degrees C operating temperature Supports ESD 8KV DC Ethernet protection Dual power input design 48V - 56V DC wide power input with polarity reverse protect function 3-pin terminal block or DC jack connector Switching: Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 8K MAC address table size 10K jumbo frame Automatic address learning and address aging Supports CSMA/CD protocol Layer 2 Features: Supports VLAN Supports Spanning Tree Protocol Supports Link Aggregation Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Multicast: Supports IPv4 IGMP snooping v2, v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering |
|---|
| Dimensions | 5.28" x 7.01" x 0.98" |
|---|---|
| Weight | 1.41 lbs. |
| Temperature | -40 - 75 degree Celsius (Operating) -40 - 85 degree Celsius (Storage) |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| Date First Available | February 27, 2025 |
|---|
