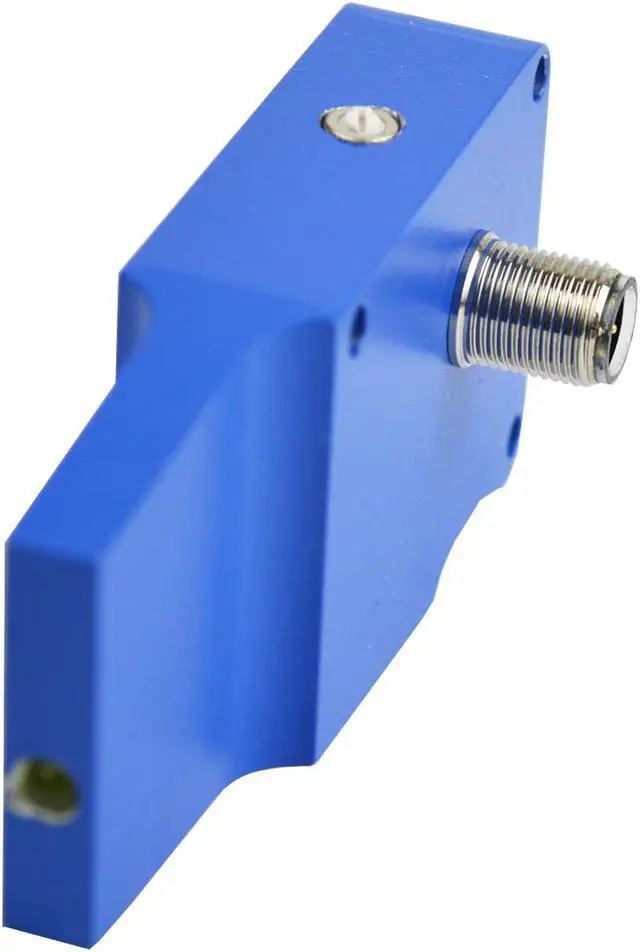

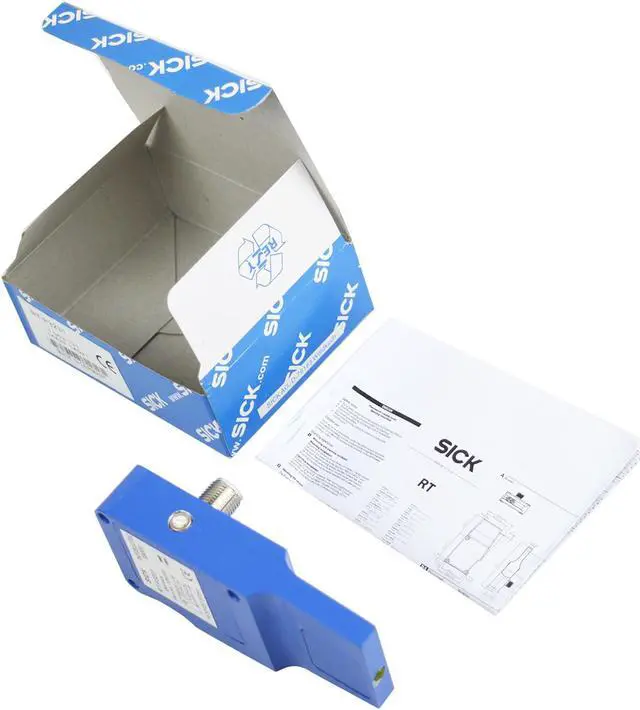

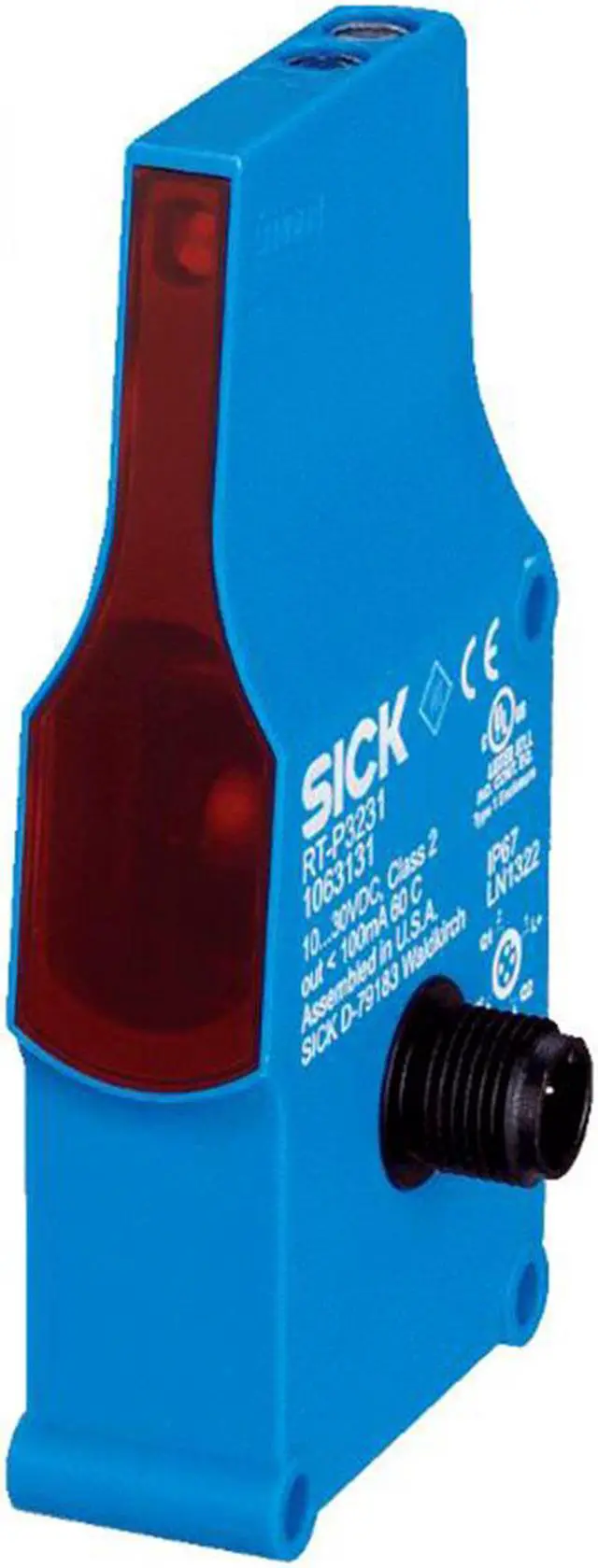

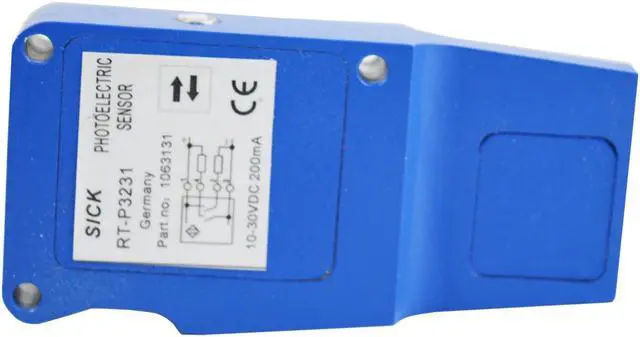

SICK RT-P3231 MultiTask Photoelectric Sensors ,PNP,New
- SICK RT-P3231 MultiTask Photoelectric Sensors ,PNP,New
+
+
Overview
Specs
Reviews

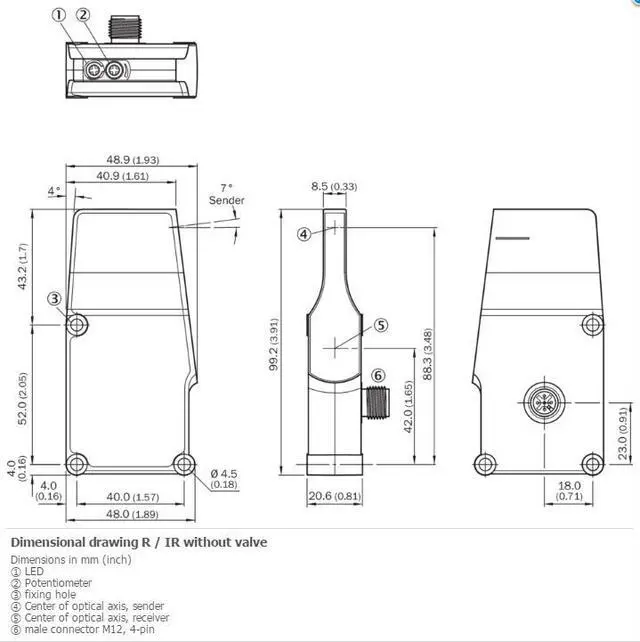

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 20.6 mm x 99.2 mm x 48.9 mm Sensing range max. 60 mm... 900 mm Sensing range 60 mm... 900 mm Type of light Infrared light Light source LED 1) Light spot size (distance) Ø 20 mm (500 mm) Angle of dispersion 7° Adjustment Potentiometer, 9 turns Special applications ZoneControl 1)
Average service life: 100, 000 h at TU = +25 °C. MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light/dark switching Signal voltage PNP HIGH/LOW Approx. VS 0.5 V / 0 V Output current Imax. = 100 mA Response time 2 ms Switching frequency 250 Hz Connection type Male connector M12, 4-pin Circuit protection A 4) C 5) D 6) Protection class III Weight 175 g Housing material Plastic, ABS Enclosure rating IP67 Shock and vibration resistance According to IEC 68 Ambient operating temperature 40 °C... +60 °C Ambient storage temperature 40 °C... +75 °C UL File No. NRKH. E189383 & NRKH7. E189383
Average service life: 100, 000 h at TU = +25 °C. MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light/dark switching Signal voltage PNP HIGH/LOW Approx. VS 0.5 V / 0 V Output current Imax. = 100 mA Response time 2 ms Switching frequency 250 Hz Connection type Male connector M12, 4-pin Circuit protection A 4) C 5) D 6) Protection class III Weight 175 g Housing material Plastic, ABS Enclosure rating IP67 Shock and vibration resistance According to IEC 68 Ambient operating temperature 40 °C... +60 °C Ambient storage temperature 40 °C... +75 °C UL File No. NRKH. E189383 & NRKH7. E189383
