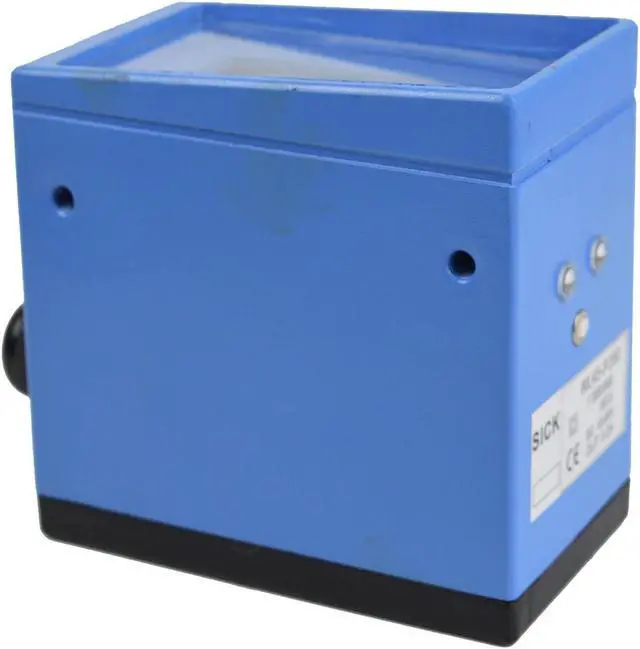

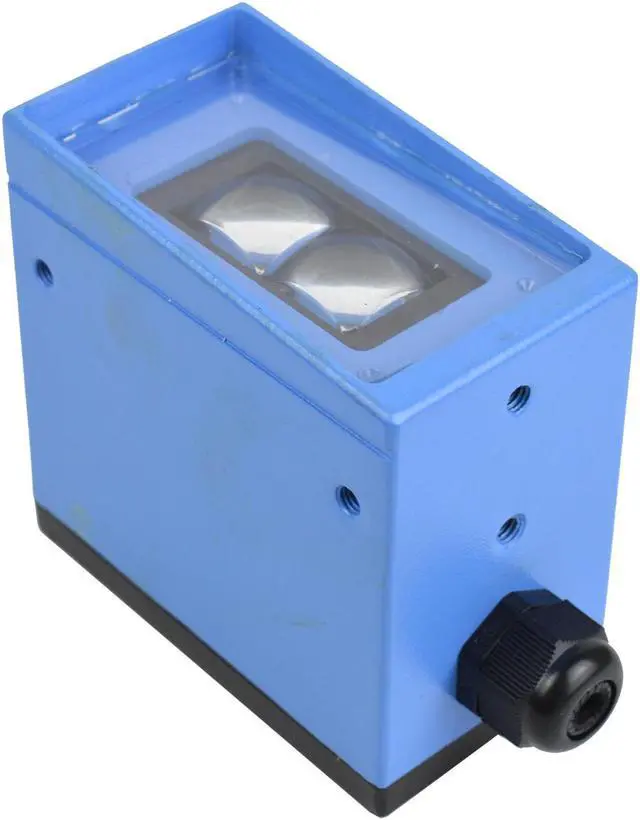

SICK WL45-P260 Photoelectric Retro-reflective Sensor,PNP,New
- SICK WL45-P260 Photoelectric Retro-reflective Sensor,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

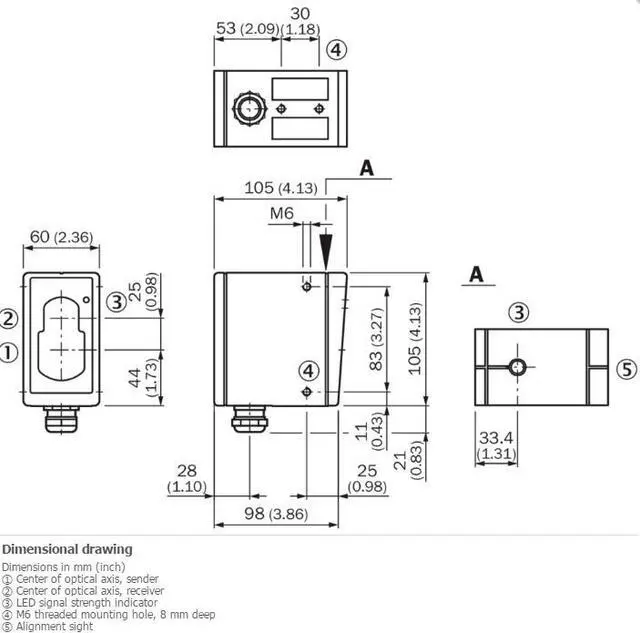

Dimensions (W x H x D) 60 mm x 105 mm x 105 mm
Housing design (light emission) Rectangular
Sensing range max. 1 m... 55 m 1)
Sensing range 1 m... 45 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 230 mm (16 m)
Adjustment Potentiometer
Time type
On delay
Off delay
ON and OFF delay
Delay time
Adjustable via time delay selector switch, 0.5 s, 12 s
0.015 s, 0.3 s
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 60 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 50 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. 200 mA
Response time = 1.2 ms 4)
Switching frequency 400 Hz 5)
Connection type Terminal connection with PG13, 5, 6-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class I 9)
Weight 800 g
Polarisation filter?
Alarm output 100 mA 10)
Housing material Metal
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature 25 °C... +55 °C 11)
Ambient storage temperature 40 °C... +70 °C
UL File No. NRKH. E181493 & NRKH7. E181493
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 60 mm x 105 mm x 105 mm
Housing design (light emission) Rectangular
Sensing range max. 1 m... 55 m 1)
Sensing range 1 m... 45 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 230 mm (16 m)
Adjustment Potentiometer
Time type
On delay
Off delay
ON and OFF delay
Delay time
Adjustable via time delay selector switch, 0.5 s, 12 s
0.015 s, 0.3 s
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 60 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 50 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. 200 mA
Response time = 1.2 ms 4)
Switching frequency 400 Hz 5)
Connection type Terminal connection with PG13, 5, 6-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class I 9)
Weight 800 g
Polarisation filter?
Alarm output 100 mA 10)
Housing material Metal
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature 25 °C... +55 °C 11)
Ambient storage temperature 40 °C... +70 °C
UL File No. NRKH. E181493 & NRKH7. E181493
