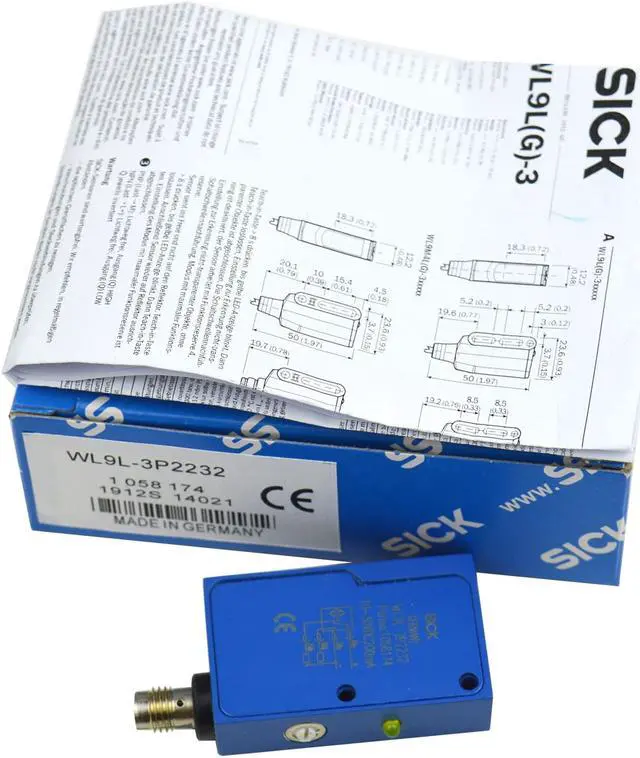

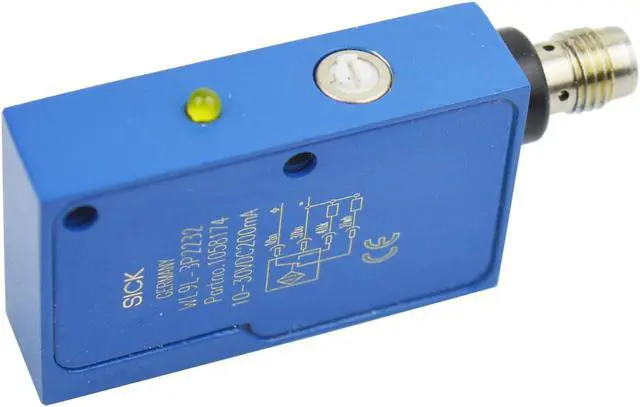

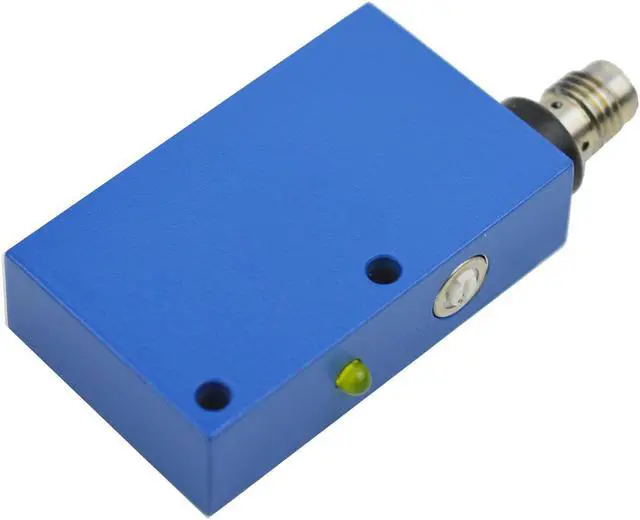

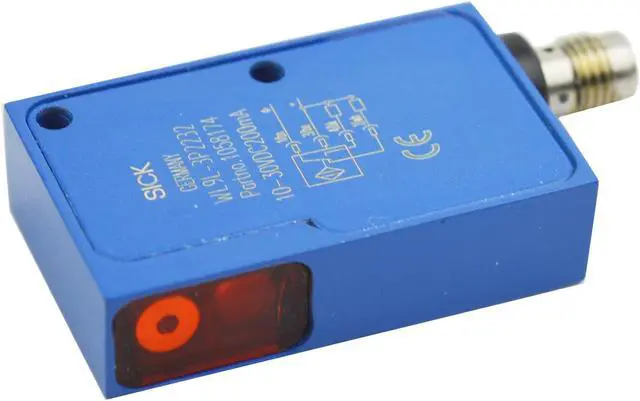

SICK WL9L-3P2232 Small Photoelectric Sensors ,PNP,New
- SICK WL9L-3P2232 Small Photoelectric Sensors ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 12.2 mm x 49.8 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M3
Sensing range max. 0 m... 12 m 1)
Sensing range 0 m... 8 m 1)
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 1 mm (500 mm)
Wave length 650 nm
Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 )
Adjustment Single teach-in button
Special applications Detecting small objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Output function Complementary
Switching mode Light/dark switching 4)
Output current Imax. = 100 mA
Response time = 0.5 ms 5)
Switching frequency 1, 000 Hz 6)
Connection type Male connector M8, 4-pin
Circuit protection
A 7)
B 8)
C 9)
Protection class III
Weight 13 g
Polarisation filter?
Housing material Plastic, VISTAL®
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Ambient operating temperature 10 °C... +50 °C
Ambient operating temperature extended 30 °C... +55 °C 10) 11)
Ambient storage temperature 30 °C... +70 °C
UL File No. NRKH. E181493
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 12.2 mm x 49.8 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M3
Sensing range max. 0 m... 12 m 1)
Sensing range 0 m... 8 m 1)
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 1 mm (500 mm)
Wave length 650 nm
Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 )
Adjustment Single teach-in button
Special applications Detecting small objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Output function Complementary
Switching mode Light/dark switching 4)
Output current Imax. = 100 mA
Response time = 0.5 ms 5)
Switching frequency 1, 000 Hz 6)
Connection type Male connector M8, 4-pin
Circuit protection
A 7)
B 8)
C 9)
Protection class III
Weight 13 g
Polarisation filter?
Housing material Plastic, VISTAL®
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Ambient operating temperature 10 °C... +50 °C
Ambient operating temperature extended 30 °C... +55 °C 10) 11)
Ambient storage temperature 30 °C... +70 °C
UL File No. NRKH. E181493
