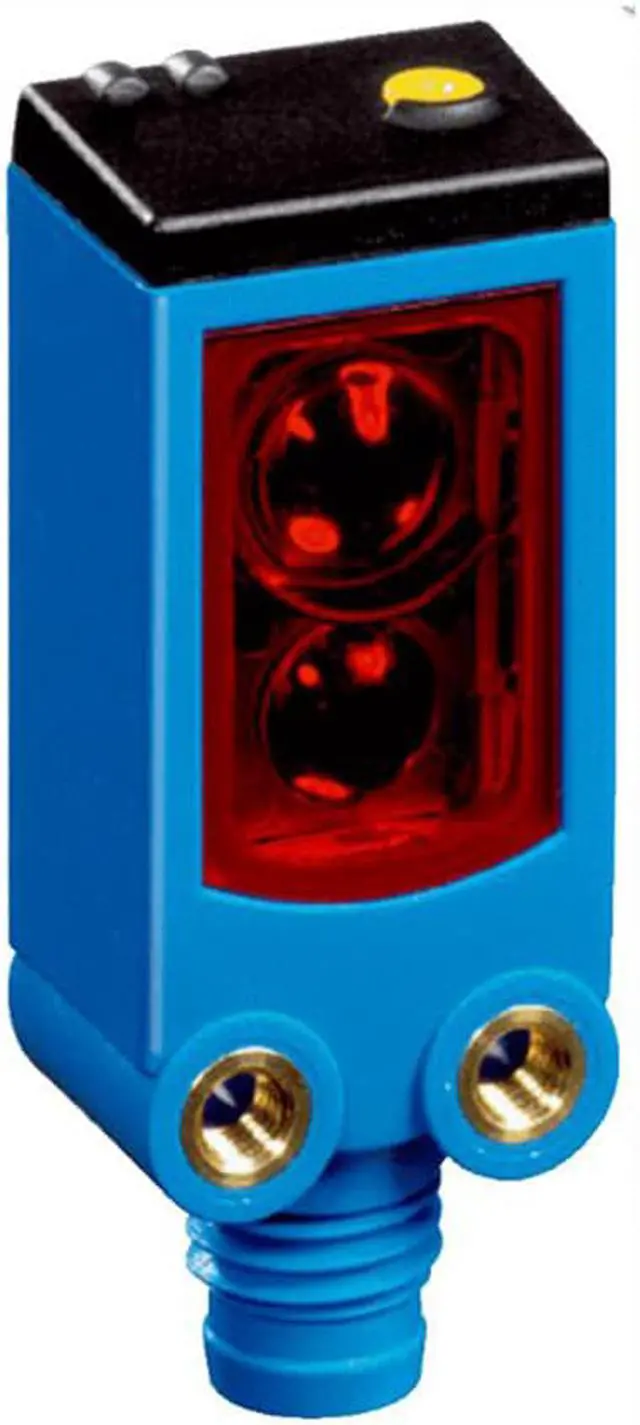

SICK WLG4-3P2132 Miniature Photoelectric Sensors PNP,New
- SICK WLG4-3P2132 Miniature Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews

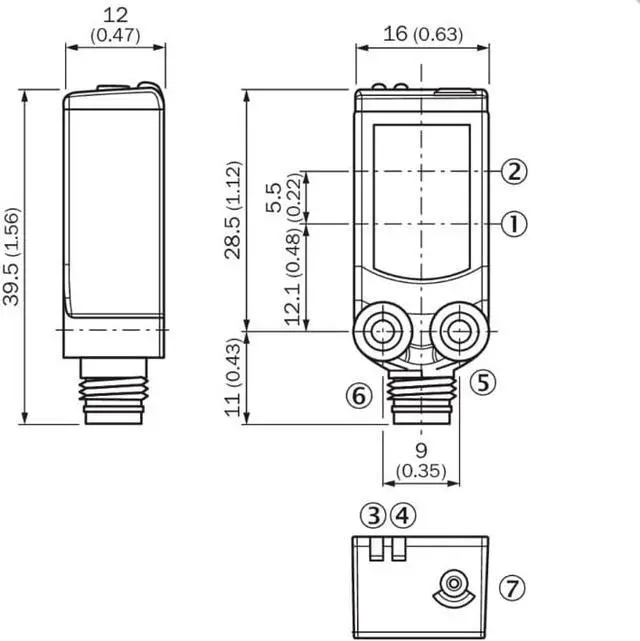

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm Housing design (light emission) Rectangular Sensing range max. 0.01 m... 4.5 m 1) Sensing range 0.02 m... 3.5 m 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 75 mm ( 1.5 m) Wave length 650 nm Adjustment Single teach-in button AutoAdapt? Special applications Detecting transparent objects MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple 5 Vpp 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light switching Output current Imax.
100 mA Response time 0.5 ms 4) Switching frequency 1, 000 Hz 5) Angle of reception Approx. 30° Attenuation along light beam 8 % Connection type Connector M8, 3-pin Circuit protection A 6) C 7) D 8) Protection class III Weight 30 g Polarisation filter? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Special feature Detecting transparent objects Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
100 mA Response time 0.5 ms 4) Switching frequency 1, 000 Hz 5) Angle of reception Approx. 30° Attenuation along light beam 8 % Connection type Connector M8, 3-pin Circuit protection A 6) C 7) D 8) Protection class III Weight 30 g Polarisation filter? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Special feature Detecting transparent objects Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
