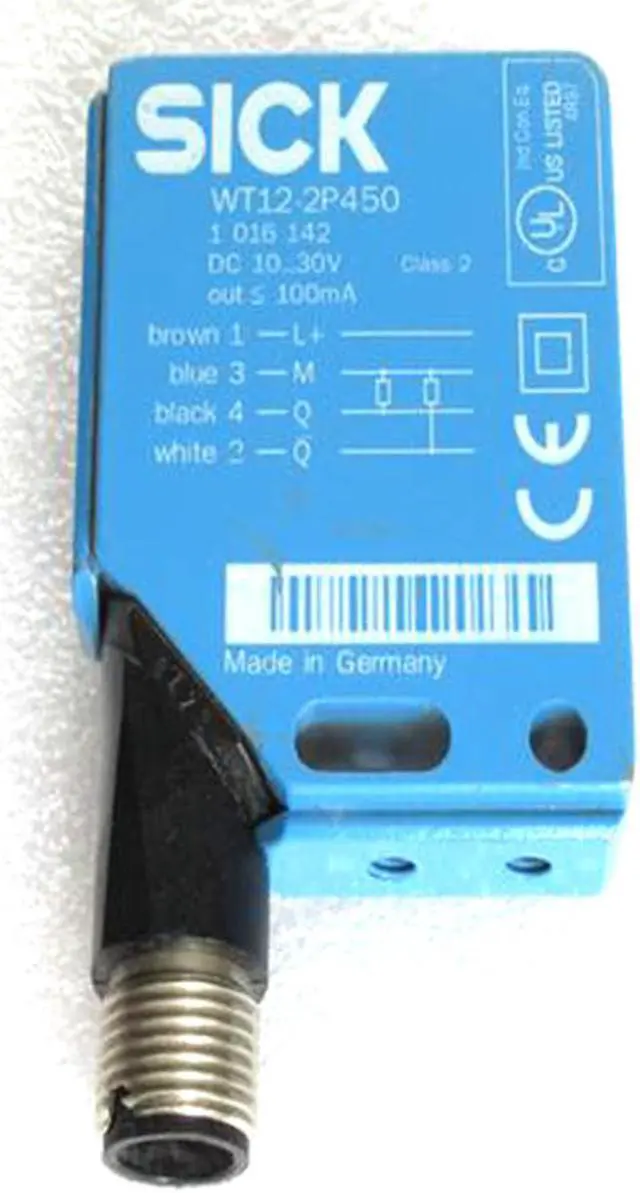

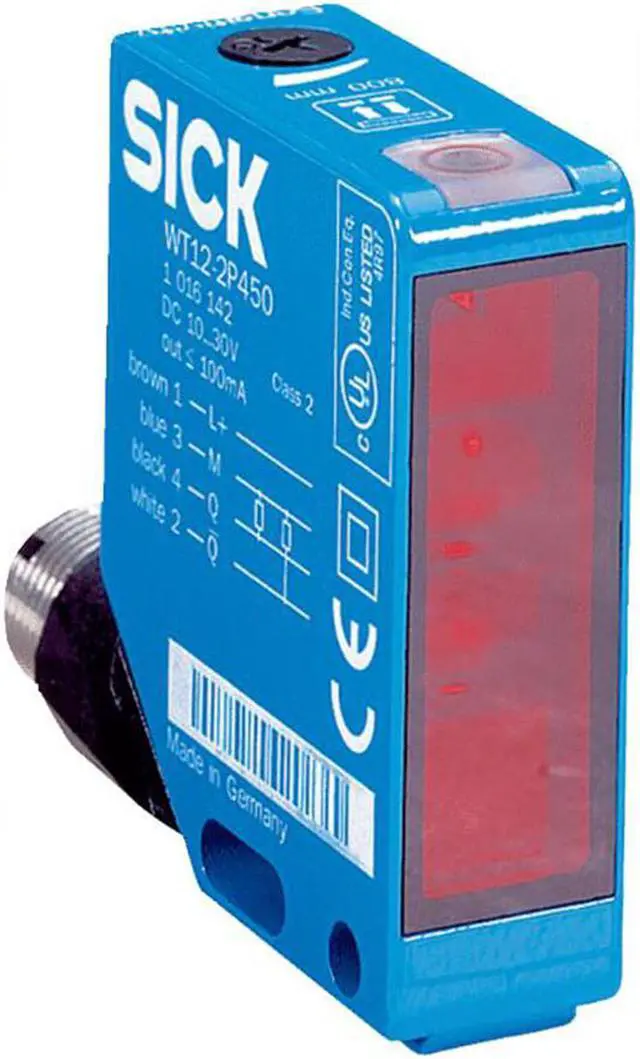

SICK WT12-2P450 Photoelectric Proximity Sensor PNP,New
- SICK WT12-2P450 Photoelectric Proximity Sensor PNP,New
+
+
Overview
Specs
Reviews

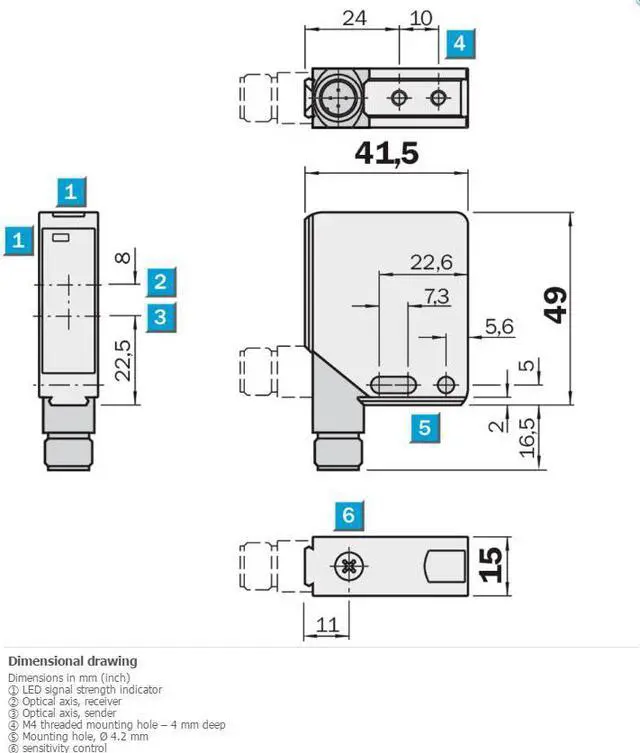

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm Housing design (light emission) Rectangular Sensing range max. 10 mm... 1, 000 mm 1) Sensing range 80 mm... 800 mm 1) Type of light Visible red light Light source LED Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 5 Vpp Power consumption = 30 mA 1) Switching output PNP Switching mode Light/dark switching Response time = 330 µs 2) Connection type Male connector M12, 4-pin Housing material Metal, Zinc diecast Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C.
.. +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
.. +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
