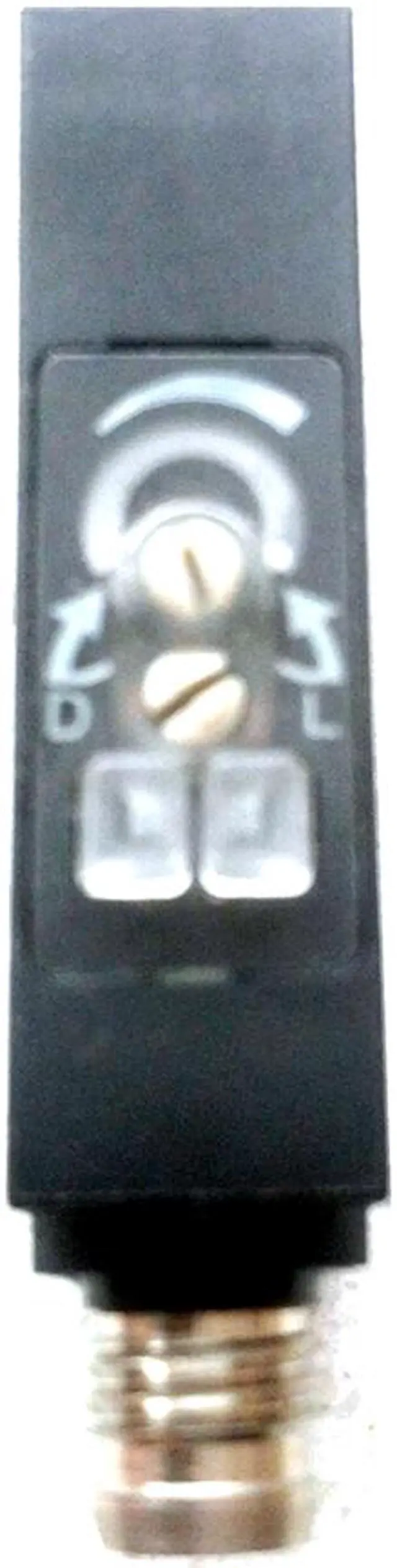

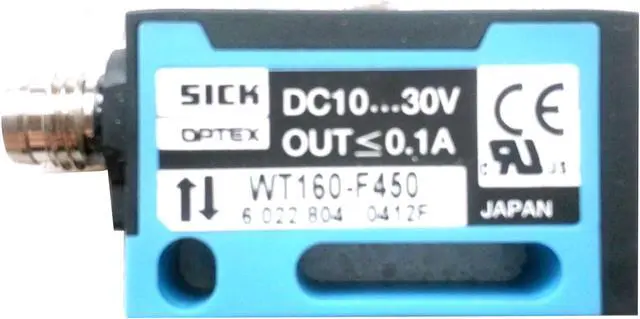

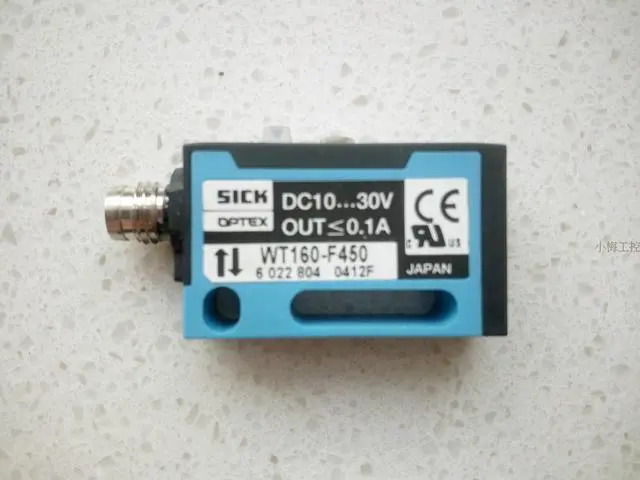

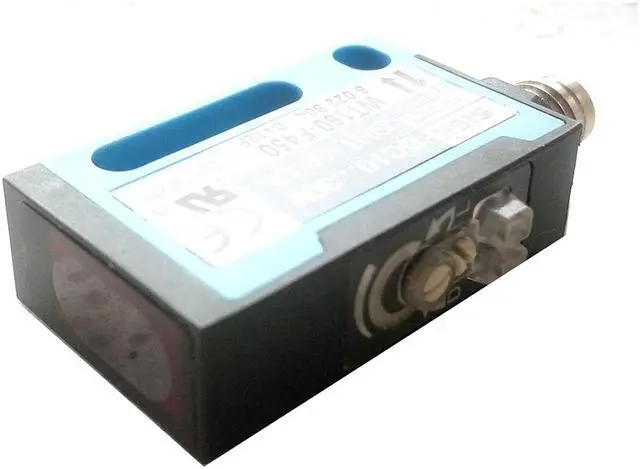

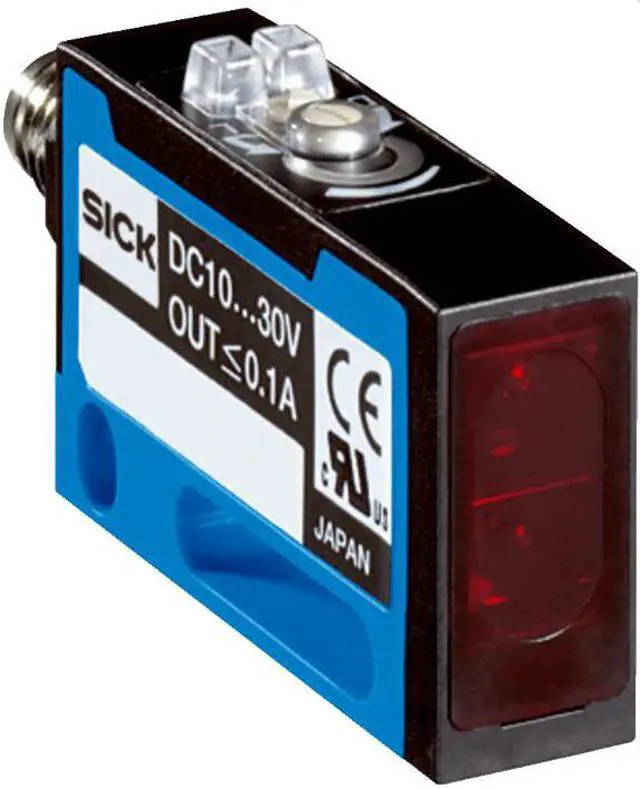

SICK WT160-F450 Photoelectric proximity sensor ,PNP,New
- SICK WT160-F450 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

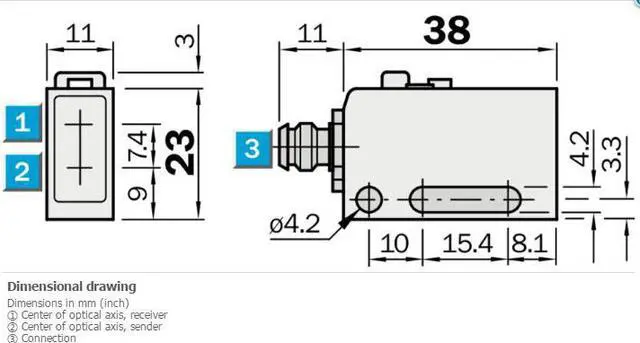

Dimensions (W x H x D) 11 mm x 23 mm x 38 mm
Housing design (light emission) Rectangular
Sensing range max. 0 mm ... 115 mm 1)
Sensing range 0 mm ... 100 mm 1)
Type of light Visible red light
Light source LED
Wave length 680 nm
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple ± 10 %
Power consumption 25 mA 1)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Response time = 0.5 ms 2)
Connection type Male connector M8, 4-pin
Housing material Plastic, PBT
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 11 mm x 23 mm x 38 mm
Housing design (light emission) Rectangular
Sensing range max. 0 mm ... 115 mm 1)
Sensing range 0 mm ... 100 mm 1)
Type of light Visible red light
Light source LED
Wave length 680 nm
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple ± 10 %
Power consumption 25 mA 1)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Response time = 0.5 ms 2)
Connection type Male connector M8, 4-pin
Housing material Plastic, PBT
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
