Features | Technical Information Chipset Manufacturer: Intel
Chipset Model: XL710-BM2
Interfaces/Ports Host Interface: PCI Express x8
Total Number of Ports: 2
I/O Expansions Expansion Slot Type: QSFP+
Media & Performance Media Type Supported: Optical Fiber
Network & Communication Network Technology: 40GBase-SR4 40GBAse-LR4 Physical Characteristics Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Height: 0.8"
Width: 4.8"
Depth: 7.1"
Weight (Approximate): 4.50 oz

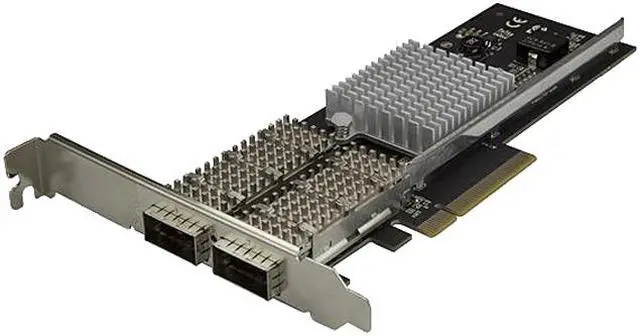

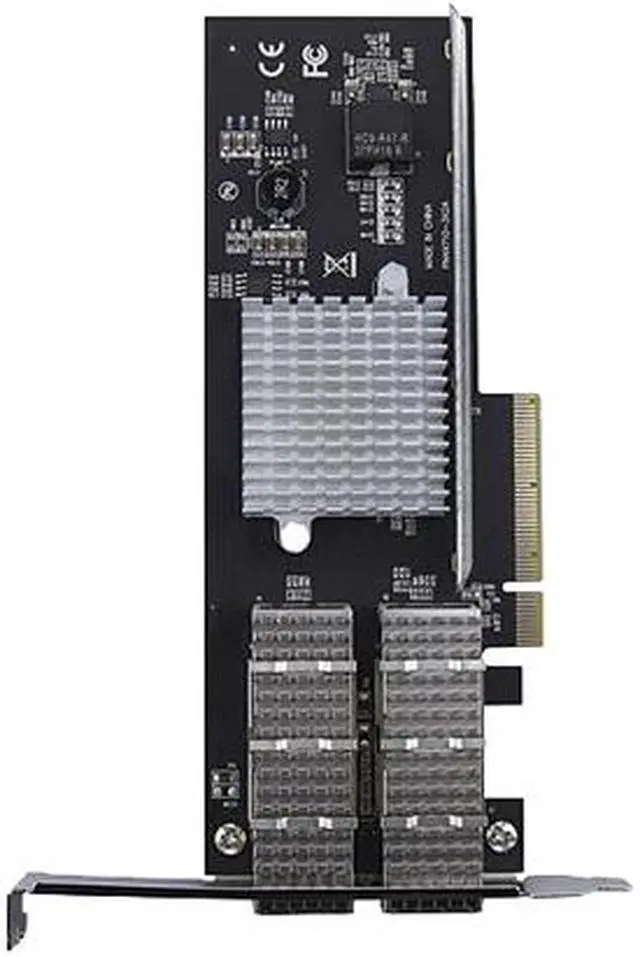

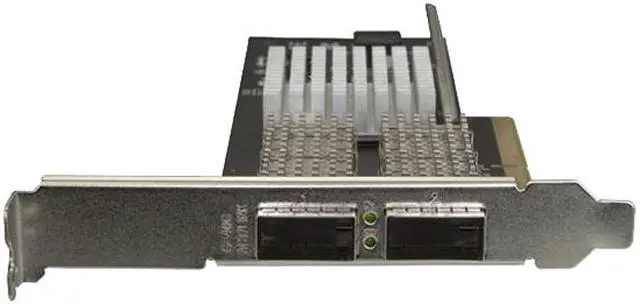

Miscellaneous Package Contents: Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip 1 x Low-profile Bracket 1 x Quick-start Guide Device Supported: Server/Workstation
System Requirements: Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 (Windows Drivers are supported in 64-bit only) Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) |
---|
