I have a dell 760 SFF (Small form factor) with one spare expansion slot at the back. What is the height of your unit. I want to know if it will fit in the Dell 760 SFF?

From the StarTech site Product Length5.7 in [145 mm] Product Width 0.8 in [21 mm] Product Height 4.7 in [120 mm] "Add removable storage to small form factor chassis' with no standard 3.5/5.25" drive bays" My unit did not come with a half height slot bracket/door to change out. All though the StarTech web site indicates it will fit in SFF case, I not sure it will. Removing the slot bracket is not an option as the spring loaded door holds the drive in the unit.

190^.04Dh

VAT-Inclusive Price

143.61Dh Shipping

Limit 99999 per customer.

Ships from United States.

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

More Resources

STARTECH;S25SLOTR;S25SLOTR

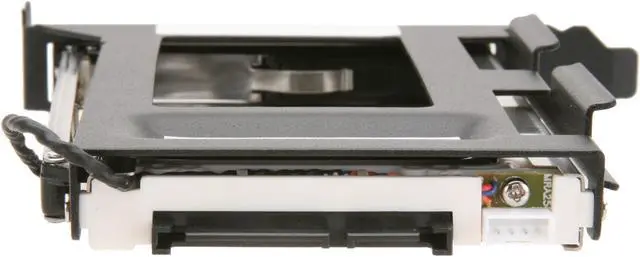

Main image of StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

100%

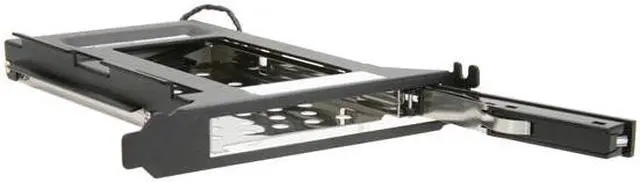

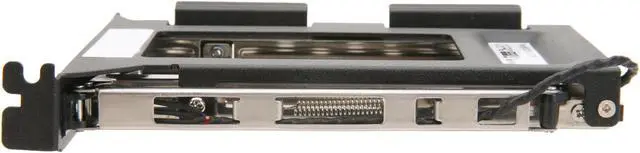

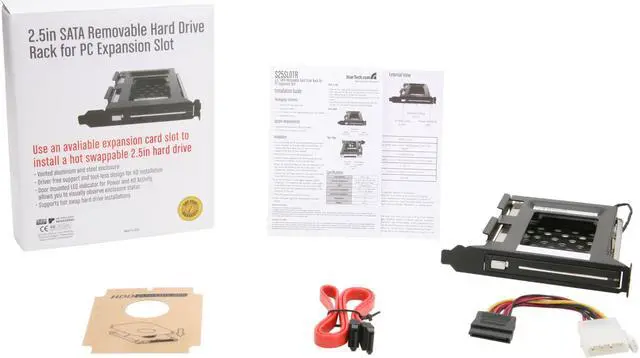

Alt view image 2 of 6 - StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

Alt view image 3 of 6 - StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

Alt view image 4 of 6 - StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

Alt view image 5 of 6 - StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

Alt view image 6 of 6 - StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

360^°

Shop All STARTECH Products

StarTech S25SLOTR 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

(18) Write a Review

Model: PCI Expansion Card Slot

PCI Expansion Card Slot
5.25in

Option: 1-Bay (2.5in SATA)

4-Bay (2.5in SATA/SAS)
1-Bay (2.5in SATA)

Get easy data access by using any available PCI expansion card slot to install a hot swappable 2.5in hard drive
2.5in SATA removable HDD bay for PC expansion slot
Trayless hard drive rack saves time
Vented aluminum and steel
Easy, ejectable access to an inserted 2.5in SATA hard drive from the rear panel
Supports SATA III drives (up to 6 Gbps)

Overview

Specs

Reviews (18)

2.5in SATA Removable Hard Drive Bay for PC Expansion Slot

Model
Brand	StarTech.com
Model	S25SLOTR
Color	Black

Details
Mobile Rack Drives Support	1 x 2.5" Drive to PCI Slot
Mobile Rack Interface	SATA I/II/III
Specifications	Max. HD Capacity: 500 GB Enclosure Type: Aluminum and Steel Compatible Drives: 2.5" SATA Host Connectors: 1 - 7 pin SATA DATA Male Host Connectors: 1 - 15 pin SATA Power Male Drive Connectors: 1 - 7 pin SATA DATA Female Drive Connectors: 1 - 15 pin SATA Power Female

Features
Features	Completely OS Independent Door mounted LED indicator for Power and HD Activity, allows you to visually observe enclosure status Driver free support and tool-less design for HD installation Latchable door Supports almost all 2.5in hard drives; 12mm high drives not supported Supports hot swap hard drive installations Supports maximum data transfer rates up to 3.0 Gbps (using SATA II drive) Supports SATA II hard drives, backward compatible with SATA 150 hard drives The maximum supported hard drive capacity is 500GB Vented aluminum and steel enclosure

Additional Information
First Listed on Newegg	December 03, 2009
