Question 1

Does this motherboard have integrated graphics? Or will I have to buy a dedicated graphics card or get a PCU with an integrated graphics card? I eventually plan to use the server headless.

Accepted Answer

The motherboard itself does not contain a graphics chip on it.  But if you pair up the motherboard (which uses an Intel C226 chipset) with a Intel CPU which has integrated graphics then you do.  The Xeon E3-1200 v3 which is the recommended server CPU for this board comes with integrated graphics, being a Xeon it also supports ECC memory on this board (provided you use ECC DIMMs).

Other 4th Gen Core i3/i5/i7 CPUs with integrated graphics would also work on this board, but then you lose ECC support.

Question 2

Will MB support crucial 8GB 1GX72 DDR3 PC3 10600 registered ram? I have 32gb and want a MB that supports it along with Intel quad core.

Accepted Answer

No. You need unbuffered ECC DDR3. I used kvr16e11k4/32i, which is an Intel validated ram. Newegg dropped it for some reason, but IIRC there is a similar line item without the Intel validation.

Here is how Kingston describes the ram:
 32GB Kit* (4x8GB) - DDR3 1600MHz Intel Validated

Part Number: KVR16E11K4/32I

Specs: DDR3, 1600MHz, ECC, CL11, 1.5V, Unbuffered, DIMM,

Question 3

Do the onboard graphics work when using a xeon e3 1200 series haswell processor?  The processor has integrated graphics but there is some confusion if it in fact works wth the xeons.  Anybody running the board with the onboard graphics and a xeon processor?

Accepted Answer

I don't think it has on-board GPU. Only server class motherboards do, this one is a workstation class. That means, you have to get a dedicated GPU or get a CPU e3-12×5 series with embedded GPU.

Question 4

Does This fit in the phantom 410 ? it says it fits micro atx and normal atx but what about super micro atx???

Accepted Answer

This motherboard is a standard ATX formfactor, and will fit the NZXT phantom 410 case.  The "super micro" phrase refers to the manufacturer of the motherboard - Supermicro, not the form factor.

Question 5

What's difference between X10SAE and X10SAE-O (if any)?

On supermicro web site, I just see X10SAE.

Accepted Answer

Daniel:
I had asked the same question of the guy that helps me select these parts.    He thought it referred to the mfg location but was not a technical issue.    With that answer I moved on.

Question 6

does this board work with server 2008?

Accepted Answer

Yep. The only thing I've had a problem with is the Raid controller software.  Doesn't seem to want to work. (in Windows server2008)  works in the GUI before you hit BIOS.

Question 7

I have this board but can't enter bios setup.
Del, F1, F2 etc doesn't work.  Any tricks to this?

Accepted Answer

Try different keyboard, sounds like bios doesnt recognize your input device which would prevent you from entering the bios as the keys wont work.

Hope this helps
~Angel

Question 8

Does this board support IPMI? If so how do you enable it?

Accepted Answer

yes bios.

Question 9

Is this board compatible with drivers for Server 2012 R2?

Accepted Answer

yes. I am using Windows Server 2012 R2.
Works well.

Question 10

Interesting in driving 2 1920x1200 monitors. Will an i7-4790 and this board do that with onboard video ports?

Accepted Answer

Why would you need to run two monitors?  This is a server board not a home PC user board.

Product SKUs
MBD-X10SAE	X10SAE (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6", (30.48cm x 24.4 cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 v3/v4 and 4th/5th Gen Core i7/i5/i3, Pentium, Celeron processors Single Socket H3 (LGA 1150) A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3*
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C226 Express PCH
SATA	SATA3 via PCH w/ RAID 0, 1, 5, 10 SATA3 via ASM1061®
Network Controllers	Intel® i217LM + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC1150 High Definition Audio
Input / Output
Serial ATA	6x SATA3 (6Gbps) ports via PCH 2x SATA3 (6Gbps) ports via ASM1061® Total of 8x SATA3 ports (6Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports
USB	6x USB 3.0 ports (2 rear, 4 via headers) 10x USB 2.0 ports (4 rear, 6 via headers)
Audio	7.1 HD Jacks
Display*	1x VGA, 1x HDMI, 1x DVI, 1x Display port
Serial Port / Header	2x COM ports (headers)
DOM	SATA DOM (Disk on Module) power connector support
Others	TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard
Expansion Slots
PCI-Express	2x PCI-E 3.0 x16 slots - Function as: 16/NA or 8/8 3x PCI-E 2.0 x1 slots
PCI	2x PCI 5V 32-bit slots
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support
Management
Software	SuperDoctor® III Watch Dog AMT vPro
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of five 4-pin fan headers supporting up to 5 fans 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED +5V Standby alert LED
Other Features	Chassis intrusion detection Chassis intrusion header

Brand	SUPERMICRO
Model	MBD-X10SAE-O

CPU Socket Type	LGA 1150
CPU Type	Supports Intel Xeon E3-1200 v3 / v4 series processor

Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	32GB
ECC Supported	Yes

PCI Express 3.0 x16	2x PCI-E 3.0 x16 slots - Function as: 16/NA or 8/8
PCI Express x1	3x PCI-E 2.0 x1 (in x4) slots
PCI Slots	2x PCI 5V 32-bit slots

Meet Your Seller

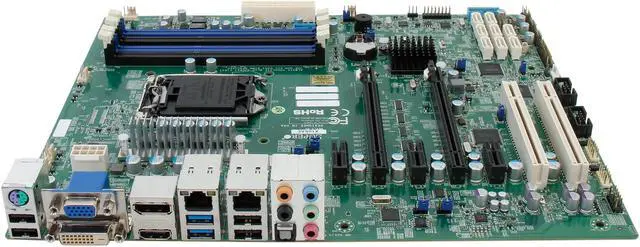

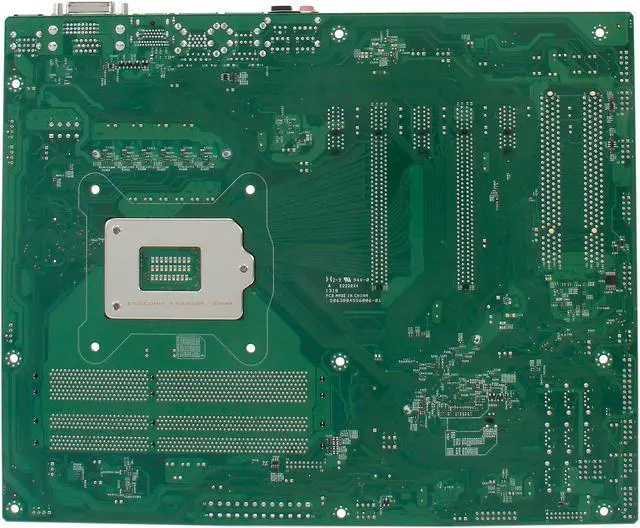

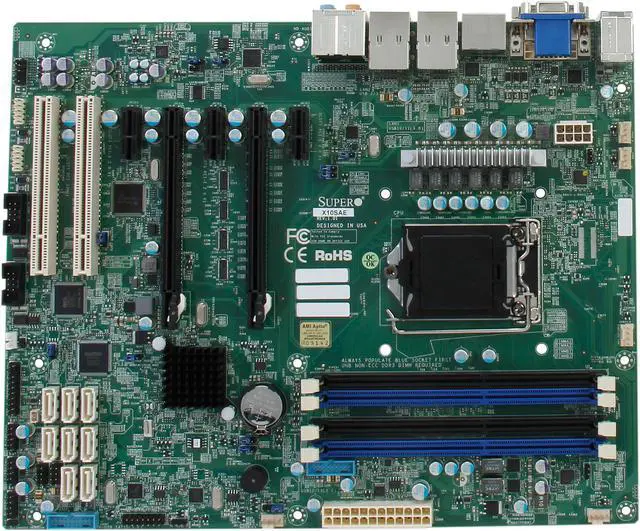

SUPERMICRO MBD-X10SAE-O ATX Server Motherboard LGA 1150 Intel C226 DDR3 1600

SUPERMICRO MBD-X10SAE-O ATX Server Motherboard

Features

Specifications

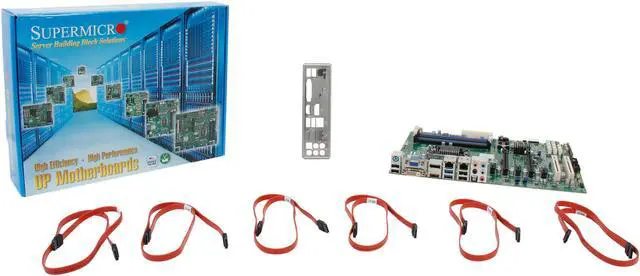

Whats in the Box

Learn more about the Supermicro MBD-X10SAE-O

Customer Reviews of the Supermicro MBD-X10SAE-O

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

SATA	6 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
Additional SATA	2 x SATA 6.0Gb/s

LAN Chipset	Intel I210-AT
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I217-LM
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Video Ports	1 VGA , 1 HDMI, 1 DVI, and 1 Display ports (Triple display supports)
USB 1.1/2.0	4 x USB 2.0
USB 3.0	2 x USB 3.0
Audio Ports	7.1 HD port

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
