Supermicro X11DPL-i Motherboard

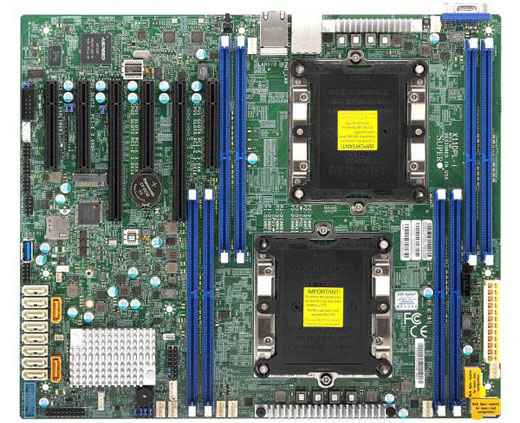

A dual-socket serverboard in an ATX form factor, this board allows broad case compatibility, and offers a great choice for a budget-friendly server or workstation for your home or SOHO. Powered by Intel C621 chipset, this board supports two Intel Xeon Scalable processors, has eight DIMM slots, and features six PCI-E slots with two x16 slots being widely spaced to facilitate using double-width expansion cards like GPUs. It also comes with dual GbE LAN ports, two powered SATA III (colored in yellow) with DOM support, and an internal USB port ideal for connecting with a USB license dongle.
1. 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, two UPI up to 10.4 GT/s
2. Intel C621
3. Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
4. Two PCI-E 3.0 x16, three PCI-E 3.0 x8, one PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: one SATA/PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280
M.2 Key: M-Key

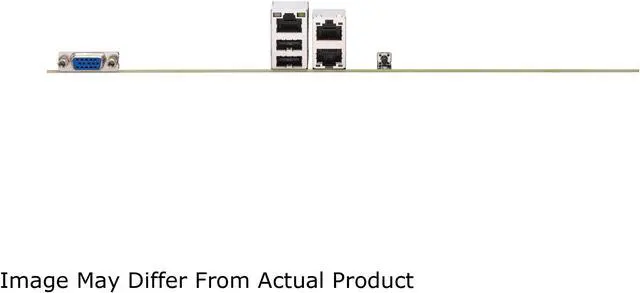

5. One VGA port
6. Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
7. Dual LAN with Lewisburg Marvell 88E1512 PHY
