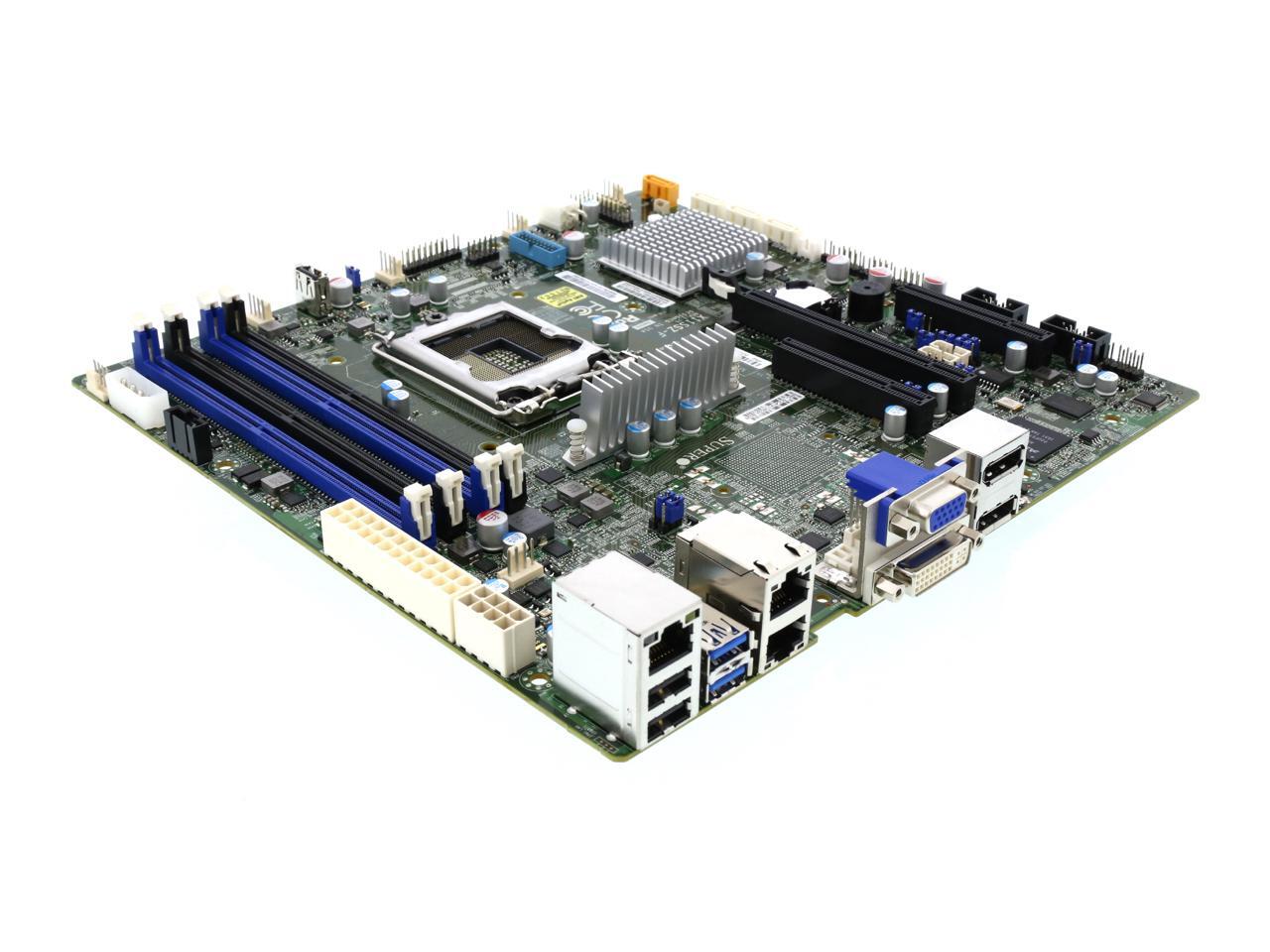

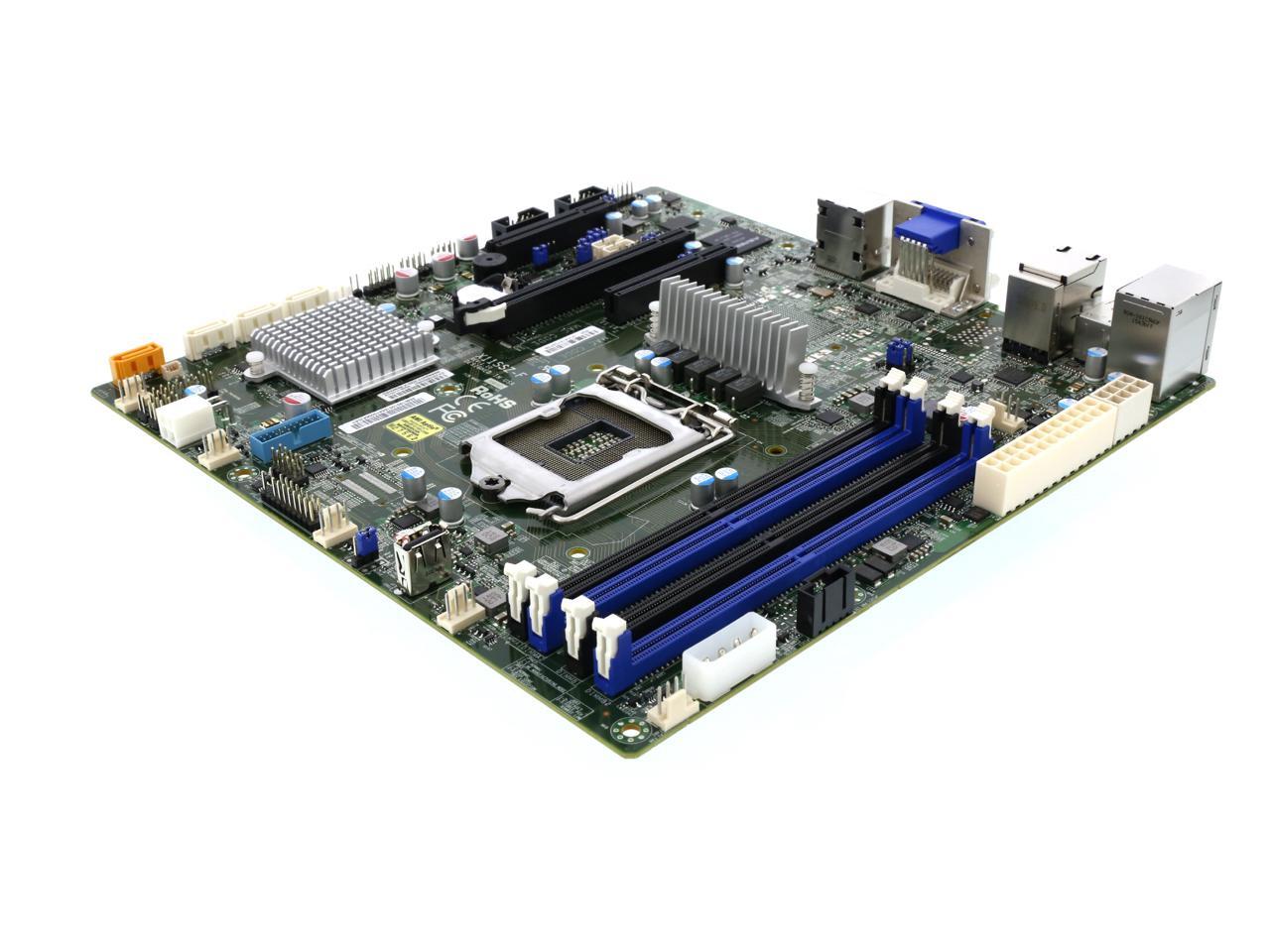

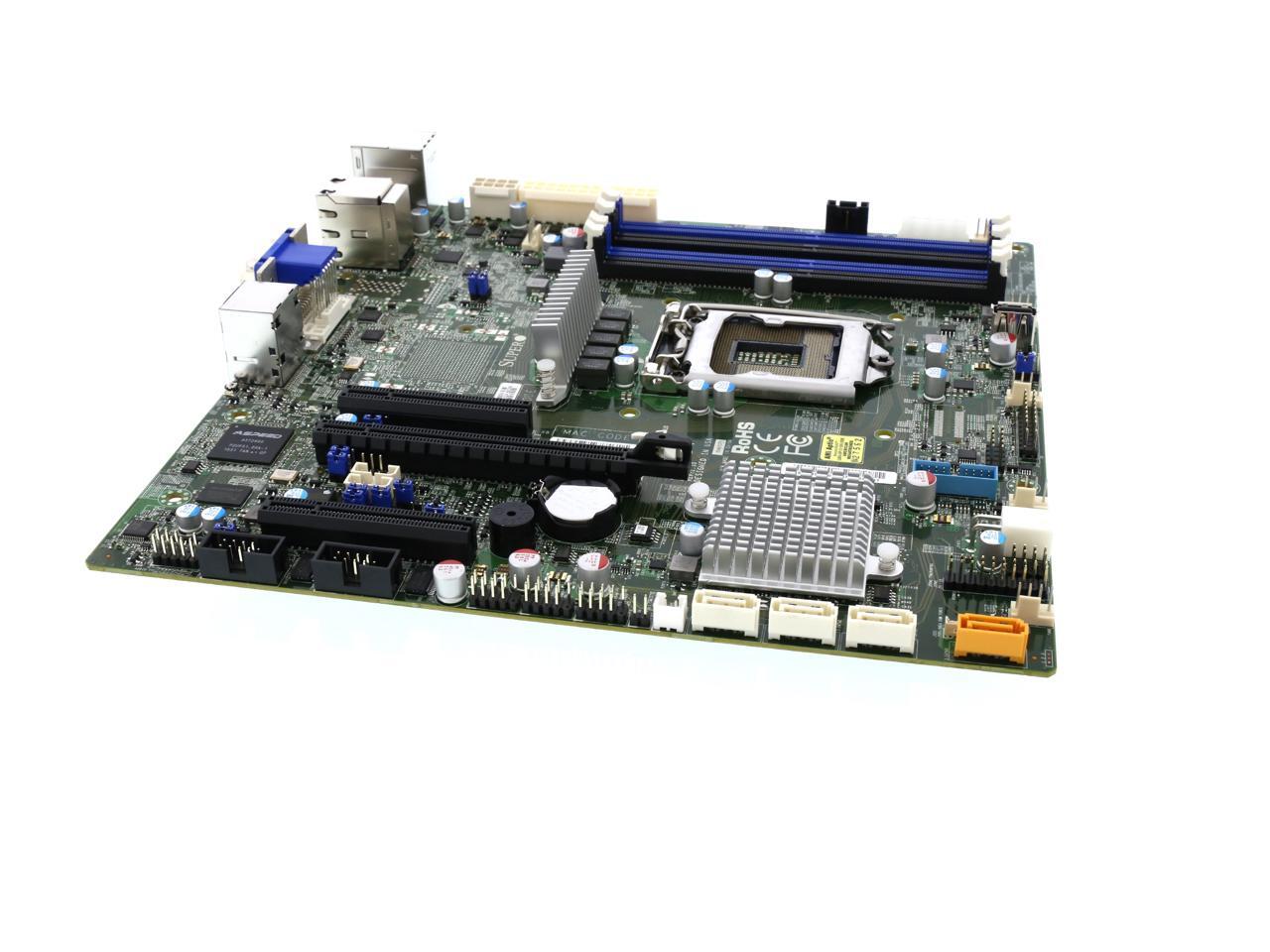

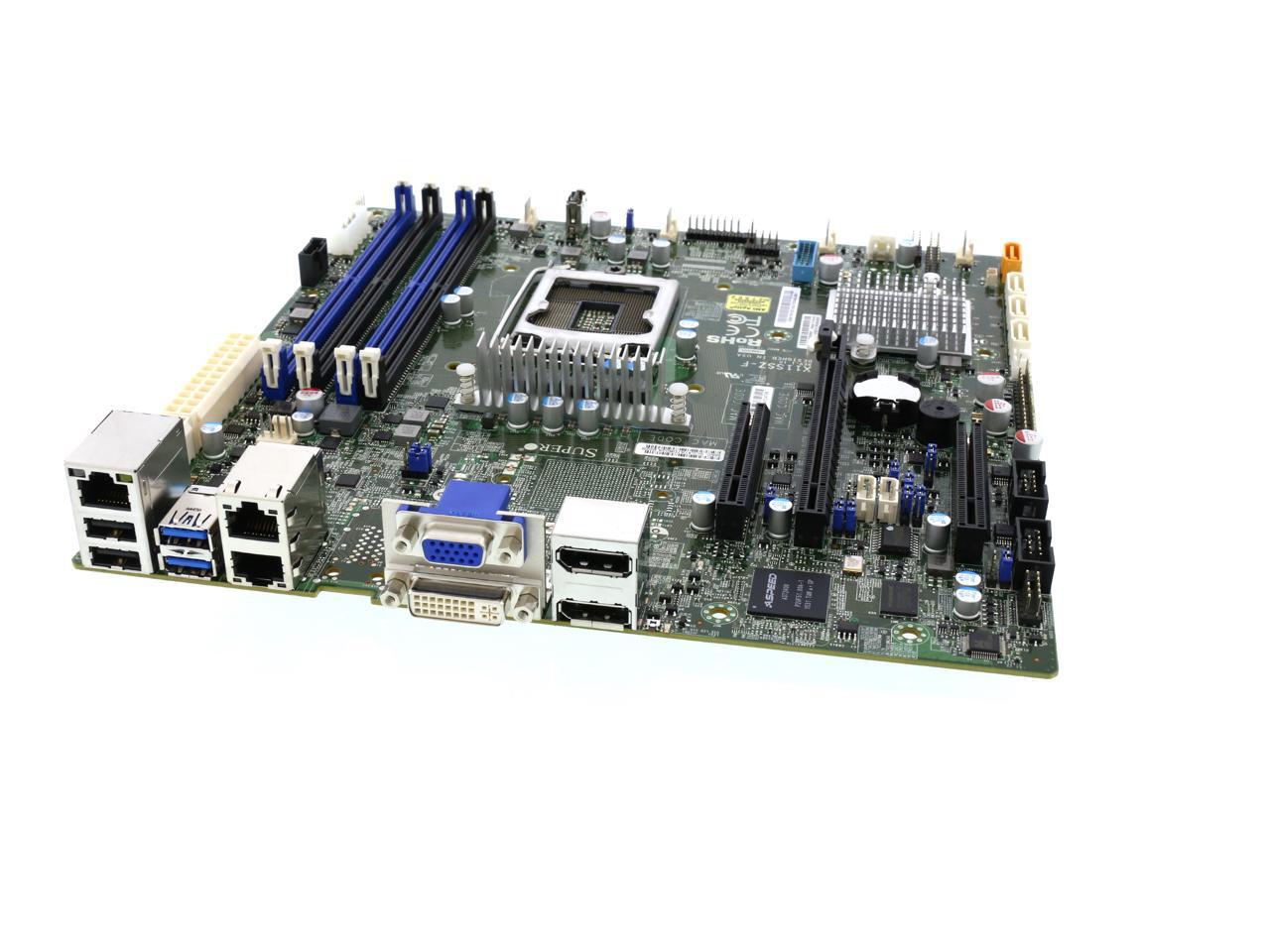

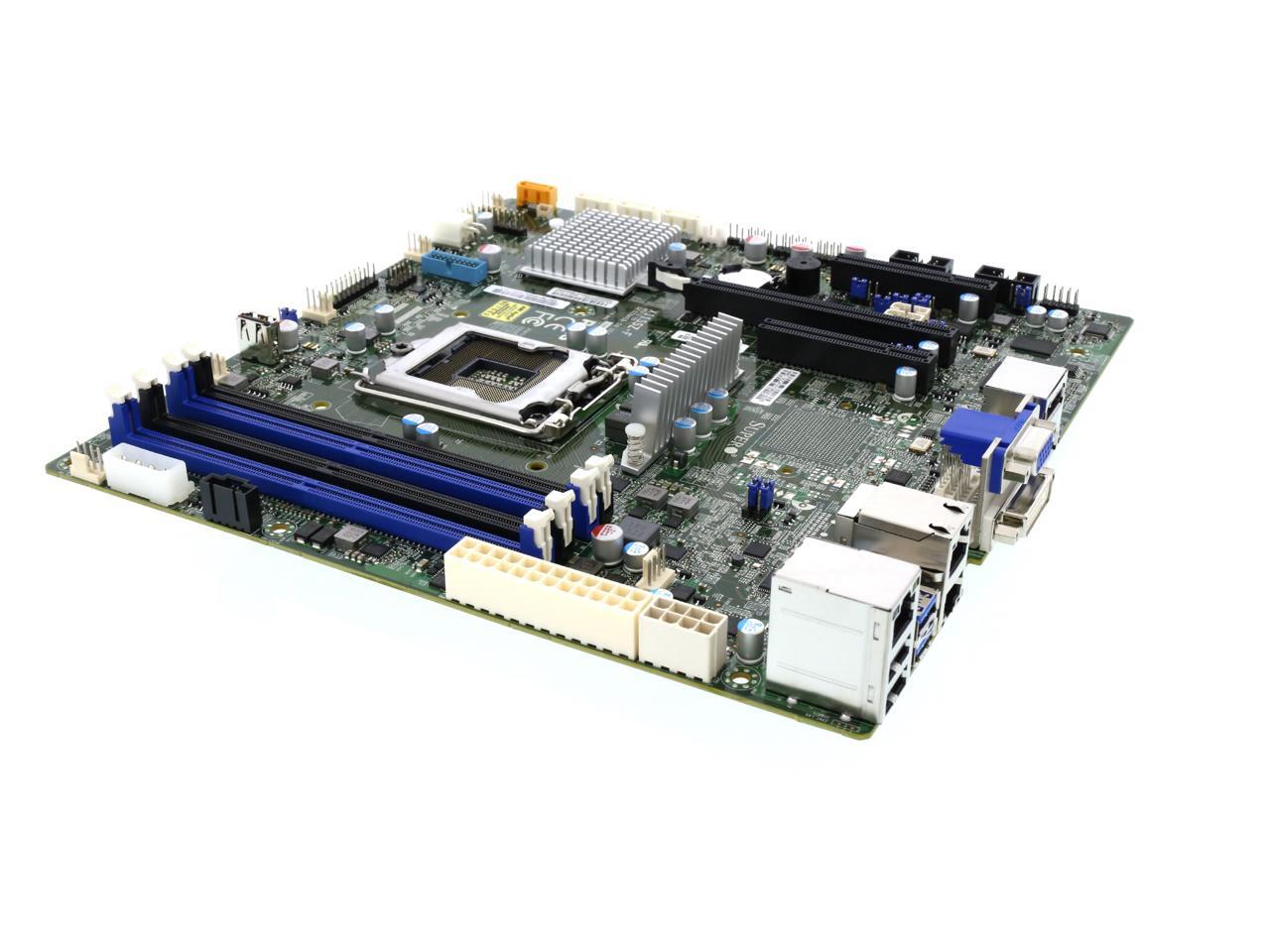

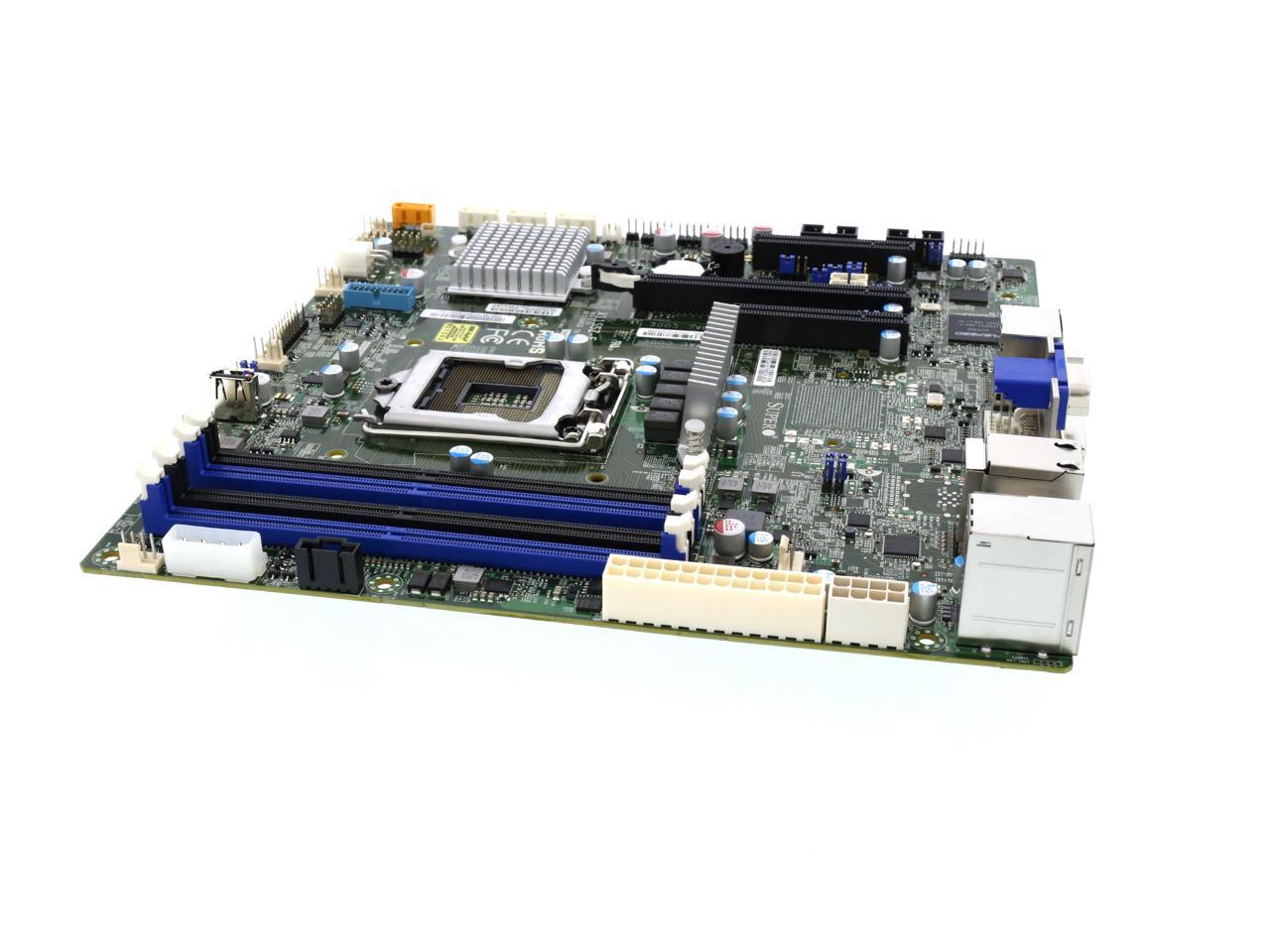

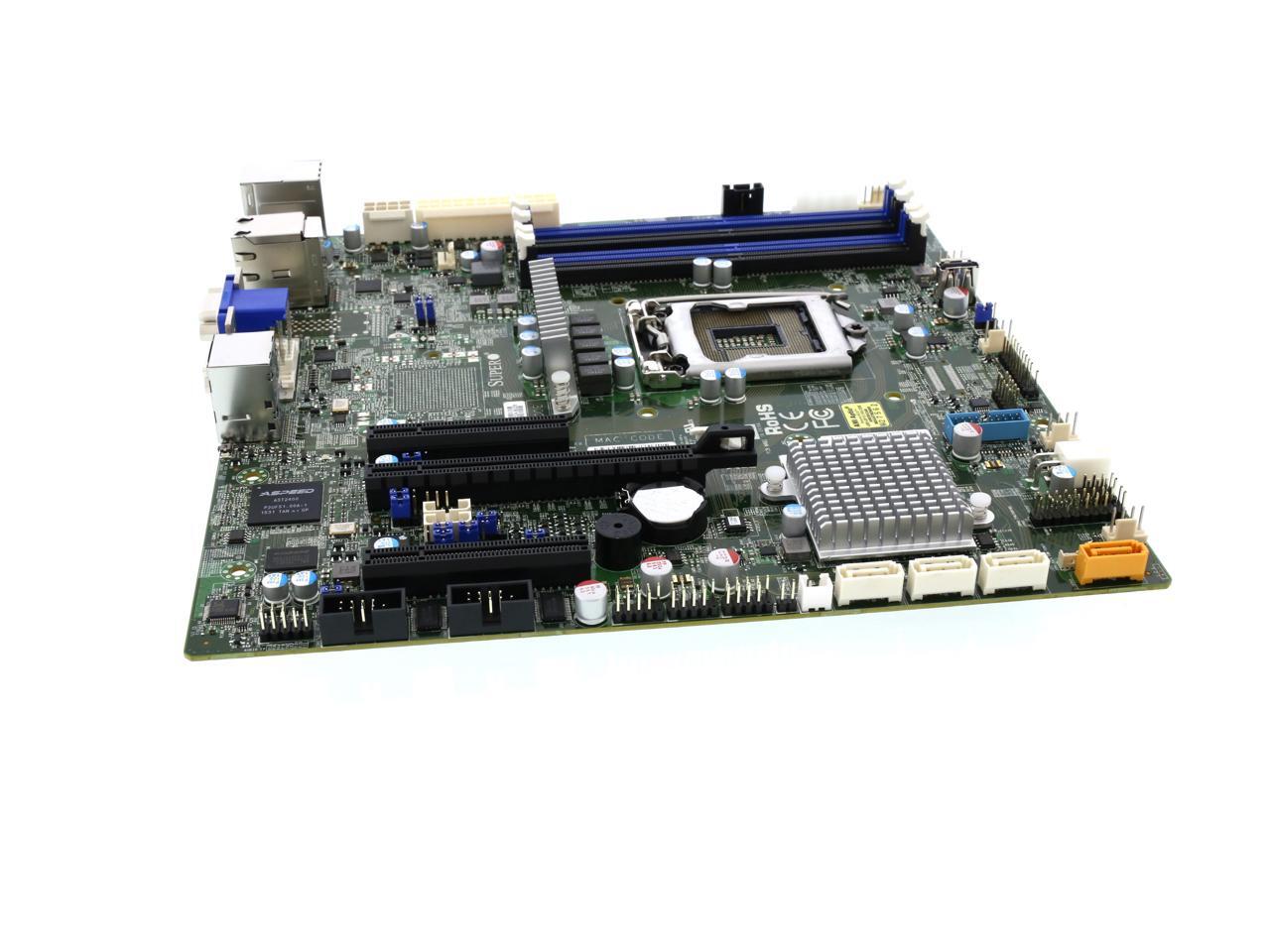

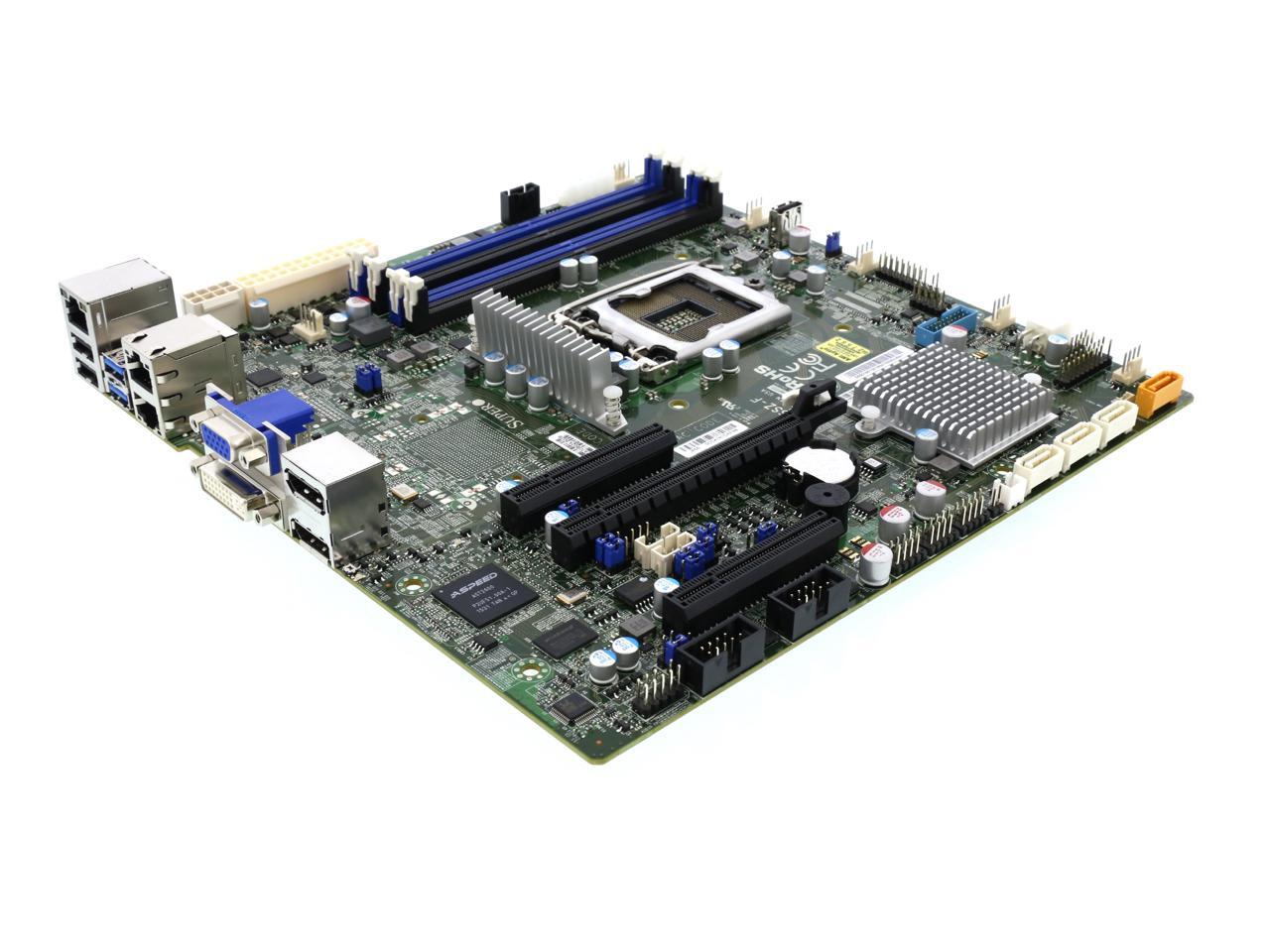

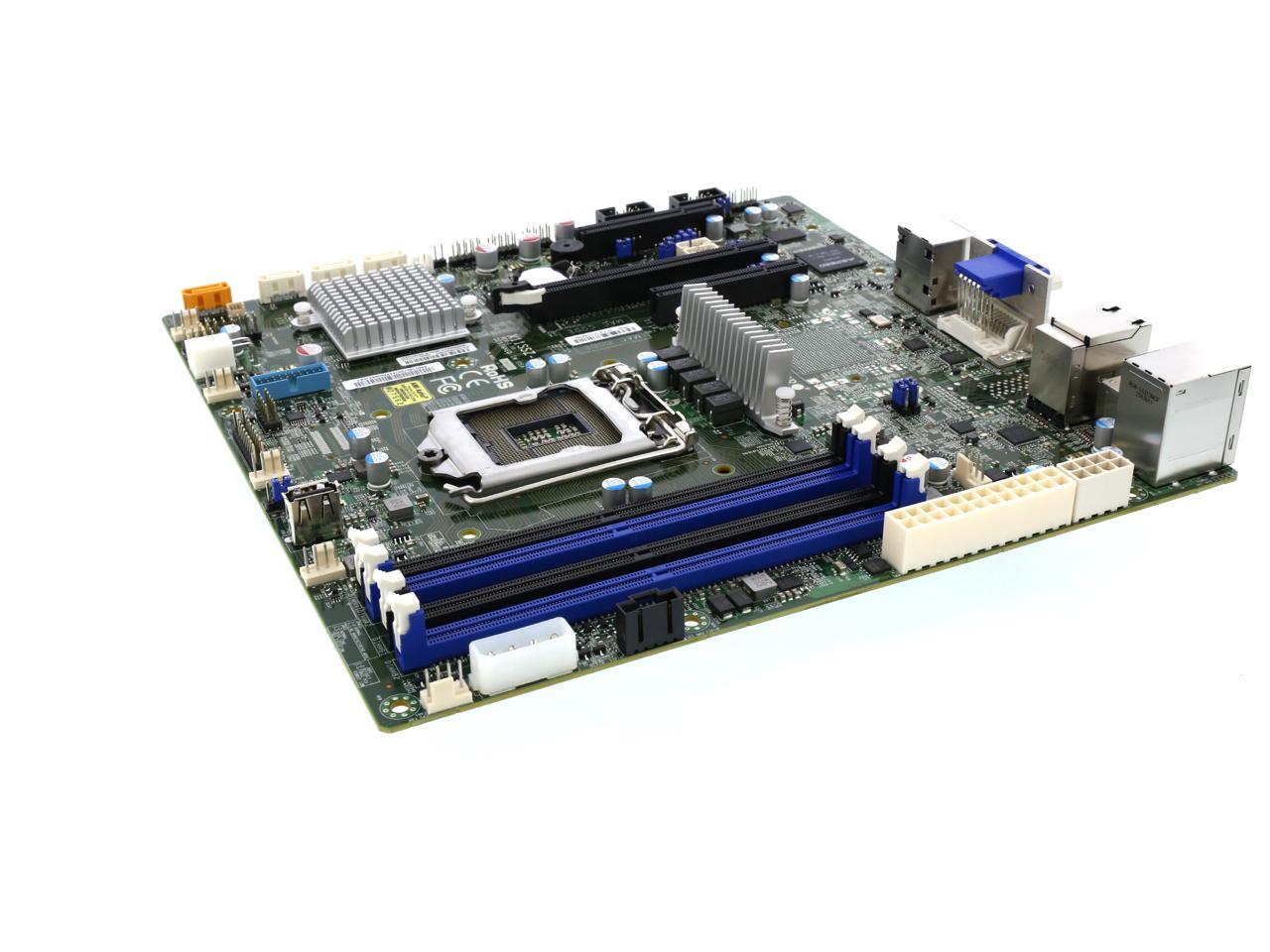

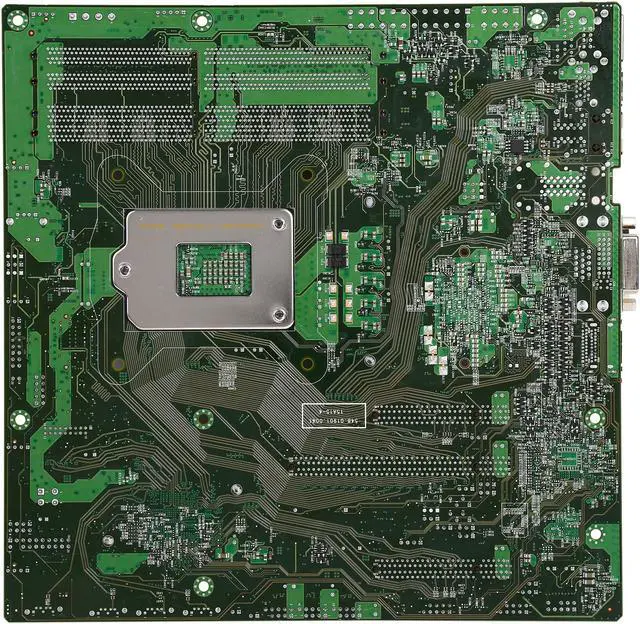

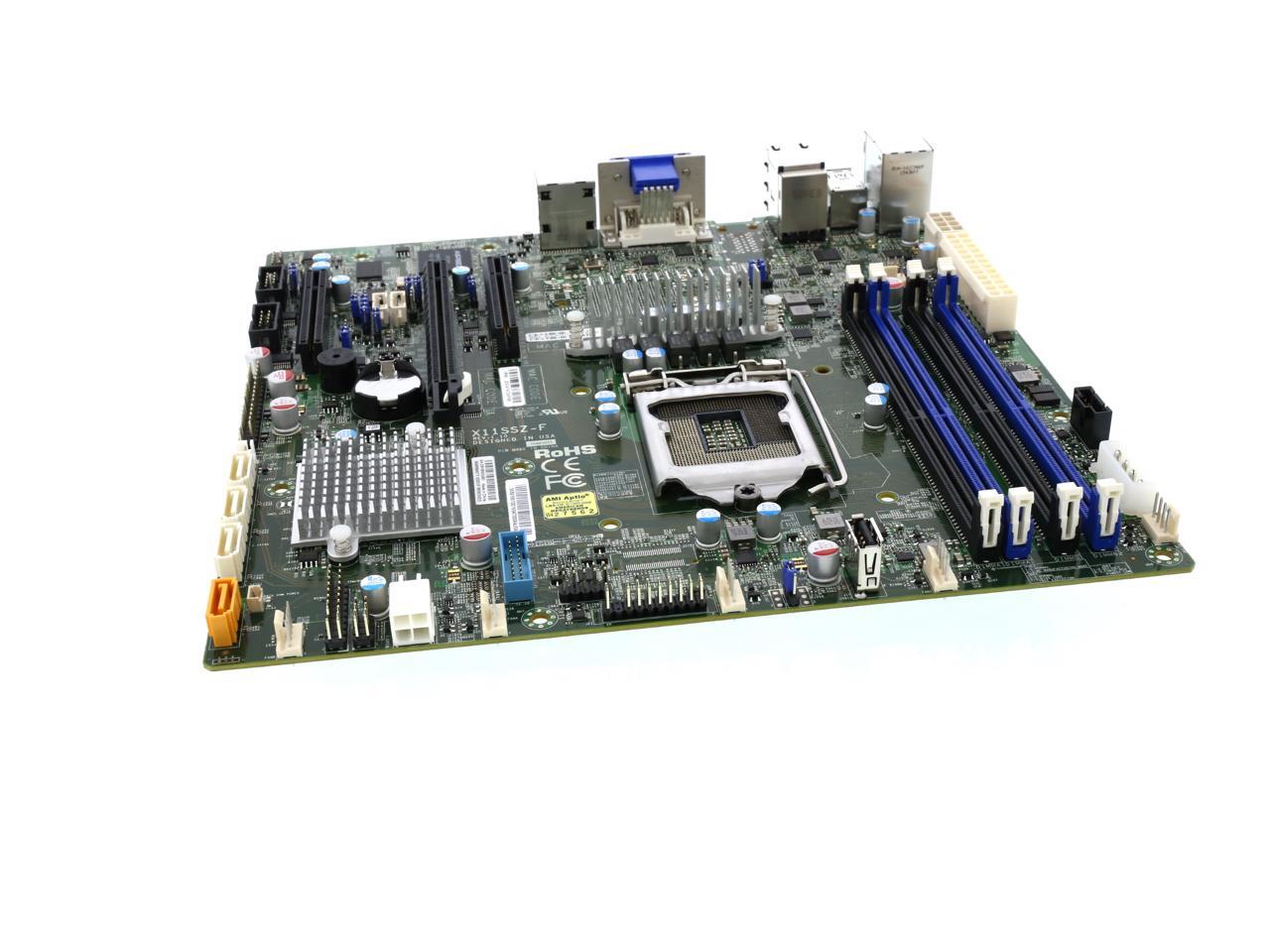

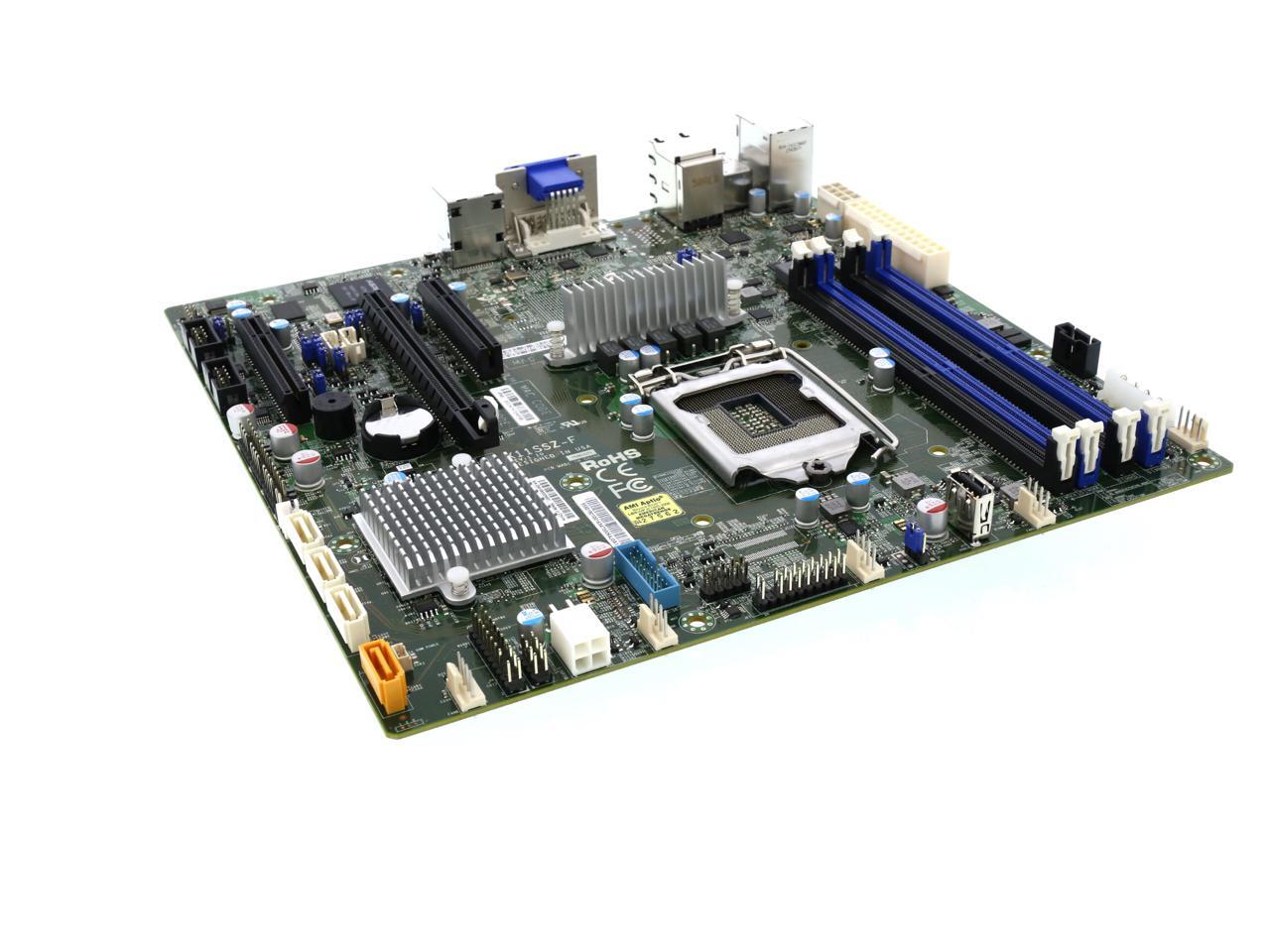

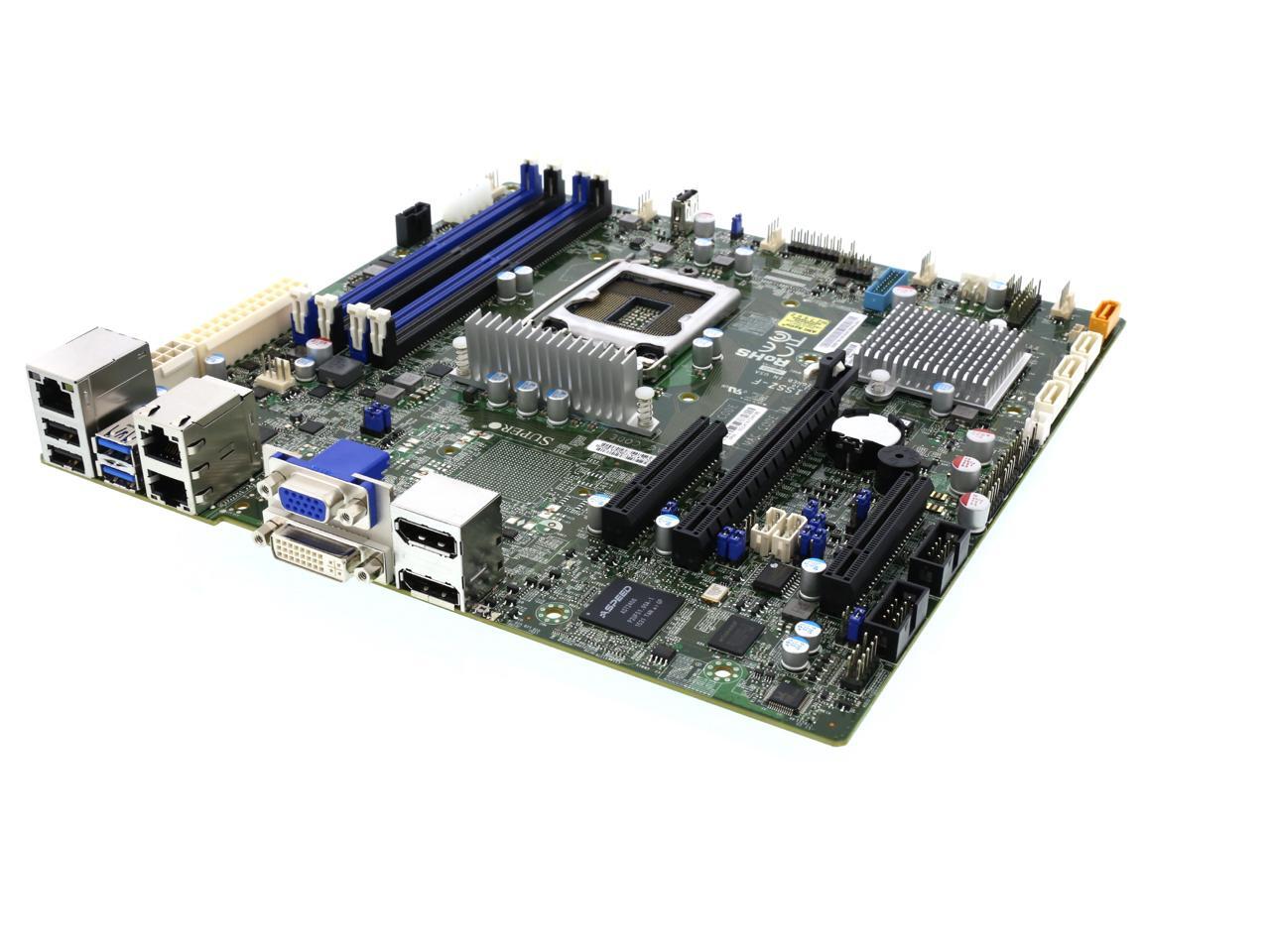

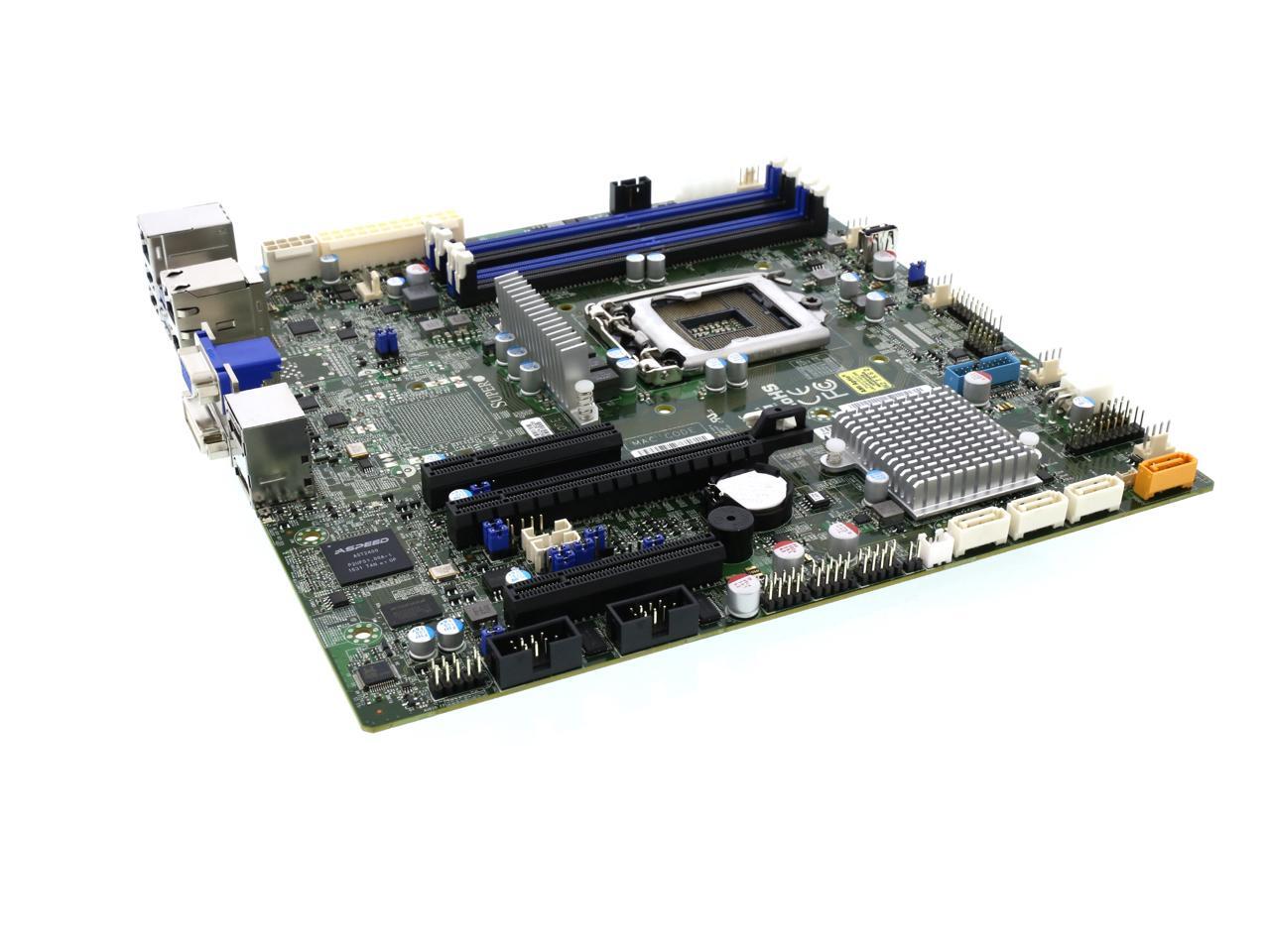

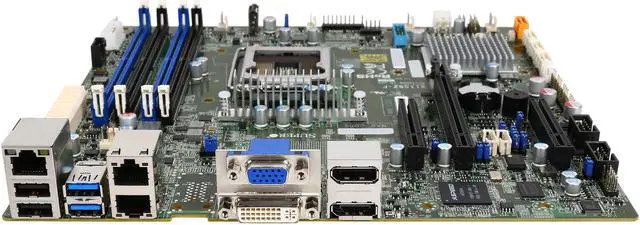

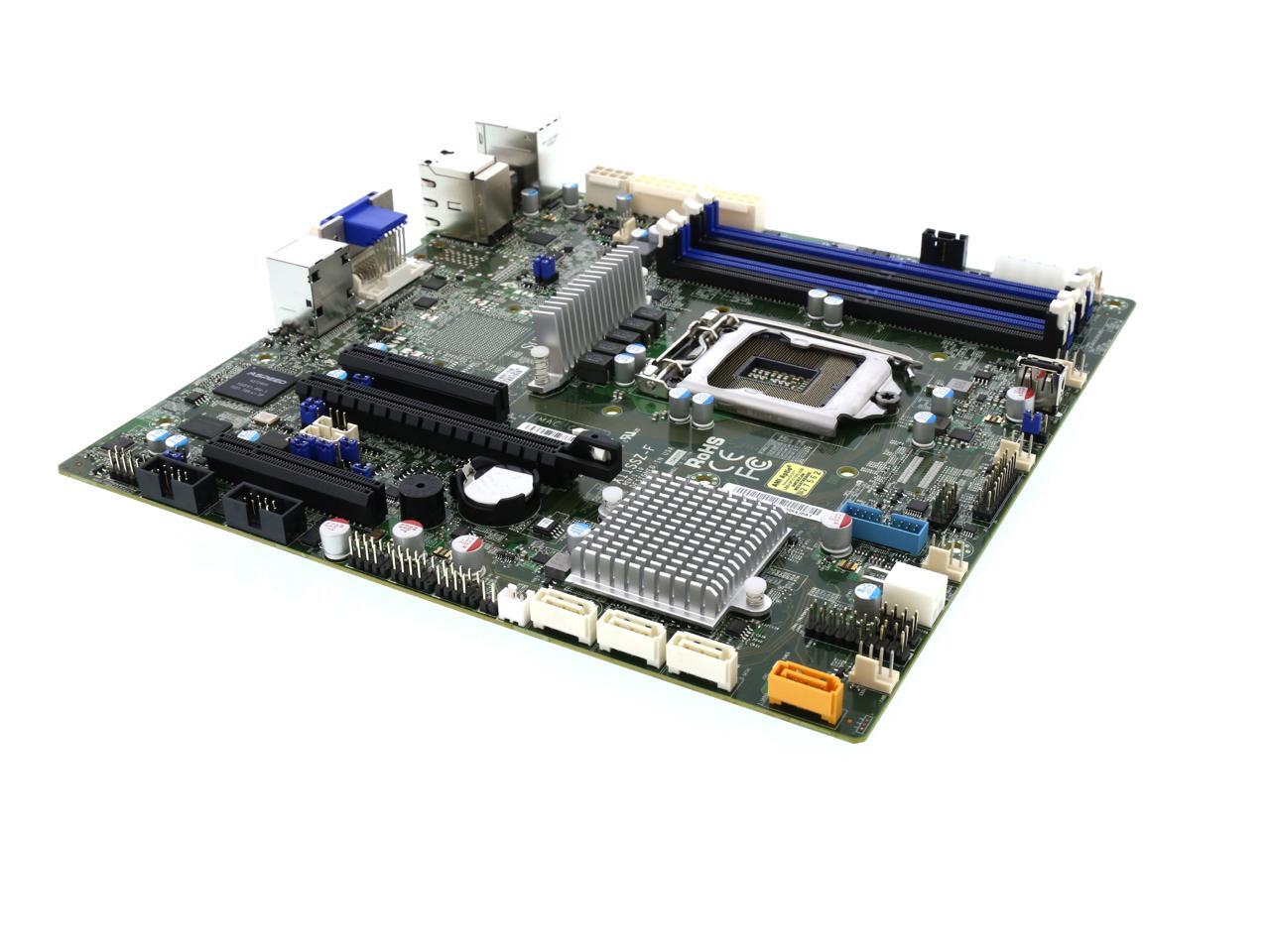

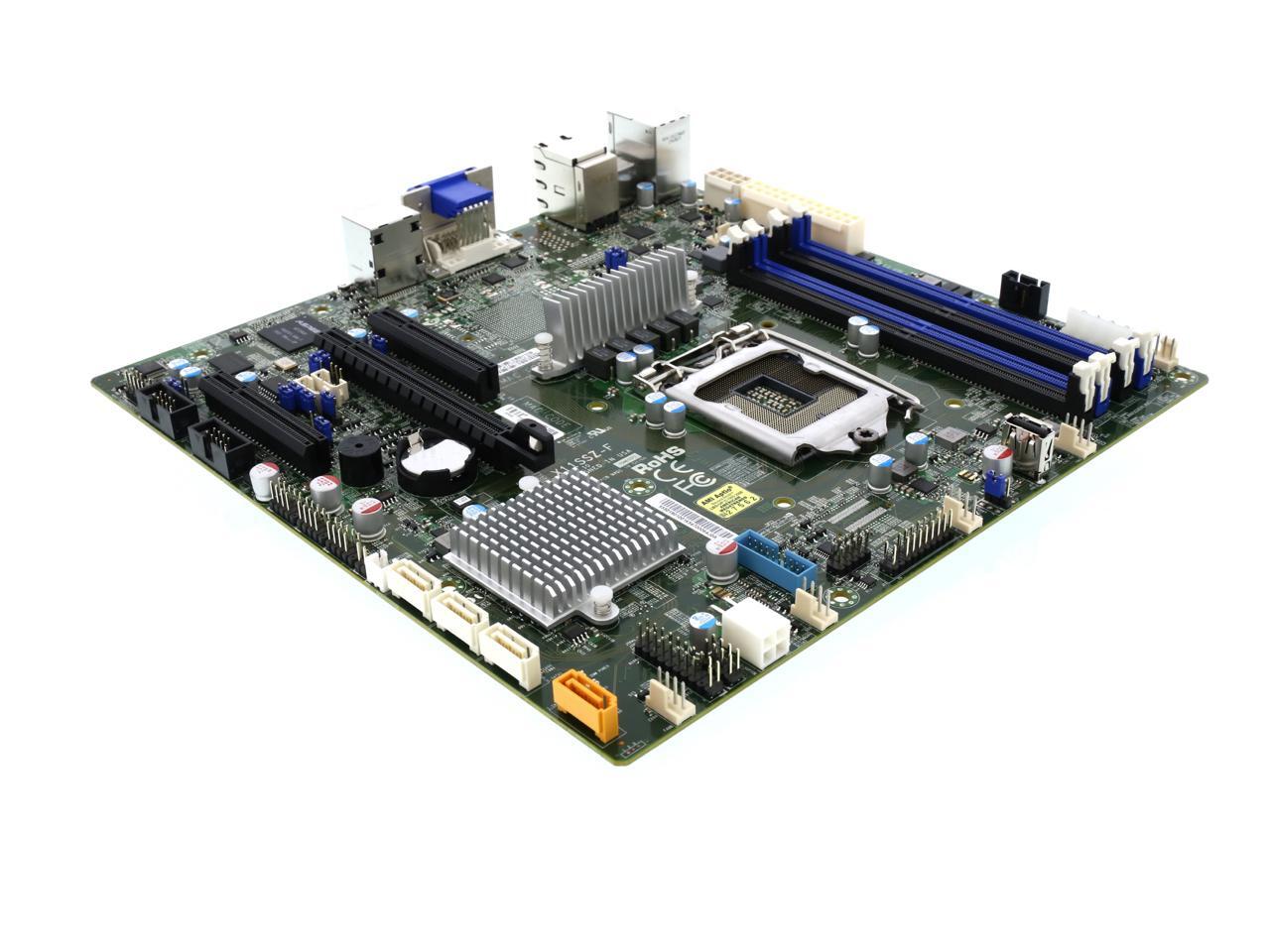

SUPERMICRO MBD-X11SSZ-F-O Micro ATX Server Motherboard LGA 1151 Intel C236
- Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
- Intel C236 chipset
- 4 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
- 2 x DP, 1 x DVI-I, 3 x independent displays via Intel HD Graphics, VGA port for BMC
- Supports 12V DC power input
+
+
Overview
Specs
Reviews (1)
Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7/i5/i3 series, Intel Celeron and Intel Pentium, Intel C236 chipset, Up to 64GB DDR4 2133MHz ECC/non- ECC Unbuffered UDIMM; 4x DIMM slots, Expansion slots: 1 PCI-E 3.0 x16 (in x16), 2 PCI-E 3.0 x4 (in x8), 1 GbE LAN with Intel i210-AT 1 GbE LAN with Intel PHY i219LM, 4x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10, 2x DP, 1 DVI-I, 3x independent displays via Intel HD Graphics, VGA port for BMC, I/O: 1x SATA DOM, 2x COM, TPM 1.2, header, ALC 888S HD Audio, 4x USB 3.0 (2 rear + 2 via header) 9x USB 2.0 (2 rear + 6 via headers + 1 Type A), Support 12V DC power, AMT 11.0
SUPERMICRO MBD-X11SSZ-F-O Micro ATX Server Motherboard
Features
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB DDR4 2133MHz ECC/non- ECC Unbuffered UDIMM; 4x DIMM slots
- Expansion slots: 1 PCI-E 3.0 x16 (in x16), 2 PCI-E 3.0 x4 (in x8)
- 1 GbE LAN with Intel® i210-AT 1 GbE LAN with Intel® PHY i219LM
- 4x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- 2x DP, 1 DVI-I, 3x independent displays via Intel HD Graphics, VGA port for BMC
- I/O: 1x SATA DOM, 2x COM, TPM 1.2 header, ALC 888S HD Audio
- 4x USB 3.0 (2 rear + 2 via header) 9x USB 2.0 (2 rear + 6 via headers + 1 Type A)
- Support 12V DC power
- AMT 11.0
Specifications
| Product SKUs | |
| MBD-X11SSZ-F -B | X11SSZ-F (Bulk Pack) |
| Physical Stats | |
| Form Factor | microATX |
| Dimensions | 9.6" x 9.6", (24.4cm x 24.4cm) |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 chipset |
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Audio | RealTek ALC 888S High Definition Audio |
| Graphics | ASPEED AST2400 BMC |
| Input / Output | |
| SATA | 4x SATA3 (6Gbps) ports |
| LAN |
|
| USB |
|
| Video | Front Panel Audio Header |
| Video/Display | 2x DP (Display Ports), 1x DVI-I via Intel® HD Graphics with 3x Independent Displays, 1x VGA port for Aspeed AST 2400 BMC |
| Serial Port / Header | 2x COM ports (2 headers) |
| SuperDOM | 1x SuperDOM (Disk on Module) ports with built-in power |
| TPM | 1x TPM 20-pin Header |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|

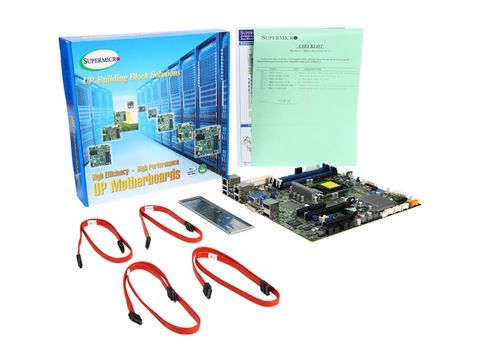

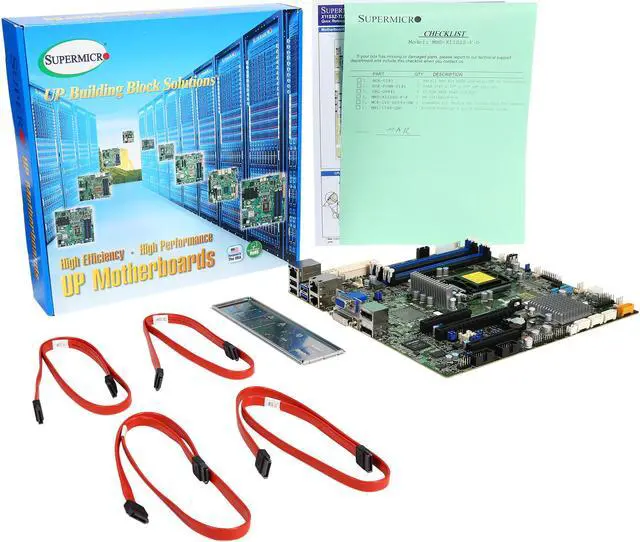

Whats in the Box
