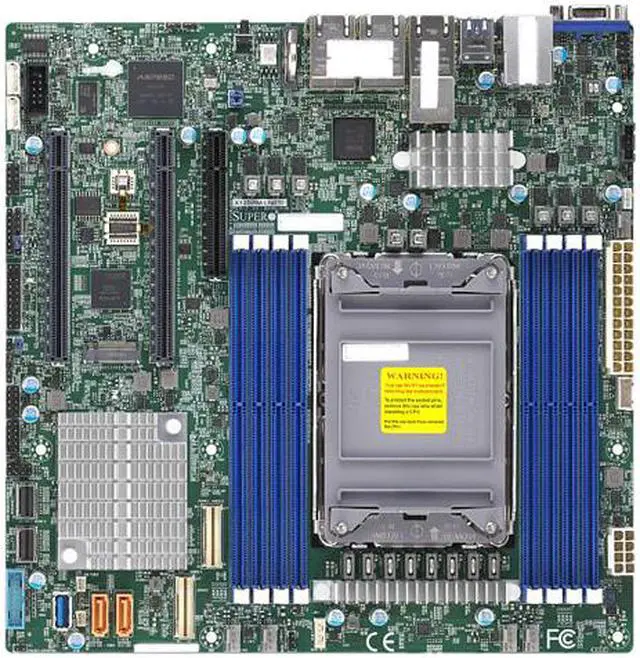

SUPERMICRO MBD-X12SPM-LN6TF Micro ATX Server Motherboard Socket P+ Intel C621A

Be the first to review this product...
  • 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel C621A
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
  • 1 PCI-E 4.0 x8, 2 PCI-E 4.0 x16, 4 PCI-E 4.0 NVMe x4 Internal Port(s)
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-Key
  • Quad LAN with 1GbE with Intel I350-AM4
  • Dual LAN with 10GBase-T with Intel X550
  • Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Supports 12V DC power input
  • 4x NVMe port PCI-E 4.0 x4 via SlimSAS connector
  • 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
+
+
Specs
Reviews

Learn more about the Supermicro MBD-X12SPM-LN6TF

Model
Brand SUPERMICRO
Model MBD-X12SPM-LN6TF
Supported CPU
CPU Socket Type Socket P+
CPU Type Supports 3rd Gen Intel Xeon Scalable processors
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 2
PCI Express x8 1 x PCI Express 4.0 x8
Storage Devices
SATA 10 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard LAN
LAN Chipset Intel X550
LAN Speed 10Gbps
Second LAN Chipset Intel I350-AM4
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 10Gbps
Rear Panel Ports
Back I/O Ports 4 x RJ45 Gigabit Ethernet LAN ports
2 x RJ45 10 Gigabit Ethernet LAN ports
6 x USB 2.0 ports (2 rear + 4 via headers)
5 x USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
1 x VGA port
1 x COM Port (1 header)
TPM Header
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
Date First Available September 22, 2021
