  6. Item#: N82E16813183838

  • 3,126.89Dh
  • VAT-Inclusive Price
Limit 99999 per customer.
Ships from United States.
Add to wish list
Sold by Newegg

Shipped by Newegg

Shop it at NeweggBusiness.
Shop All Supermicro Products

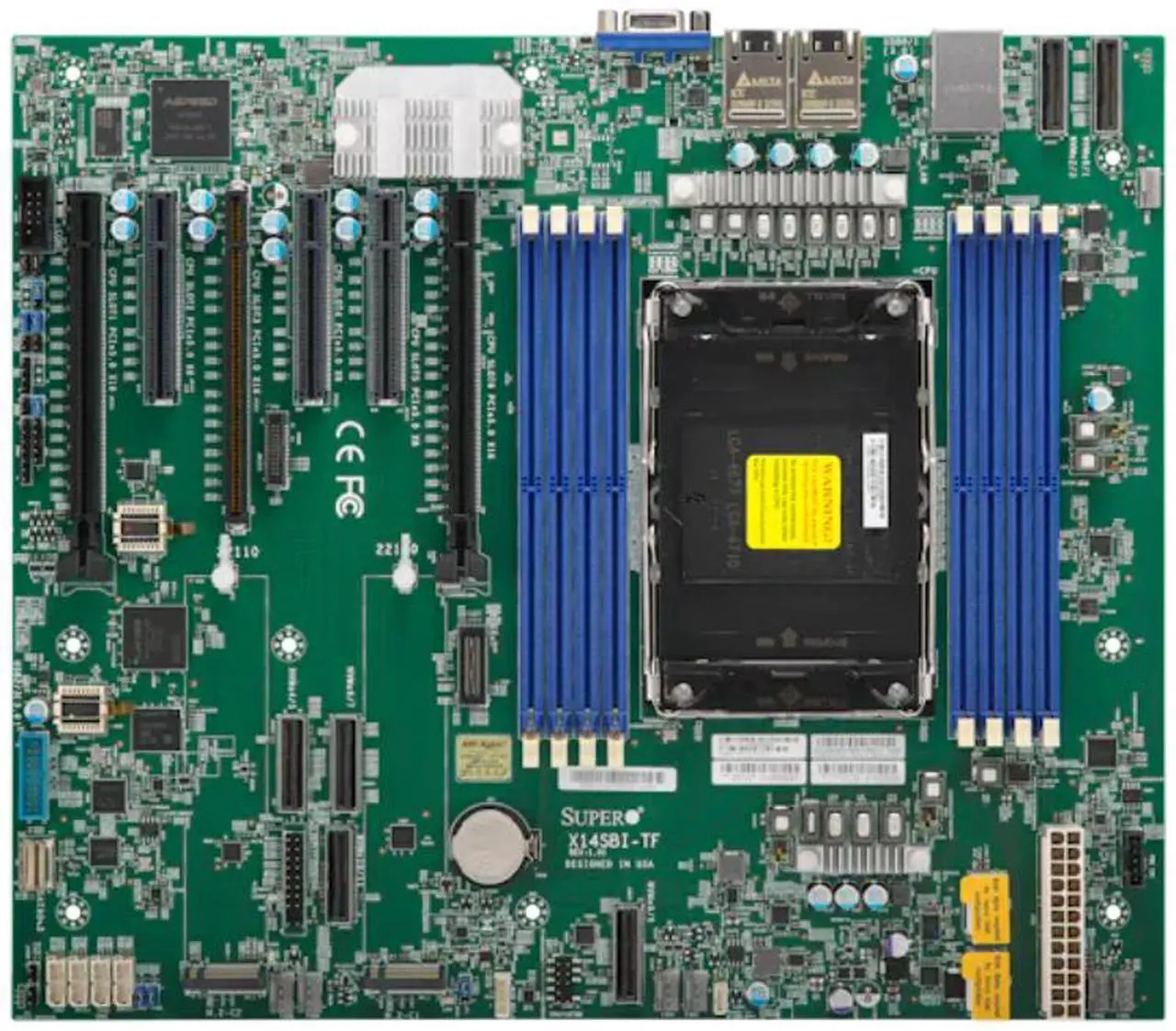

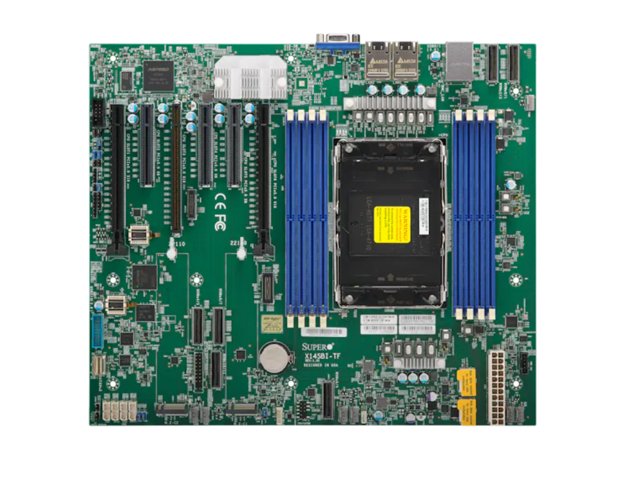

Supermicro X14SBI-TF Server Motherboard, Intel® Xeon® 6700-series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP

Be the first to review this product...
  • Intel® Xeon® 6700-series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
  • Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
  • 6 PCIe 5.0 x8 via MCIO connectors
  • 3 PCIe 5.0 x16,
  • 3 PCIe 5.0 x8,
  • M.2 Interface: 2 PCIe 5.0 x2
  • M.2 Form Factor: 22110
  • M.2 Key: M-Key
  • Dual LAN with 10GBase-T with Intel®X550
  • Onboard TPM2.0
  • 4 USB 3.2 Gen1 (2 rear, 2 via header), 4 SATA3 (via SlimSAS x4)
+
+
Specs
Reviews

Learn more about the Supermicro MBD-X14SBI-TF-O

Model
Brand SUPERMICRO
Model MBD-X14SBI-TF-O
Supported CPU
CPU Socket Type LGA 4710
CPU Type Intel Xeon
Number of Processor Support 1
CPU Features CPU TDP supports Up to 350W TDP
Up to 144 (E) cores
Memory
Memory Slots 8 x DDR5 288-pin
Memory Standard DDR5 6400
Maximum Memory Supported 1TB
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express 5.0 x16 3 PCIe 5.0 x16
PCI Express x8 3 PCIe 5.0 x8
6 PCIe 5.0 x8 PCIe5.0 MCIO connector
Storage Devices
SATA 4 x SATA 6.0Gb/s
M.2 M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 22110
Key: M-Key
Onboard LAN
LAN Chipset Dual LAN with 10GBase-T with Intel X550
LAN Speed 10Gbps
Max LAN Speed 2 x 10Gbps
Rear Panel Ports
Back I/O Ports SATA: 4 SATA3 port(s)
LAN
- 2 RJ45 10 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB: 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output: 1 VGA D-Sub Connector port(s)
Serial Port: 1 COM Port(s) (1 header)
TPM
- 1 TPM Header
- 1 TPM TPM 2.0 onboard
Dimensions
Form Factor ATX
Dimensions (W x L) 12.3" x 13.4"
Additional Information
Date First Available October 25, 2024
