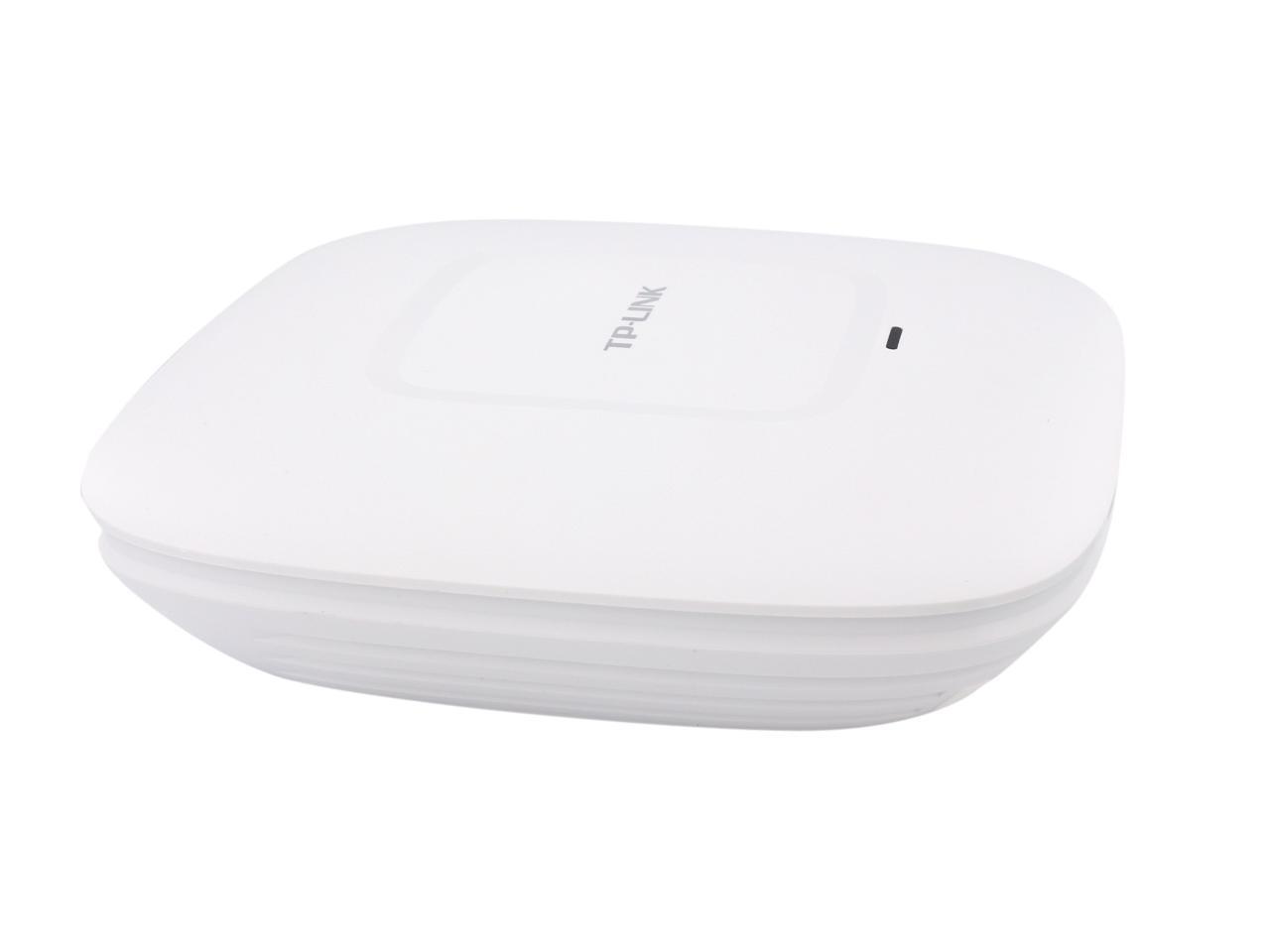

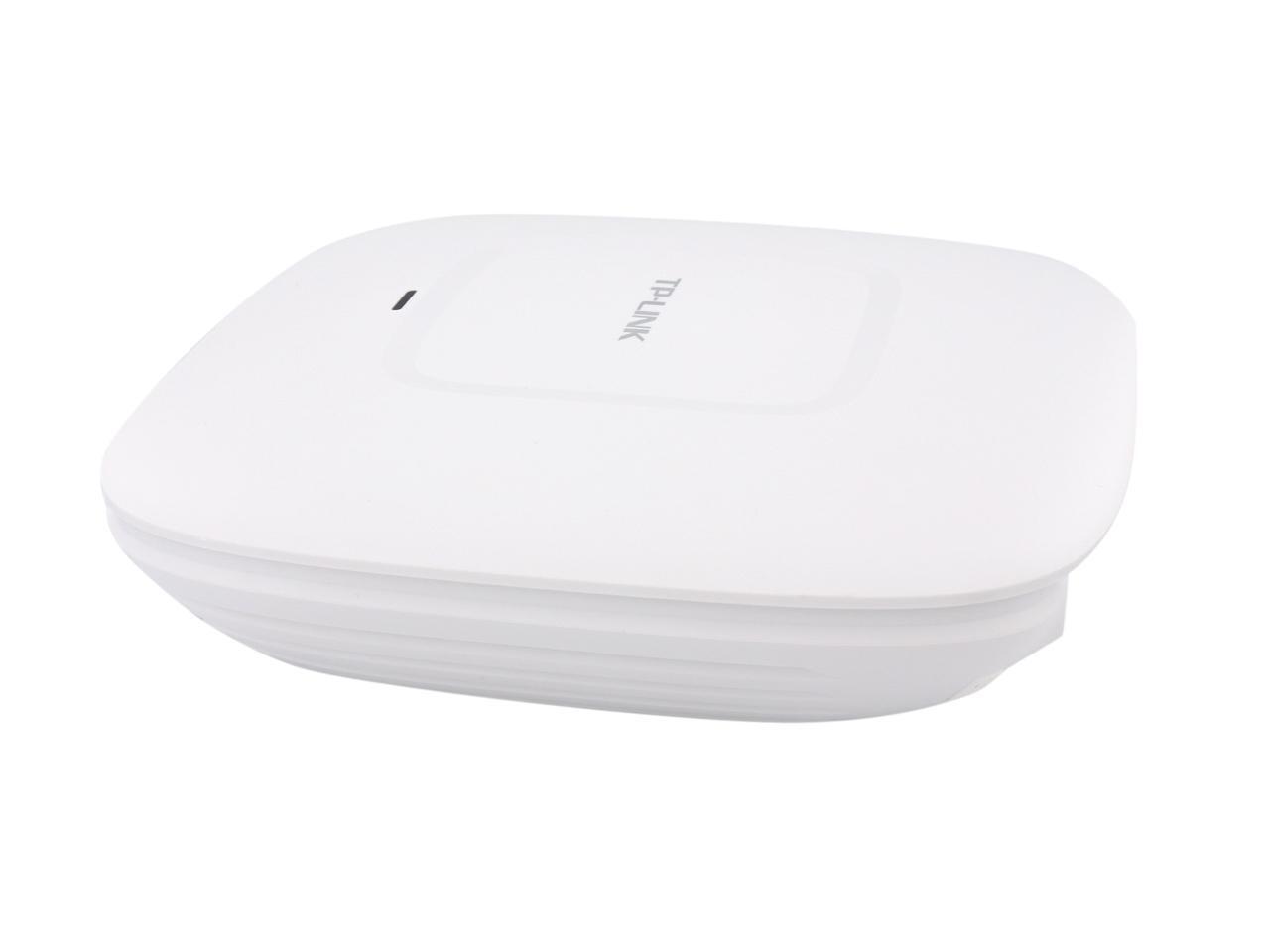

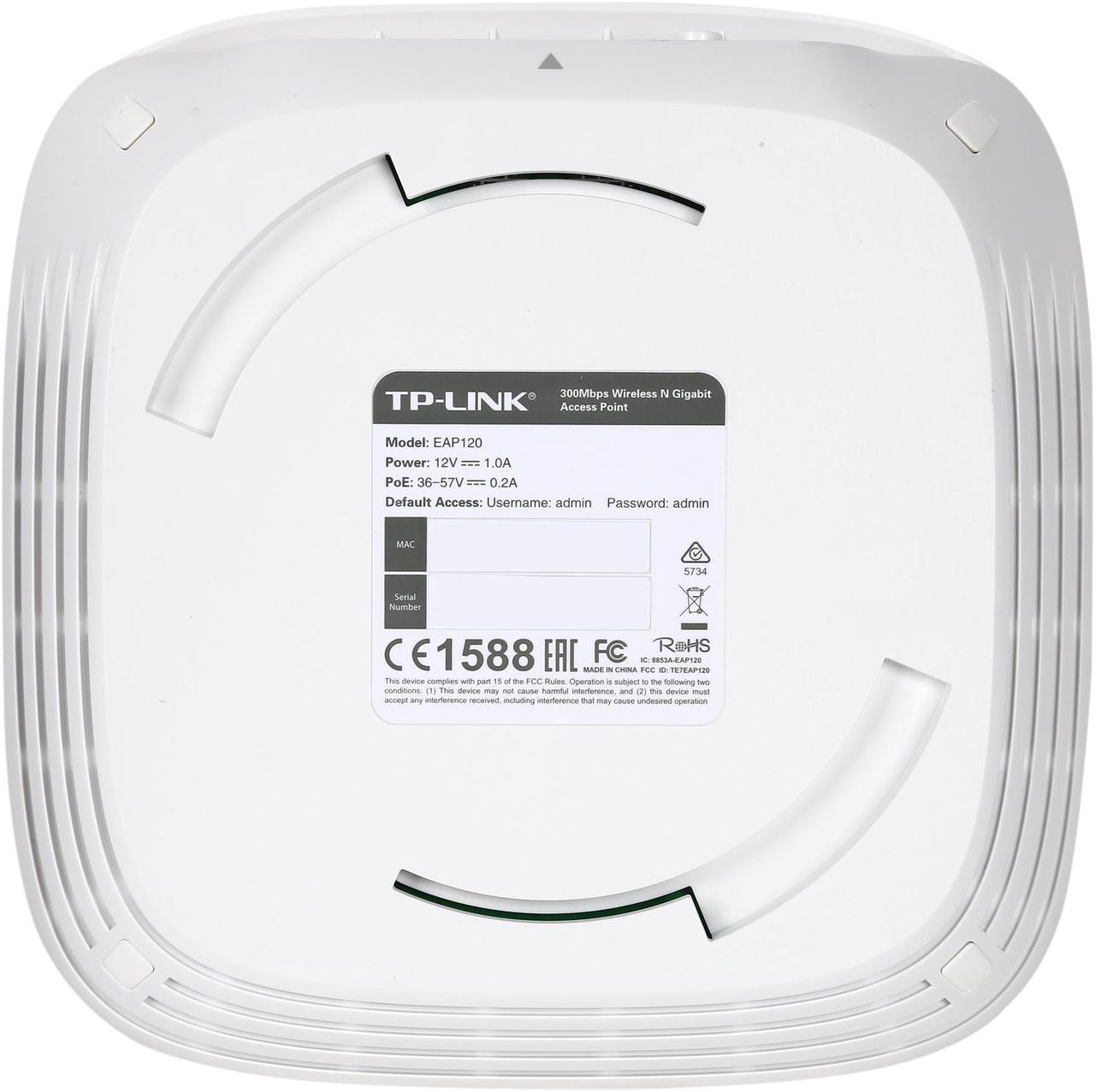

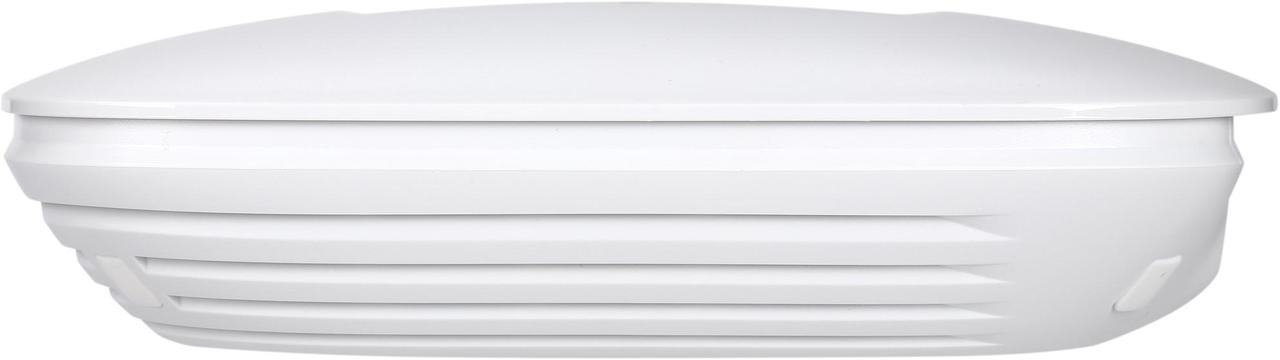

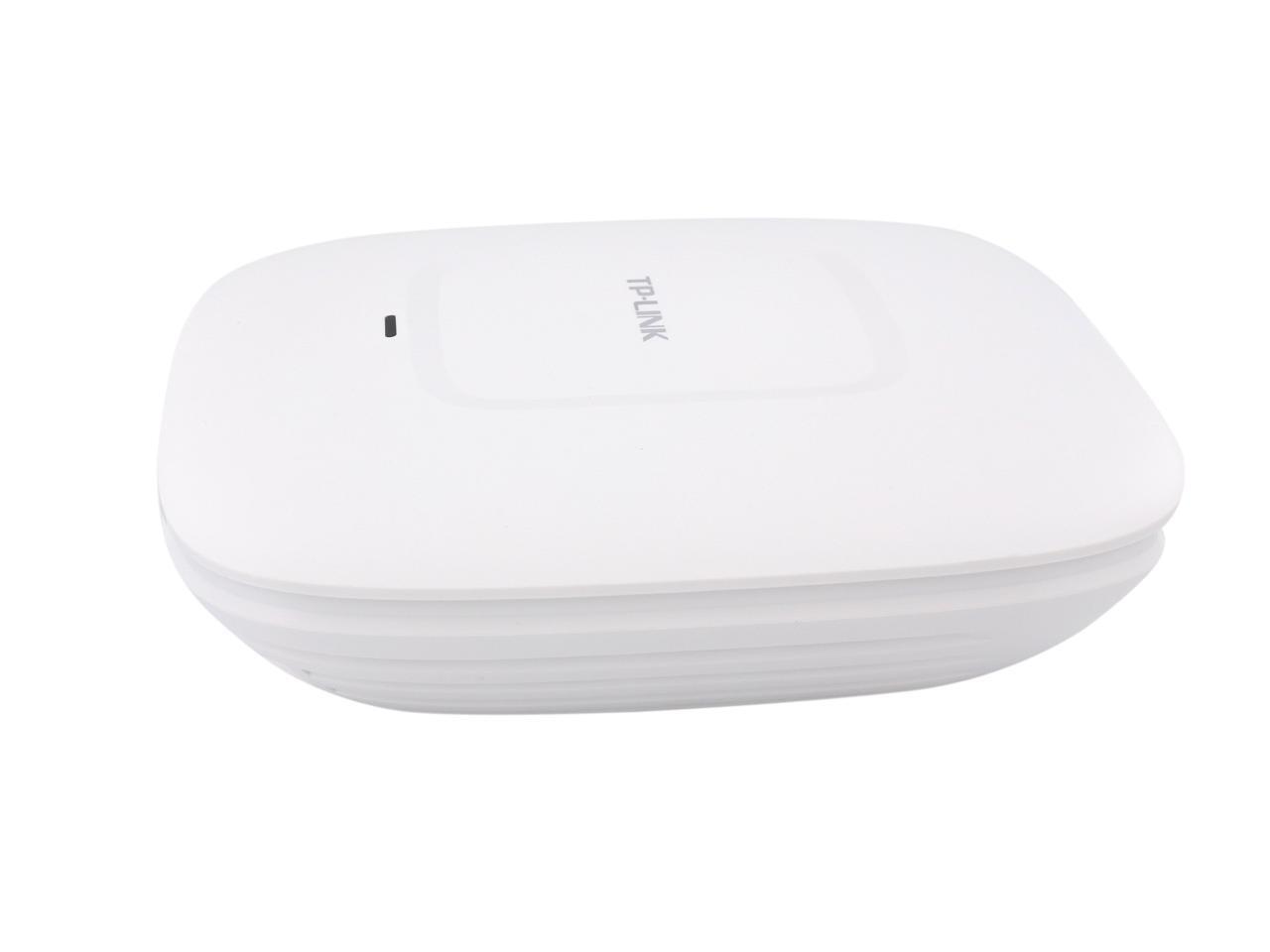

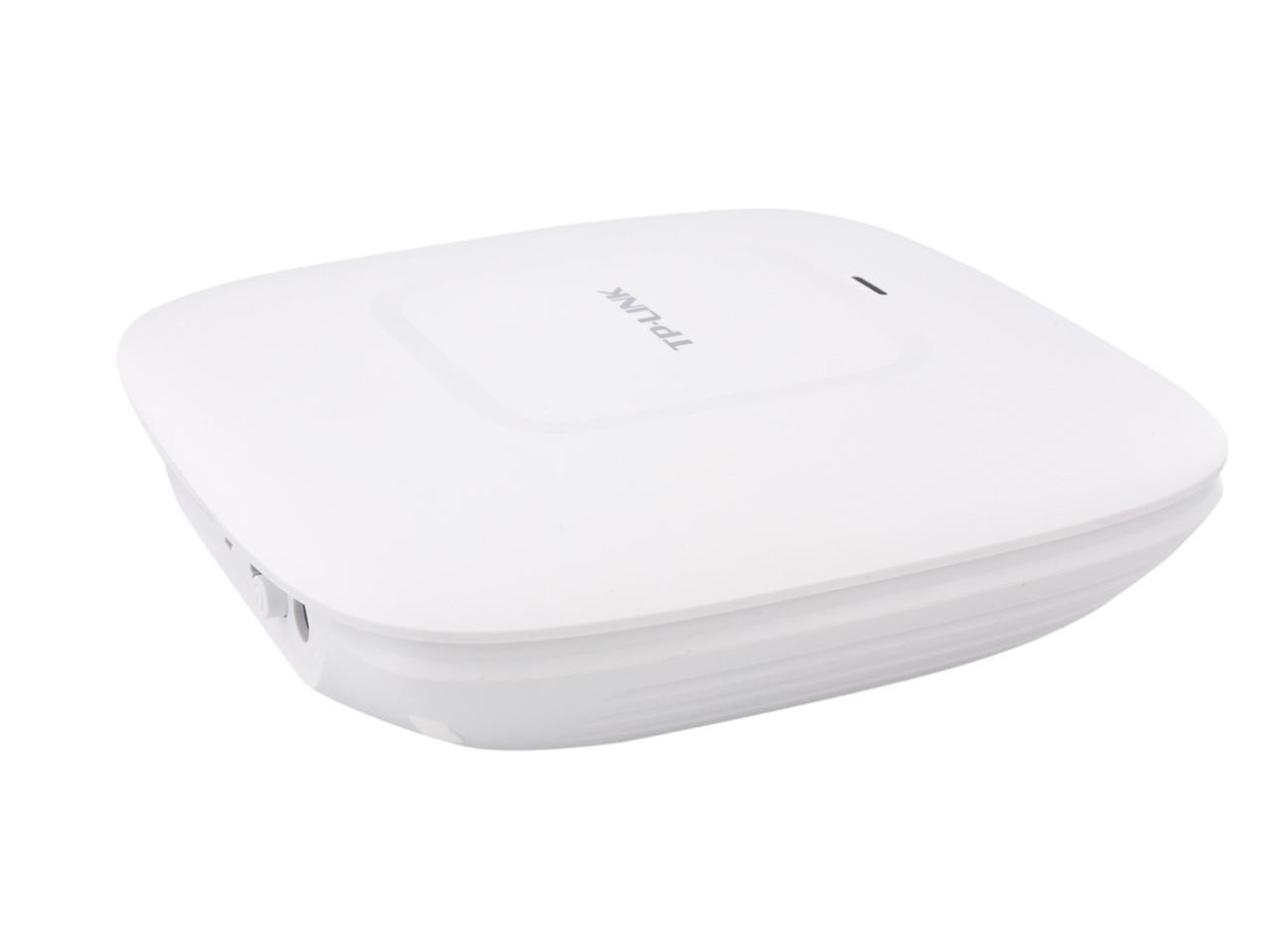

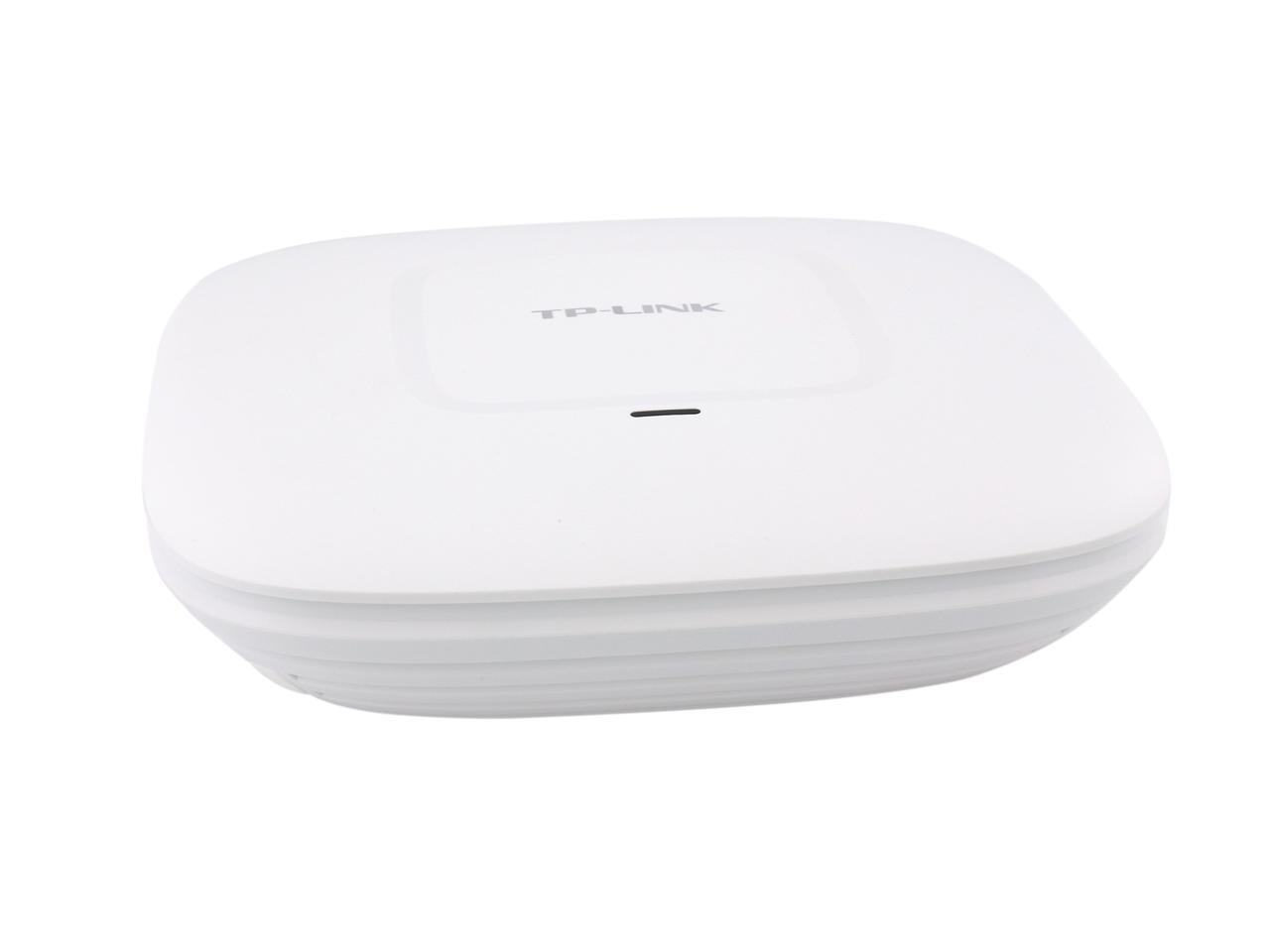

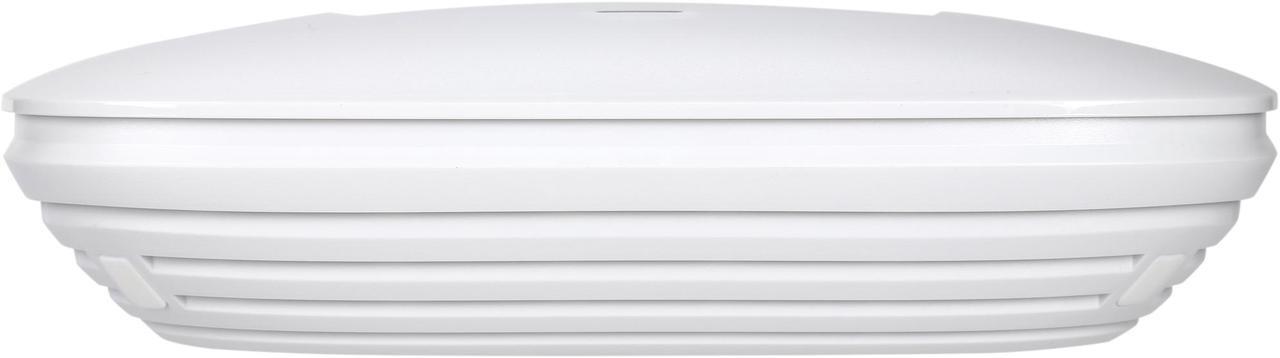

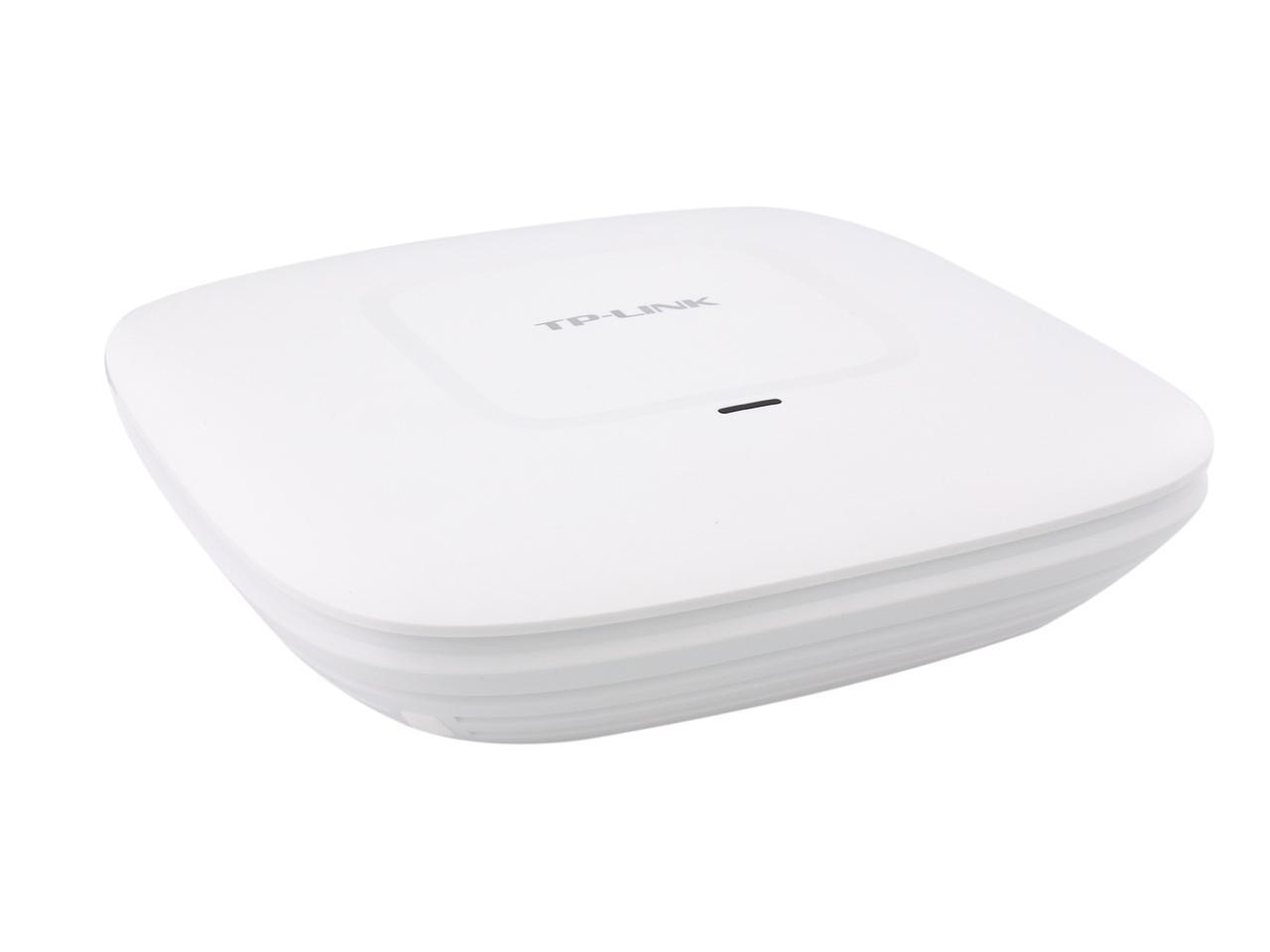

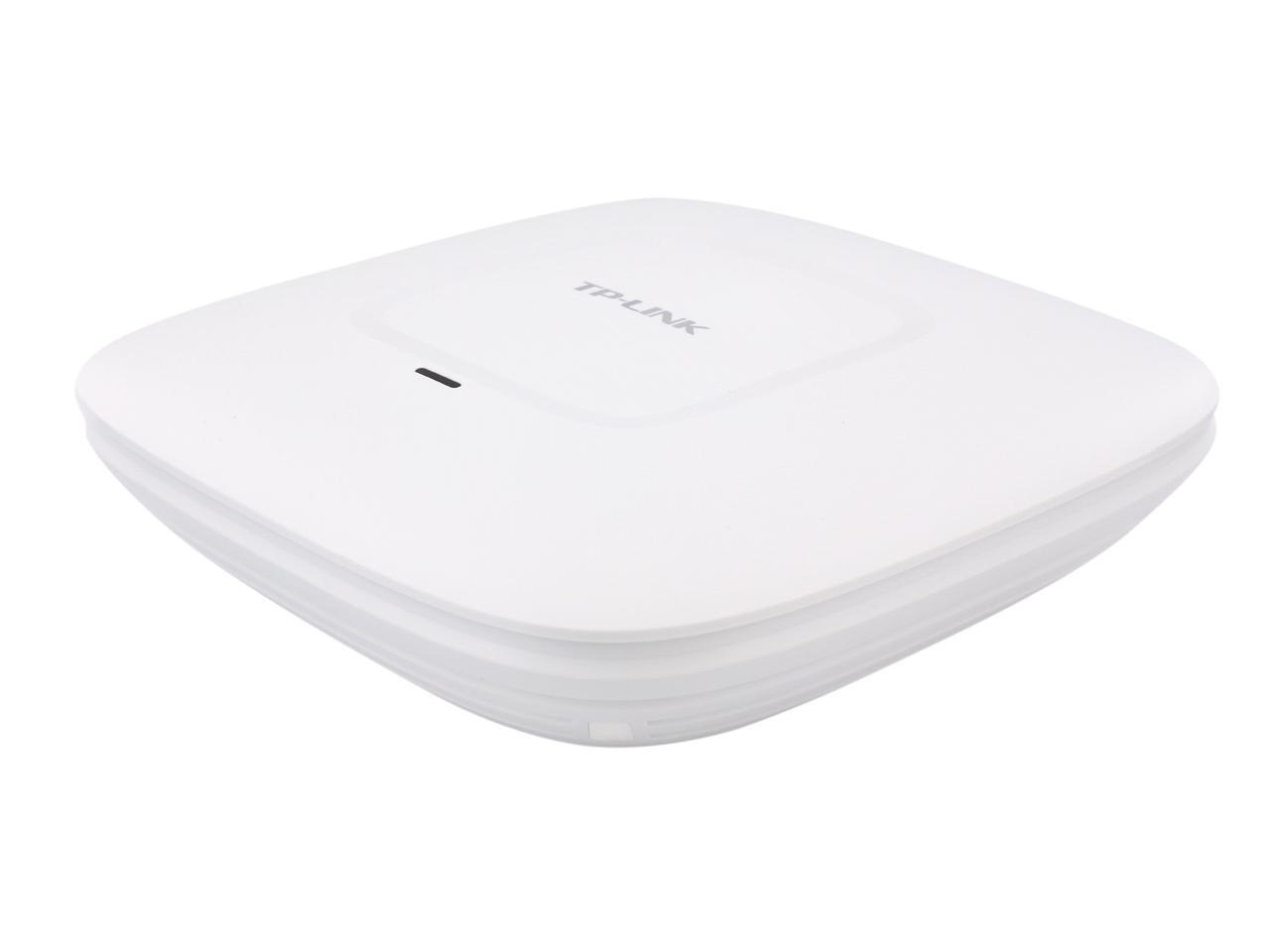

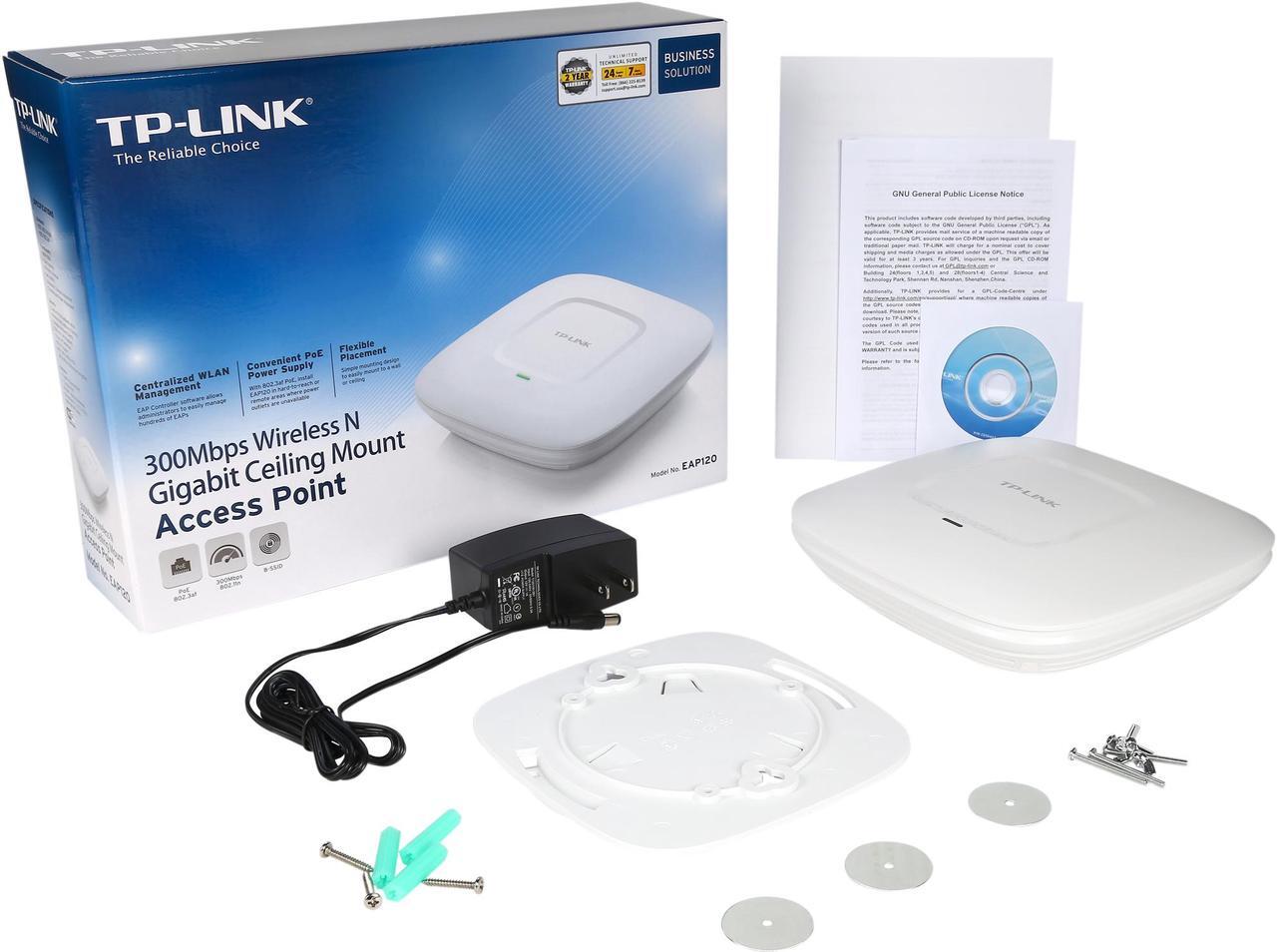

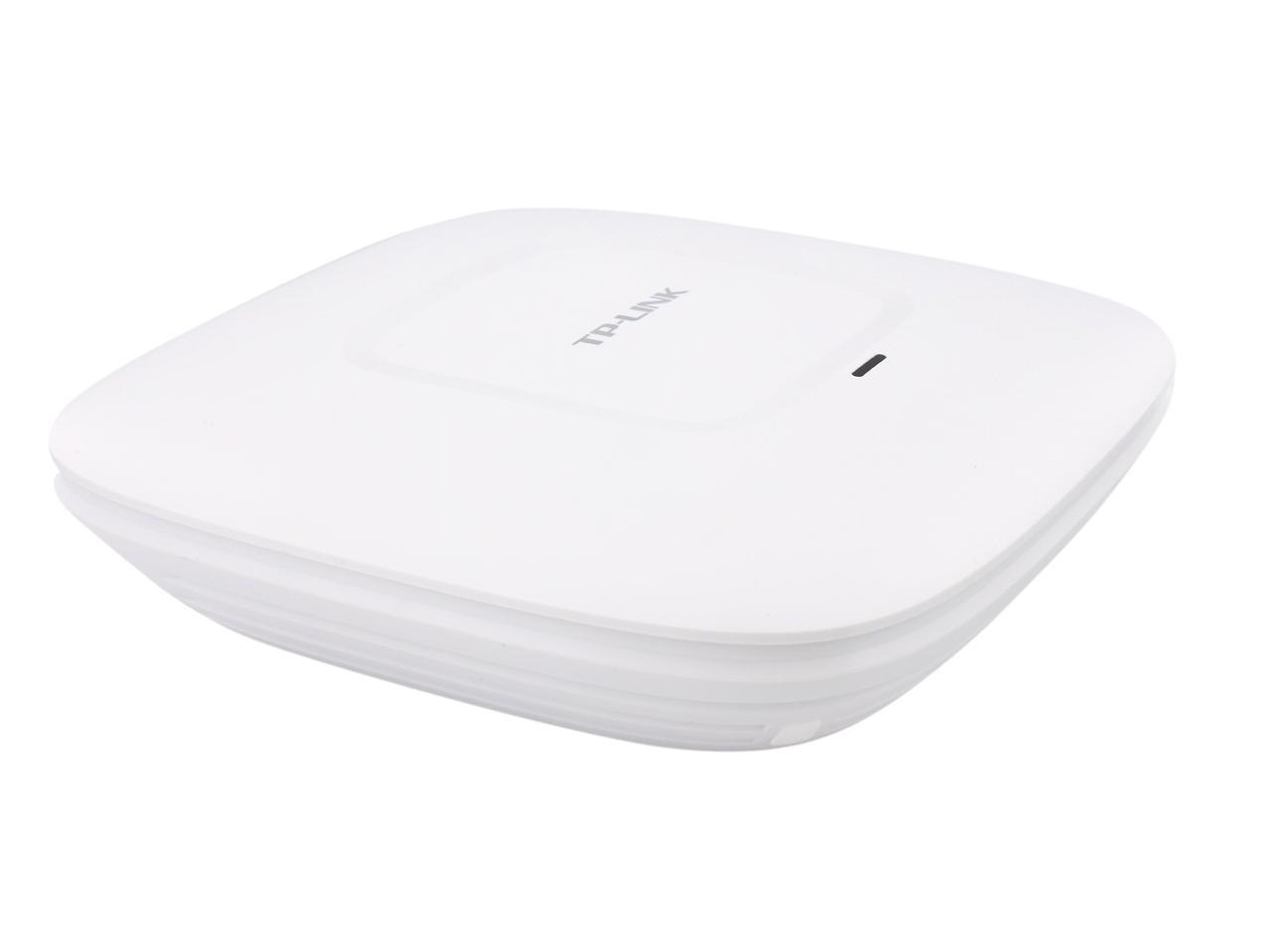

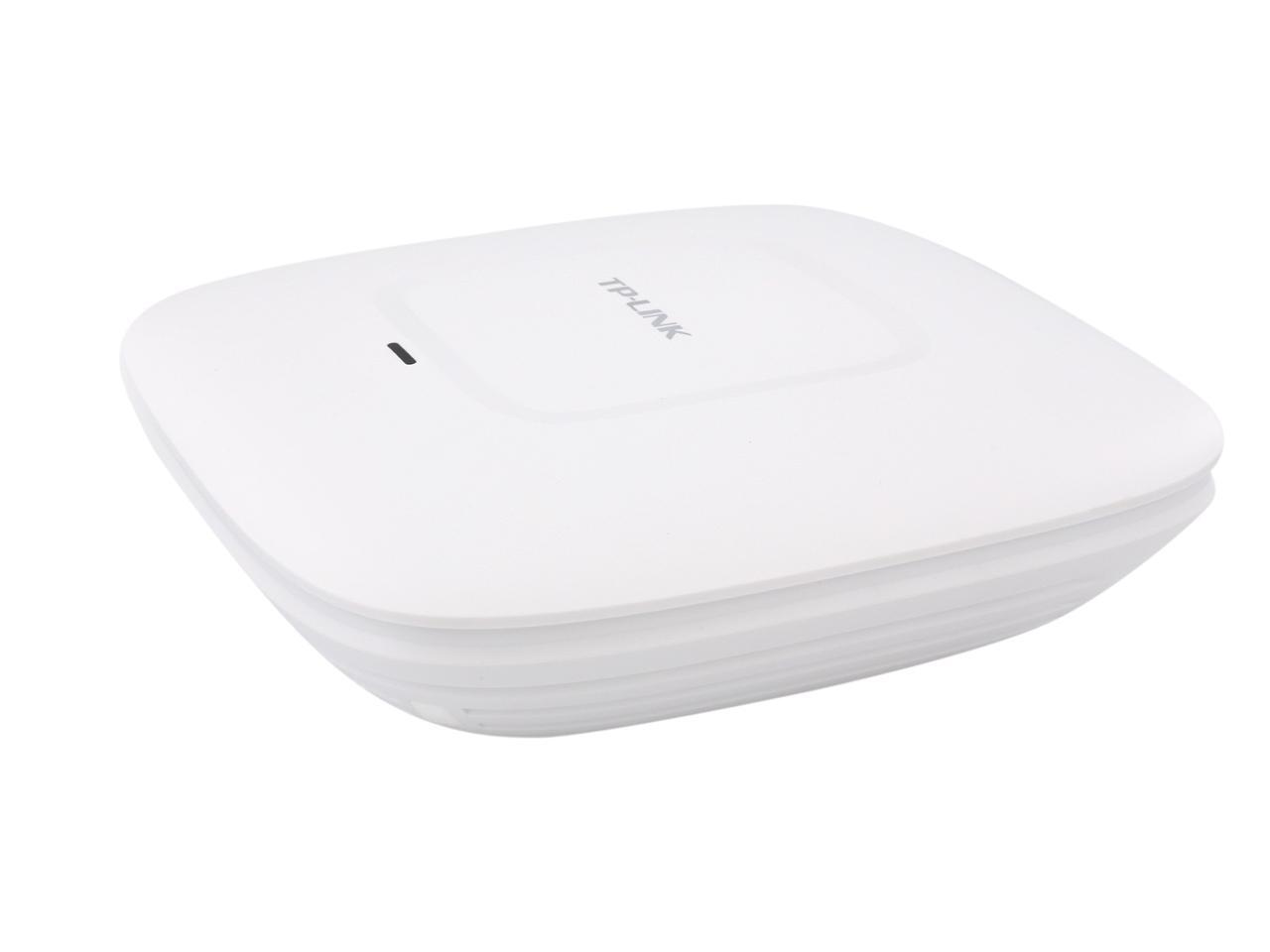

TP-Link EAP120 300Mbps Wireless N Gigabit Ceiling Mount Access Point

Overview

Specs

Reviews

Model
Brand	TP-Link
Model	EAP120

Details
Standards	IEEE 802.11b/g/n
Device Management	Web-Based: HTTP / HTTPS
Wireless Data Rates	Up to 300Mbps
Security	Captive Portal Authentication Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Frequency Band	2.4 GHz - 2.4835 GHz
Antenna	Internal 2 x 4dBi Omni
Transmitted Power	<20 dBm (EIRP)
Receiver Sensitivity	300M: -71dBm @10% PER 150M: -75dBm @10% PER 54M: -78dBm @10% PER 11M: -93dBm @8% PER 6M: -92dBm @10% PER 1M: -96dBm @8% PER
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8

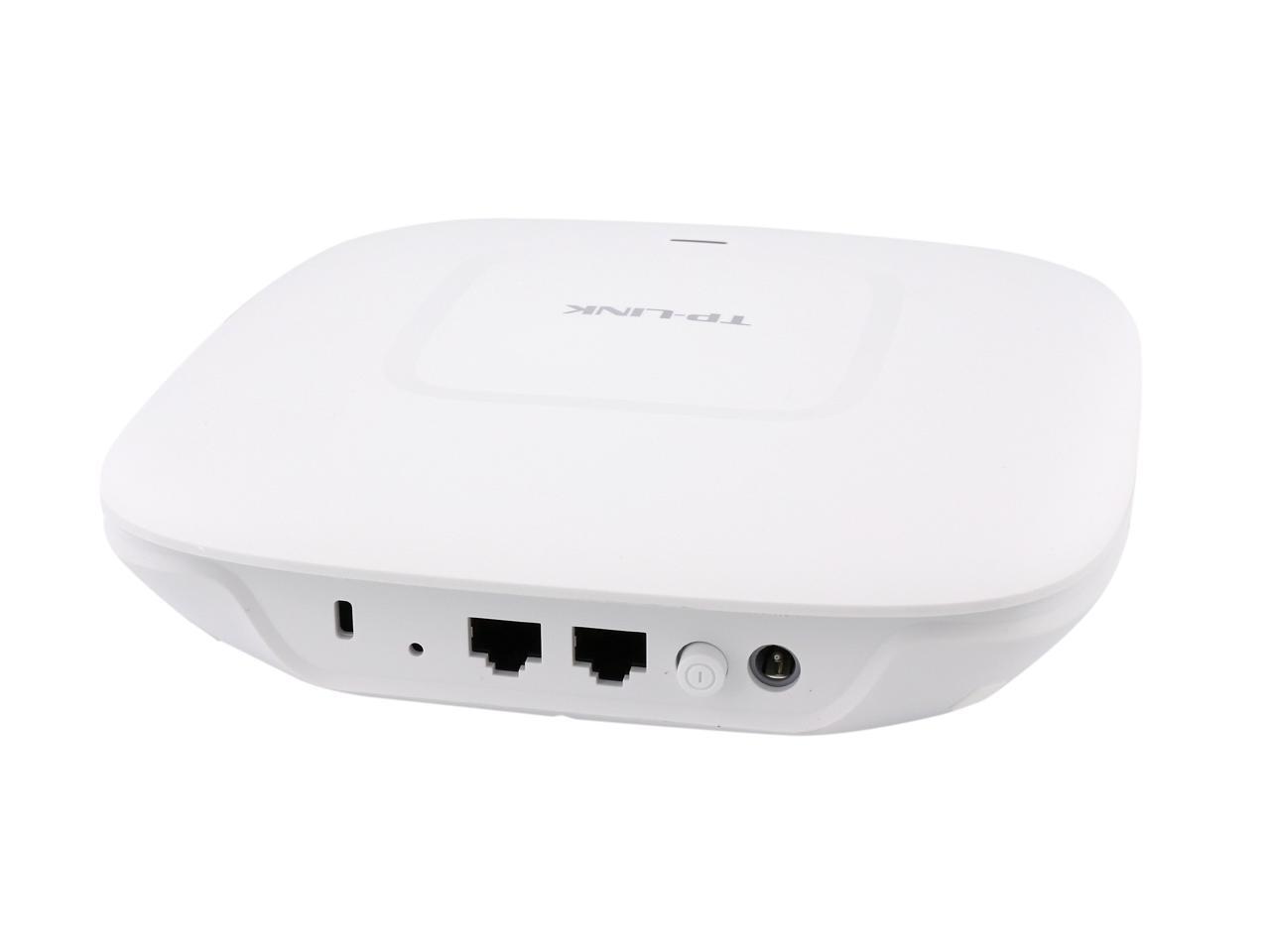

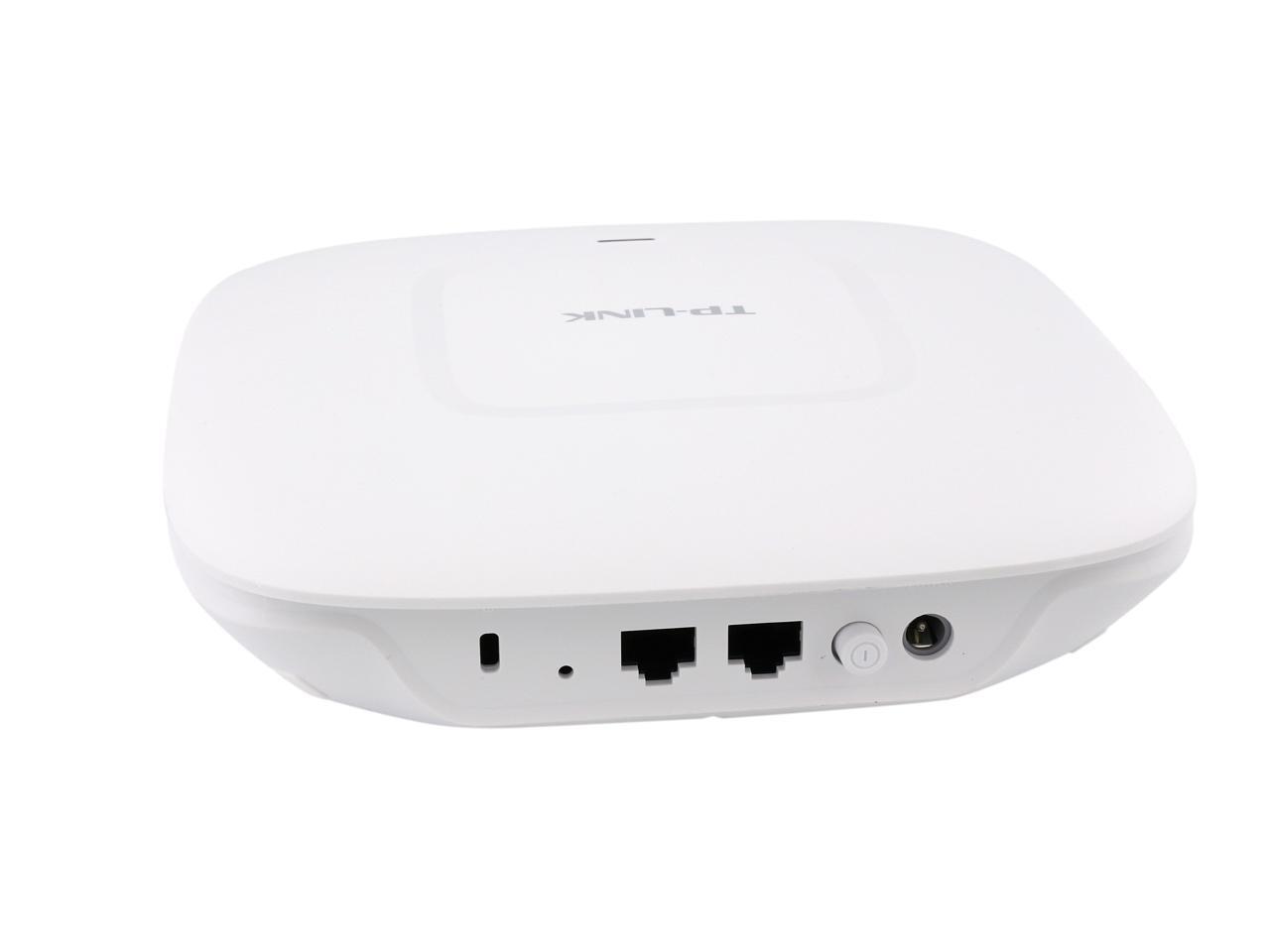

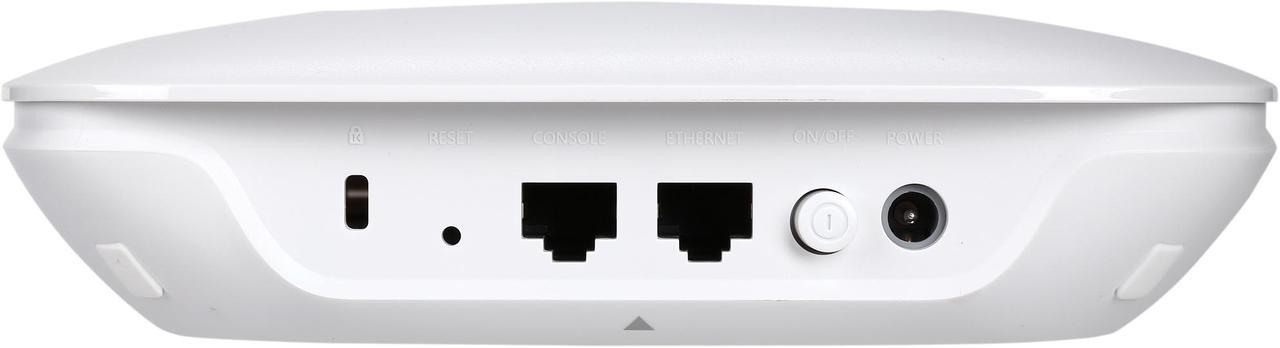

Interface	Gigabit Ethernet (RJ-45) Port x 1(Support IEEE802.3af PoE) Console Port x1 CLI
LEDs	Yes
Buttons	Reset, Power On / Off

Features

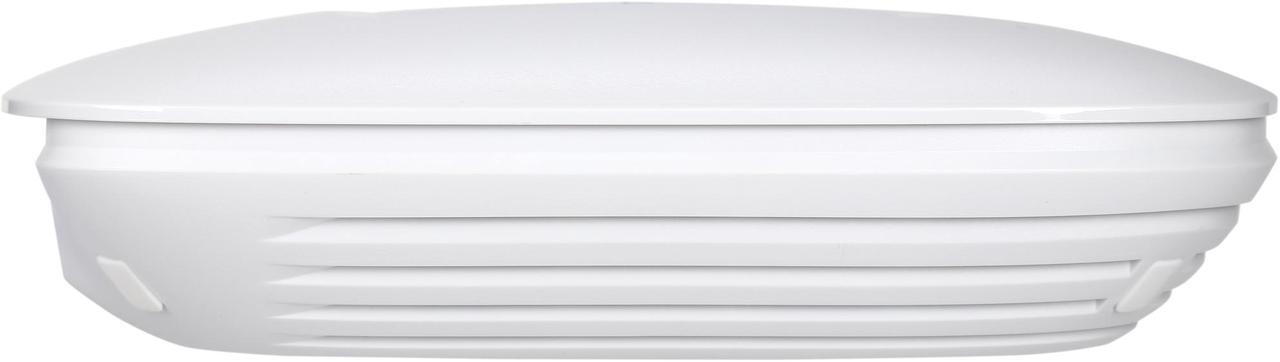

Features	Clustering functionality and free controller software provide centralized WLAN management Support Power over Ethernet(802.3af)for convenient and affordable installation Simple mounting design to easily mount to a wall or ceiling 300Mbps wireless data rate for uninterrupted wireless connection Captive portal provides one convenient method of authentication for WiFi guests WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN Multi-SSID divides multiple wireless network for different users Load balance ensures large numbers of users have smooth network experiences in large business networks Compatible with 802.11 b/g/n products Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

Dimensions & Weight
Dimensions	1.90" x 7.10" x 7.10"

Environmental
Temperature	Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -40°C - 70°C (-40°F - 158°F)
Humidity	Operating Humidity: 10% - 90% (Non-condensing) Storage Humidity: 5% - 90% (Non-condensing)

Additional Information
Date First Available	August 07, 2015
