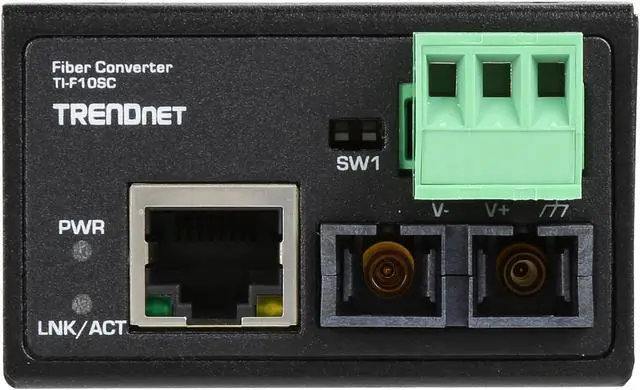

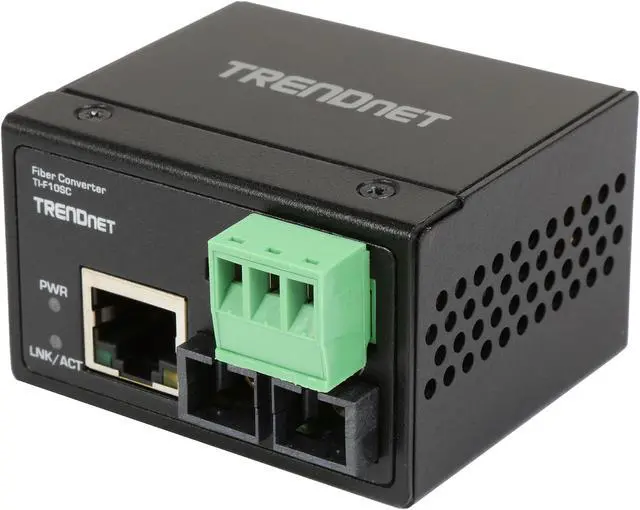

Learn more about the TRENDnet TI-F10SC
ModelBrand | TRENDnet |
---|
Model | TI-F10SC |
---|
DetailsDevice Type | Converter |
---|
Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x |
---|
Protocols | TCP/IP |
---|
Ports | 1 x 10/100 Mbps port 1 x 100Base-FX port (SC-type) 3-pin terminal block LED indicators DIN-Rail mount Wall mount |
---|
Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) |
---|
Power Adapter | Input: 12 – 60 V DC or 18 – 36 V AC Compatible power supply: TI-M6024 (sold separately) Consumption: Max. 1.92 Watts |
---|
EnvironmentalTemperature | -40 to 75 degree C (-40 to 167 degree F) |
---|
Humidity | Max. 95% non-condensing |
---|
FeaturesFeature | Hardened IP40 rated compact housing
100Base-FX Multi-Mode fiber over distances of up to 2 km (1.2 mi.)
SC-type fiber port
Extreme -40 to 75 degree C (-40 to 167 degree F) operating temperature range
Overload current protection
Includes DIN-rail and wall mounts
Power supply sold separately (model TI-M6024) |
---|
Dimensions & WeightDimensions | 1.40" x 2.36" x 2.00" |
---|
Weight | 0.19 lb. |
---|

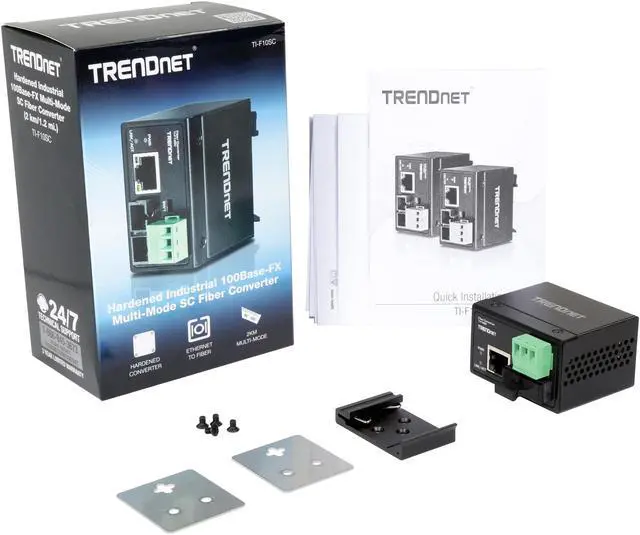

Package ContentsPackage Contents | TI-F10SC Quick Installation Guide Removable terminal block DIN-rail and wall mount kit |
---|
Additional InformationDate First Available | April 03, 2025 |
---|
