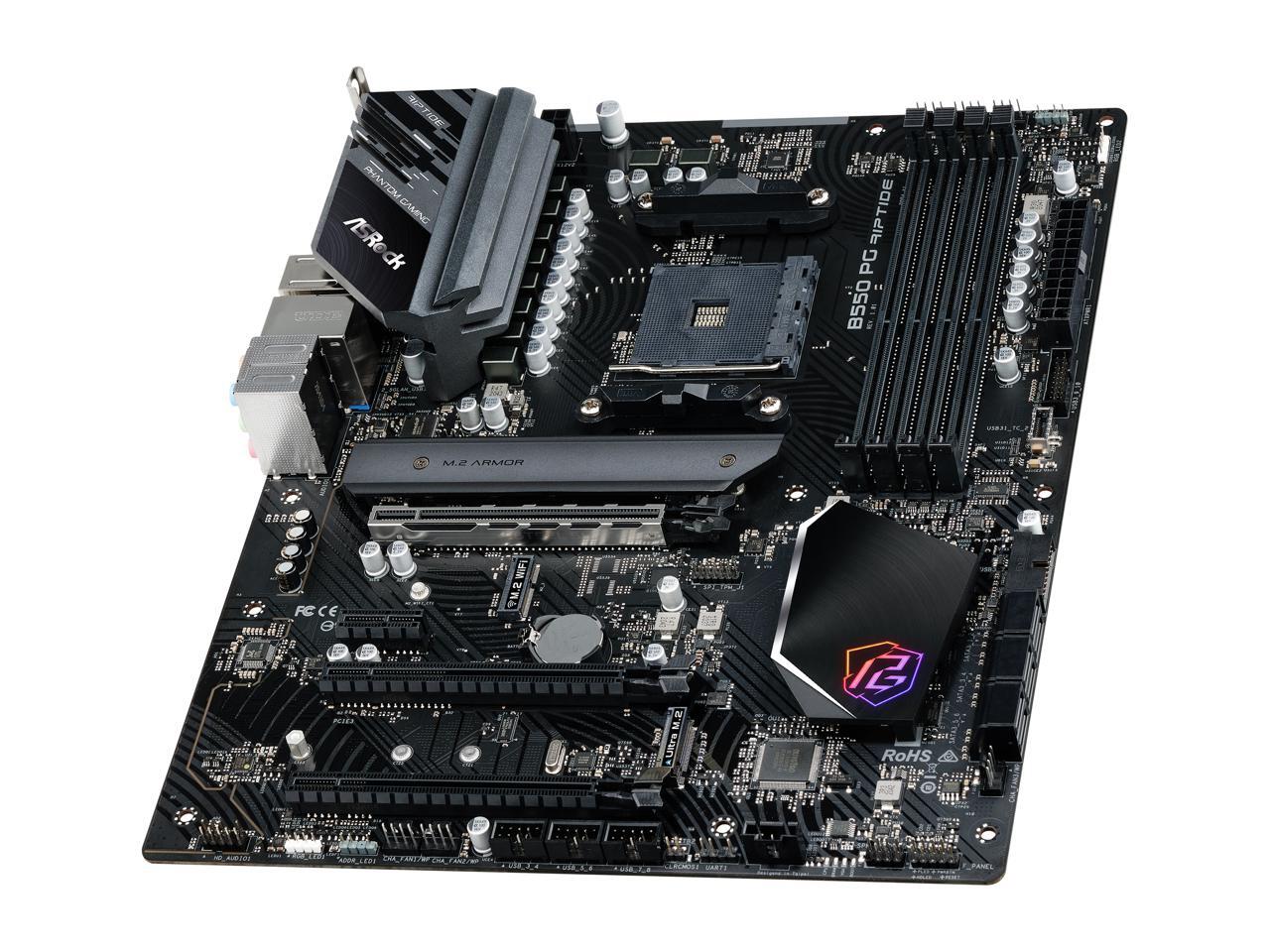

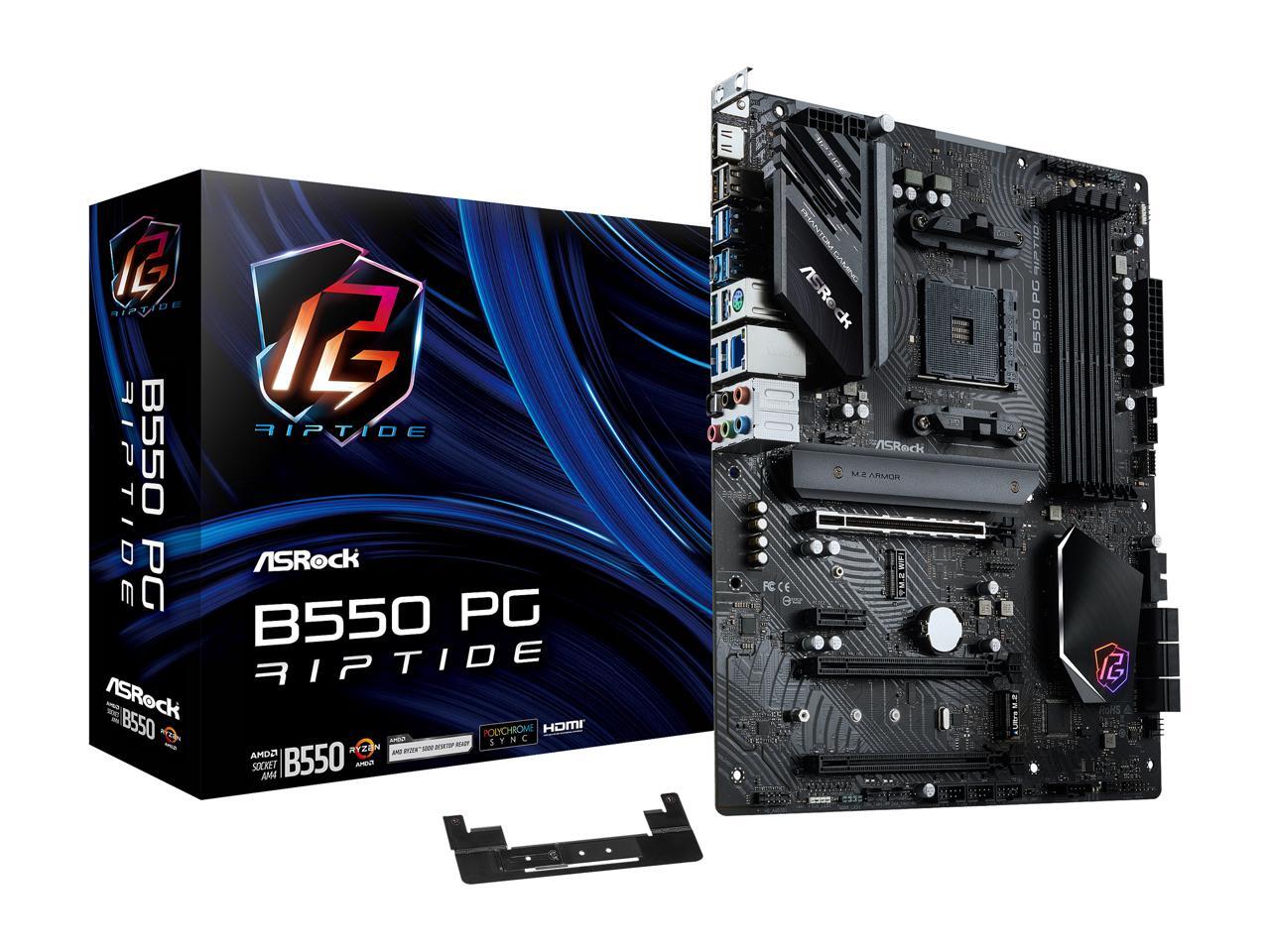

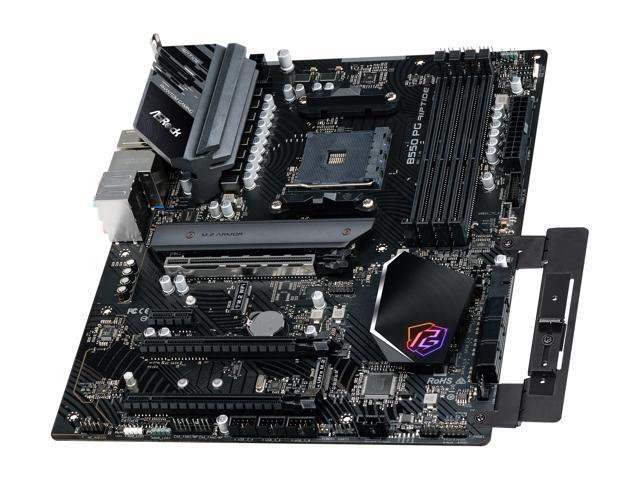

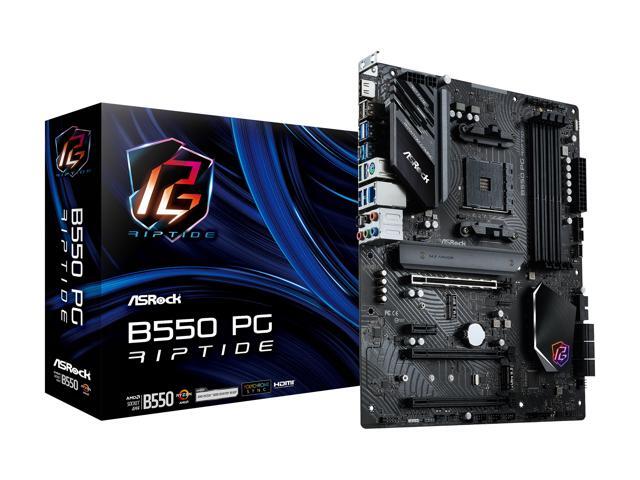

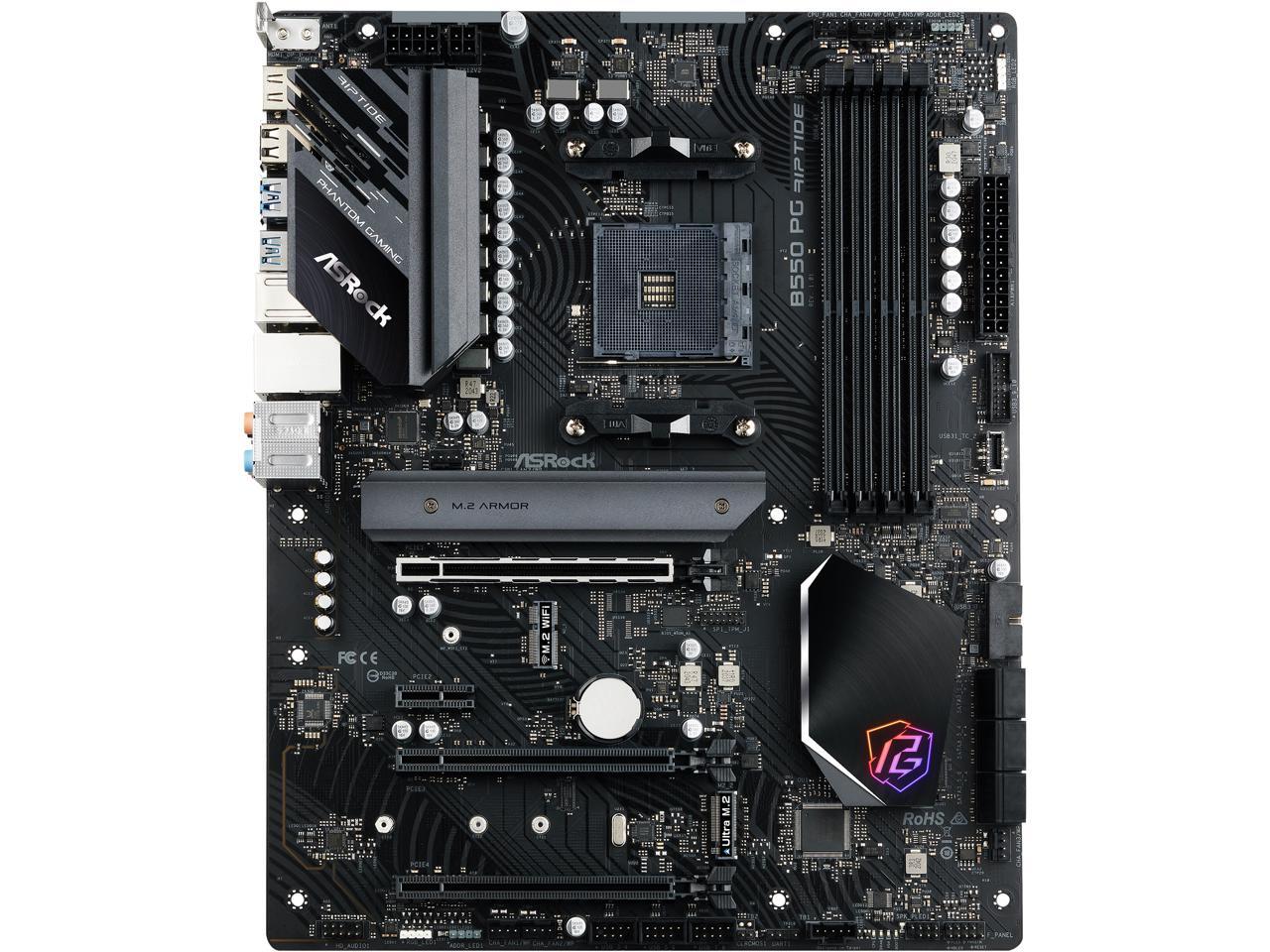

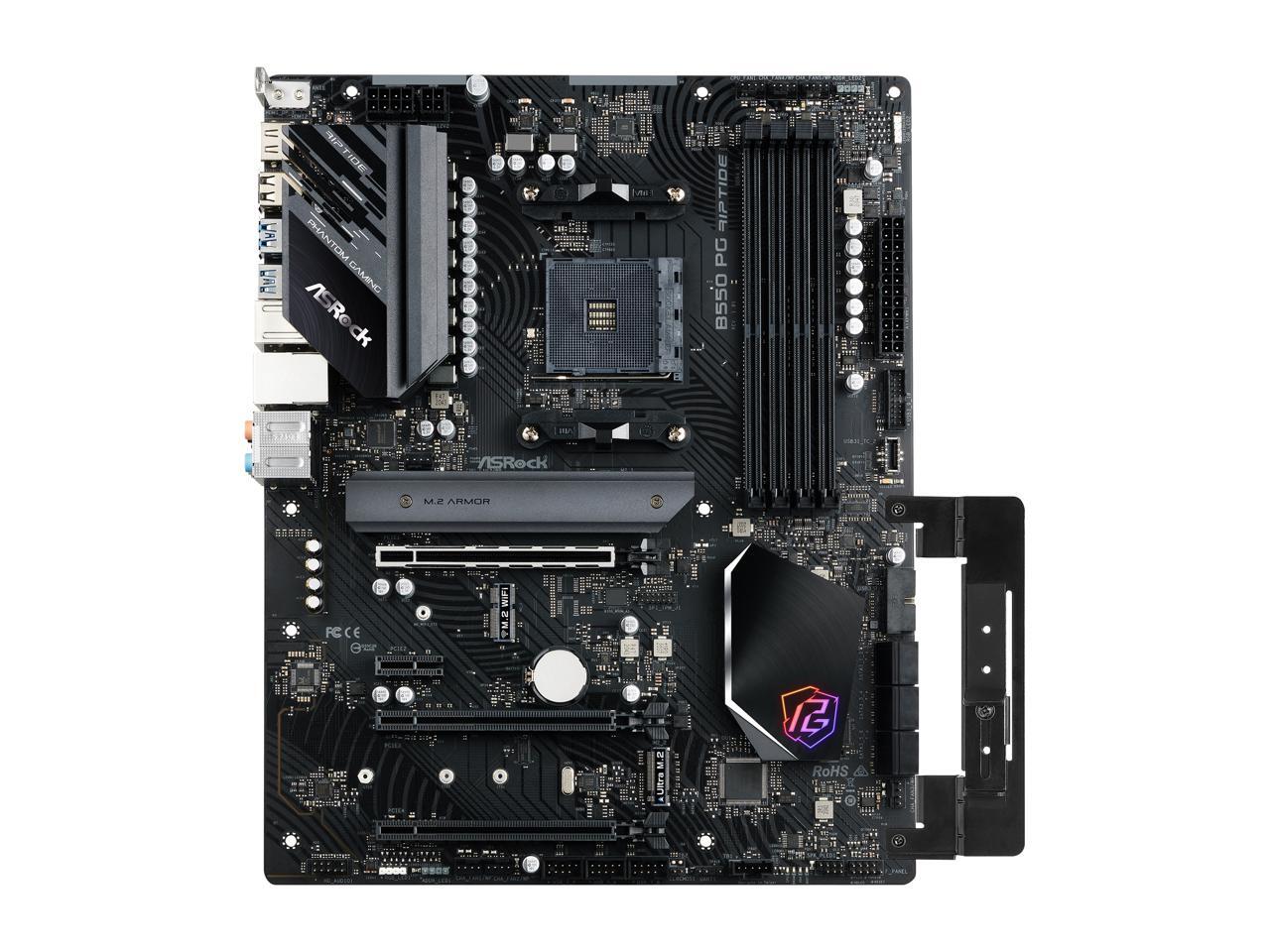

ASRock B550 PG RIPTIDE AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard
See more "asrock b550"
OUT OF STOCK.
- AMD B550
- Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors *
- * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
- DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))*
- * For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs.
Specs
Reviews
Learn more about the ASRock B550 PG RIPTIDE
| Brand | ASRock |
|---|---|
| Model | B550 PG RIPTIDE |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors * * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))* * For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. * Supports NVMe SSD as boot disks. |
|---|---|
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16* * Supports NVMe SSD as boot disks. * If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Other Slots | 15µ Gold Contact in VGA PCIe Slot (PCIE1) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* * If M2_2 is occupied, SATA3_5_6 will be disabled. * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Killer E3100G |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Back I/O Ports | 1 x Antenna Mounting Bracket 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * USB3_56 are the Lightning Gaming Ports. |
|---|
| Onboard USB | 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card only) * Support in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | ATX |
|---|---|
| LED Lighting | None RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
| Features | Unique Feature: ASRock USB 3.2 Gen2 - ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Killer 2.5G LAN ASRock Lightning Gaming Port ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VDDCR_SOC, DRAM, VPPM, +1.8V Voltage Multi-adjustment Software and UEFI: Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Killer LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V OS: - Microsoft Windows 10 64-bit / 11 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
|---|

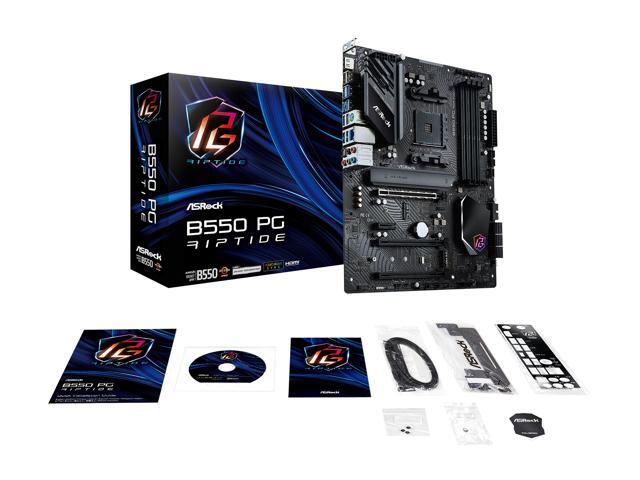

| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Graphics Card Holder - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
|---|
| Date First Available | July 13, 2021 |
|---|
