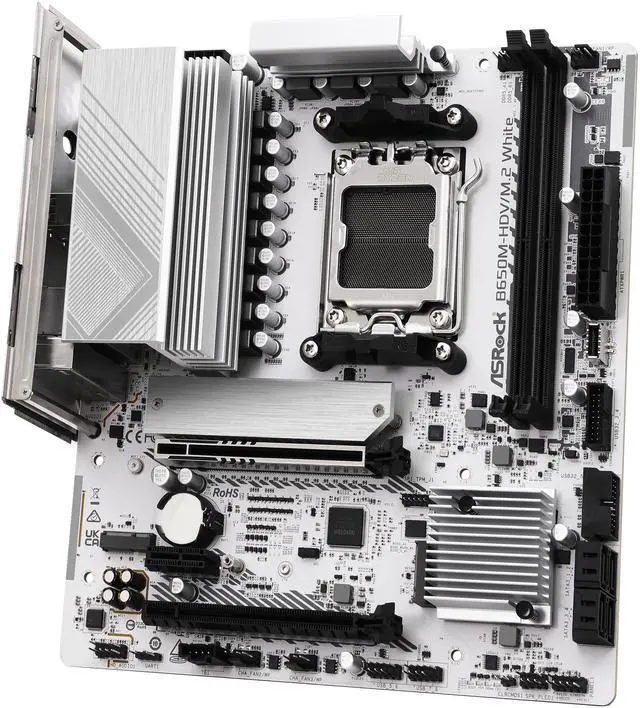

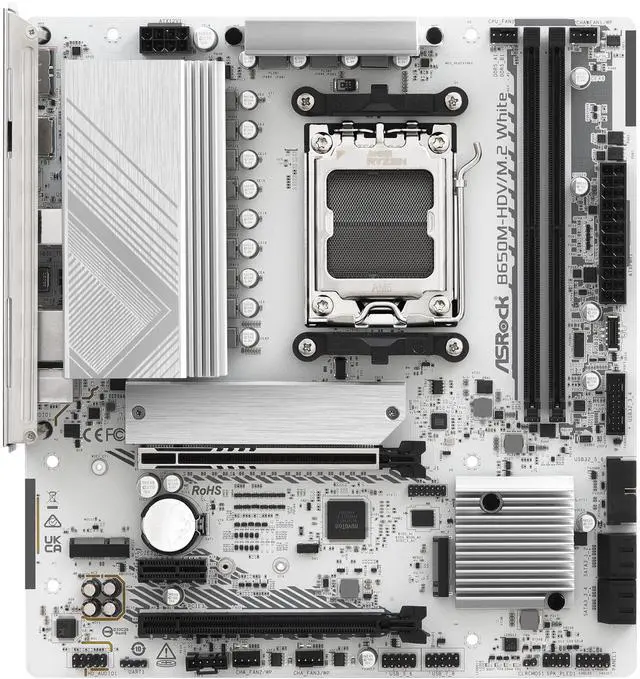

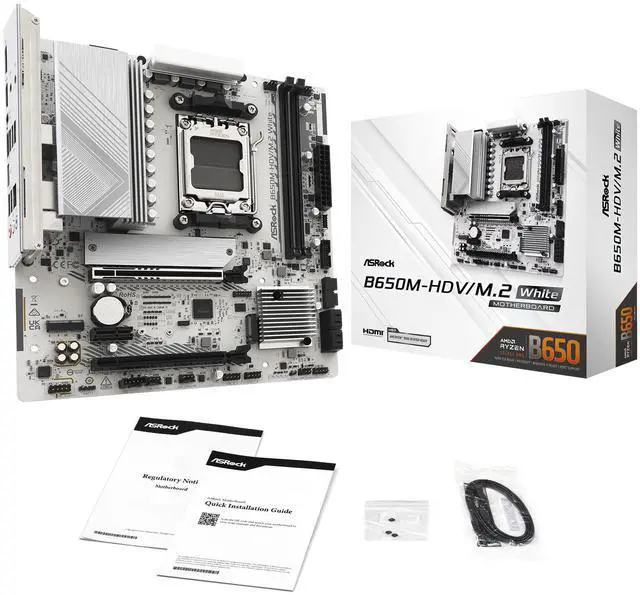

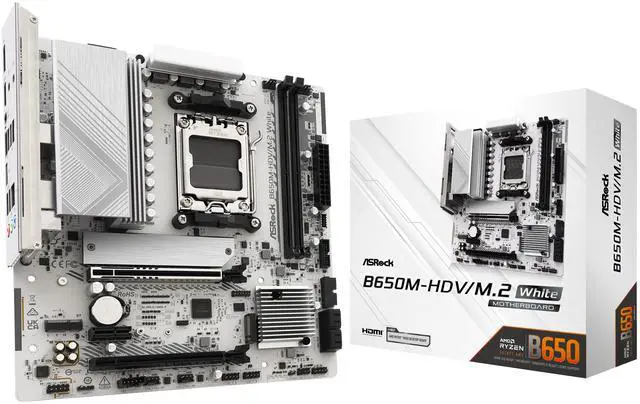

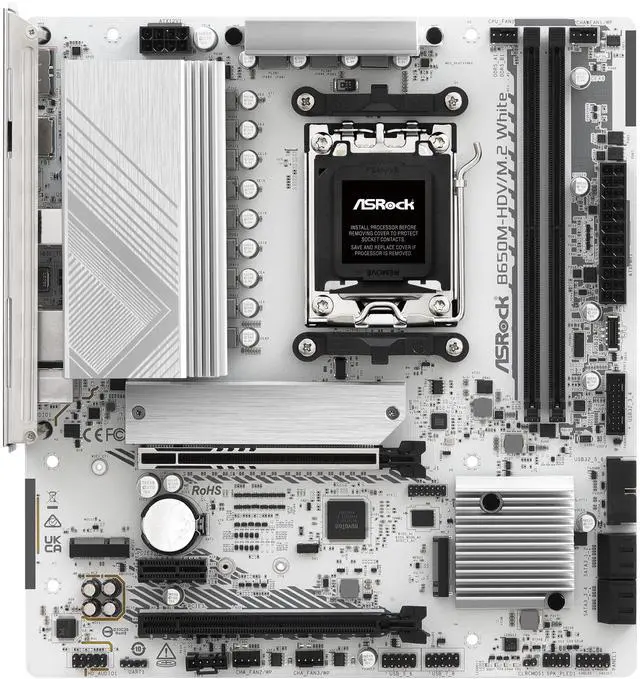

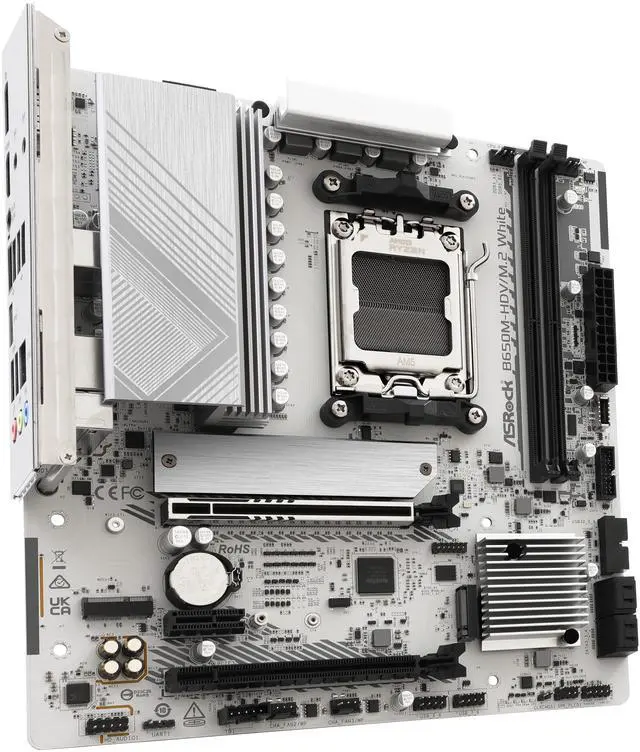

ASRock B650M-HDV/M.2 White AM5 AMD B650 Micro ATX Motherboard
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 8+2+1 Power Design, Dr.MOS for VCore+SOC+MISC
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 8200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
- 1 USB 3.2 Gen2 Type-C (Front)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback
+
+
Specs
Reviews
Learn more about the ASRock B650M-HDV/M.2 White
| Brand | ASRock |
|---|---|
| Model | B650M-HDV/M.2 White |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Up to 8200+(OC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x1 | 1 x PCIe 4.0 x1 Slot (PCIE2)* *M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* *Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |

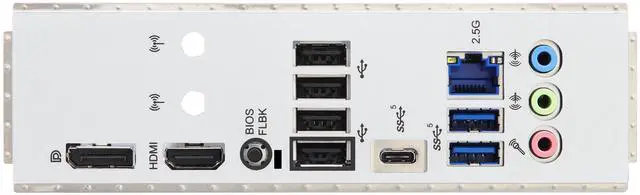

| Back I/O Ports | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin)* 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.9" |
| BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
|---|---|
| Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|---|
| Date First Available | August 04, 2025 |
|---|
