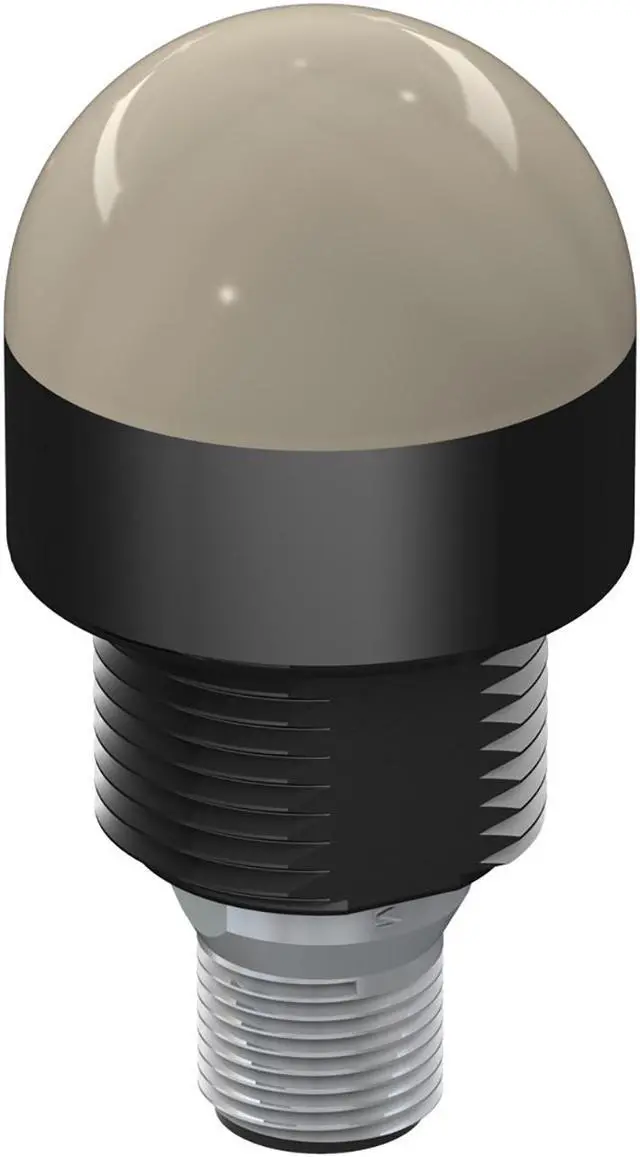

BANNER K30LGRYPQ 30 Mm General Purpose Led Indicator New
- BANNER K30LGRYPQ 30 Mm General Purpose Led Indicator New
+
+
Overview
Specs
Reviews
K30 Series EZ-LIGHT: 3-Color General Purpose Indic
Voltage: 10-30V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Green Red Yellow
Euro-style Quick-Disconnect Connector
Part Number: 78925
Housing Style Base Mount - Dome Window
Primary Housing Material Polycarbonate
Indication Yes
Mounting Thread M22 x 1.5
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 3
Product Size (mm) 30
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Solid On
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Color Option 2 Red
Color Option 3 Yellow
Max Current Color (mA) 25
Number of Input Pins/Conductors 4
Supply Voltage 10-30 V dc
Input Type PNP
Max Input Response Time (ms) 1
Physical Dimensions (LxWxH or DxH mm) 30.0 x 57.0
Environmental Rating IP67; IP69
NEMA Type and UL Type Rating UL 4X, 13
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -40
Storage Temp (°C) -40 to 70
Primary Housing Color Black
Primary Window Material Polycarbonate Diffused
Feature: Washdown Rated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Multi-Color Device Single Color On
IO Link No
Modbus RTU No
Wireless No
Pro-Editor Compatible No
Voltage: 10-30V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Green Red Yellow
Euro-style Quick-Disconnect Connector
Part Number: 78925
Housing Style Base Mount - Dome Window
Primary Housing Material Polycarbonate
Indication Yes
Mounting Thread M22 x 1.5
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 3
Product Size (mm) 30
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Solid On
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Color Option 2 Red
Color Option 3 Yellow
Max Current Color (mA) 25
Number of Input Pins/Conductors 4
Supply Voltage 10-30 V dc
Input Type PNP
Max Input Response Time (ms) 1
Physical Dimensions (LxWxH or DxH mm) 30.0 x 57.0
Environmental Rating IP67; IP69
NEMA Type and UL Type Rating UL 4X, 13
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -40
Storage Temp (°C) -40 to 70
Primary Housing Color Black
Primary Window Material Polycarbonate Diffused
Feature: Washdown Rated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Multi-Color Device Single Color On
IO Link No
Modbus RTU No
Wireless No
Pro-Editor Compatible No
