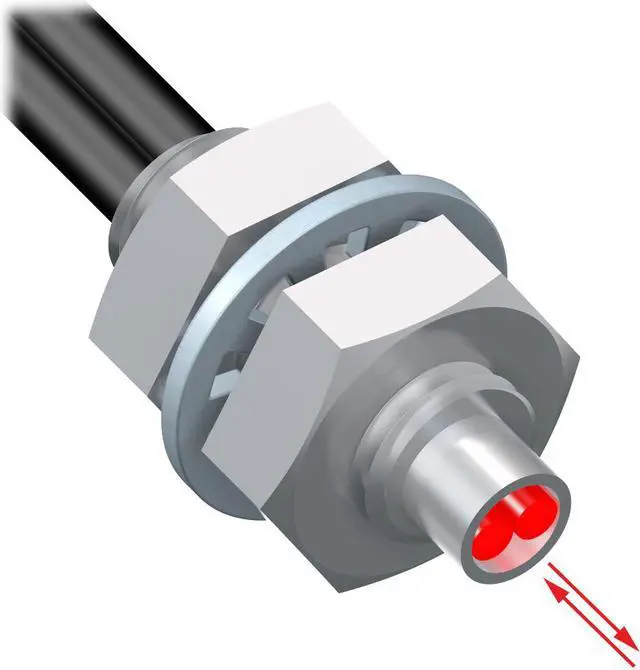

BANNER PBT66U 39982 Sensor New
- BANNER PBT66U 39982 Sensor New
+
+
Overview
Specs
Reviews
Plastic Fiber, Diffuse Reflective
Core Dia.: 1.5 mm; Fiber Length 2 m
Thread
Free cut
Part Number: 39982
Housing Style Round
Quantity Included 1
Fiber Optic Type Plastic
Sensing Mode (General) Diffuse
Sensing Mode (Detailed) Reflective
Beam Exit In-line
Sensing End Material (Specific) Nickel-Plated Brass
Fiber Sheathing Material (Jacket) Polyethylene
Fiber Sensing End Tip Thread
Fiber Length (m) 2.000
Fiber Sensing End Size 4.0 mm
Sensing End Segment 1 Thread
Retractile No
Flex Relief No
Core Diameter (mm) 1.50
Minimum Bend Radius (mm) 40
Termination Free Cut
Max Temp ( °C) 70
Minimum Repeat Bending Endurance 10000
Integrated Lens No
Feature: Chemical Resistant No
Feature: Extended Range No
Feature: Small Object Detection No
Application: Liquid Level No
Application: Vacuum Feed Through None
Termination Type Plastic Fiber Sensors
Tariff Fiber Meters (fbm) 4
Max Distance: DF-G3 (mm) No Data
Measured Max Distance (mm) No Data
Fiber Sensing End Size - Mounting Area M6
Max Distance: DF-G2 (mm) No Data
Max Distance: DF-G1 (mm) No Data
Core Dia.: 1.5 mm; Fiber Length 2 m
Thread
Free cut
Part Number: 39982
Housing Style Round
Quantity Included 1
Fiber Optic Type Plastic
Sensing Mode (General) Diffuse
Sensing Mode (Detailed) Reflective
Beam Exit In-line
Sensing End Material (Specific) Nickel-Plated Brass
Fiber Sheathing Material (Jacket) Polyethylene
Fiber Sensing End Tip Thread
Fiber Length (m) 2.000
Fiber Sensing End Size 4.0 mm
Sensing End Segment 1 Thread
Retractile No
Flex Relief No
Core Diameter (mm) 1.50
Minimum Bend Radius (mm) 40
Termination Free Cut
Max Temp ( °C) 70
Minimum Repeat Bending Endurance 10000
Integrated Lens No
Feature: Chemical Resistant No
Feature: Extended Range No
Feature: Small Object Detection No
Application: Liquid Level No
Application: Vacuum Feed Through None
Termination Type Plastic Fiber Sensors
Tariff Fiber Meters (fbm) 4
Max Distance: DF-G3 (mm) No Data
Measured Max Distance (mm) No Data
Fiber Sensing End Size - Mounting Area M6
Max Distance: DF-G2 (mm) No Data
Max Distance: DF-G1 (mm) No Data
