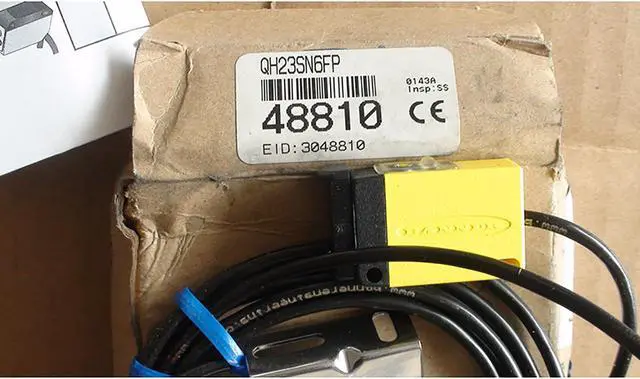

BANNER QH23SN6FP Sensor New
- BANNER QH23SN6FP Sensor New
+
+
Overview
Specs
Reviews
Q23 Series: Plastic Fiber Optic
Range: depends on fiber used; Input: 10-30V dc
Output: Complementary NPN
2 m (6.5 ft) Cable
Part Number: 48810
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 250
Number of Pins 4
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
Range: depends on fiber used; Input: 10-30V dc
Output: Complementary NPN
2 m (6.5 ft) Cable
Part Number: 48810
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 250
Number of Pins 4
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
