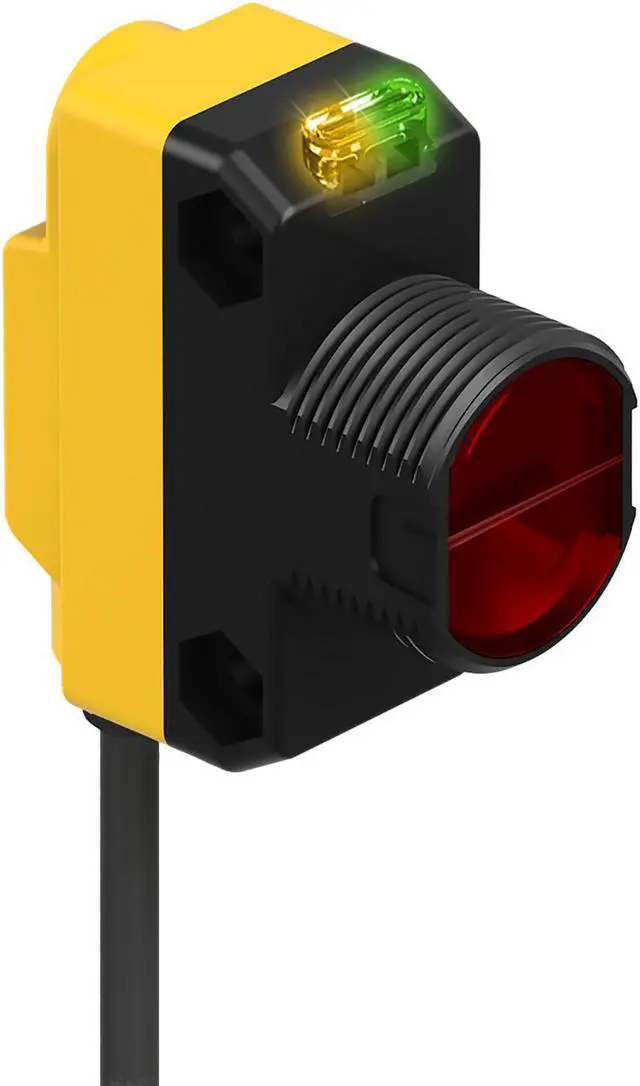

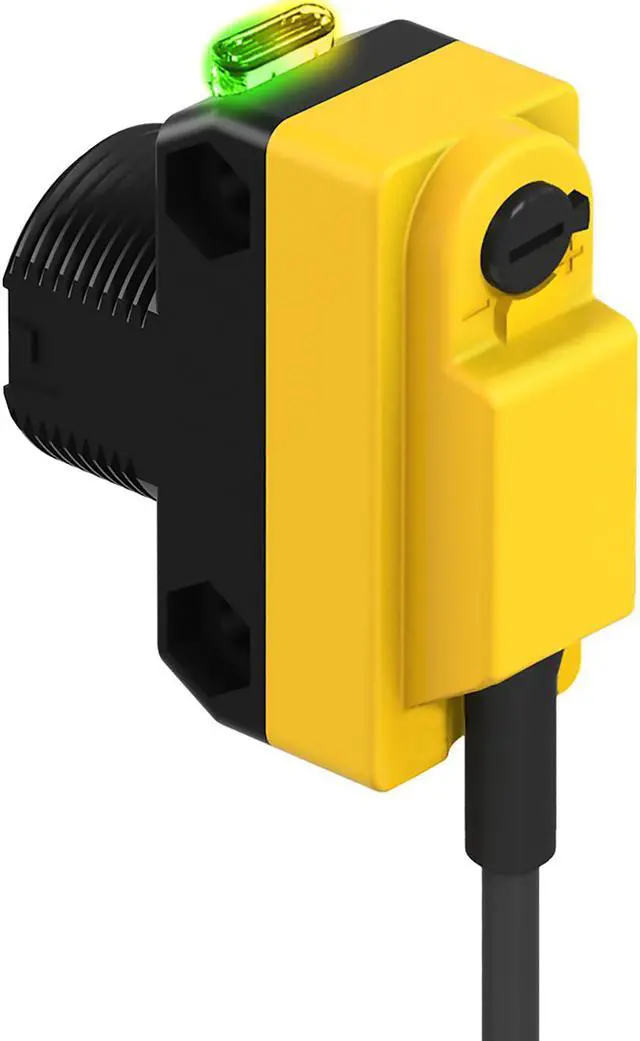

BANNER QS18VP6LLP All Purpose Photoelectric Sensor New
- BANNER QS18VP6LLP All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1 to 10 m; Input: 10-30V dc
Output: Complementary Solid State PNP
2m Cable
Part Number: 73241
Sensing Beam Visible Red Laser
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 10000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 200
Repeatability (µs) 130
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 0.1 to 10 m; Input: 10-30V dc
Output: Complementary Solid State PNP
2m Cable
Part Number: 73241
Sensing Beam Visible Red Laser
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 10000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 200
Repeatability (µs) 130
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
