Cooler Master Gemin
II M5 LED - 2U Low Profile CPU Cooler with Xtra
Flo 120 Slim "Fire Red" LED PWM Cooling Fan and 5 Direct Contact Heat Pipes
Redefining cooling performance for space restricted environments, Gemin
II M5 LED is engineered to maximize cooling with its minimal CPU contact gaps and five extremely efficient direct contact heat pipes that provide excellent heat dissipation. Standing at a mere 62.7 mm / 2.5 in tall, it is uniquely suited to thrive in the small spaces afforded to CPU coolers in 2U, HTP
Cs and other slim systems.

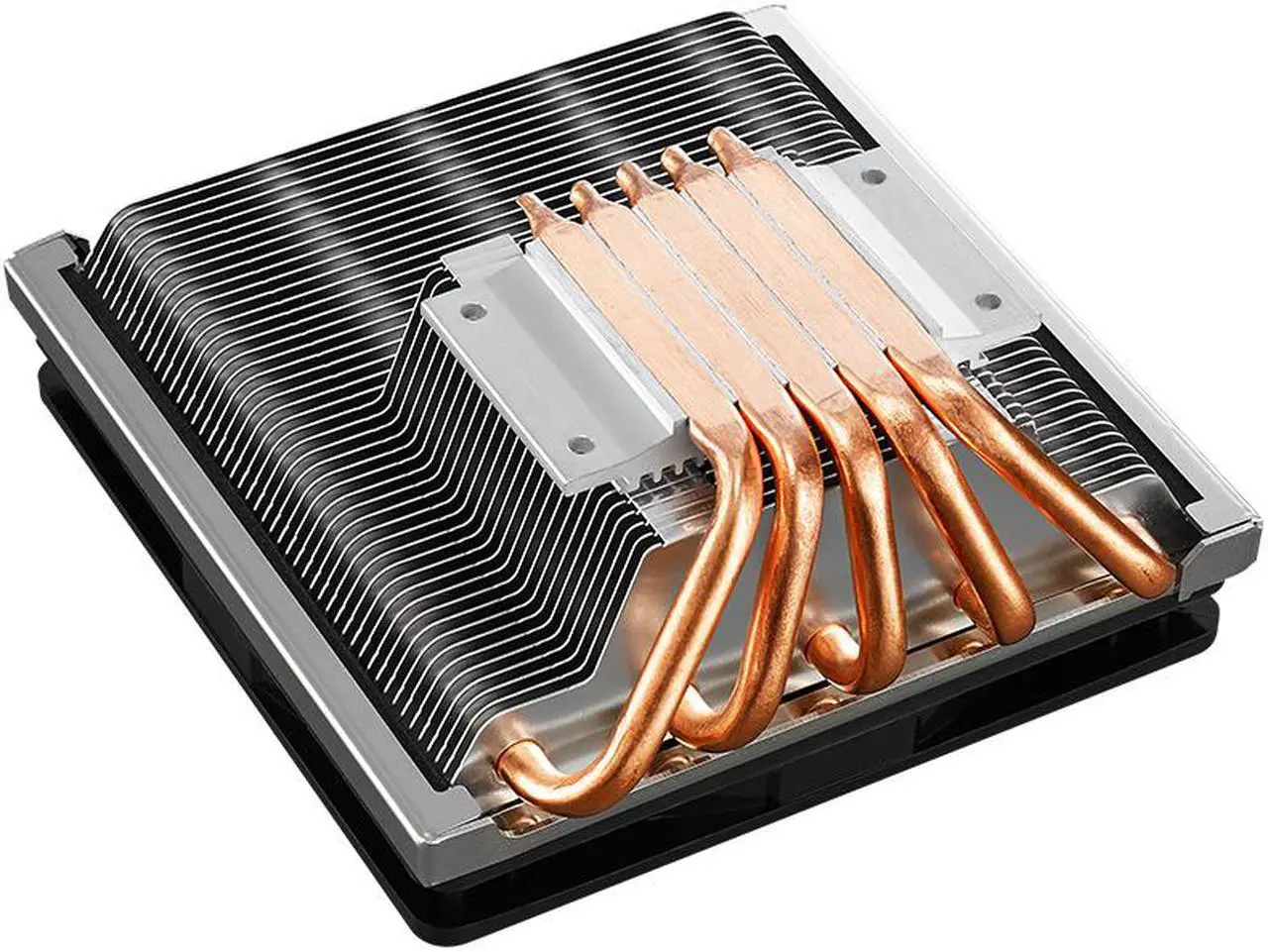

A unique heat pipe layout is utilized that orients the heat pipes to direct the flow of heat more efficiently to the aluminum fins where the heat is exhausted. Much like the Gemin
II S524, Gemin
II M5 LED features an airflow design that is 90 degree rotated to avoid heat radiating from the motherboard. In turn, this orientation simultaneously provides a steady airflow to motherboard chipsets surrounding the CPU socket.

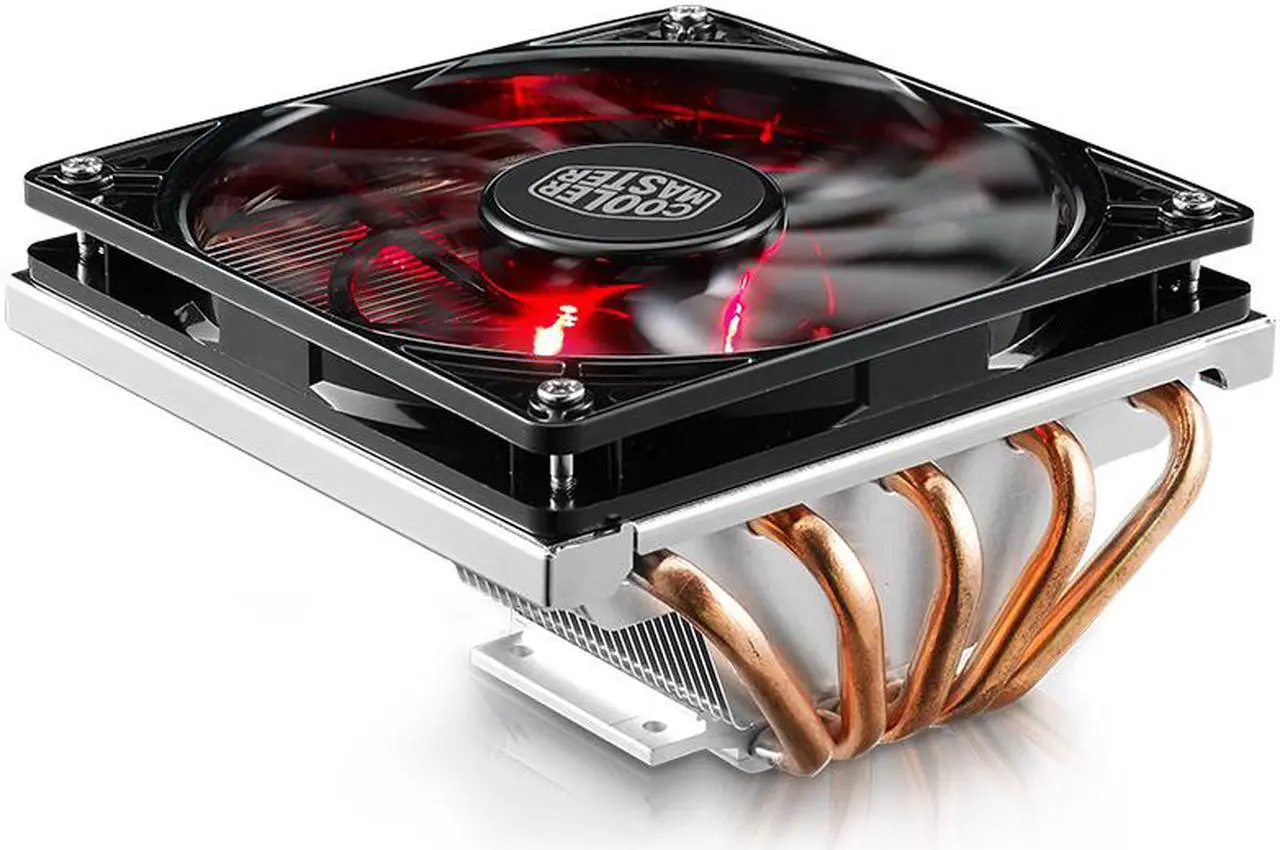

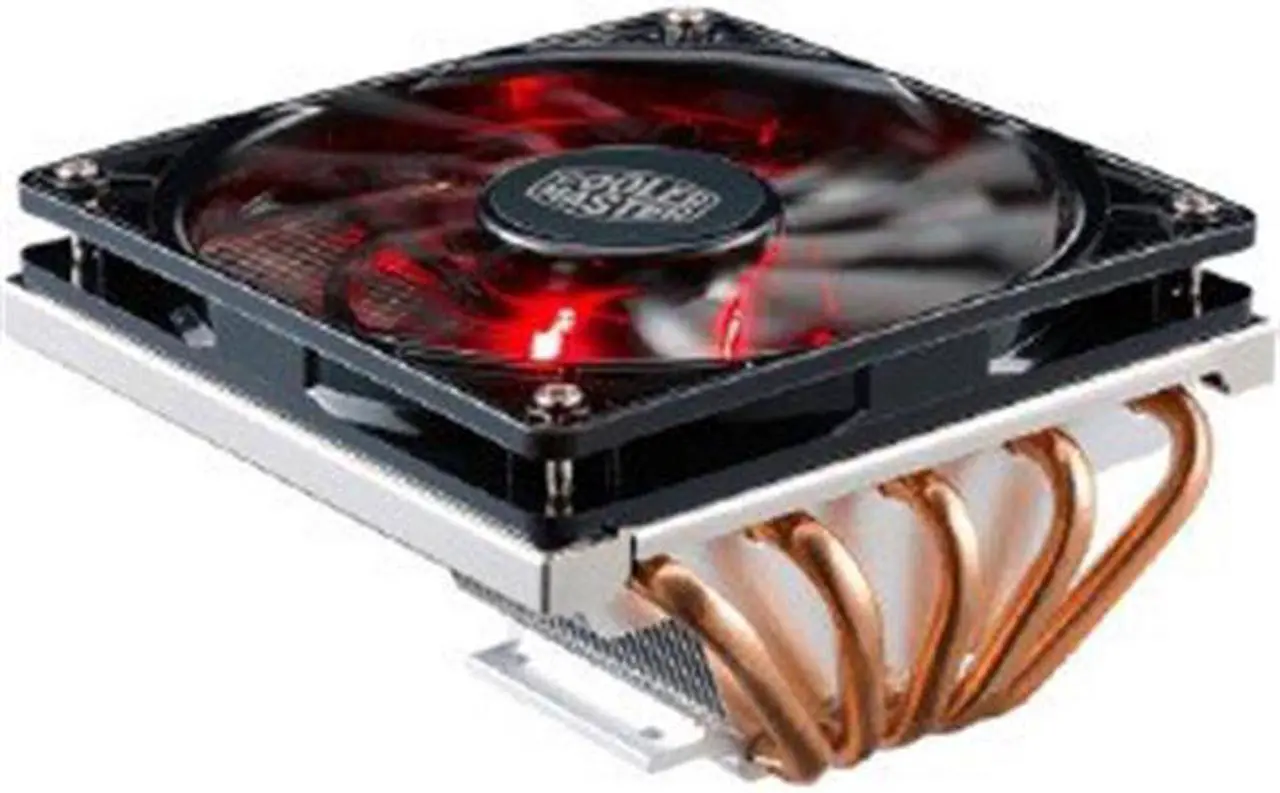

"Born to be Devil" with its featured "Fire Red" 4-LED cooling fan and smoke translucent fan blade.

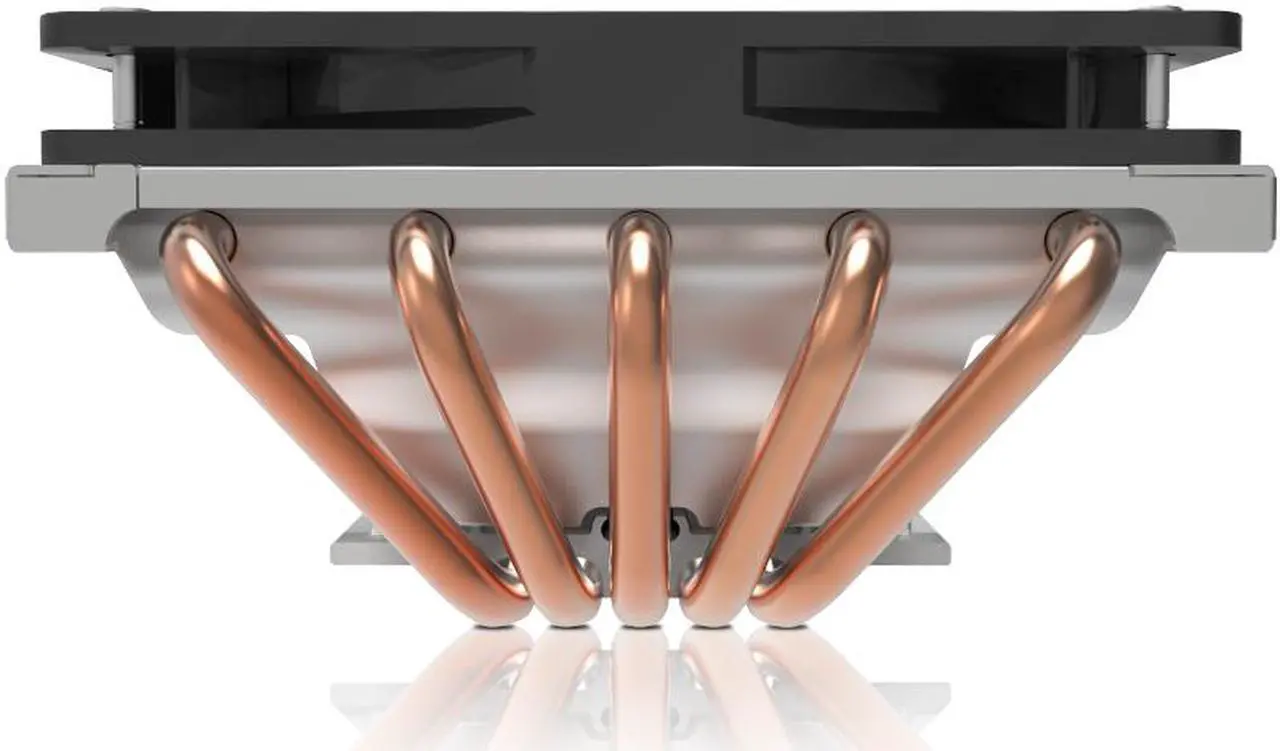

Direct Thermal Transfer
Our innovative CDC™ (Continuous Direct Contact) technology placing Five (5) Direct Contact Heatpipes to accelerate the surface to surface thermal transfer.
The slim fan delivers impressive airflow cooling with up to 50.43 CFM airflow and delivers 90 degree rotated airflow to avoid heat radiating from the motherboard. Excellent cooling of CPU and also motherboard chipsets surrounding the CPU socket.

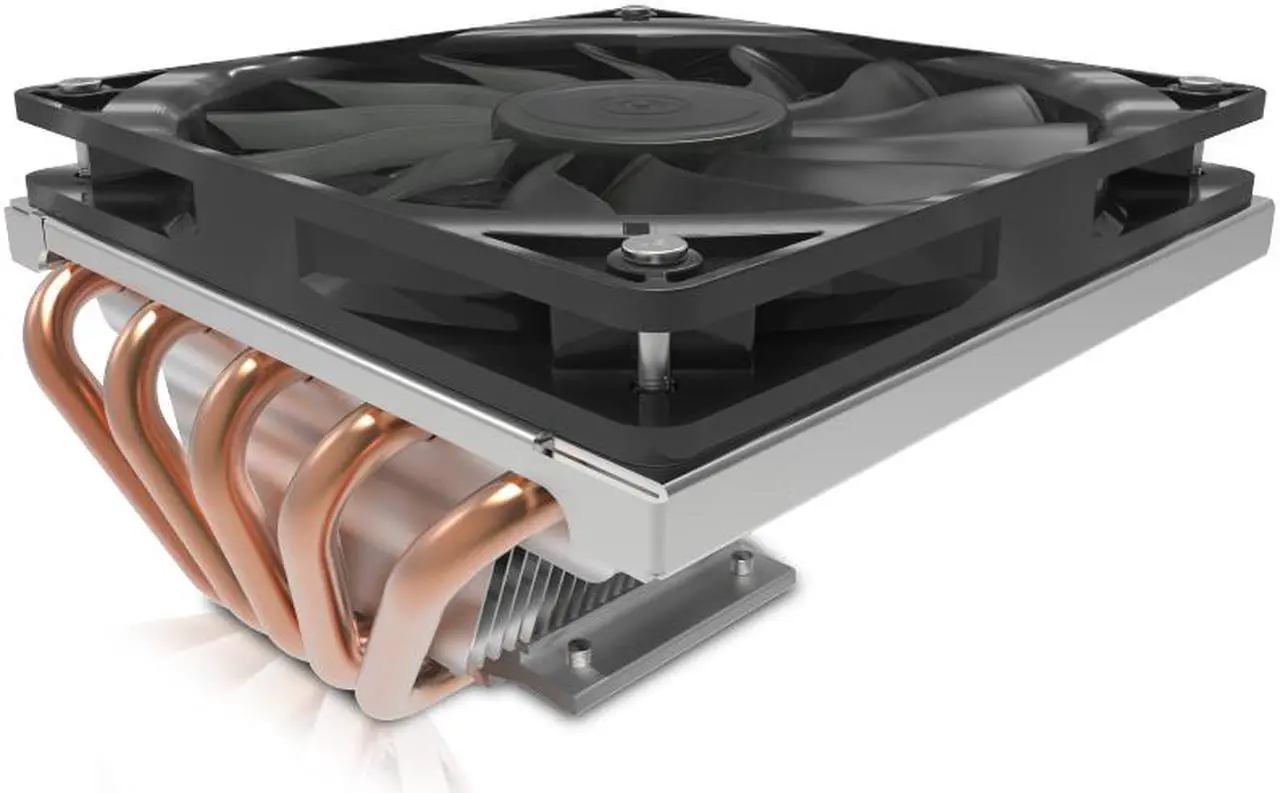

For limited space applications
II M5 LED is only 62.7 mm / 2.5 in in height with fan* attached, perfect for use in 2U, HTPC or slim systems. (*the fan is only 15mm thick. )
Flo 120 Slim "Fire Red" LED PWM Fan
Wave Shaped and small hub dimension generate extra high airflow. With a wide range PWM fan control from 500 to 1, 600 RPM to fine tune and balance fan noise and performance.
Gel Pro Thermal Grease ( 0.5 g Single Use Volume)
Gel Pro thermal gel goes a step above in thermal dissipation for advanced users. Polymer oxides in the compound create high conductivity between the CPU and cooler base to transfer heat quickly. The powerful formula is still easily applied and removed without damaging the base.
Thermal Conductivity: >8W/m-k
Specific Gravity: 2.6 g/cm 3 (25? )
Intel Socket: LGA 1156 / 1155 / 1151 / 1150 / 1366 / 775
Core 2 Extreme
Core 2 Quad
Core 2 Duo
AMD Socket: FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon Business Class
Overall Dimensions: 131 x 123 x 62.7 mm ( 5.2 x 4.8 x 2.5 inch)
Overall Weight: 393g / 0.86 lb
Heat Sink Dimensions: 130.1 x 120 x 45.5 mm ( 5.1 x 4.7 x 1.8 inch)
Heat Sink Material: Copper Heat Pipes / Aluminum Fins
Heat Pipes Dimensions: ø 6mm ( 0.24 inch)
Fan Dimensions: 120 x 120 x 15 mm ( 4.7 x 4.7 x 0.6 inch)
Fan Speed: 500-1600RPM (PWM) ±10%
Fan Air Flow: 50.43 CFM ± 10% (@ 1600RPM)
Fan Air Pressure: 1.3 mm H 2 O ± 10% (@ 1600RPM)
Fan Life Expectancy: 40, 000 hours (>4 years constant use)
Fan Noise Level: 6-30 dBA
Bearing Type: Long Life Sleeve Bearing
Power Connector: 4-Pin
Fan Rated Voltage: 12 VDC (Started Voltage @ 7VDC)
Fan Rated Current: 0.25A ± 10%
Power Consumption: 3.0 W
Package and Contents:
• 1 x CPU Cooler Unit
• 1 x Mounting Pac
