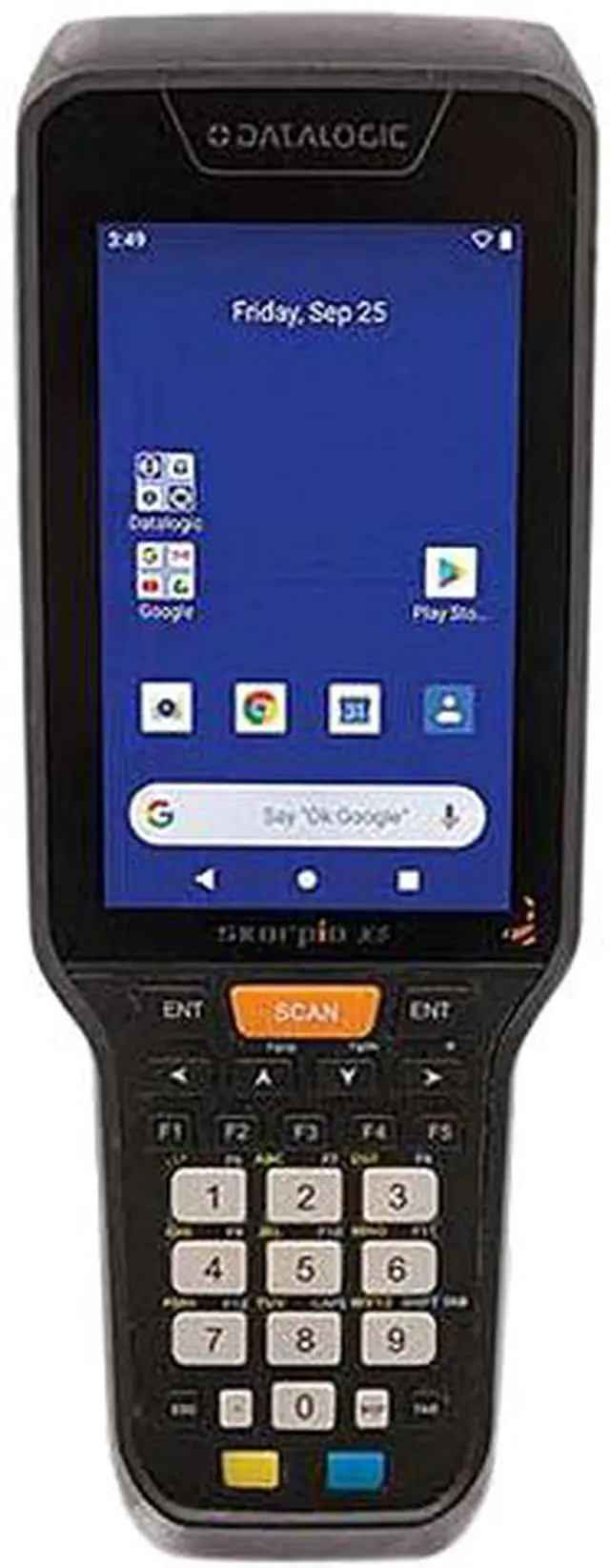

Skorpio X5 Handheld, Datalogic Mobile Computer, Wireless LAN, 4.3" Display, Bluetooth 5.0, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager SR with Green Spot, Android 10
USB Type-C: USB 3.1 gen 1 (3.2 gen 1x1), host and device; Gigabit Ethernet connectivity (via 3-slot dock)
+
+
Overview
Specs
Reviews
SKORPIO X5 HAND HELD 80211 ABGNAC 43 DISPLAY BT V5 3GB RAM32GB FLASH 47KEY ALPHANUMERIC 2D IMAGER SR W GREEN SPOT ANDROID 10
Learn more about the Datalogic 943500009
General
Brand
Datalogic
Model
943500009
Performance Characteristics
CPU
Qualcomm SD660 Octa-core 2.2 GHz
Operating System
Android 10 with GMS - 2 Main OS Upgrade Support
Memory
3GB / 32GB
Expansion Slot
Micro Secure Digital slot (SDXC) up to 256 GB
Display
Display Size
4.3"
Resolution
800x480
Display Type
LCD
Input Devices
Keypad
47-key alphanumeric, 38-key function numeric, 28-key numeric; Keyboard with backlight
Touch Screen
Touch Screen: 6 points multi-touch capacitive panel with hardened Gorilla Glass 3; Support for gloves and stylus
Backlit Keys
Yes
Scanner
Scanner Type
2D Imager
Scanner Capability
1D / 2D
Communications
Frequency Band
Country dependent, typically 2.4 GHz and 5 GHz bands
Wireless LAN
IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6, 2x2 MU-MIMO for higher throughput and coverage
Bluetooth
Bluetooth 5.0
Interfaces
USB Type-C: USB 3.1 gen 1 (3.2 gen 1x1), host and device; Gigabit Ethernet connectivity (via 3-slot dock)
Camera
Camera
Rear Camera: Resolution: 13 MP; Illumination: User controllable LED flash
Battery
Battery
Removable battery pack with rechargeable Li-Ion batteries; MicroUSB type-C for fast battery charging. Standard: 3.7 V; Rated 3460mAh typical 3500mAh (12.8 Watt-hours); standard on all handheld models Extended: Rated 6080 mAh typical 6200mAh (22.1 Watthours); standard on all Pistol Grip models
User Environment
Drop Rating
6 feet, 1.8 meter
IP Rating
IP65
Operating Temperature
-4ºF to 122ºF (-20ºC to 50ºC)
Dimensions & Weight
Dimensions
Front size: 218 x 78,5 mm / 6.69 x 3.14 in Thickness Max 31,3 Head; Max 35,6 WLC coil area and hand strap area
Weight
Hand held: with Std. battery 488 g, with high capacity battery 514 g; Pistol-grip: with Std. battery 600 g, with high capacity battery 626 g
Features
Feature
Qualcomm SD660 Octa-core 2.2 GHz platform providing power for the most demanding Apps.
Android 10 with Google Mobile Services; Android Enterprise Recommended for the ultimate user experience, platform stability and Enterprise features.
Largest display in its class with a 4.3" WVGA with Gorilla hardened glass delivering the highest visibility and readability even in direct sunlight.
RAM Memory: 3/4 GB; Flash Memory: 32/64 GB
3 Scan Engine options: Linear imager, 2D imager Standard Range and 2D imager Mid-Range with no compromises on data capture capabilities.
Choice of Wireless charging to eliminate contacts and reduce maintenance costs.
Rear 13 MP color camera to quickly document proof of damage or condition.
Removable battery pack with Hot Swap battery technology Standard 3500 mAh or High Capacity 6200 mAh.
Ruggedized with drop resistance up to 1.8 m / 6 ft. to concrete and IP65 sealing to withstand the most harsh and demanding environments.
-20 to 50 °C / -4 to 122 ºF operating temperature.
Dual band MIMO Wi-Fi featuring 802.11ac and 802.11r/k/v for fast roaming.
47-key alphanumeric, 38-key function numeric, 28-key numeric to fit specific applications and user needs.
Bluetooth v5 to empower Bluetooth peripherals with less power consumption.
NFC for proximity communications.
Chemical cleaner's resistant plastics/enclosure to endure frequent cleaning and disinfections.
Pre-licensed device and browser lockdown powered by 42Gears to prevent device misuse.
Main market MDM's and TE's compliant.
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum.
productivity and ROI. Datalogic Shield, for Android security patches and OS upgrades, is included with EASEOFCARE.
Additional Information
Date First Available
July 22, 2021
