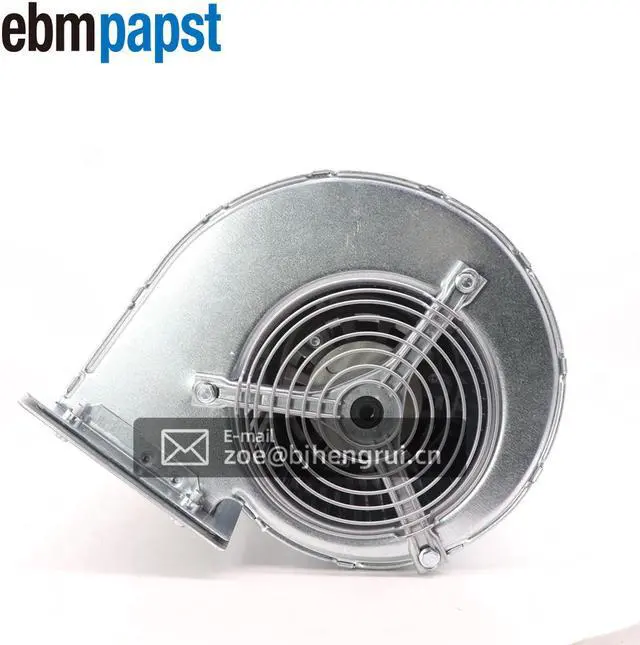

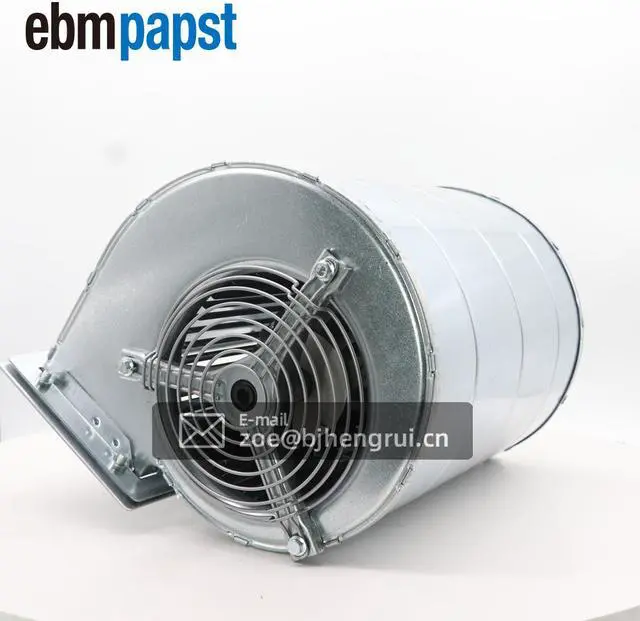

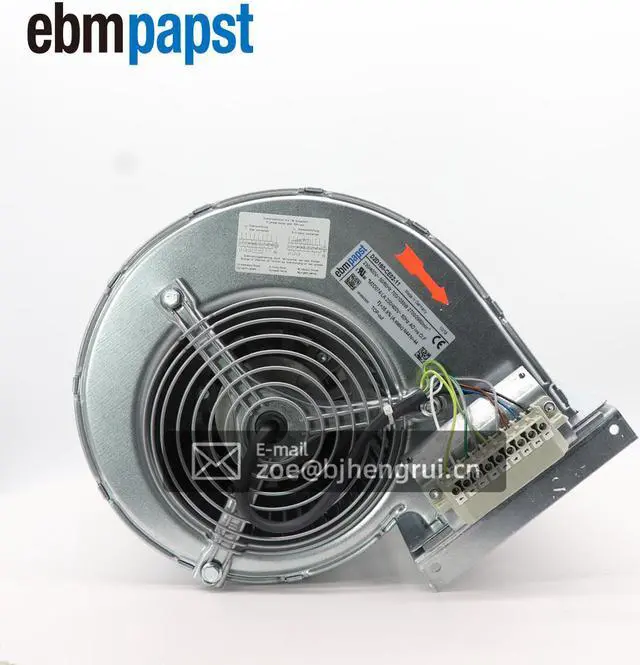

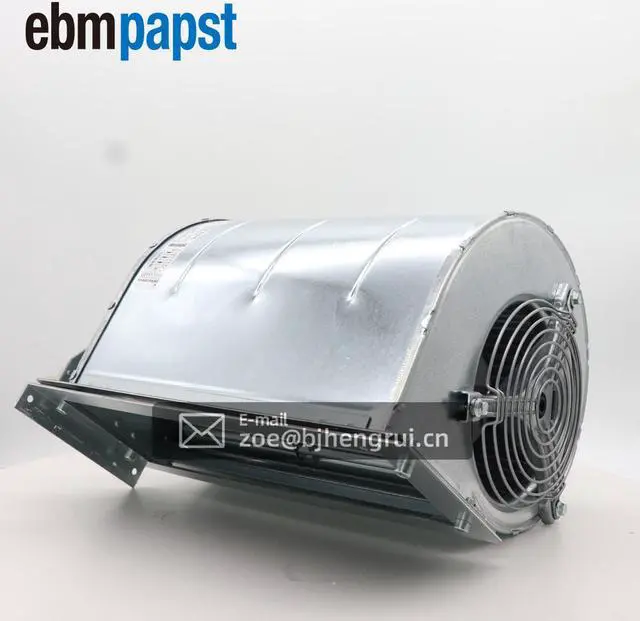

Germany Ebmpapst D2D160-CE02-11 Centrifugal Blower fan 230/400V 2700RPM 700/1055W Inverter Cooling Fan
- Condition: 100% new and good quality;
- Brand:ebmpapst ;Model: D2D160-CE02-11;
- Frequency:50/60/50/60HZ;;Nominal voltage:230/230/440/480VAC; Phase:3~;
- Speed:2700/2960/2700/2960 min-1;Power input:700/1055/700/1055W;Current draw:1.9/2.82/1.1/1.63A;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Nominal data
Type D2D160-CE02-11
Motor M2D074-LA
Phase 3~ 3~ 3~ 3~
Nominal voltage VAC 230 230 440 480
Frequency Hz 50 60 50 60
Valid for approval / standard CE CE CE CE
Speed min-1 2700 2960 2700 2960
Power input W 700 1055 700 1055
Current draw A 1.9 2.82 1.1 1.63
Min. back pressure Pa 460 560 460 560
Max. ambient temperature °C 90 50 90 50
Starting current A 9.25 9.6 5.34 5.54
Technical features
Mass 11.1 kg
Size 160 mm
Surface of rotor Coated in black
Material of impeller Sheet steel, galvanised
Housing material Sheet steel, hot-galvanised
Material of guard grille Steel, coated in grey plastic (RAL 9006)
Motor suspension Motor mounted anti-vibration on both sides
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 00
Insulation class "F"
Humidity class F1-2
Max. permissible ambient motor temp. + 80 °C
Min. permissible ambient motor temp. - 40 °C
Mounting position Any
Condensate discharge holes None, open rotor
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990 < 0.75 mA
Electrical leads With plug
Motor protection Thermal overload protector (TOP) brought out
Cable exit Axial
Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 60335-1; CE
Approval CCC; CSA C22.2 Nr.100; UL 1004-1
Package:
fan * 1pcs
Type D2D160-CE02-11
Motor M2D074-LA
Phase 3~ 3~ 3~ 3~
Nominal voltage VAC 230 230 440 480
Frequency Hz 50 60 50 60
Valid for approval / standard CE CE CE CE
Speed min-1 2700 2960 2700 2960
Power input W 700 1055 700 1055
Current draw A 1.9 2.82 1.1 1.63
Min. back pressure Pa 460 560 460 560
Max. ambient temperature °C 90 50 90 50
Starting current A 9.25 9.6 5.34 5.54
Technical features
Mass 11.1 kg
Size 160 mm
Surface of rotor Coated in black
Material of impeller Sheet steel, galvanised
Housing material Sheet steel, hot-galvanised
Material of guard grille Steel, coated in grey plastic (RAL 9006)
Motor suspension Motor mounted anti-vibration on both sides
Direction of rotation Counter-clockwise, seen on rotor
Type of protection IP 00
Insulation class "F"
Humidity class F1-2
Max. permissible ambient motor temp. + 80 °C
Min. permissible ambient motor temp. - 40 °C
Mounting position Any
Condensate discharge holes None, open rotor
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990 < 0.75 mA
Electrical leads With plug
Motor protection Thermal overload protector (TOP) brought out
Cable exit Axial
Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 60335-1; CE
Approval CCC; CSA C22.2 Nr.100; UL 1004-1
Package:
fan * 1pcs
