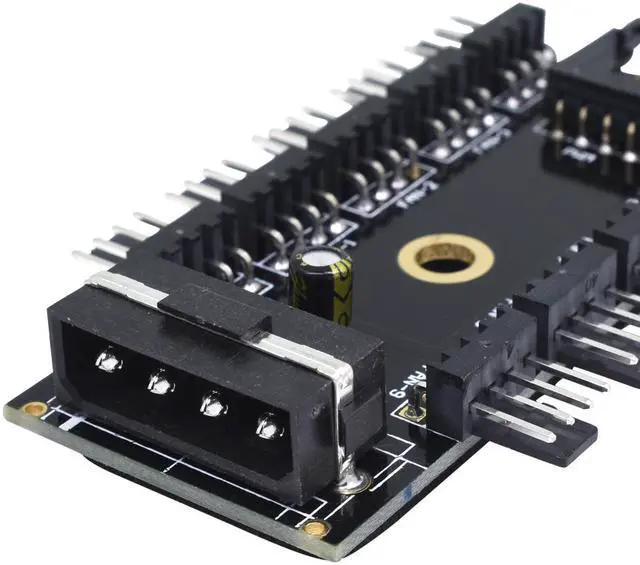

EN-Labs PC Case PWM 4 Pin Fan Hub, 1 to 10 4Pin/3Pin Chassis Cooler Splitter - CPU Cooling 10 Port 12V Molex IDE to Fan-Header with 4 Pin PWM Controller - 1.64FT RPM & PWM controller Cable Included
- 10 Ports 4pin PWM fan hub power splitter
- Compatible with 3-pin/ 4-pin
- PWM function for 4pin PWM fans,spin at the same speed using PWM controller
- full speed run for 3pin fans
- 1.64FT PWM cable included
+
+
Overview
Specs
Reviews (2)
EN-Labs fan hub, a central distribution point in your computer! Especially in systems with many fans or have large radiators where multiple fans can be mounted, it is handy to have a central power point to connect the fans.
Features
It is designed for enthusiasts with need for controlling numerous system fans Capable of expanding one motherboard PWM fan header to support up to ten fans.
10 Ports PWM header are powered by the Molex 4Pin power connector from computer PSU
Support PWM Function, Speed control, satisfy your control needs.
Compatible with 3-pin / 4-pin Fans (Due 3pins no PWM controller, 3pin fans would run in full speed. )
Comes with Self-Stick for easy installation and options to hide the PCB itself.
Note:
Since only one RPM signal can be read by motherboard SYS_FAN header , only the port of ' CPU Fan' (Red header) carries an RPM signal; Please make sure this special header connected fan priority
Conditions to Achieve PWM Temperature Control:
1. The fan is a 4-pin PWM fan, which is very important. Some motherboard 4-pin interfaces are not a real PWM fan jack, they are adjusted by the voltage. Such motherboards can not make PWM control fans.
2. Connect the motherboard 4-pin fan interface, BIOS starts the PWM function.
3. All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
Package Content
1pcs Molex 12V 1 to 10 way cooling fan splitter hub
1pcs PWM Cable
Features
It is designed for enthusiasts with need for controlling numerous system fans Capable of expanding one motherboard PWM fan header to support up to ten fans.
10 Ports PWM header are powered by the Molex 4Pin power connector from computer PSU
Support PWM Function, Speed control, satisfy your control needs.
Compatible with 3-pin / 4-pin Fans (Due 3pins no PWM controller, 3pin fans would run in full speed. )
Comes with Self-Stick for easy installation and options to hide the PCB itself.
Note:
Since only one RPM signal can be read by motherboard SYS_FAN header , only the port of ' CPU Fan' (Red header) carries an RPM signal; Please make sure this special header connected fan priority
Conditions to Achieve PWM Temperature Control:
1. The fan is a 4-pin PWM fan, which is very important. Some motherboard 4-pin interfaces are not a real PWM fan jack, they are adjusted by the voltage. Such motherboards can not make PWM control fans.
2. Connect the motherboard 4-pin fan interface, BIOS starts the PWM function.
3. All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
Package Content
1pcs Molex 12V 1 to 10 way cooling fan splitter hub
1pcs PWM Cable
