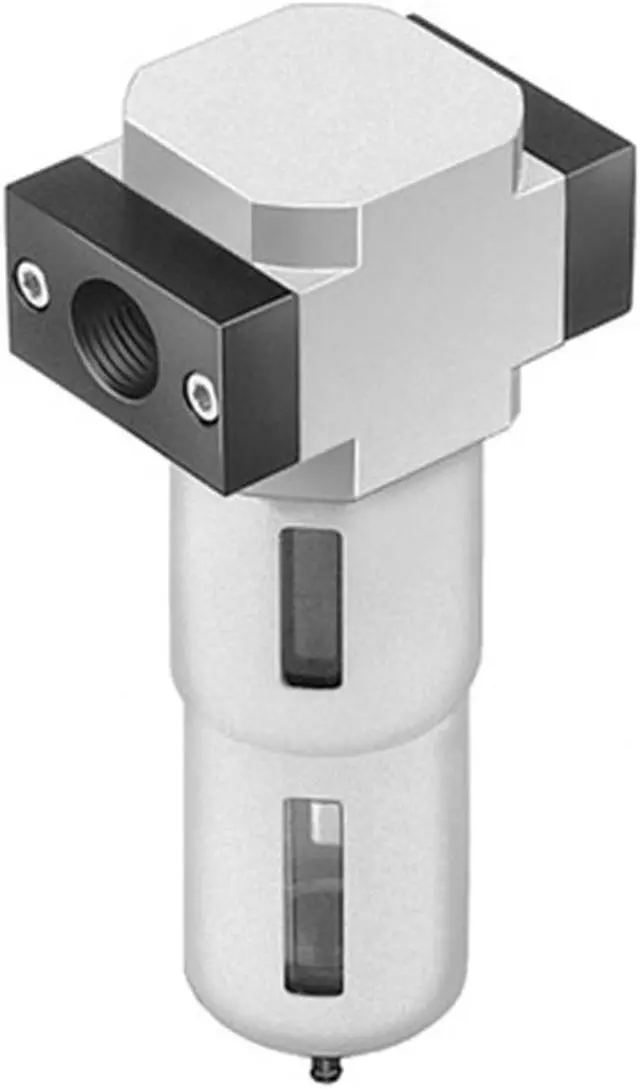

FESTO LF-1-D-5M-MAXI-NPT Compressed Air Filter 173706 New
- FESTO LF-1-D-5M-MAXI-NPT Compressed Air Filter 173706 New
+
+
Overview
Specs
Reviews
Size
Maxi
Type code
LF
Series
D
Mounting position
Vertical
Grade of filtration
5 µm
Condensate drain
Manual, non-detenting
Max. condensate volume
80 ml
Bowl guard
Metal bowl guard
Symbol
00991519
Operating pressure
0 bar ... 16 bar
Standard nominal flow rate
3800 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
1 NPT
Pneumatic connection 2
1 NPT
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
Maxi
Type code
LF
Series
D
Mounting position
Vertical
Grade of filtration
5 µm
Condensate drain
Manual, non-detenting
Max. condensate volume
80 ml
Bowl guard
Metal bowl guard
Symbol
00991519
Operating pressure
0 bar ... 16 bar
Standard nominal flow rate
3800 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
1 NPT
Pneumatic connection 2
1 NPT
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
