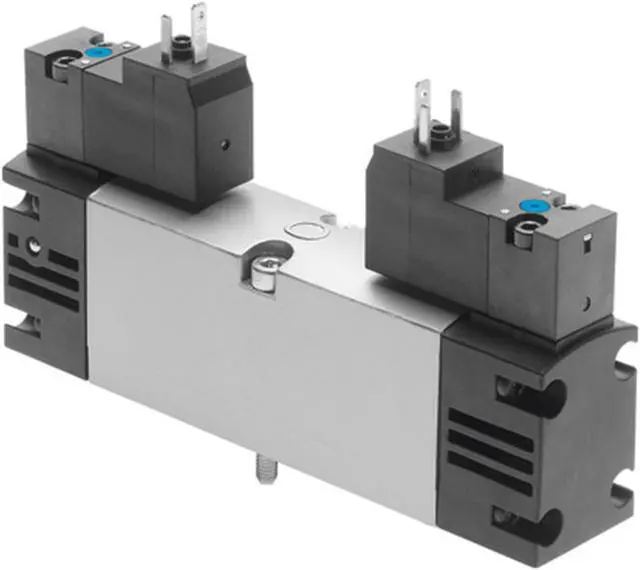

FESTO VSVA-B-B52-ZH-A1-3AC1 Air Solenoid Valve 547234 Valve Size 26mm
- FESTO VSVA-B-B52-ZH-A1-3AC1 Air Solenoid Valve 547234 Valve Size 26mm
+
+
Overview
Specs
Reviews
Valve function 5/2, bistable
Lap Overlap
Actuation type Electrical
Valve size 26 mm
Standard nominal flow rate 1100 l/min
Pneumatic working port G1/4
Operating voltage 230V AC
Operating pressure -0.9 bar ... 16 bar
Design Piston gate valve
Degree of protection IP65 NEMA 4
Nominal width 9 mm
Type code VSVA
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Signal status display LED
Pilot pressure 3 bar ... 10 bar
Flow rate of pneumatic valve 1400 l/min
Flow rate of pneumatic valve on individual sub-base 1100 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow 1100 l/min
Changeover time 18 ms
Duty cycle 100%
Coil characteristics 230 V AC: 50/60 Hz, initial power 2.9 VA, holding power 2.1 VA
Permissible voltage fluctuations -15 % / +10 %
Lap Overlap
Actuation type Electrical
Valve size 26 mm
Standard nominal flow rate 1100 l/min
Pneumatic working port G1/4
Operating voltage 230V AC
Operating pressure -0.9 bar ... 16 bar
Design Piston gate valve
Degree of protection IP65 NEMA 4
Nominal width 9 mm
Type code VSVA
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Signal status display LED
Pilot pressure 3 bar ... 10 bar
Flow rate of pneumatic valve 1400 l/min
Flow rate of pneumatic valve on individual sub-base 1100 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow 1100 l/min
Changeover time 18 ms
Duty cycle 100%
Coil characteristics 230 V AC: 50/60 Hz, initial power 2.9 VA, holding power 2.1 VA
Permissible voltage fluctuations -15 % / +10 %
