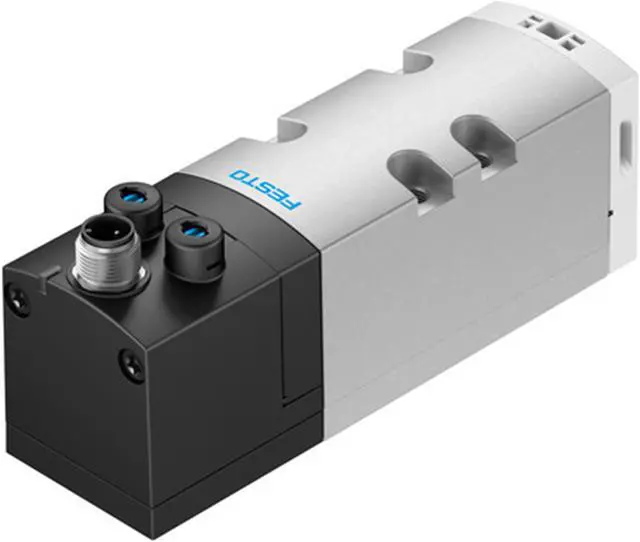

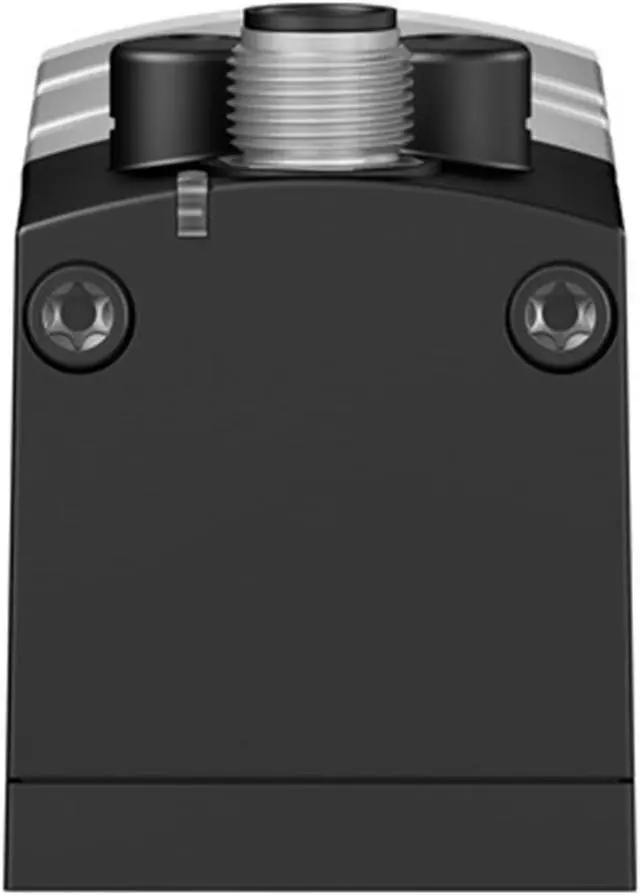

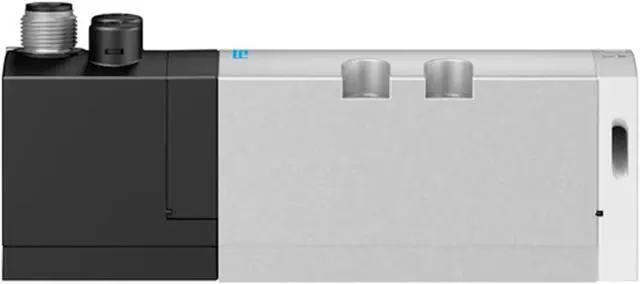

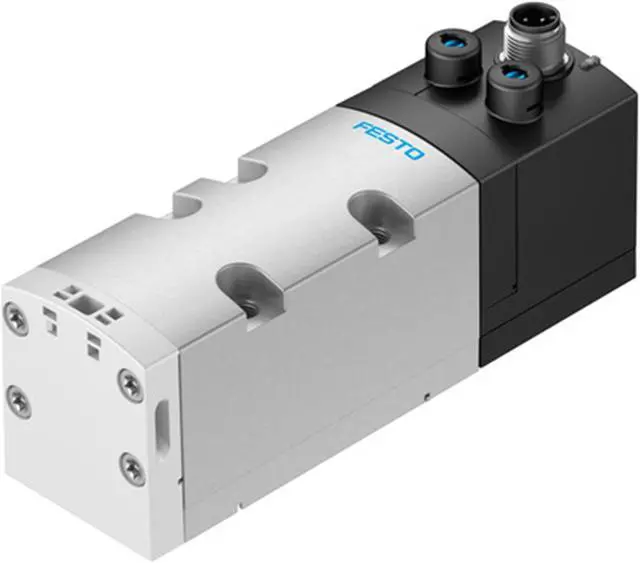

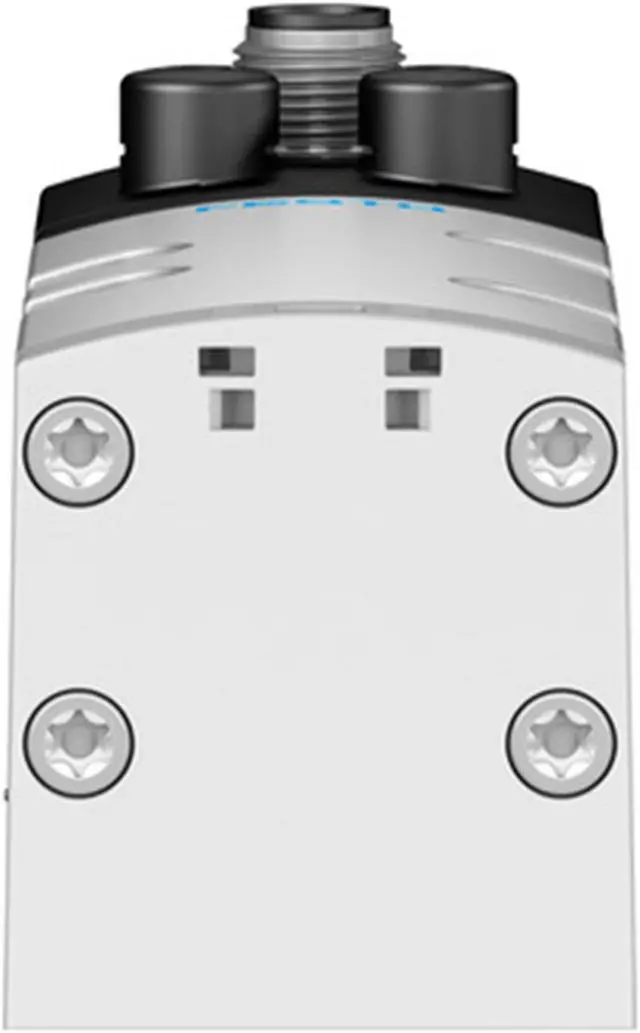

FESTO VSVA-B-M52-MZD-D1-1R5L 561373 Air Solenoid Valve New
- FESTO VSVA-B-M52-MZD-D1-1R5L 561373 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Valve function
5/2, monostable
Lap
Overlap
Actuation type
Electrical
Width
42 mm
Standard nominal flow rate
1300 l/min
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 16 bar
Design
Piston gate valve
Reset method
Mechanical spring
Nominal width
11 mm
Width dimension
43 mm
Type code
VSVA
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 5599-1
Pilot air supply port
External
Flow direction
Any
Symbol
00991190
Signal status display
LED
Pilot pressure
3 bar ... 10 bar
Flow rate of pneumatic valve
2000 l/min
Flow rate of pneumatic valve on individual sub-base
1400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1300 l/min
Switching time off
60 ms
On switching time
22 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1400 µs
Max. negative test pulse on 1 signal
900 µs
Coil characteristics
24 V DC: 1.6 W
Permissible voltage fluctuations
+/- 10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Product weight
426 g
