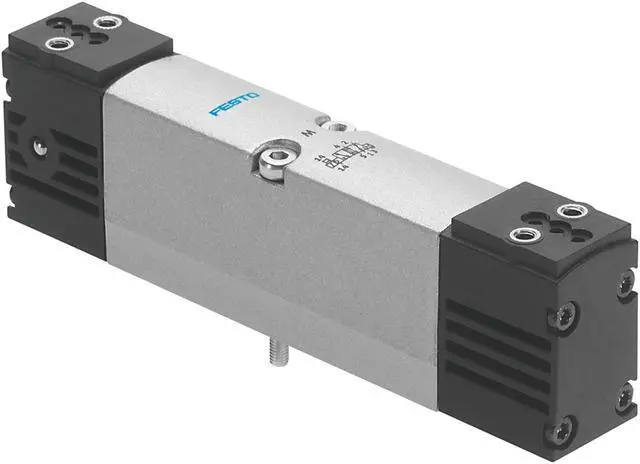

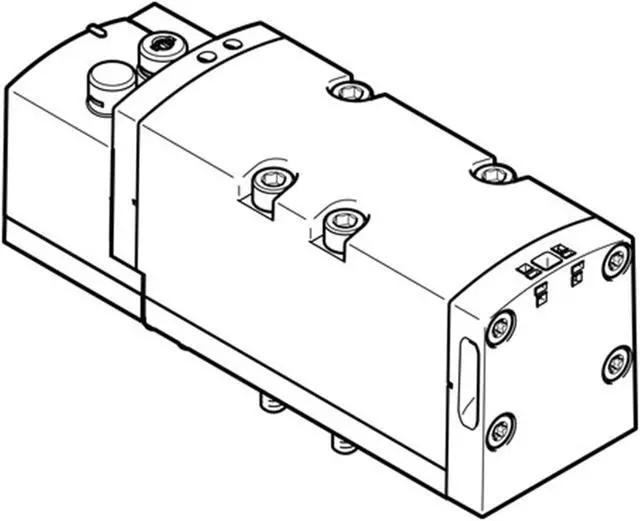

FESTO VSVA-B-M52-MZD-D2-2AT1L Air Solenoid Valve 560802 Width 52mm
- FESTO VSVA-B-M52-MZD-D2-2AT1L Air Solenoid Valve 560802 Width 52mm
+
+
Overview
Specs
Reviews
Valve function 5/2, monostable
Actuation type Electrical
Width 52 mm
Standard nominal flow rate 2900 l/min
Pneumatic working port G1/2 Sub-base, size 2 as per ISO 5599-2
Operating voltage 110V AC
Operating pressure -0.9 bar ... 10 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection NEMA 4
IP65 Width dimension
59 mm Type code
VSVA Exhaust air function
With flow control option Via individual sub-base
Via throttle plate Sealing principle
Soft Mounting position
Any Conforms to standard
ISO 5599-2 Manual override
Non-detenting Detenting
Type of control Pilot-controlled
Pilot air supply port External
Flow direction Any
Signal status display LED
Pilot pressure 3 bar ... 10 bar
Flow rate of pneumatic valve 4000 l/min
Flow rate of pneumatic valve on individual sub-base 3400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow 2900 l/min
Switching time off 110 ms
On switching time 25 ms
Duty cycle 100%
Coil characteristics 110/120 V AC: 50/60 Hz, power 1.6 VA
Actuation type Electrical
Width 52 mm
Standard nominal flow rate 2900 l/min
Pneumatic working port G1/2 Sub-base, size 2 as per ISO 5599-2
Operating voltage 110V AC
Operating pressure -0.9 bar ... 10 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection NEMA 4
IP65 Width dimension
59 mm Type code
VSVA Exhaust air function
With flow control option Via individual sub-base
Via throttle plate Sealing principle
Soft Mounting position
Any Conforms to standard
ISO 5599-2 Manual override
Non-detenting Detenting
Type of control Pilot-controlled
Pilot air supply port External
Flow direction Any
Signal status display LED
Pilot pressure 3 bar ... 10 bar
Flow rate of pneumatic valve 4000 l/min
Flow rate of pneumatic valve on individual sub-base 3400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow 2900 l/min
Switching time off 110 ms
On switching time 25 ms
Duty cycle 100%
Coil characteristics 110/120 V AC: 50/60 Hz, power 1.6 VA
