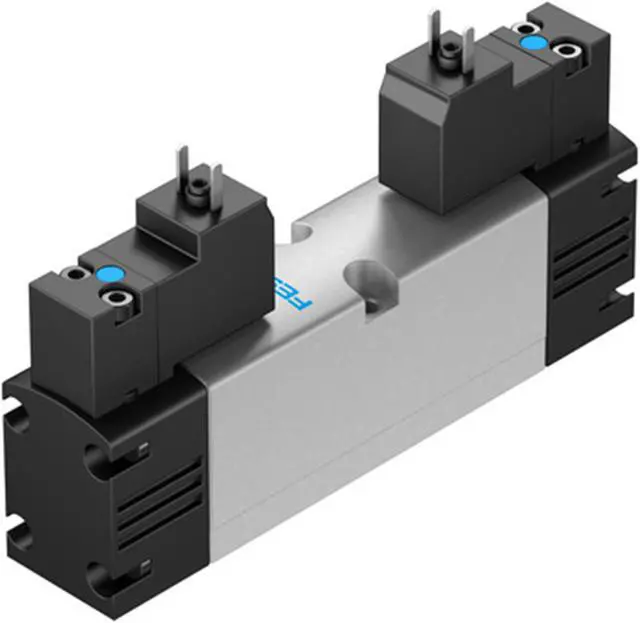

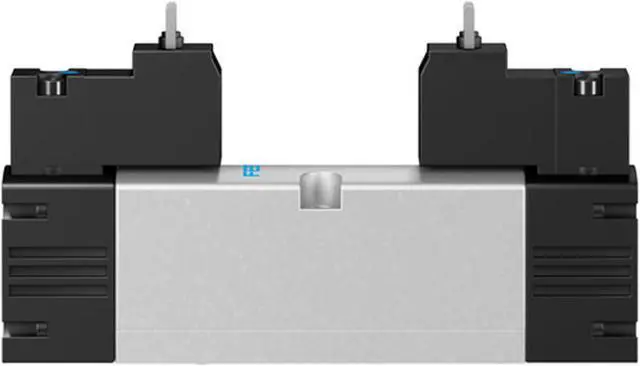

FESTO VSVA-B-P53C-H-A1-5C1 547146 Air Solenoid Valve New
- FESTO VSVA-B-P53C-H-A1-5C1 547146 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Valve function
5/3, closed
Lap
Overlap
Actuation type
Electrical
Valve size
26 mm
Standard nominal flow rate
1000 l/min
Operating voltage
12V DC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Nominal width
9 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Non-detenting
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Symbol
00991080
Signal status display
LED
Flow rate of pneumatic valve
1400 l/min
Flow rate of pneumatic valve on individual sub-base
1100 l/min
Switching time off
58 ms
On switching time
23 ms
Changeover time
35 ms
Duty cycle
100%
Coil characteristics
12 V DC: 1.8 W
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
2 Nm
Product weight
305 g
5/3, closed
Lap
Overlap
Actuation type
Electrical
Valve size
26 mm
Standard nominal flow rate
1000 l/min
Operating voltage
12V DC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Nominal width
9 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Non-detenting
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Symbol
00991080
Signal status display
LED
Flow rate of pneumatic valve
1400 l/min
Flow rate of pneumatic valve on individual sub-base
1100 l/min
Switching time off
58 ms
On switching time
23 ms
Changeover time
35 ms
Duty cycle
100%
Coil characteristics
12 V DC: 1.8 W
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
2 Nm
Product weight
305 g
