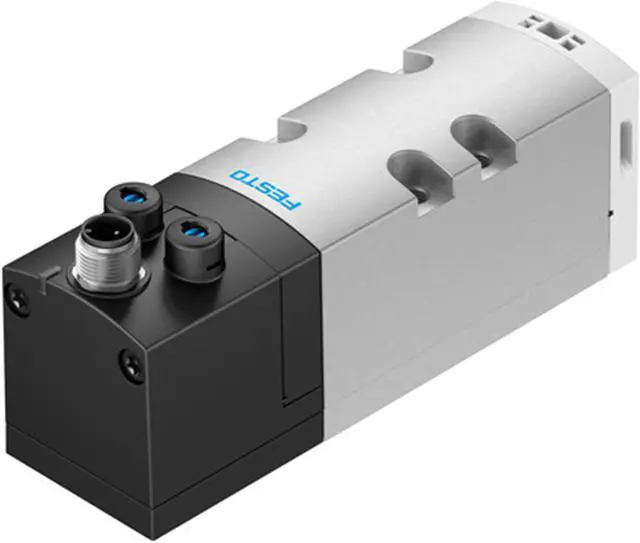

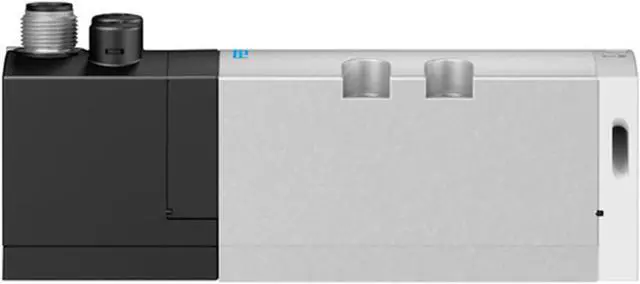

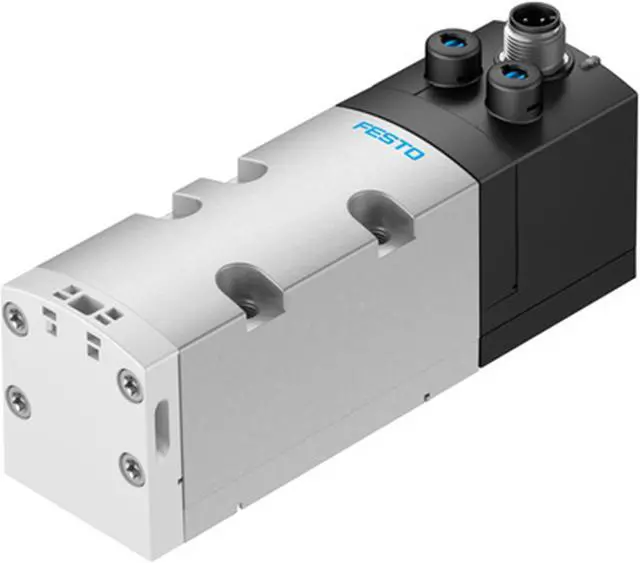

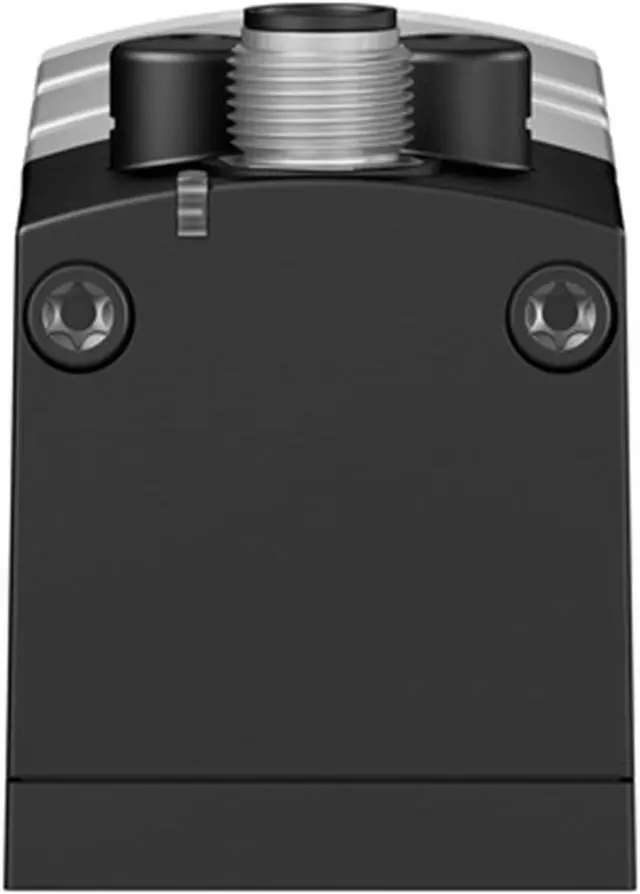

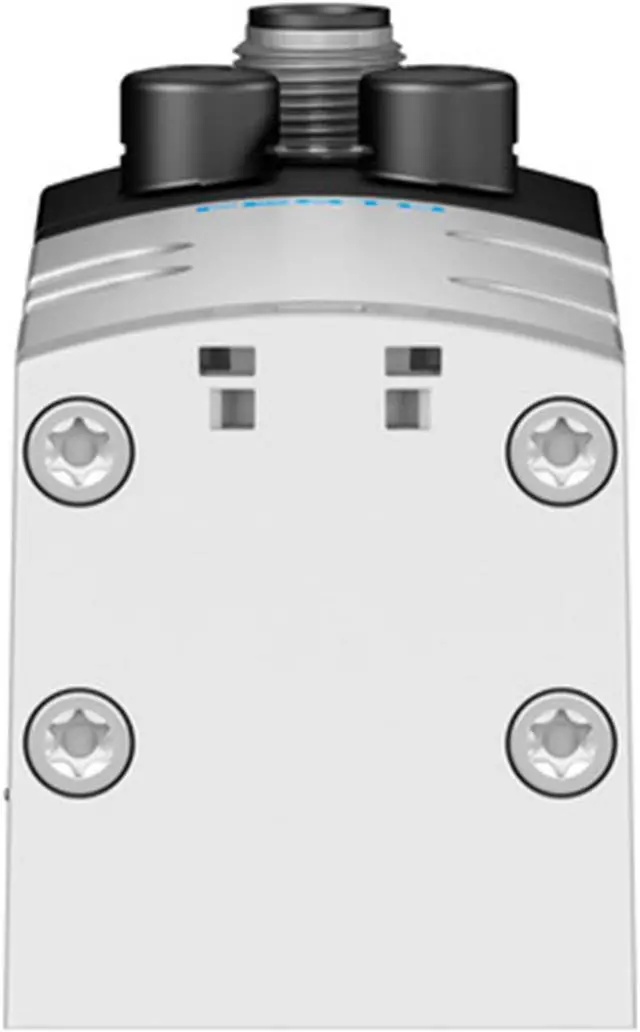

FESTO VSVA-B-T32H-AD-D1-1R5L 561361 Air Solenoid Valve New
- FESTO VSVA-B-T32H-AD-D1-1R5L 561361 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Width
42 mm
Standard nominal flow rate
1100 l/min
Operating voltage
24V DC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Nominal width
11 mm
Width dimension
43 mm
Type code
VSVA
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Symbol
00991806
Signal status display
LED
Flow rate of pneumatic valve
1600 l/min
Flow rate of pneumatic valve on individual sub-base
1200 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1100 l/min
Switching time off
38 ms
On switching time
20 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1600 µs
Max. negative test pulse on 1 signal
1100 µs
Coil characteristics
24 V DC: 1.3 W
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Product weight
442 g
