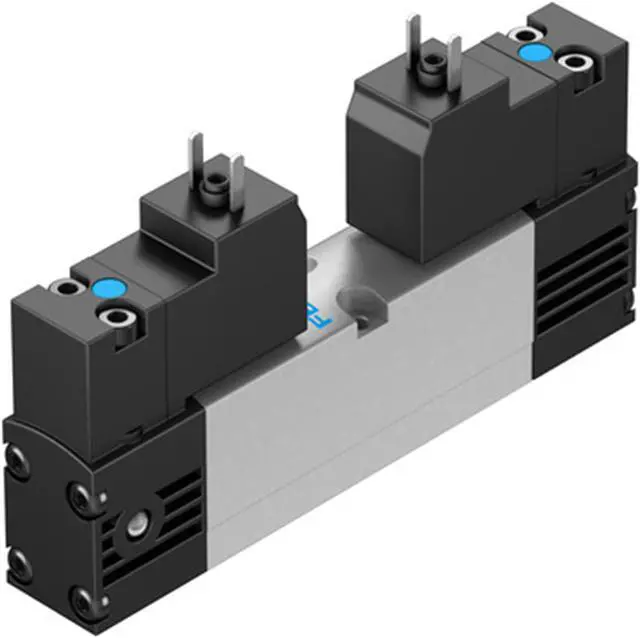

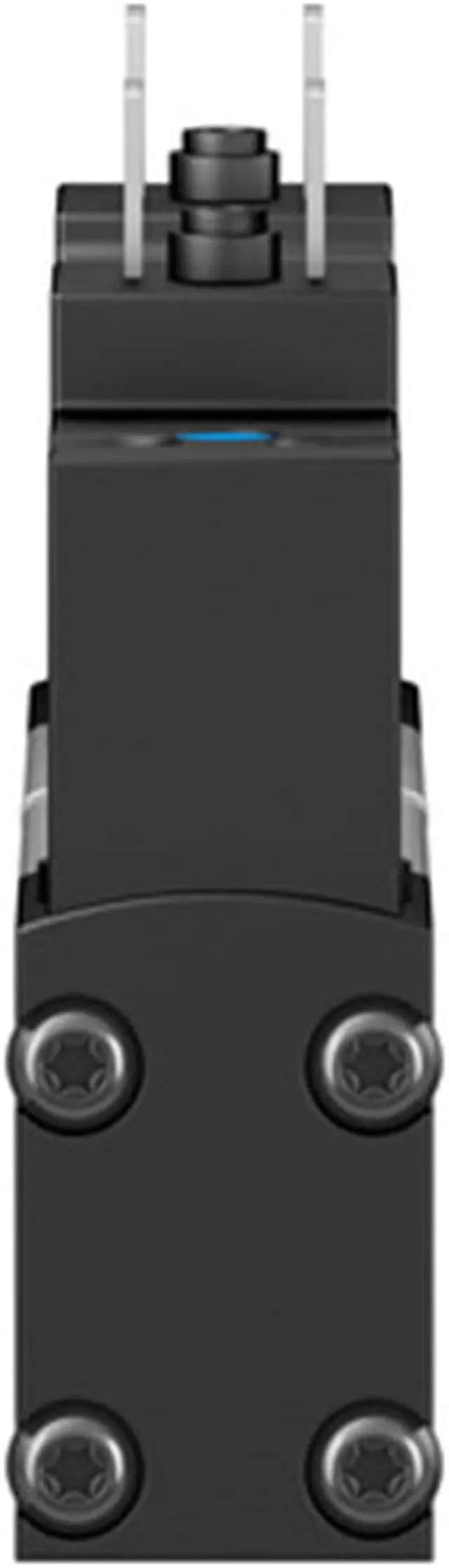

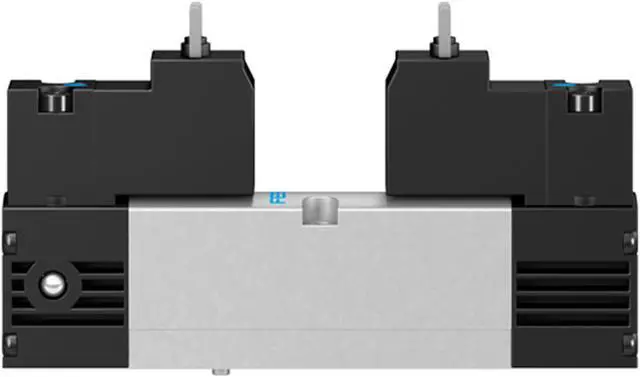

FESTO VSVA-B-T32U-AH-A2-5C1 Air Solenoid Valve 547131 New
- FESTO VSVA-B-T32U-AH-A2-5C1 Air Solenoid Valve 547131 New
+
+
Overview
Specs
Reviews
Valve function 2x3/2, open, monostable
Lap Overlap
Actuation type Electrical
Valve size 18 mm
Standard nominal flow rate 400 l/min
Pneumatic working port G1/8
Sub-base, size 18 mm as per ISO 15407-1 Size 02 sub-base as per VDMA 24563
Operating voltage 12V DC
Operating pressure 2 bar ... 10 bar
Design Piston gate valve
Reset method Pneumatic spring
Degree of protection IP65 NEMA 4
Nominal width 5 mm
Type code VSVA
Exhaust air function With flow control option
Sealing principle Soft
Type of control Pilot-controlled
Pilot air supply port Internal
Flow direction Non-reversible
Symbol 00992809
Signal status display LED
Flow rate of pneumatic valve 600 l/min
Flow rate of pneumatic valve on individual sub-base 450 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow 400 l/min
Switching time off 21 ms
On switching time 13 ms
Duty cycle 100%
Coil characteristics 12 V DC: 1.8 W
Permissible voltage fluctuations -15 % / +10 %
Lap Overlap
Actuation type Electrical
Valve size 18 mm
Standard nominal flow rate 400 l/min
Pneumatic working port G1/8
Sub-base, size 18 mm as per ISO 15407-1 Size 02 sub-base as per VDMA 24563
Operating voltage 12V DC
Operating pressure 2 bar ... 10 bar
Design Piston gate valve
Reset method Pneumatic spring
Degree of protection IP65 NEMA 4
Nominal width 5 mm
Type code VSVA
Exhaust air function With flow control option
Sealing principle Soft
Type of control Pilot-controlled
Pilot air supply port Internal
Flow direction Non-reversible
Symbol 00992809
Signal status display LED
Flow rate of pneumatic valve 600 l/min
Flow rate of pneumatic valve on individual sub-base 450 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow 400 l/min
Switching time off 21 ms
On switching time 13 ms
Duty cycle 100%
Coil characteristics 12 V DC: 1.8 W
Permissible voltage fluctuations -15 % / +10 %
