With upgraded power solution, comprehensive thermal design, and intuitive utility for tweaking, the X570S AORUS MASTER is expertly engineered to reign supreme on the latest AMD Ryzen processor platform. PCIe Gen4 M.2 slot and 20 Gbps USB fully support new gen SSDs and peripherals, while WiFi 6E and 2.5 GbE LAN take network performance to the next level. On top of all that, the X570S AORUS MASTER dazzles with classy PCB design and meticulously crafted heatsinks complemented by awesome onboard RGB lighting.
GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen 5000 Series CPUs. The VRM power design includes MOSFETs which identify Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores’ horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
?Active OC Tuner switches profile based on user scenario automatically ?5% performance increase
* Only available on selected AMD Ryzen processors with P.B.O. function featured.
Memory Layout — Daisy Chain Design
With the optimized daisy-chain routing, GIGABYTE X570S motherboards provide a proven speed of up to DDR4-5400+ MHz with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, and provides professional gamers a denser and faster system memory experience.
* Performance may vary in circumstances. Please refer to the QVL list for detail support information.
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5400 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.
Single 32GB Support
With populated 4 DIMMs per channel on GIGABYTE X570 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.
Fins-Array II
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that needs compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.
Louver Directed Flow
Heat flow that goes through fins will enter from the leading edge of the louver and is then directed by other louvers or fins. This louver directed flow can greatly improve heat transfer performance.
Fins-Array II
Traditional Stacked Fins
Circulation Zone
Because of pressure difference and flow separation, a circulation zone will be formed between louvered fins. This circulation will cause flow to entrain and eject in the vortice form which improves thermal efficiency.
NanoCarbon Coated Fins Array Heatsink

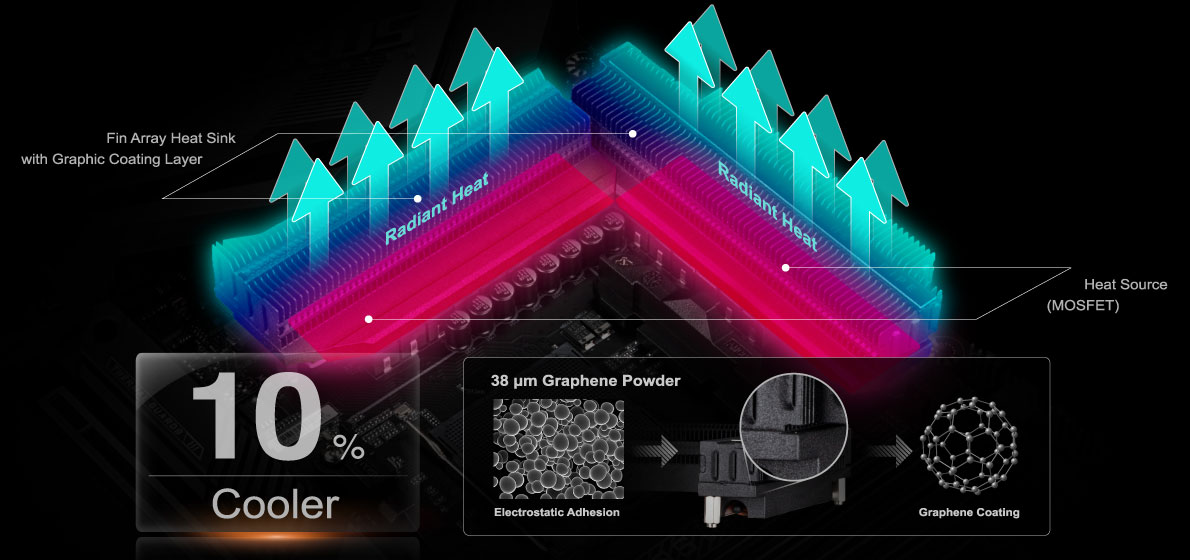

As CPUs get more powerful, VRM modules get hotter under ultra high performance. Being the first adopters among industry using NanoCarbon as coating material to enhance thermal radiation speed up heat dissipation. Nanocarbon is coated onto the heatsink through electrostatic adhesion. The coating material covers the entire finned heatsink with 200µm in thickness. In that way, heat is dissipated more quickly. The tests show 10% cooler with the NanoCarbon coating.
Direct-Touch Heatpipe II
With an extra large 8mm heatpipe and made by a new manufacturing process which has narrowed down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs.
M.2 Thermal Guard III

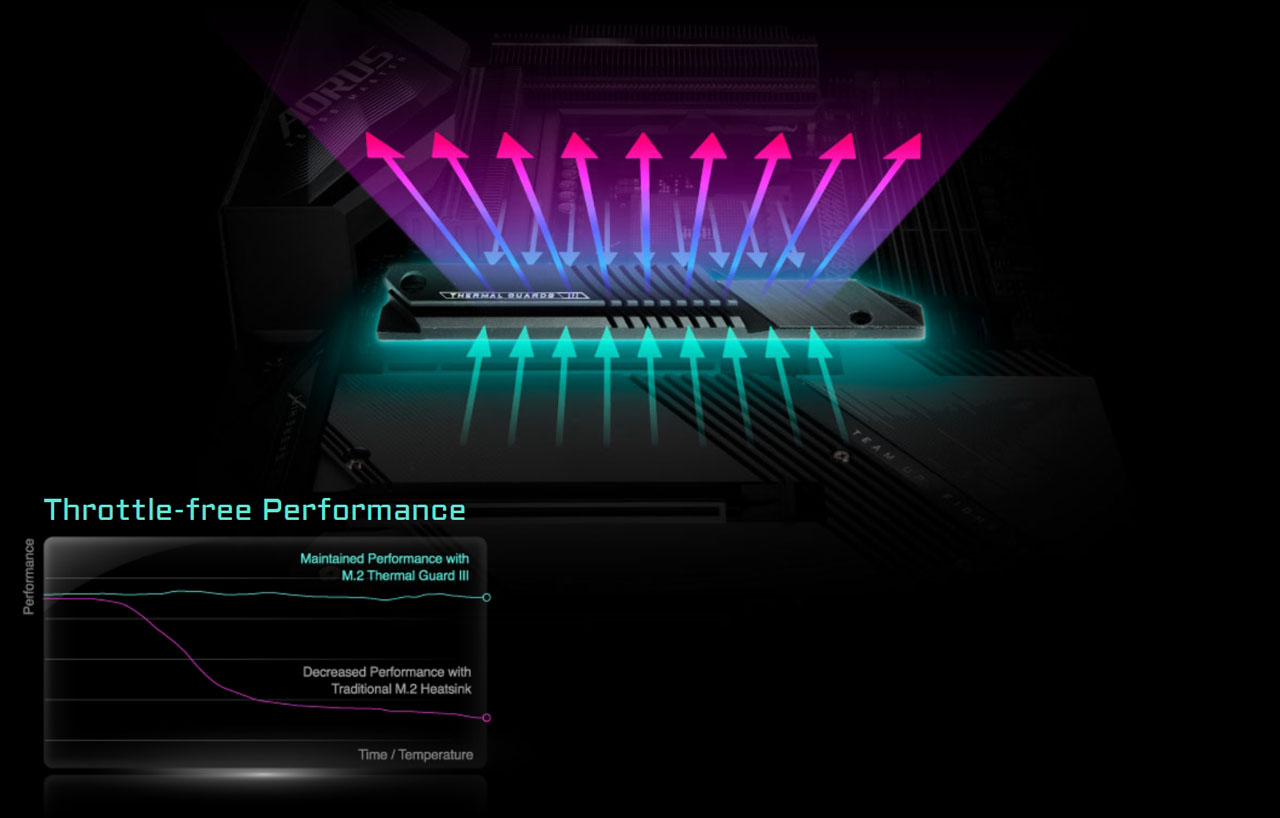

Continuing the advantages of M.2 Thermal Guard II design which uses the double-sided thermal pads to elevate the height of M.2 heatsink to increase surface area to dissipate heats on M.2 SSDs. M.2 Thermal Guard III is constructed with 2.6X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 4.0 M.2 SSDs may cause, especially under heavy workload.
GIGABYTE motherboards promise the consistent cooling and high performance for users to avoid throttling from the overheating.
* The result is based on internal lab test for reference only. Real performance may vary. Test conditions are under open case, 25°C ambient temperature, no airflow, and AIO Cooler and the latest Gen4 7000 SSD running IO meter for two hours.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 6 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users' specified temperature point
Smart Fan 6 BIOS UI
1. Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2. Slope/Stair dual graph mode
Fan curve can be quickly switched with Slope and Stair modes for different user scenarios. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3. Manual Input
For advanced users, we provide fan speed manual input for more precise control.
4. EZ Tuning
User can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5.Fan curve profile
Fan curve profile can be saved in BIOS ROM. Profile will be kept after updating BIOS.
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Noise Detection
With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn’t include any sound recording function, it simply detects sound pressure while protecting your privacy.
First adopter of 2.5GbE LAN onboard
2X Faster than ever
- Adoption of 2.5G LAN provides up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig (10/100/1000/2500Mbps) RJ-45 Ethernet
Intel 802.11ax WIFI 6E
Intel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6 GHz band, enables gigabit wireless performance, and provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4 Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefits of WIFI 6E
- Dedicated spectrum in 6 GHz band for less interference
- 5.5X throughput than 802.11ac 1x1
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
WIFI 6E Advantage
Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4 GHz and 5 GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is an extended standard of WIFI 6, and it uses dedicated 6 GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.
AORUS Antenna Supports Tri-Band with Better WIFI Signal
- All new antenna supports Tri-Band 802.11ax WIFI 2.4 GHz, 5 GHz and 6 GHz for better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and location
Connecting the Future — USB 3.2 Gen 2 x2 Type-C
Featuring the USB 3.2 Gen 2 x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works with up to 20 Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40 kHz or above which ensures users with the best audio quality at all times.
Multi-Zone Light Show Design
Now with more LED customizations offered than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, users have complete control over the LEDs which surround the motherboard.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, and Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
MultiKey
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
- RGB Switch
Turn off all lighting effect on motherboard.
- Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
- Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
* Photo for reference only.
EasyTune

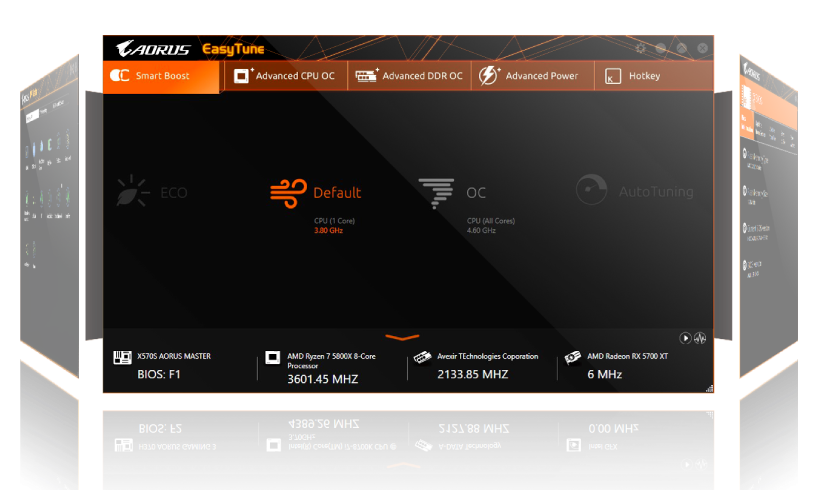

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
Q-Flash Plus
Update the BIOS easily without installing CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe Armor
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable Memory Armor
AORUS' exclusive one-piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Solid Pin Power Connectors
AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
