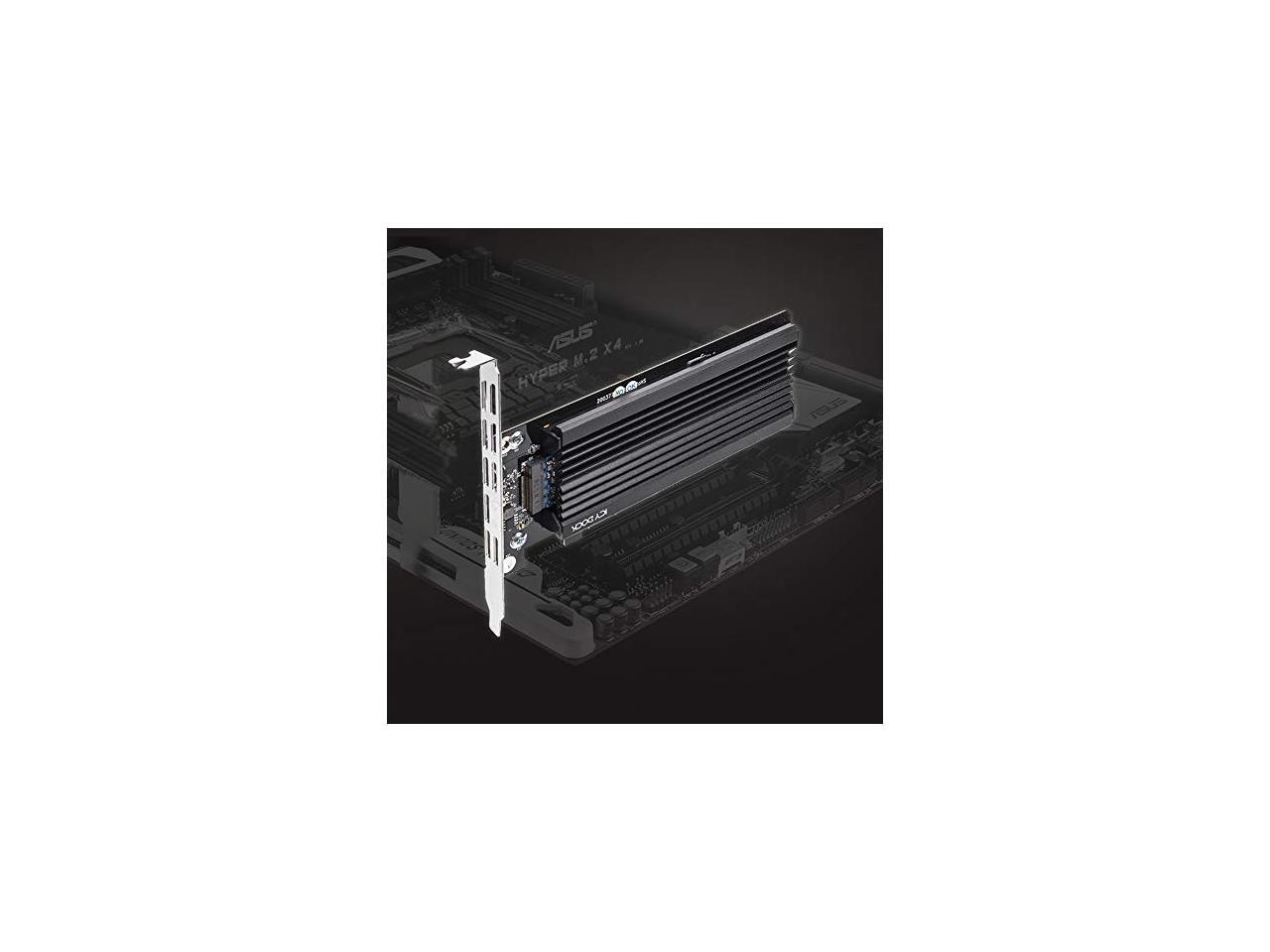

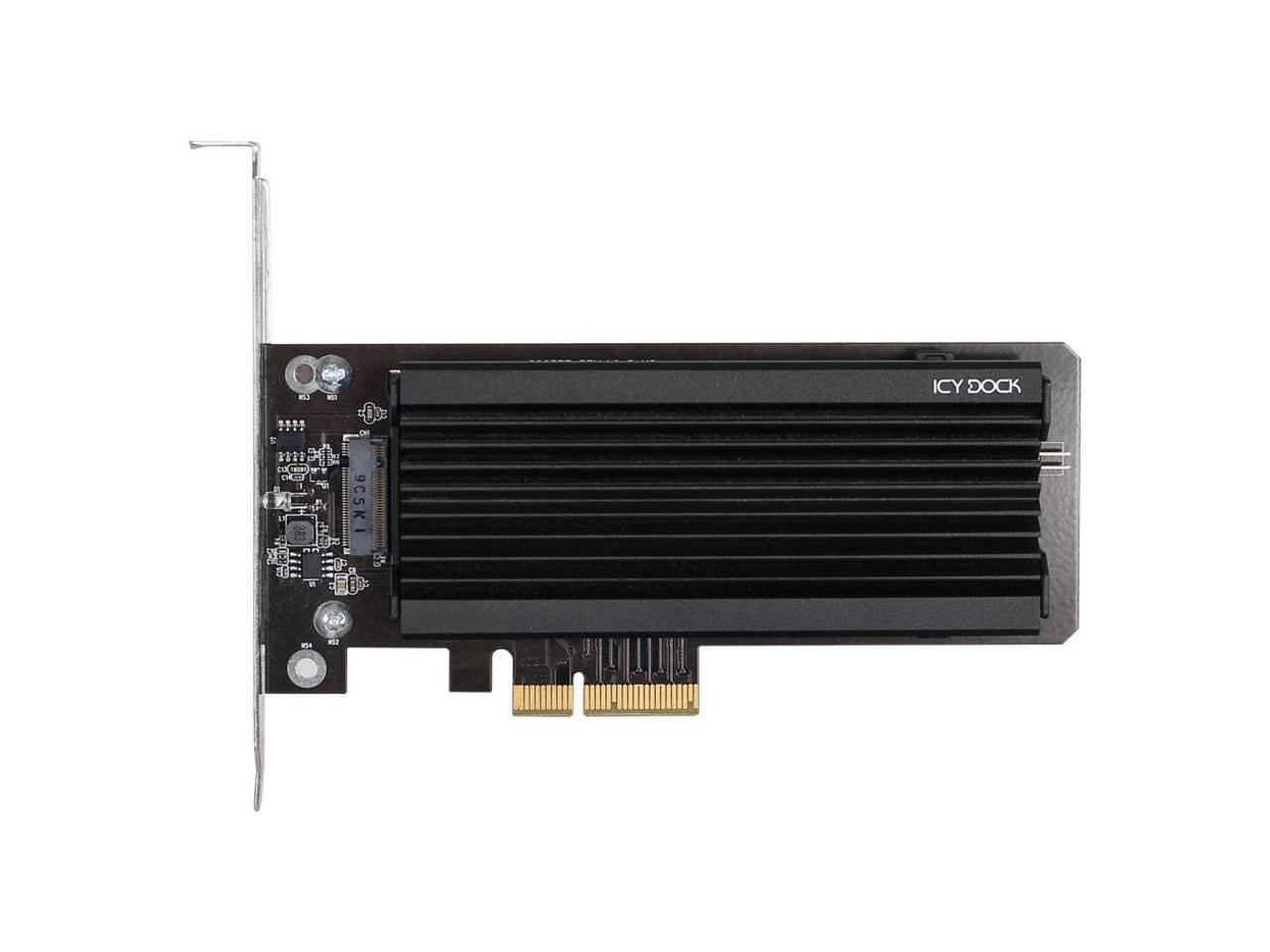

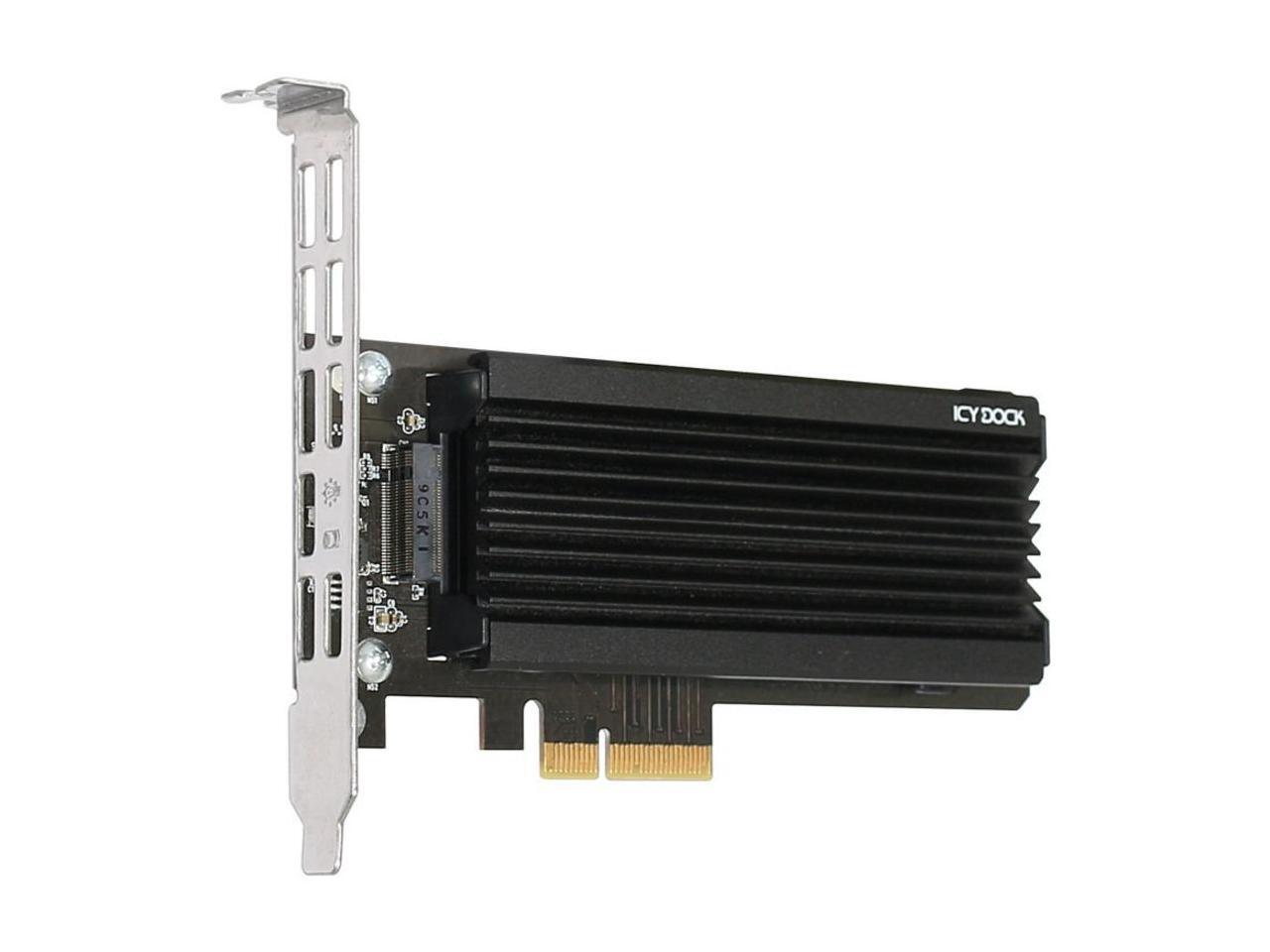

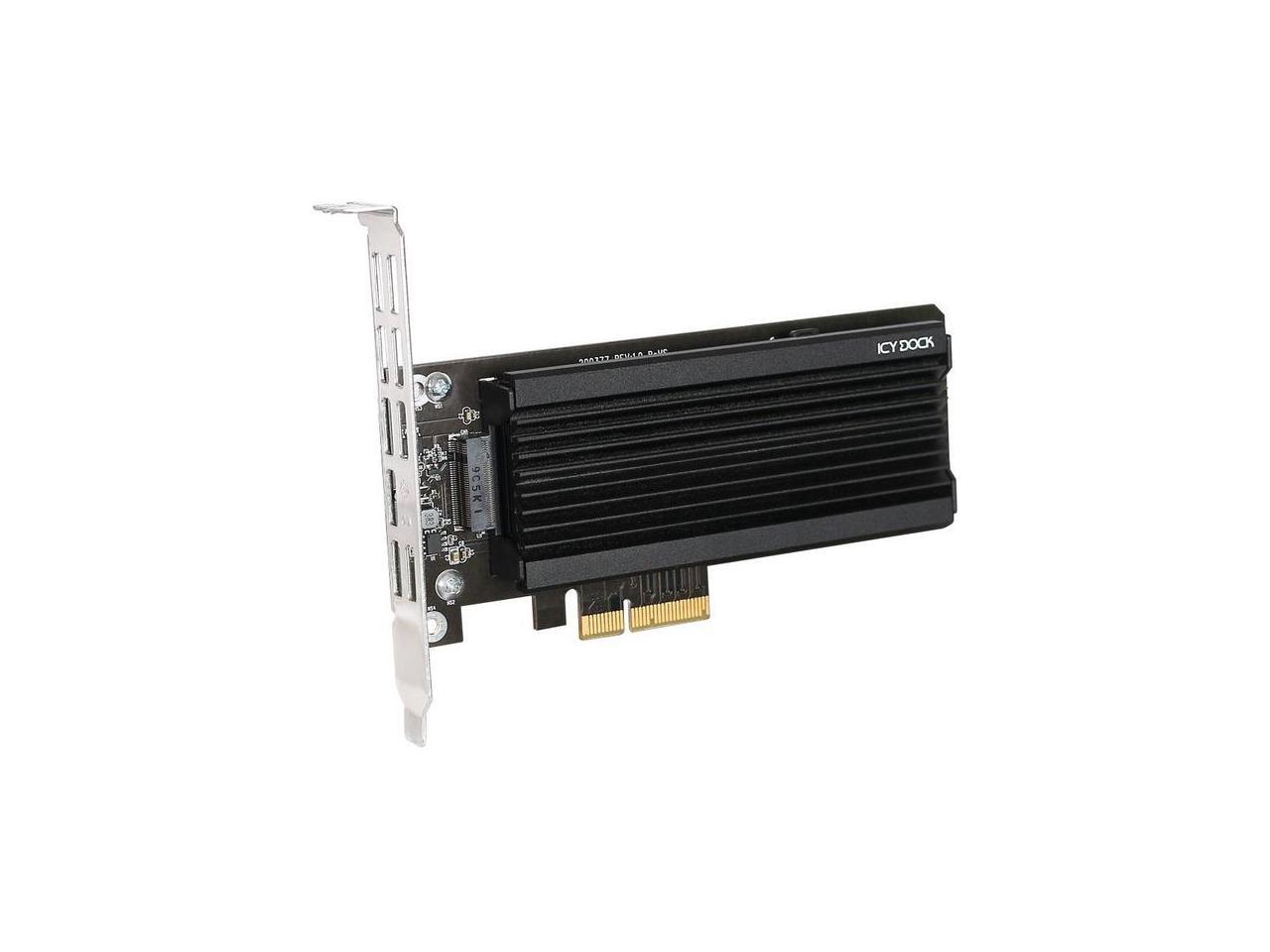

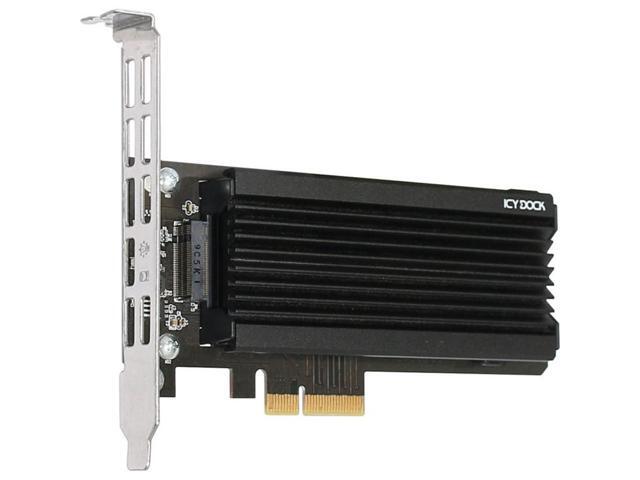

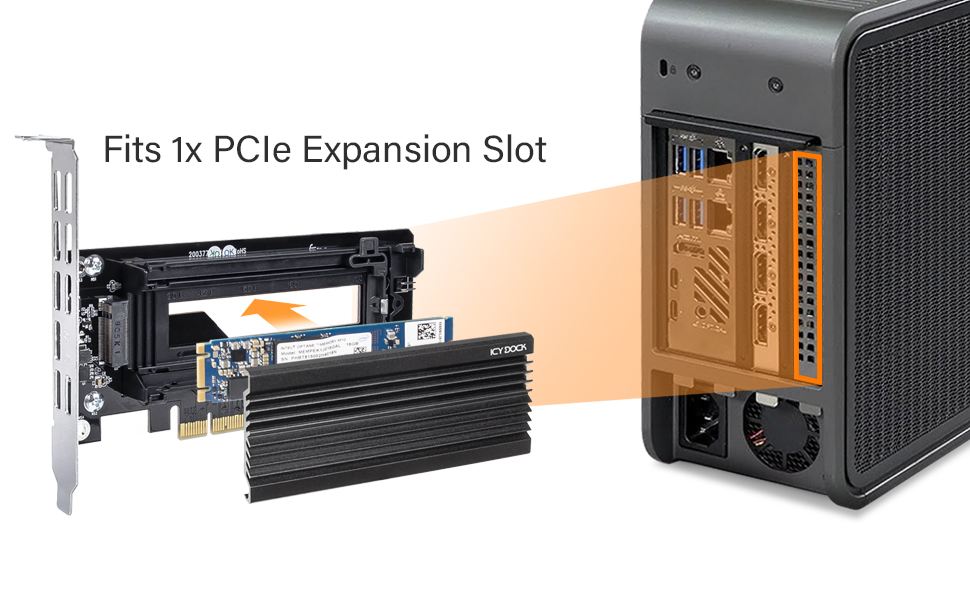

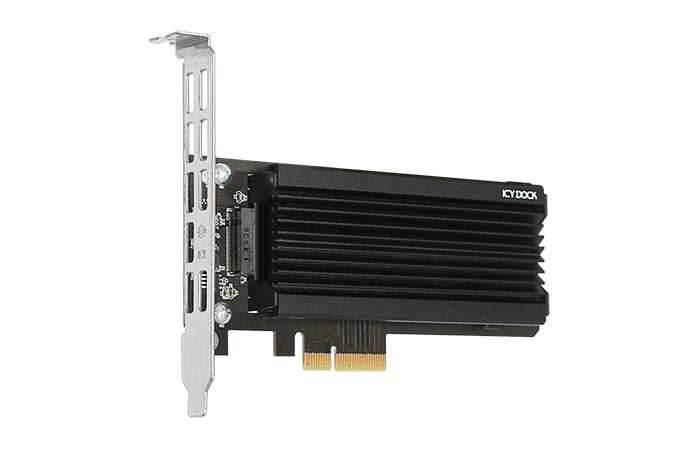

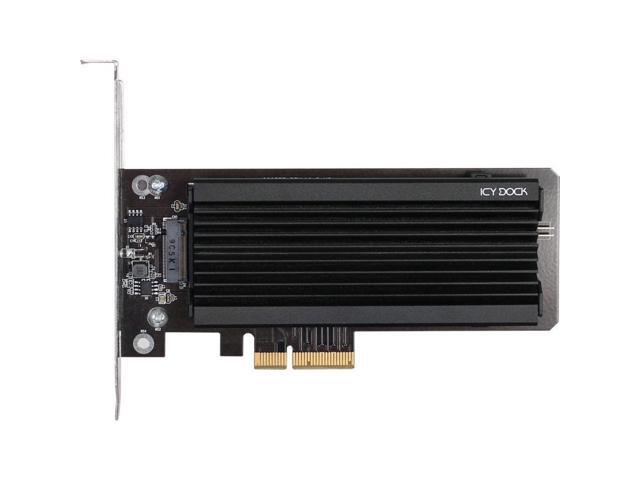

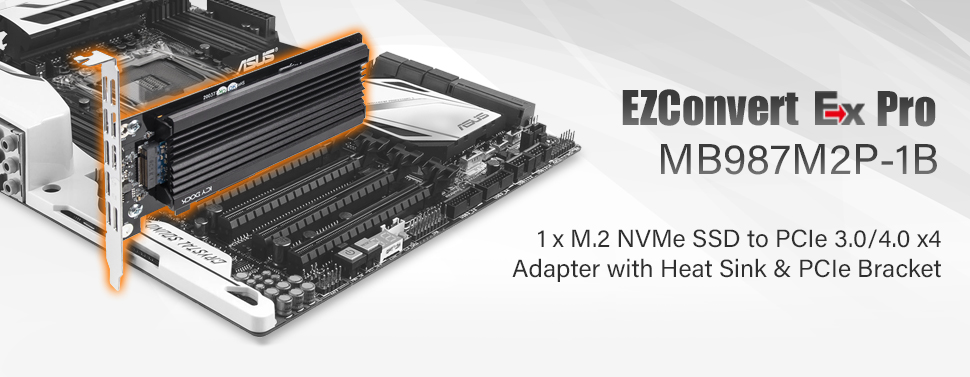

Utilizing the PCIe expansion slot, the MB987M2P-1B lets you install a M.2 PCIe NVMe SSD on the PCIe slot to save space. MB987M2P-1B is a perfect solution for systems that lack additional drive space, such as embedded computers, in-vehicle PCs, server rackmounts, compact gaming PCs, and workstation PCs.
Note:

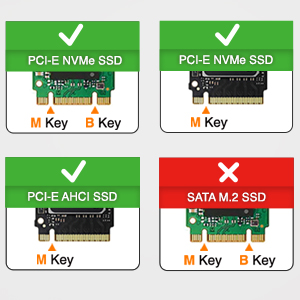

- Product does NOT accept M.2 SATA SSD.
- M.2 drive not included.

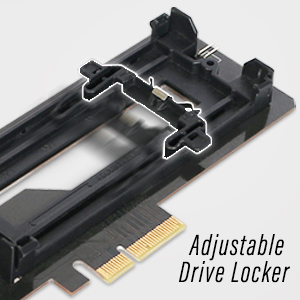

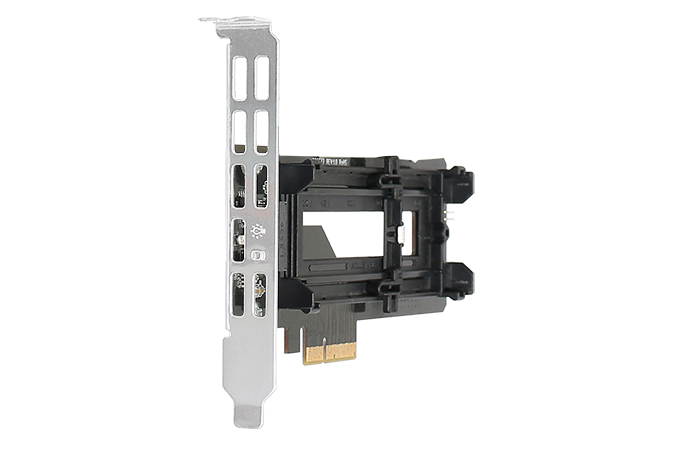

The unique M.2 adjustable locker clips into the M.2 SSD's screw hole to safely secure the drive without using tools or screws
The EZConvert Ex Pro accommodates all standard M.2 PCIe NVMe SSD drive length, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm).
Note:
- Drive height must be less than 3.8mm.
- Product does NOT accept M.2 SATA SSD.

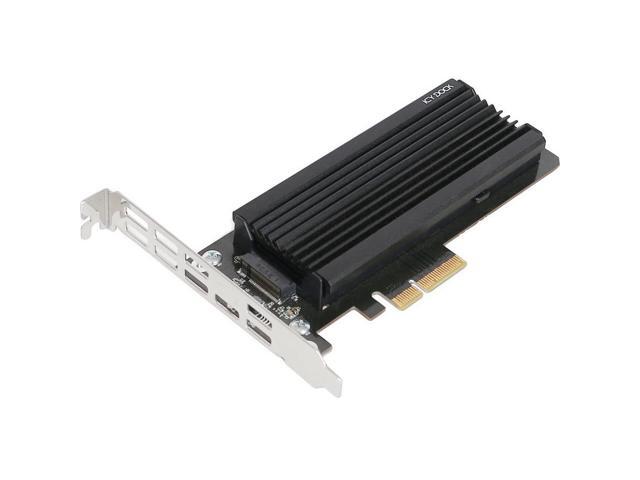

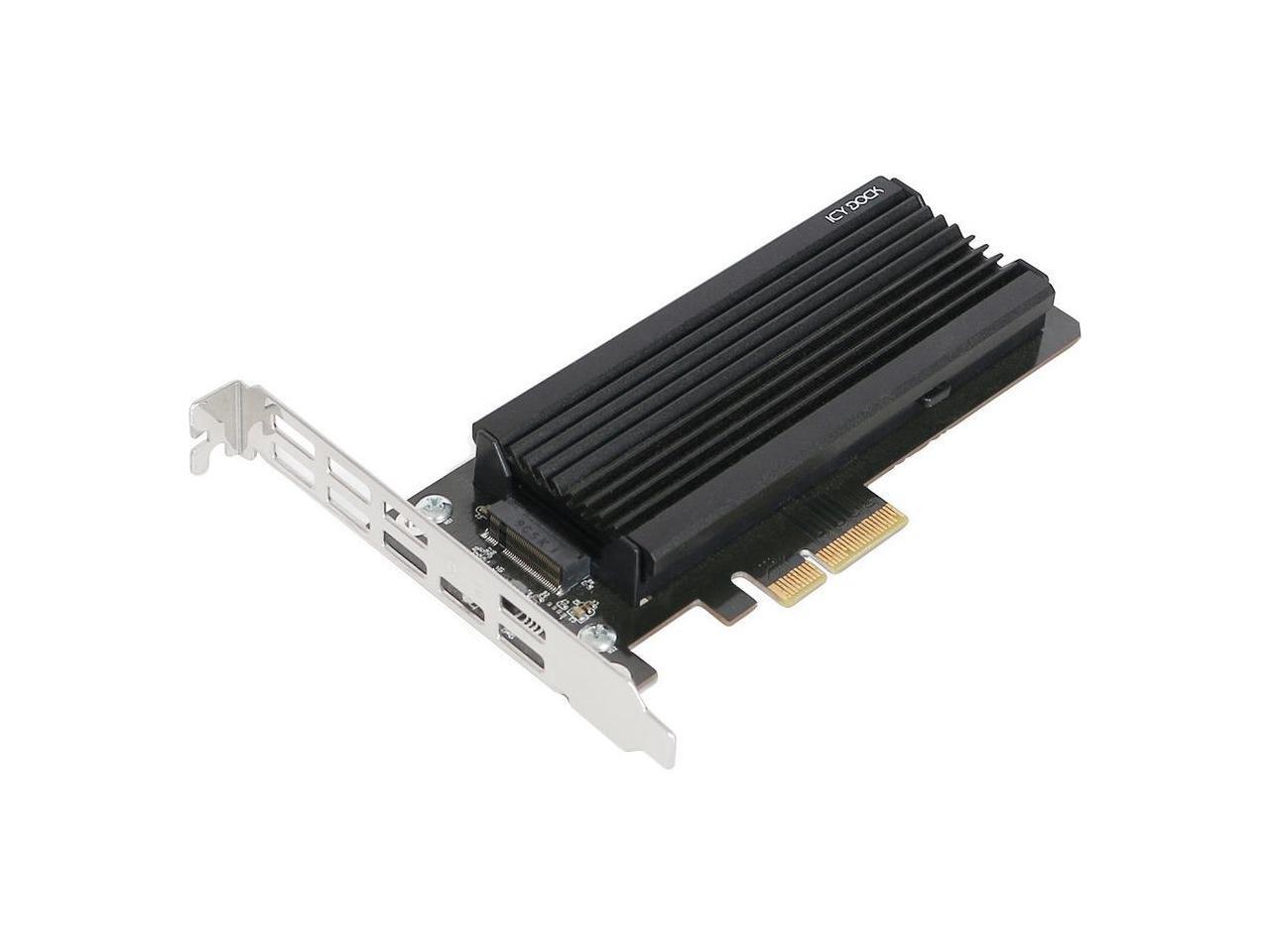

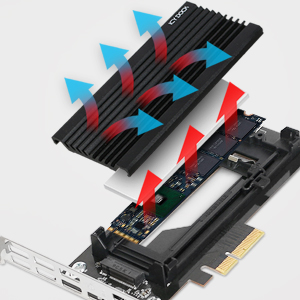

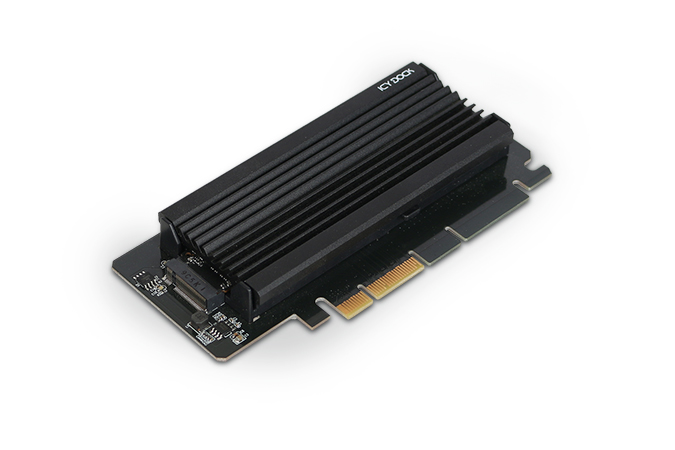

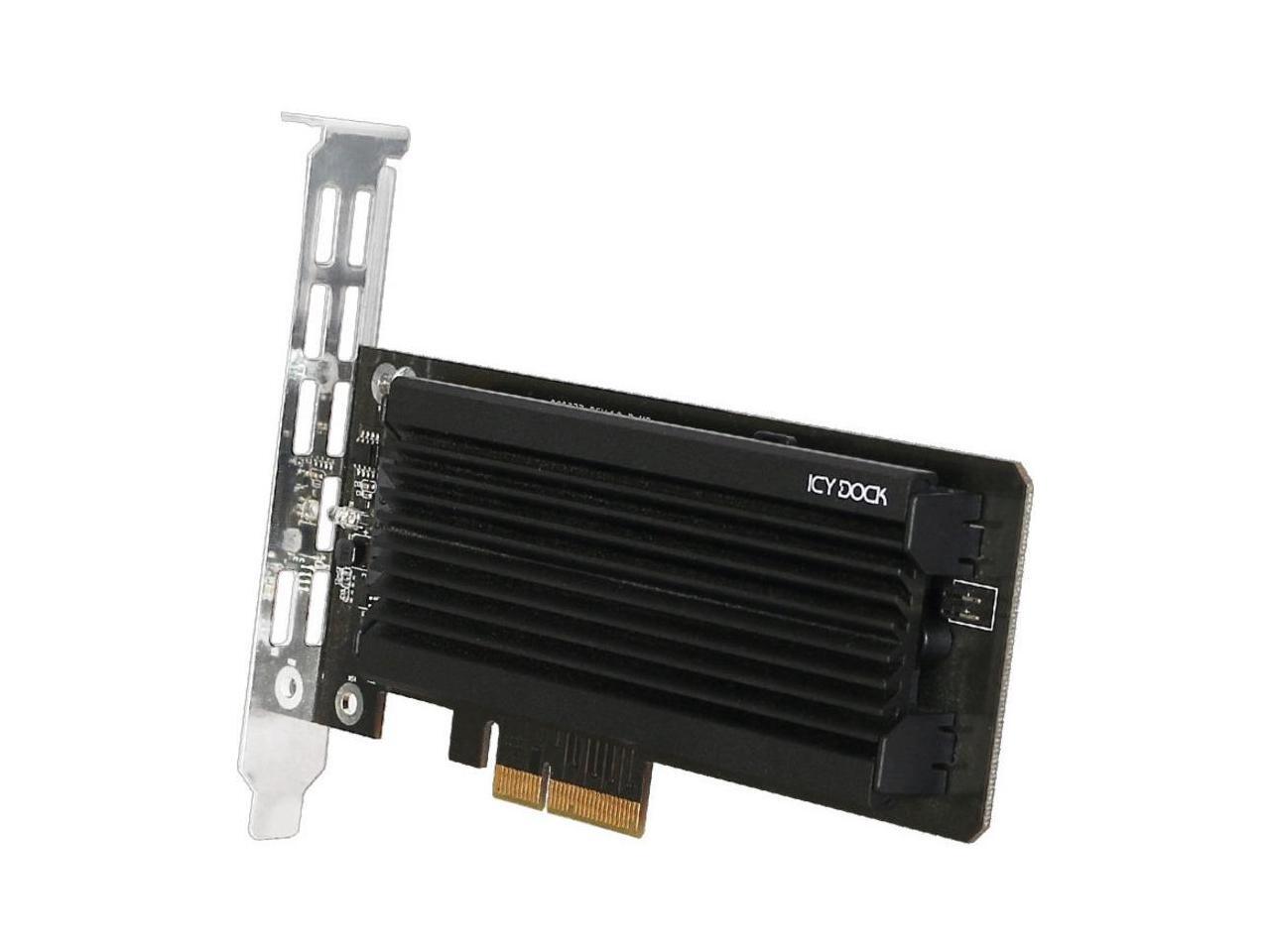

The specialized aluminum lid acts as a heat sink to keep M.2 NVMe SSD at safe temperatures, even under heavy load. Package also included thermal pad to enhance heat dissipation.

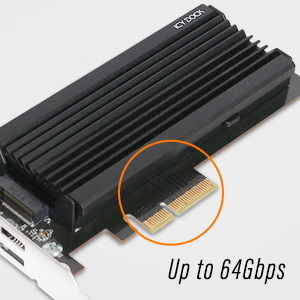

The PCIe 3.0/4.0 interface provides power and data transfer simultaneously, which ultimately reduces cable clutter in the system. The blazing-fast 64Gb/s transfer speed is five times faster than SATA III standards.

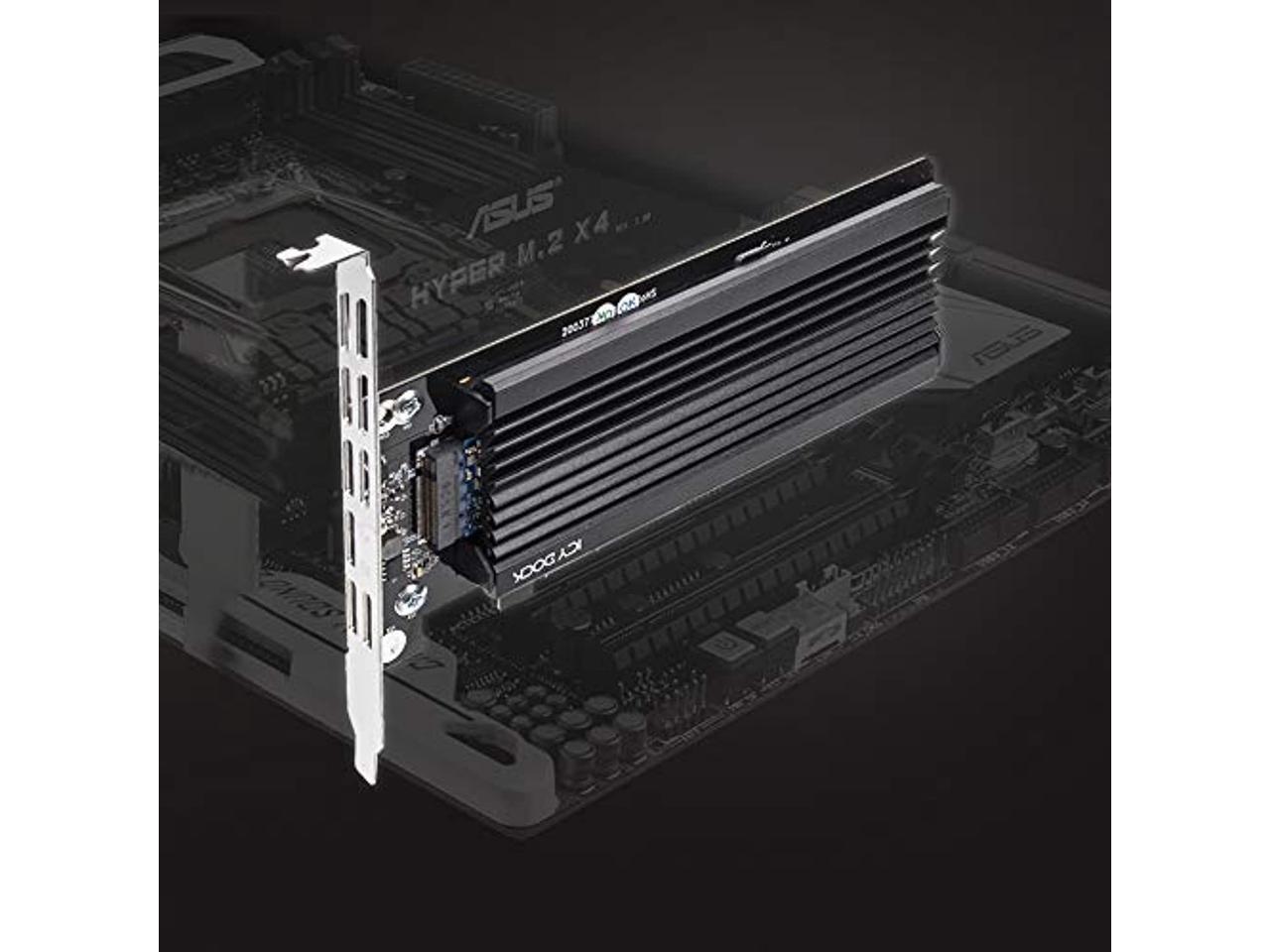

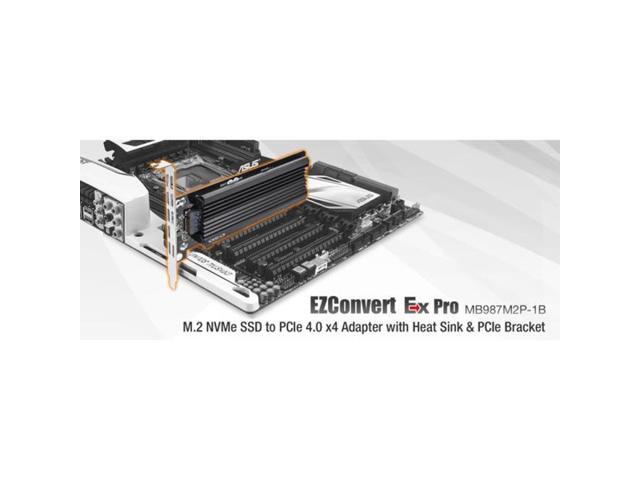

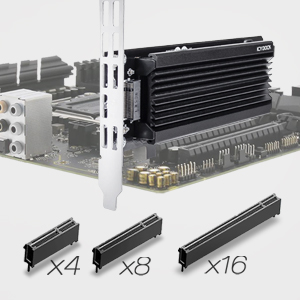

The EZConvert EX Pro MB987M2P-1B is designed for the PCIe 3.0/4.0 x 4 slot. It is also compatible with PCIe 3.0/4.0 x4, x8, and x16 slots.

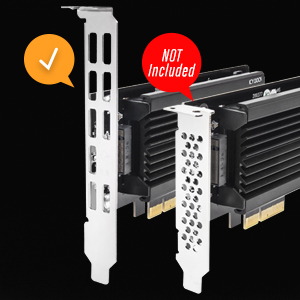

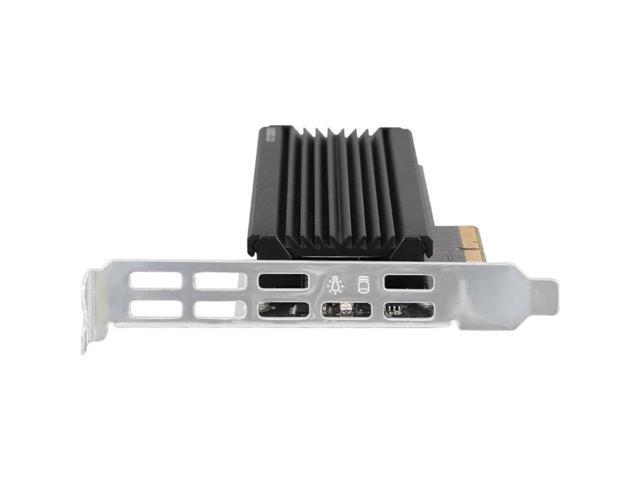

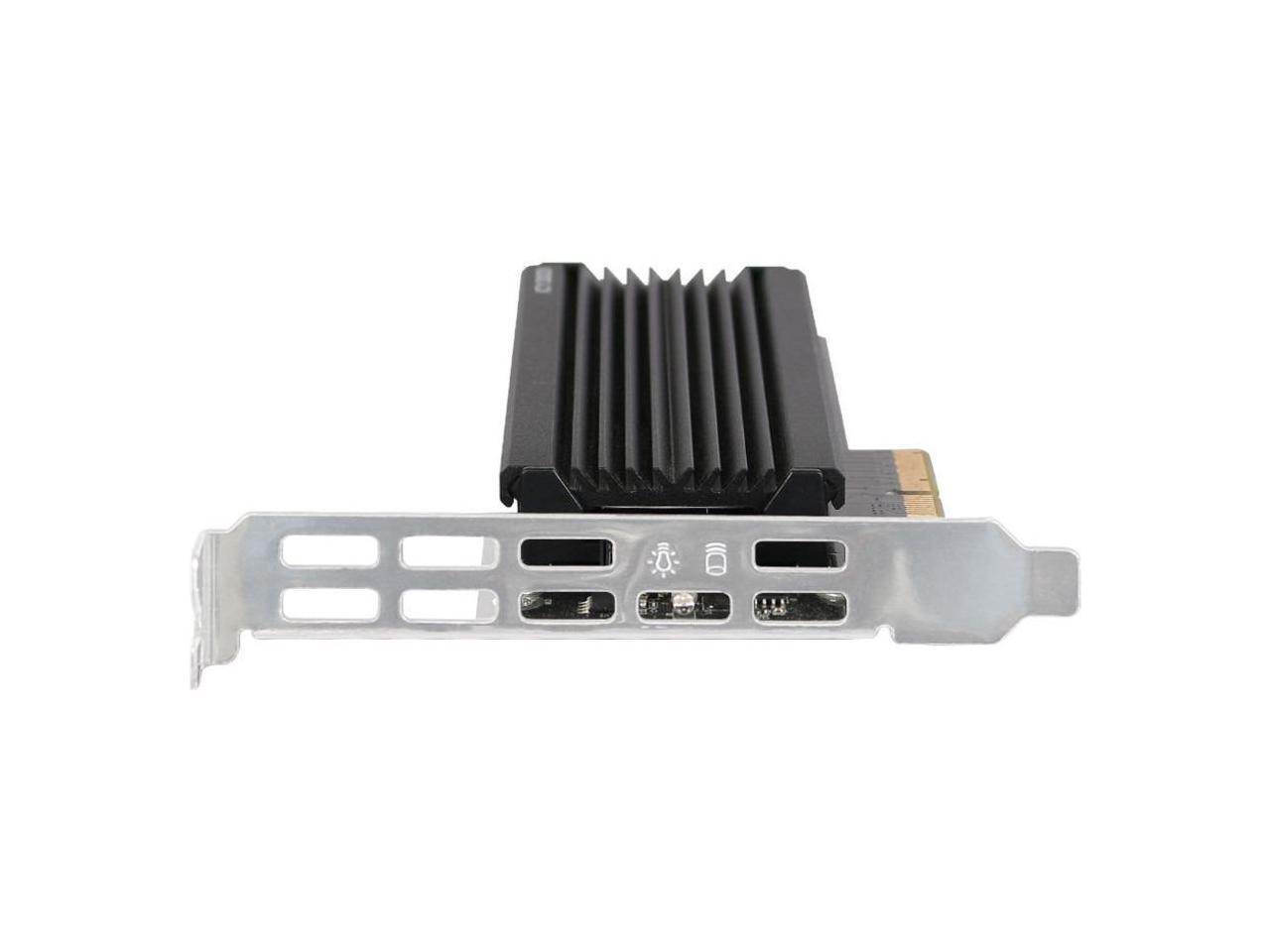

The PCIe slot bracket of the MB987M2P-1B can be swapped between full (120mm) and low (80mm) profile for flexible system installation.
Note:
- Package includes 120mm bracket.
- 80mm bracket is NOT included.

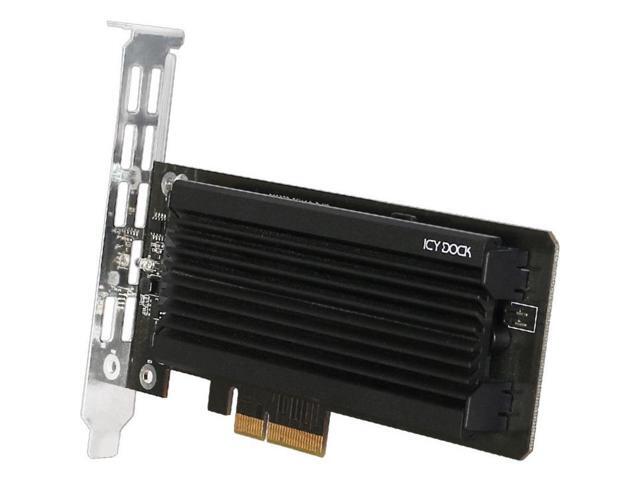

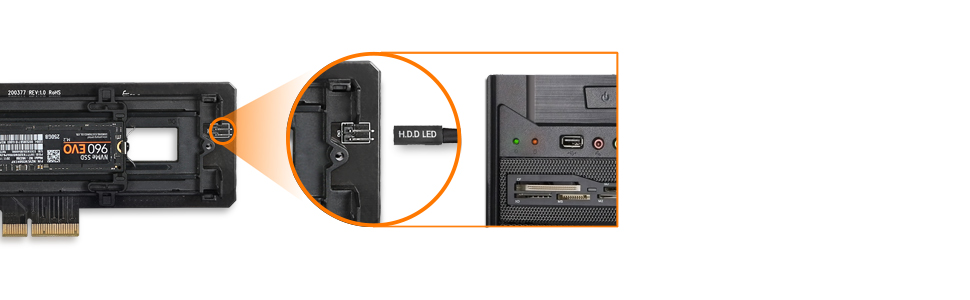

The optional 2-pin drive activity signal output (cable not included) allows you to transfer the drive activity signal to the front panel of the computer to monitor the drive activity.
Note: Drive not included.
| Products | |||||
|---|---|---|---|---|---|
| Number of M.2 Drive Supported | 1 | 1 | 1 | 1 | 1 |

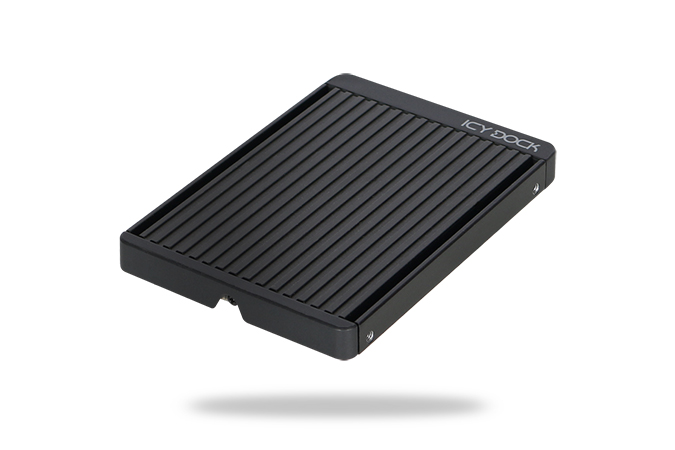

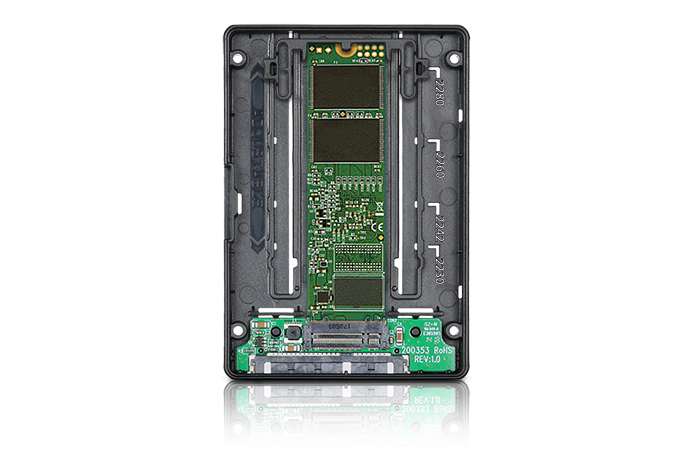

| Compatible Drive Bay | 1x M.2 PCIe 3.0/4.0 NVMe | 1x M.2 PCIe 3.0/4.0 NVMe | 1x M.2 PCIe 3.0/4.0 NVMe | 1x 2.5" SATA Drive Bay | 1x M.2 PCIe 3.0/4.0 NVMe |
| Support M.2 Drive Length | 2230 to 22110mm | 2230 to 22110mm | 2230 to 22110mm | 2230mm to 2280mm | 2230 to 2280mm |
| Compatible with M.2 SATA | |||||
| Compatible with M.2 NVMe | |||||
| Heatsink | |||||
| PCIe bracket | |||||
| Device Connector | PCIe 3.0/4.0 | PCIe 3.0/4.0 | PCIe 3.0/4.0 | 1x SATA 7pin | 1x U.2 (SFF-8639) |
| Power Connector | Via PCIe | Via PCIe | Via PCIe | 1x SATA 15pin | 1x U.2 (SFF-8639) |
