Material 4×6mm heatpipe(Direct Touch)+Aluminum Fin
Weight 285g
Fan Dimension 92×92×15mm
Fan Speed 800±200-2800RPM±10%(PWM)
Max. Air Flow 46CFM
Max. Static Pressure 3.28mmH2O
Noise 35.2dB(A) Max
Bearing Type Hydraulic Bearing
TDP 100W
Connector 4Pin PWM
Compatibility :
Intel LGA1700/1200/1151/1150/1155/1156
AMD AM5/AM4
+
+
Overview
Specs
Reviews

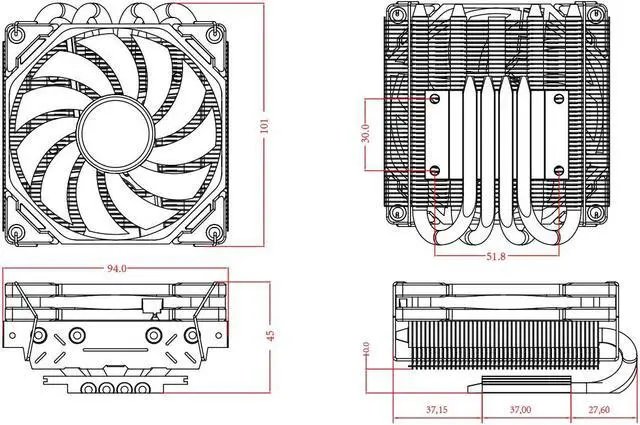

Compatibility Intel LGA1700/1200/1151/1150/1155/1156 AMD AM5/AM4 TDP 100W Overall Dimension 94×101×45mm (L×W×H) Material 4×6mm heatpipe (Direct Touch) +Aluminum Fin Weight 285g Fan Dimension 92×92×15mm Fan Speed 800±200-2800RPM±10% (PWM) Max. Air Flow 46CFM Max. Static Pressure 3.28 mmH2O Noise 35.2 dB (A) Max. Rated Voltage 12VDC Operating Voltage 10.8 ~ 13.2VDC Started Voltage 7VDC Rated Current 0.2A Power Input 2.4W Bearing Type Hydraulic Bearing Connector 4Pin PWM
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
