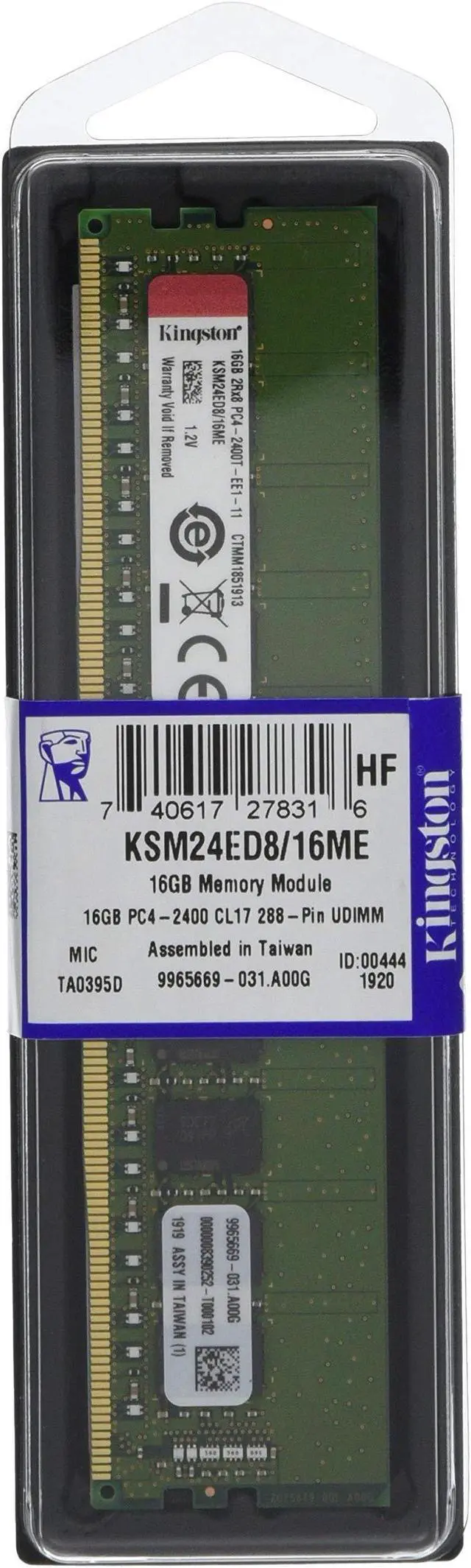

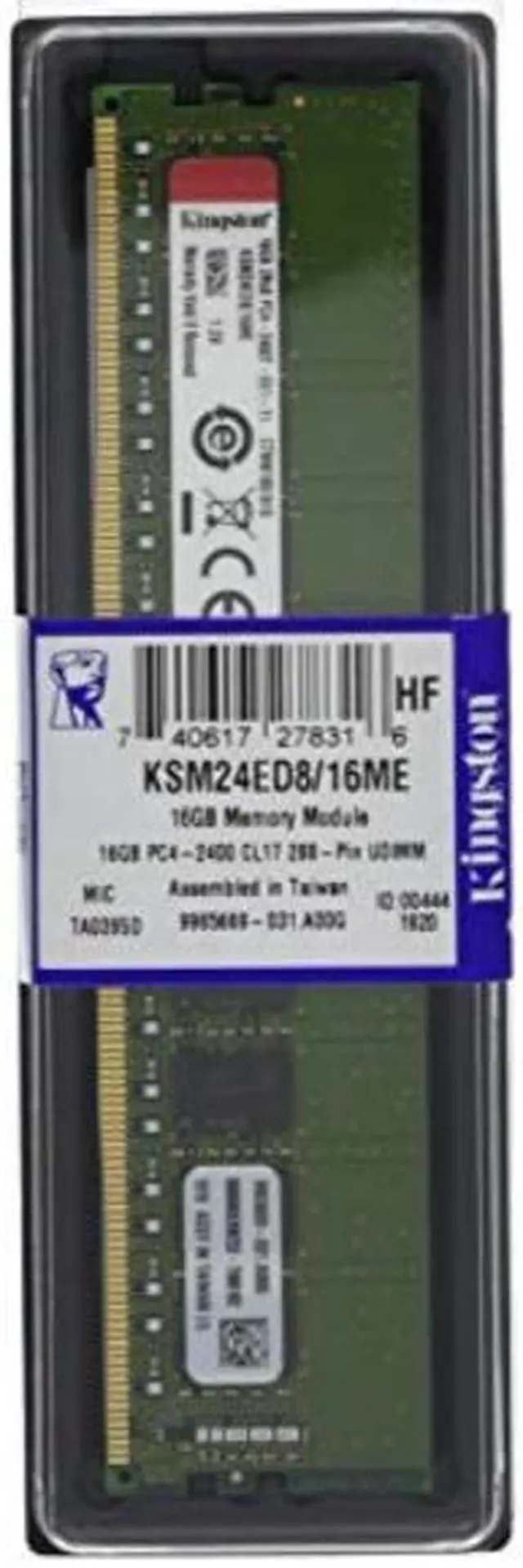

Kingston 16GB 288-Pin DDR4 SDRAM ECC DDR4 2400 (PC4 19200) Server Memory Model KSM24ED8/16ME

In stock.
Ships from United States.
  • 8GB
  • 16GB
  • DDR4 2400 (PC4 19200)
  • Timing 17-17-17
  • ECC
  • CAS Latency 17
LOADING...
Overview
Specs
Reviews
HyperX HyperX

KSM24ED8/16ME
16GB 2Rx8 2G x 72-Bit PC4-2400
CL17 288-Pin DIMM

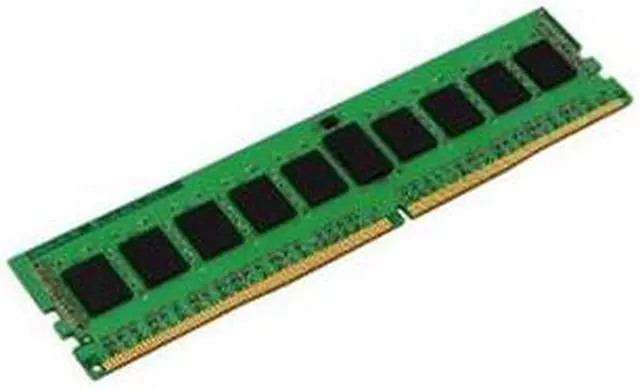

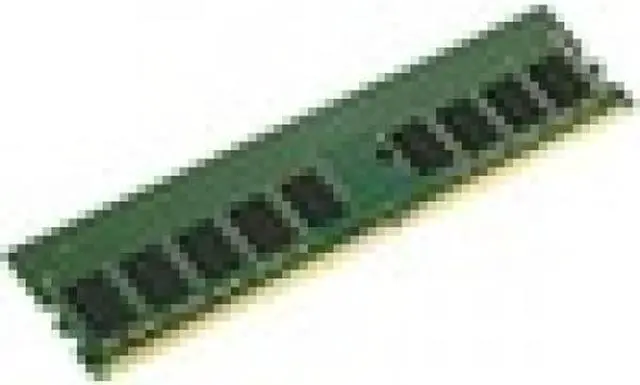

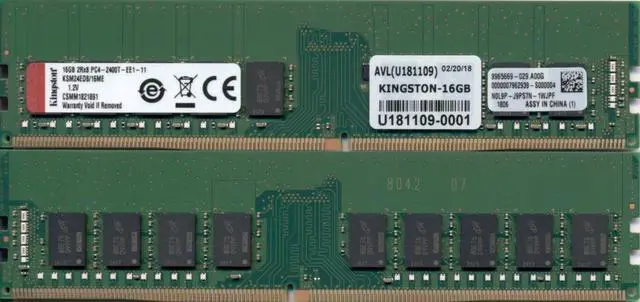

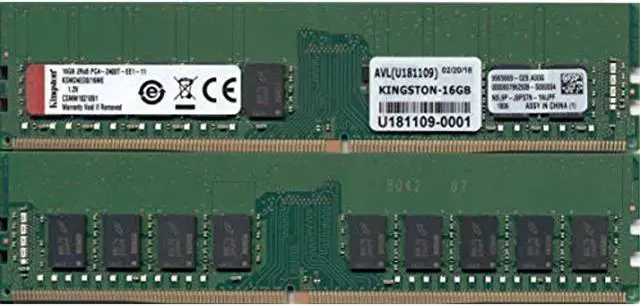

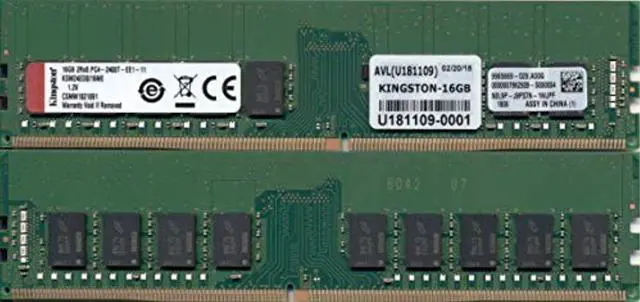

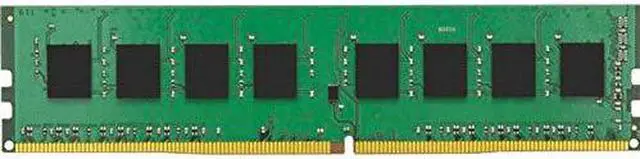

Kingston's HyperX KSM24ED8/16ME is a 2G x 72-bit (16GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, ECC memory module based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to the JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.


FEATURES

  • Power supply: VDD = 1.2V typical
  • VDDQ = 1.2V typical
  • VPP = 2.5V typical
  • VDDSPD = 2.2V~3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • Temperature sensor with integrated SPD
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: 1.23” (31.25mm) height
  • RoHS-compliant and halogen-free

SPECIFICATIONS

CL(IDD) 17 cycles
Row Cycle Time (tRCmin) 46.16ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
Maximum Operating Power Up to 1836mA
UL Rating 94 V - 0
Operating Temperature 0 ℃ to +85 ℃
Storage Temperature -55 ℃ to +100 ℃
