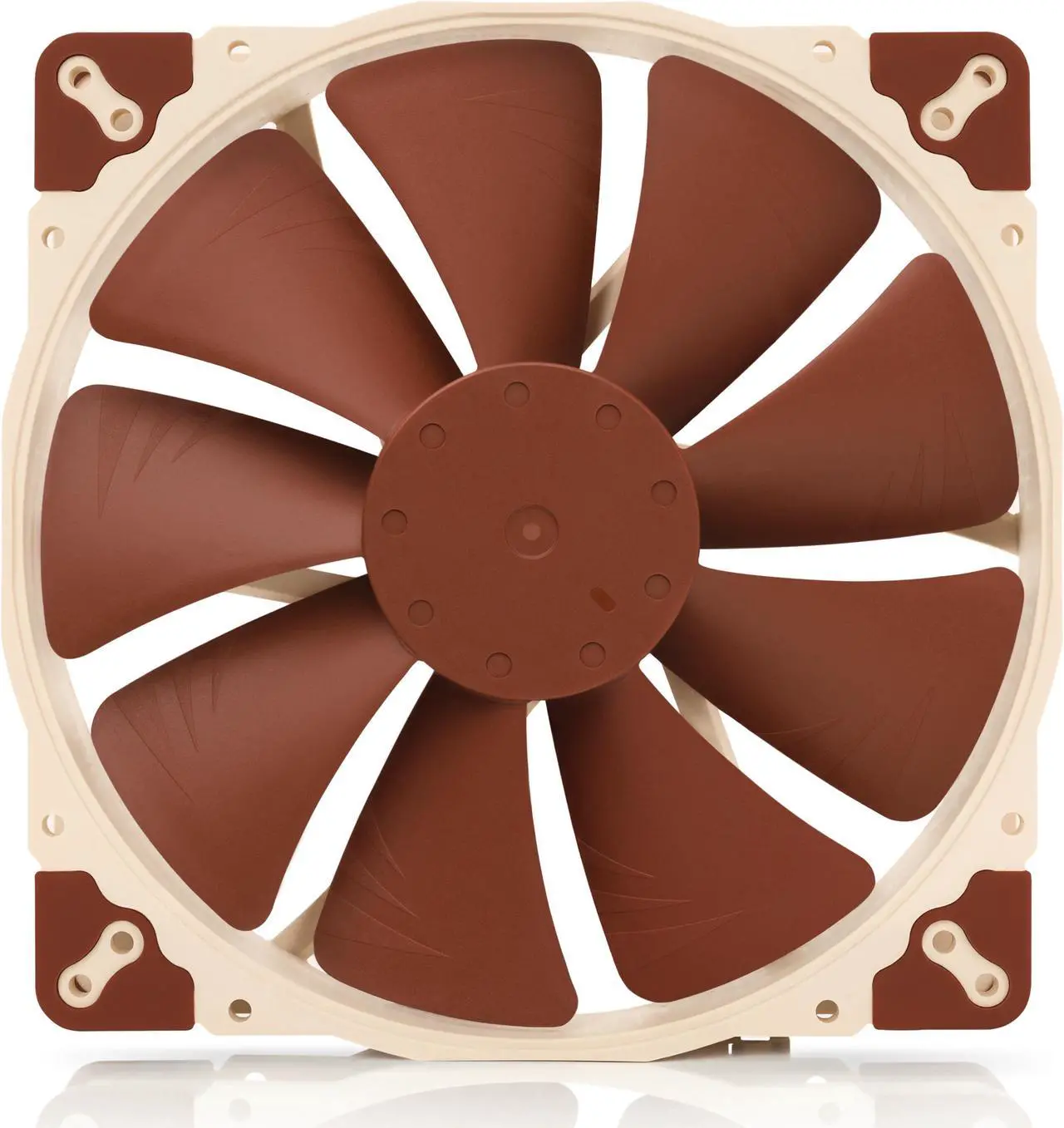

The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctua's award-winning A-series to the increasingly popular 20cm form factor. The FLX version provides 800/550rpm speed settings via the supplied Low-Noise Adaptor in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua's trusted premium quality make the NF-A20 an elite choice for the highest demands.
While more and more PC cases support 20cm intake, side-panel or exhaust fans, many of the bundled stock units and available aftermarket options are of questionable quality. By contrast, the NF-A20 is a true premium grade solution worthy of Noctua's award-winning A-series.
Caution: As there is no fixed industry standard for the shape, thickness or hole spacing of 200mm, 220mm, 230mm or 250mm fans, compatibility can vary from case to case. Please check compatibily before purchase. A case compatibility list can be found on the Noctua website.

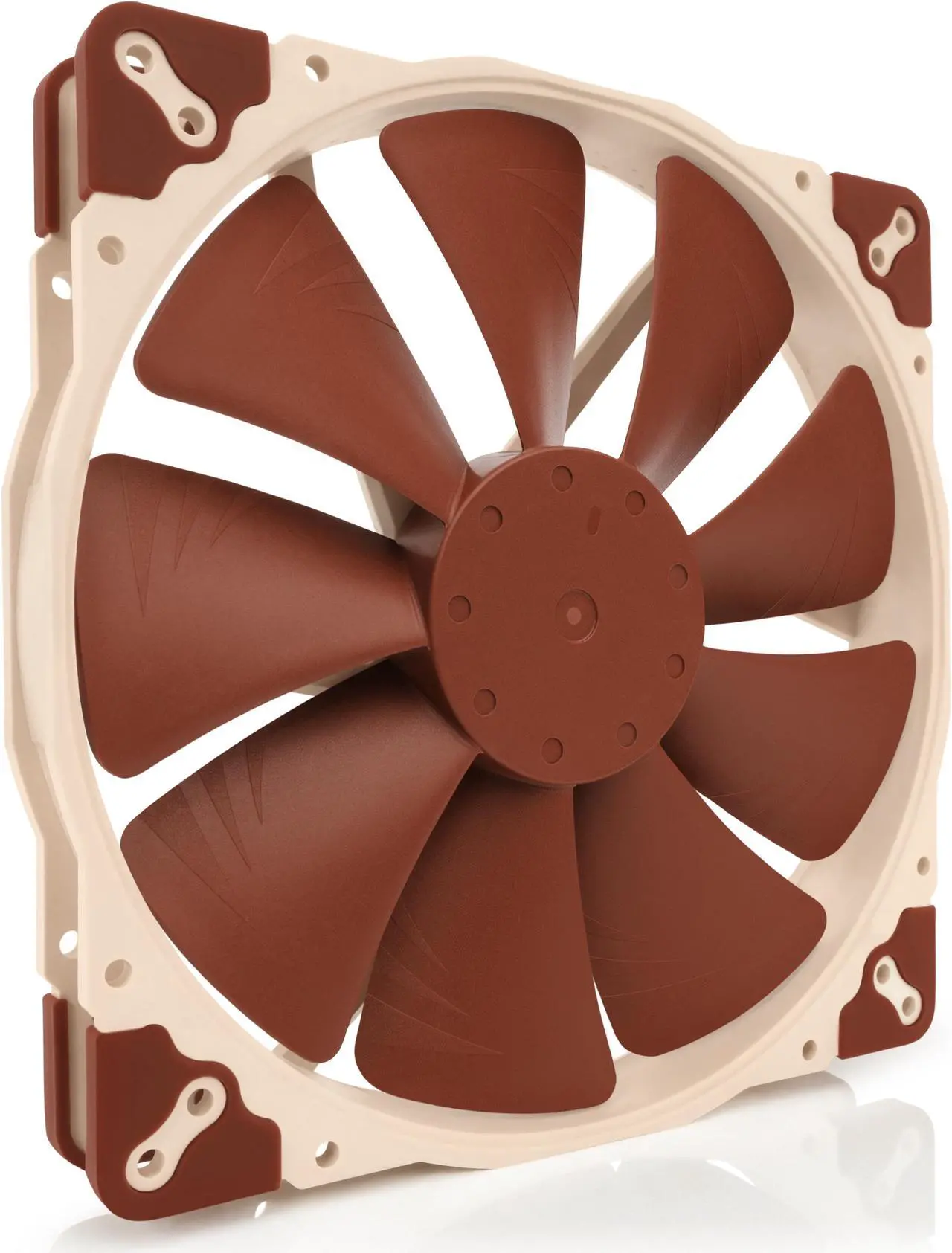

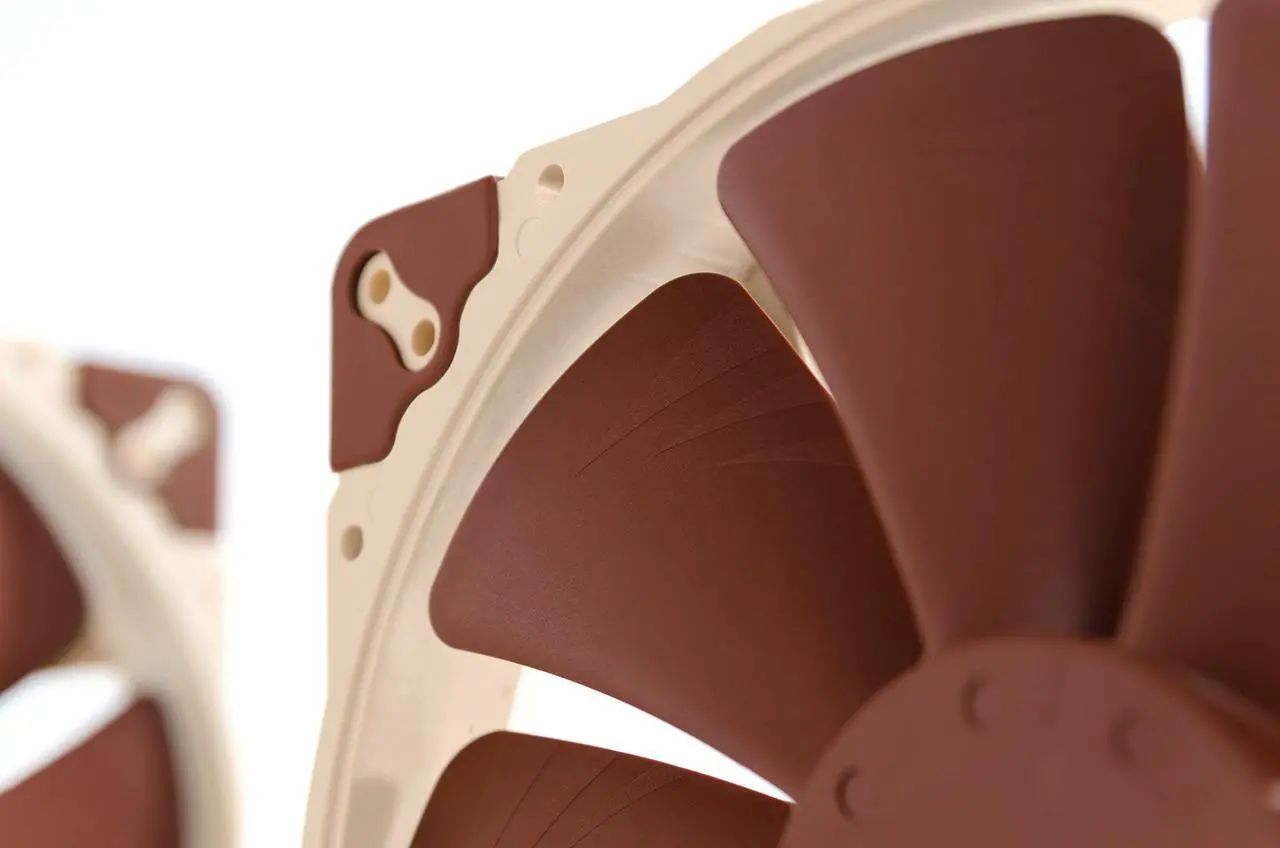

| The NF-A20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. |

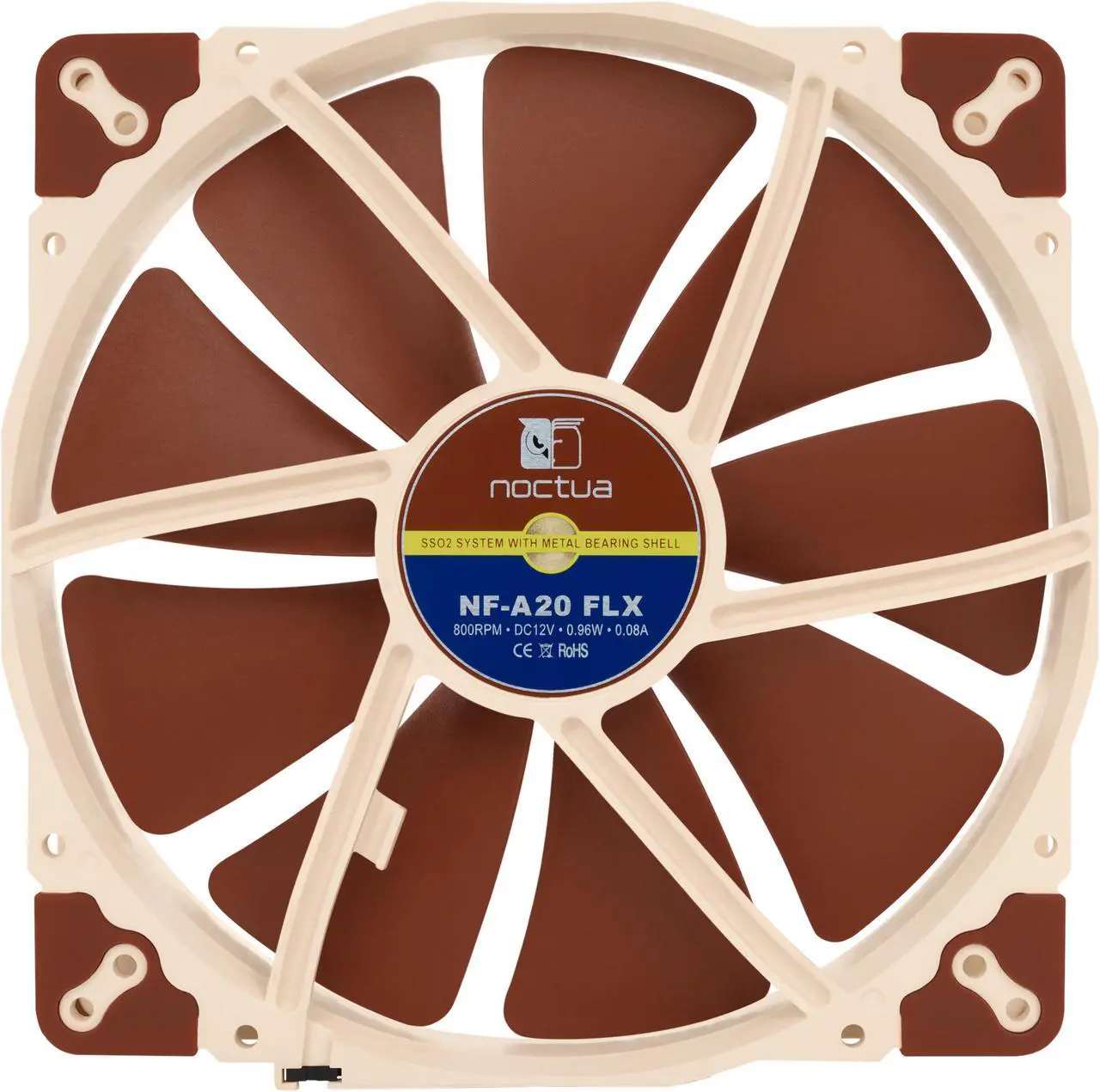

| The NF-A20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |

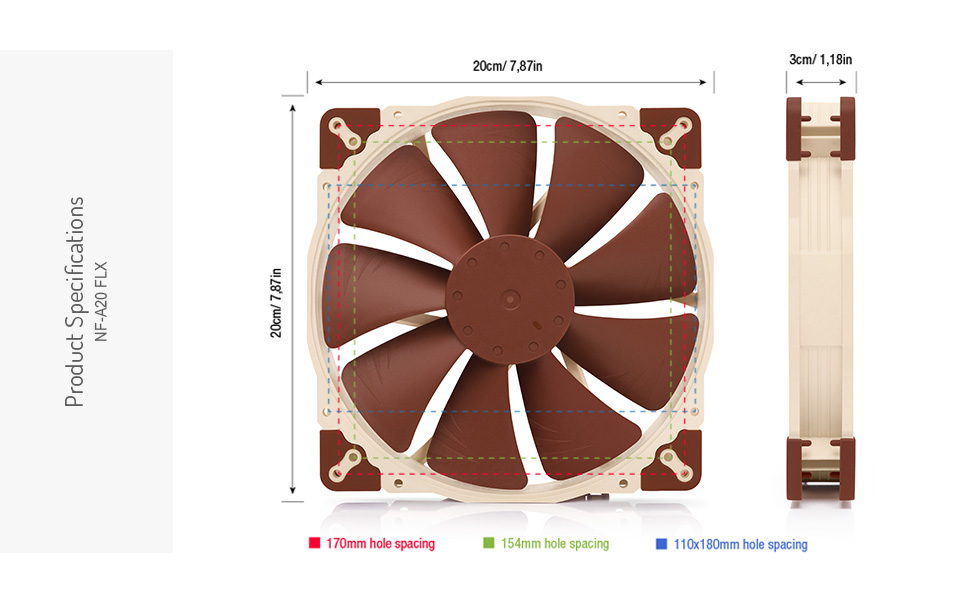

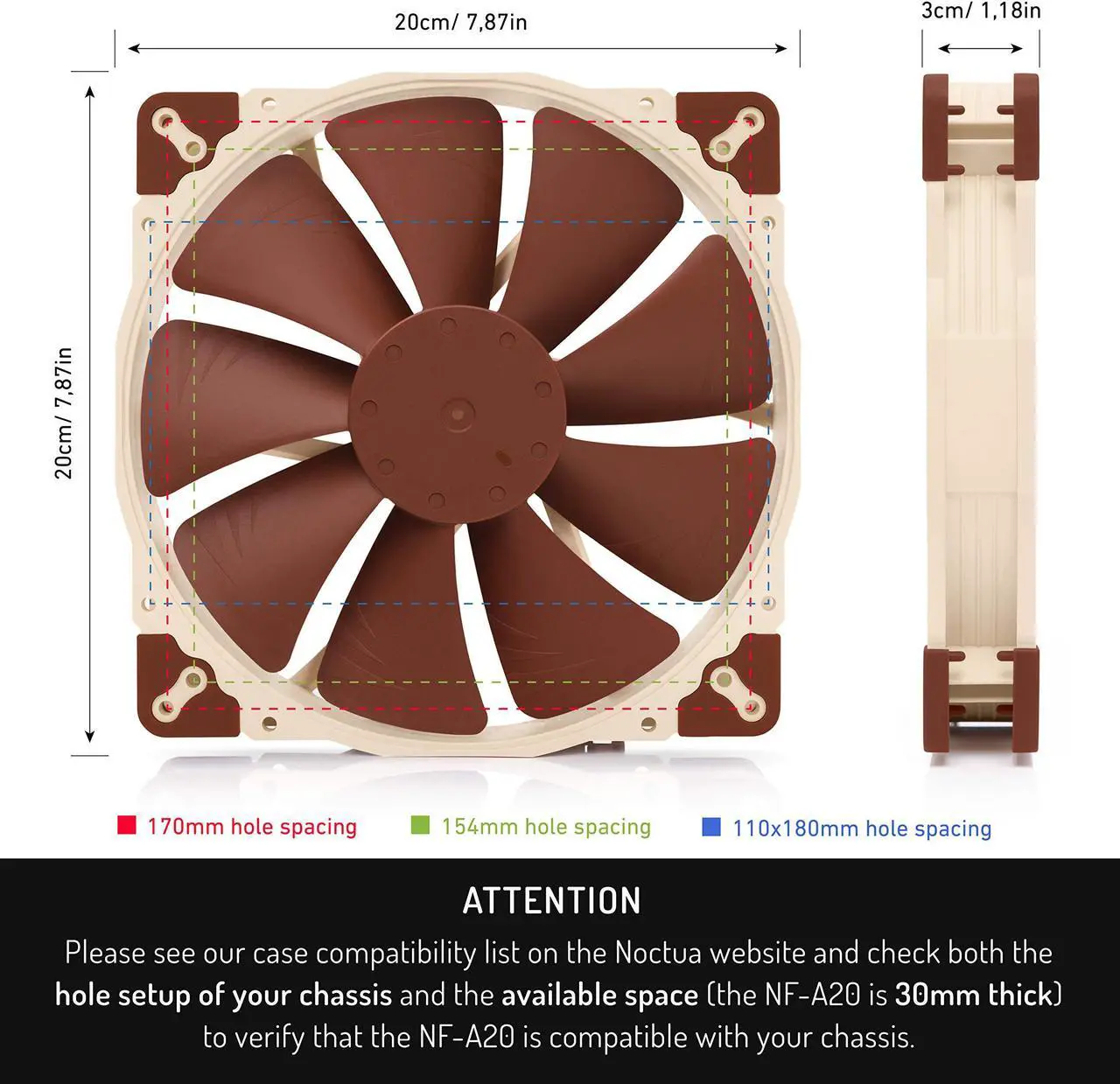

| In order to ensure broad compatibility with today's PC cases, the NF-A20 features three sets of mounting holes: While the 154x154mm and 110x180mm spacing allow it to replace most 200mm fans, the 170x170mm spacing is used by many 230 and 250mm fans, which can thus also be replaced by the NF-A20. |

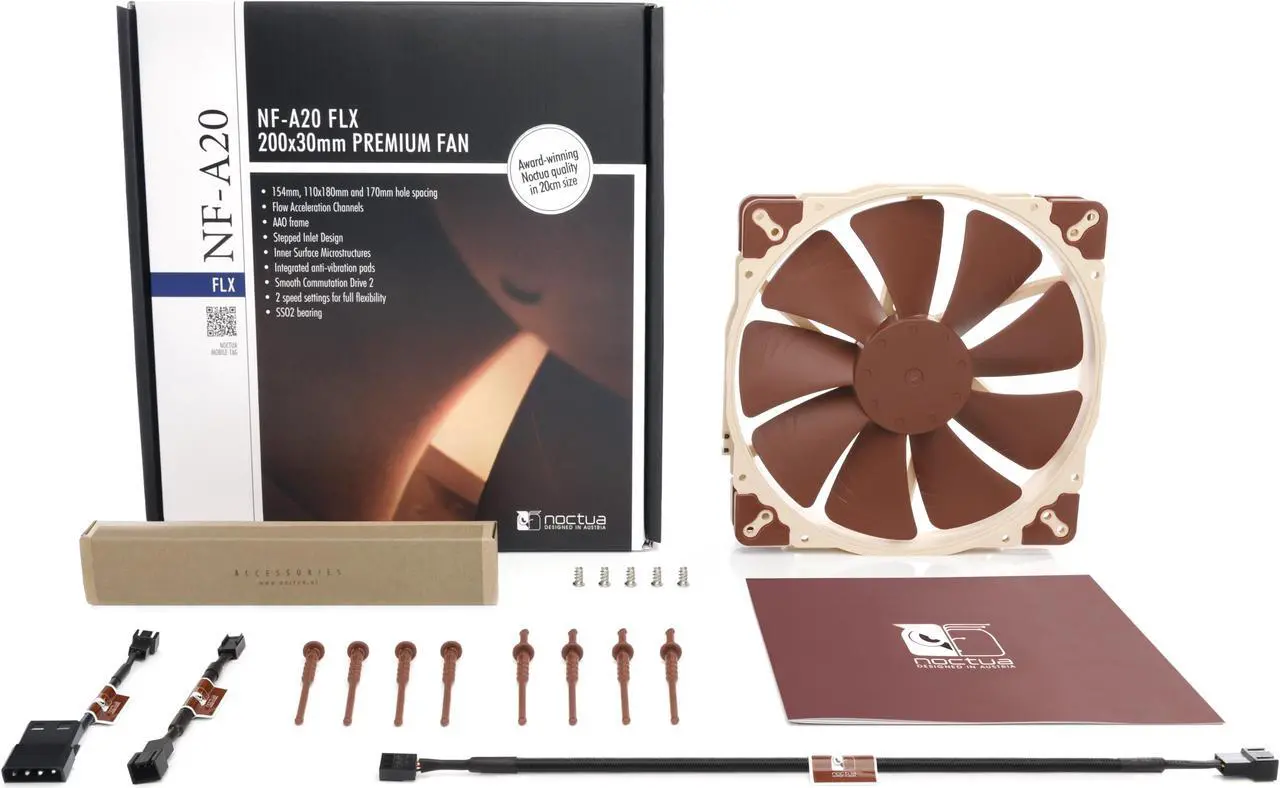

- NA-RC13 Ultra-Low-Noise Adaptor (U.L.N.A)

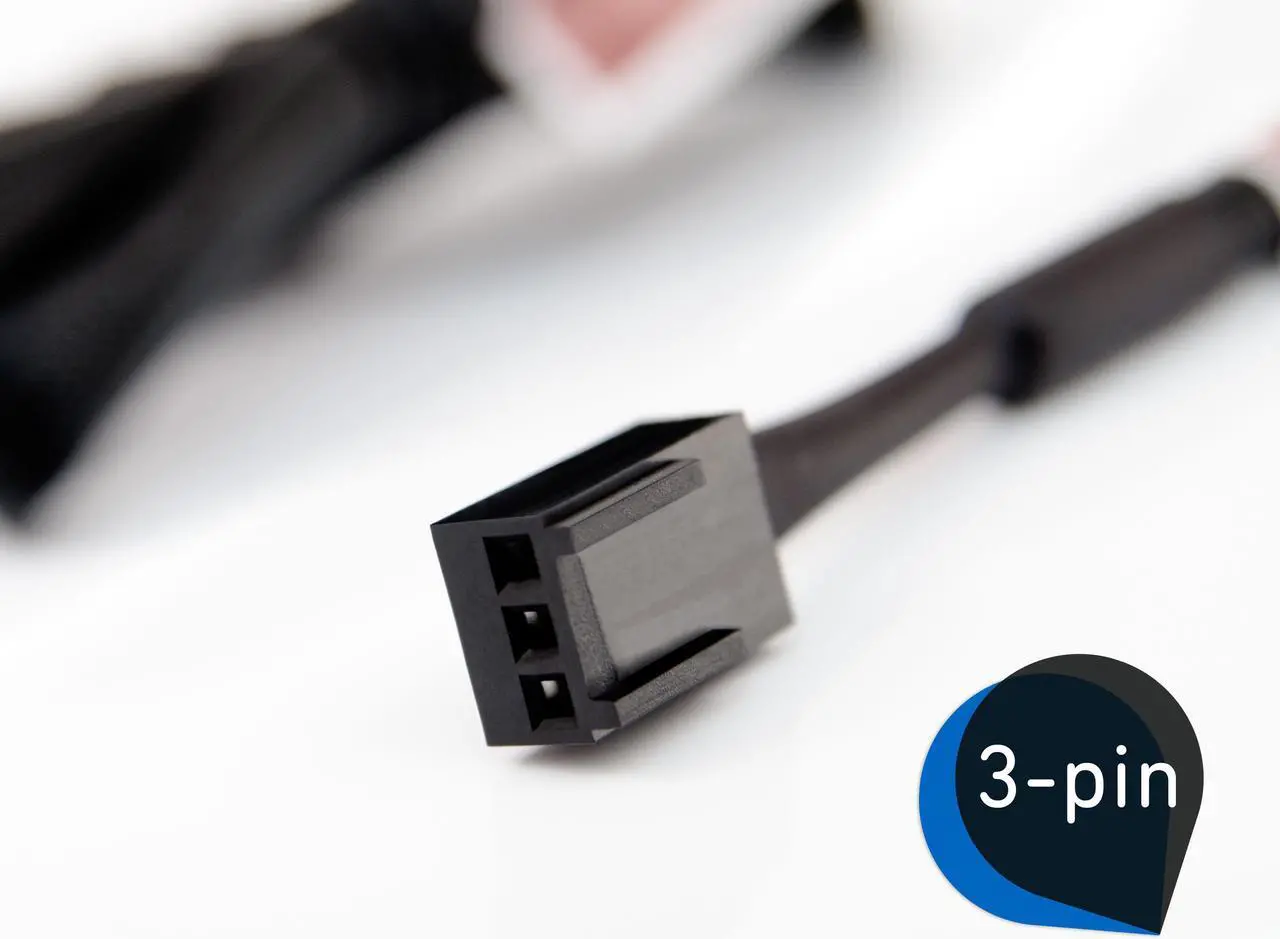

- NA-AC1 3:4-pin adaptor cable
- NA-EC1 30cm extension cable
- 4x NA-AV3 anti-vibration mounts
- 4x NA-AV4 anti-vibration mounts
- Fan screws
| Products | |||||
|---|---|---|---|---|---|

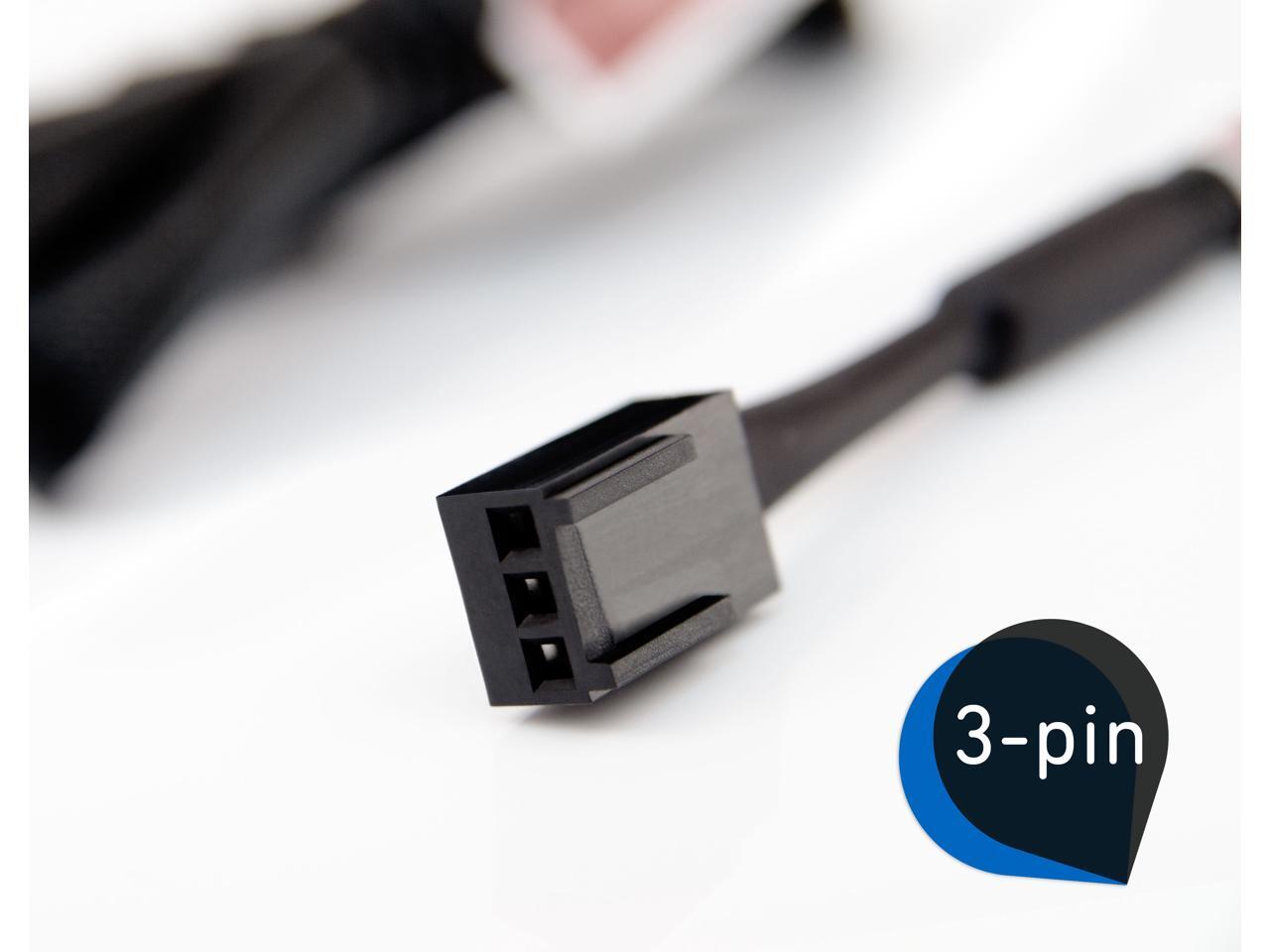

| Connector | 4-pin PWM | 3-pin | 4-pin PWM | 3-pin | 4-pin PWM |
| Voltage | 12V | 12V | 5V | 5V | 12V |
| RPM | Max: 800 / Min: 350 | 800 | Max: 800 / Min: 350 | 800 | Max: 800 / Min: 350 |
| RPM with L.N.A. | 550 | 550 | No | No | No |
| Acoustical Noise | 18,1 dB(A) | 18,1 dB(A) | 18,1 dB(A) | 18,1 dB(A) | 18,1 dB(A) |
| Acoustical Noise with L.N.A. | 10,7 dB(A) | 10,7 dB(A) | No | No | No |
| Size | 200x200x30 mm | 200x200x30 mm | 200x200x30 mm | 200x200x30 mm | 200x200x30 mm |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
