Whats is left to get this running as a PC? I am looking for a small bare bone PC to configure as a server to play around with. I looks like it still needs RAM and Storage but I want to confirm.

You will need a dual-channel kit of DDR4-3200 SO-DIMMs for the memory, a PCIe NVMe M.2 2280 SSD for the storage, and a Windows 11 install USB and license key (if you are going the Win11 route). I paired mine with Corsair Vengeance DDR4-3200 memory and a 1TB WD_BLACK SN850X drive - both are crazy cheap now and top of their class in performance and reliability. It runs extremely fast and is very energy efficient.

will this support a 2TB sata drive?

easy answer - read the specs: 1x M.2 22x80 M-key supporting PCIe x4 Gen 4 NVMe or SATA SSDs 1x M.2 22x42 B-Key supporting PCIe x1 Gen 3 or SATA SSDs

AUD$905^.30

GST-Inclusive Price

Limit 99999 per customer.

Ships from China.

Most customers receive within 10-17 days.

Add to wish list

Sold by NUC PC Store

Top Rated

4.5 (24 seller ratings)

Shipped by NUC PC Store

Meet Your Seller

NUC PC Store

See Seller Store

Main image of Intel NUC 12 Pro Kit Wall Street Canyon Intel® Core™ i5-1240P, Iris® Xe Graphics RNUC12WSKi5 slim Barebone, Dual Channel DDR4-3200 SO-DIMM Sockets, Power Cord included

Alt view image 2 of 5 - Intel NUC 12 Pro Kit Wall Street Canyon Intel® Core™ i5-1240P, Iris® Xe Graphics RNUC12WSKi5 slim Barebone, Dual Channel DDR4-3200 SO-DIMM Sockets, Power Cord included

Alt view image 3 of 5 - Intel NUC 12 Pro Kit Wall Street Canyon Intel® Core™ i5-1240P, Iris® Xe Graphics RNUC12WSKi5 slim Barebone, Dual Channel DDR4-3200 SO-DIMM Sockets, Power Cord included

Alt view image 4 of 5 - Intel NUC 12 Pro Kit Wall Street Canyon Intel® Core™ i5-1240P, Iris® Xe Graphics RNUC12WSKi5 slim Barebone, Dual Channel DDR4-3200 SO-DIMM Sockets, Power Cord included

Alt view image 5 of 5 - Intel NUC 12 Pro Kit Wall Street Canyon Intel® Core™ i5-1240P, Iris® Xe Graphics RNUC12WSKi5 slim Barebone, Dual Channel DDR4-3200 SO-DIMM Sockets, Power Cord included

Shop All Intel Products | Visit NUC PC Store

Intel NUC 12 Pro Kit Wall Street Canyon Intel® Core™ i5-1240P, Iris® Xe Graphics RNUC12WSKi5 slim Barebone, Dual Channel DDR4-3200 SO-DIMM Sockets, Power Cord included

(4) Write a Review

CPU Type: Intel Core i5-1240P

Intel Core i7-1260P
Intel Core i5-1240P

Options: Slim

Tall
Slim

Intel® Core™ i5-1240P
Intel® Iris® Xe Graphics
Dual Channel DDR4-3200 SO-DIMM Sockets
2x M.2 SSD slots
Intel® Wi-Fi 6E AX211 + Bluetooth 5.2
2x Front USB 3.2 Gen2
3.5mm stereo headset jack
Kensington Lock support
1x Intel 2.5Gb LAN
2x HDMI 2.0b
2x Thunderbolt 4
Rear USB 3.2 Gen2
USB 2.0
19VDC 120W power supply connector

Specs

Reviews (4)

Learn more about the Intel RNUC12WSKi50001

General
Brand	Intel
Series	NUC 12 Pro
Model	RNUC12WSKi50001
Part Number	RNUC12WSKi50001
Color	Black

CPU Supported
CPU Type	Intel® 12th Gen Core™ i5-1240P \| 4P+8E/16T \| P-Cores: up to 4.4GHz - E-Cores: up to 3.3GHz \| 12MB Intel® Smart Cache \| 35W TDP

Memory Supported
Memory installed	No Memory
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 3200
Max Memory Supported	64GB
Dual Channel Memory Supported	Yes

Storage
M.2	1x M.2 22x80 M-key supporting PCIe x4 Gen 4 NVMe or SATA SSDs 1x M.2 22x42 B-Key supporting PCIe x1 Gen 3 or SATA SSDs

Graphics
Intergrated Graphics	Intel® Iris® Xe Graphics \| 4x 4K displays supported via 2x HDMI 2.0b + 2x Thunderbolt 4 Ports \| 1x 8K display supported

Audio
Channel	7.1 multichannel digital audio via HDMI & Thunderbolt

Communications
Wireless LAN	Intel Wi-Fi 6E AX211, 802.11ax
Bluetooth	Bluetooth 5.2

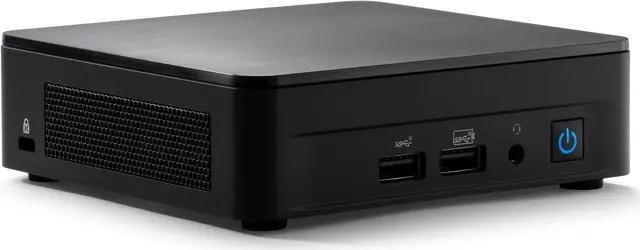

Front Panel Ports
Front USB	2x Front USB 3.2 Gen2 type-A
Front Audio Ports	3.5mm stereo headset jack

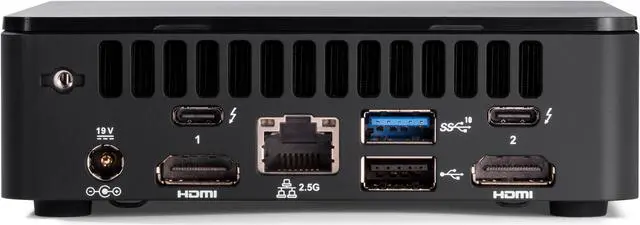

Back Panel Ports
HDMI	2x HDMI 2.0b
Thunderbolt 3	2x Thunderbolt 4 (Alt-DP)
Rear USB	1x Rear USB 3.2 Gen2 type-A 1x Rear USB 2.0 type-A

Power Supply
Input	12-20VDC variable DC input
Power Supply	120W 19V PSU supplied

Physical SPEC
Dimensions	117x112x37mm

Features
Features	Kensington lock support VESA mount included 19VDC 120W power supply connector Customization Primary storage up to 8TB Gen4 NVMe or 2TB SATA SSD Secondary storage up to 512GB Gen3 PCIe or 512GB SATA Memory up to 64GB Replaceable lid for I/O expansion

Additional Information
First Listed on Newegg	April 25, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days
This item is covered by NUC PC Store Return Policy
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
