AC/DC Digital Clamp Meter 1000A True RMS Auto Range Professional Multimeter, 6000 Counts, Inrush, VFD, LOZ Mode Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle
- This is a dual impedance true RMS digital multimeter integrating a variety of measurements like 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, Temperature, NCV, VFD, Inrush Current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.
- Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of inrush current is about 100ms. Multi-purpose clamp meter is made of high quality ABS material, with large LCD screen, which can display the measurement results clearly.
- The multimeter is compact design, easy to carry and store, has the characteristics of high reliability, high safety, automatic range, handheld clamp meter, etc. The Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes.
+
+
Overview
Specs
Reviews
This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage, AC/DC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.

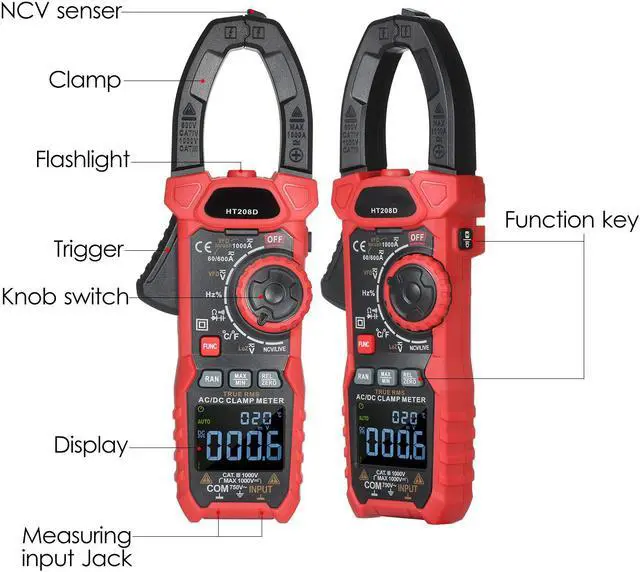

Features:
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC/DC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.

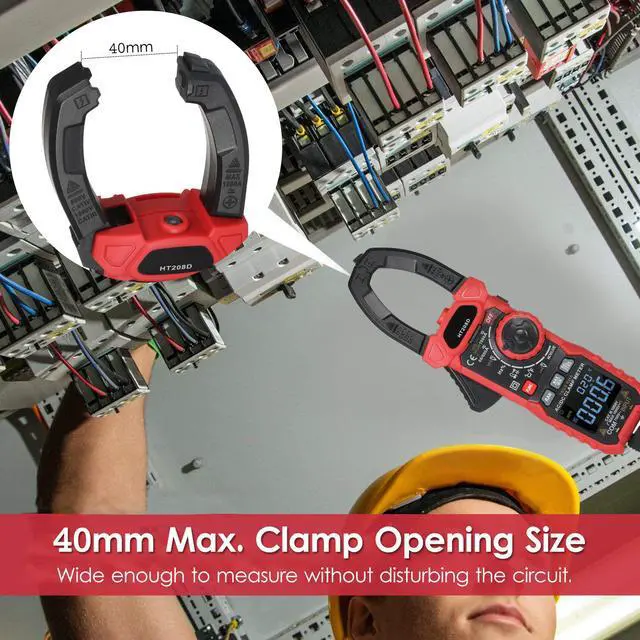

WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.

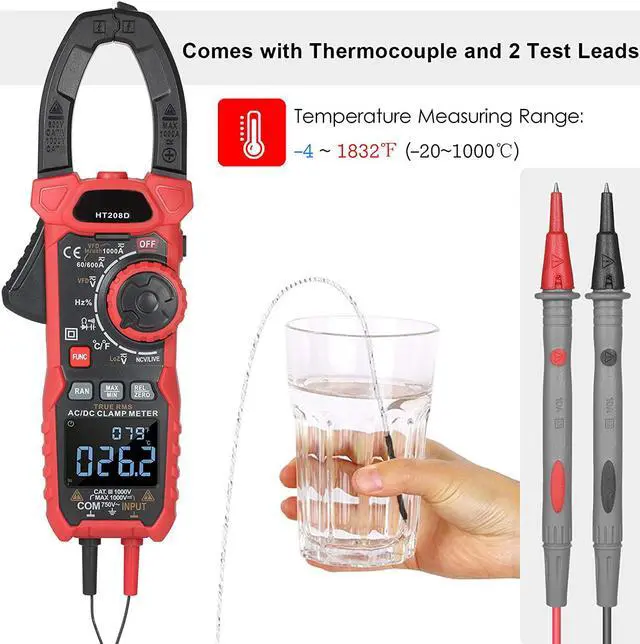

MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.

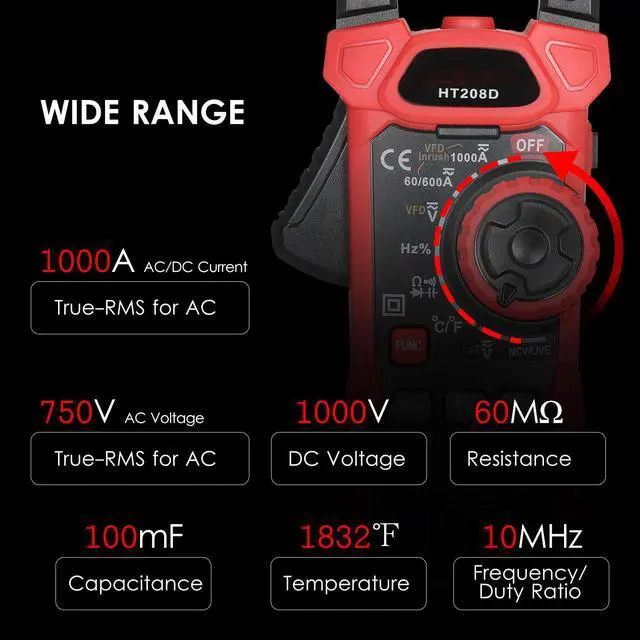

Parameters:
Display: 6000 count
Clamp Opening Size: 40mm
Auto-off: approx. 15 minutes
Max. Voltage Between Terminals and Earth Ground: AC750V or DC 1000V
Specifications
Material: ABS
Model: HT208D
Color: Black and Red
Battery: 2pcs, 1.5V, AAA alkaline battery (batteries not included)
Item Size: 24*8*4.5cm / 9.44*3.14*1.77in
Item Weight: 311g / 10.97oz
Package Size: 27.5*13.5*5.5cm / 10.82*5.31*2.16in
Package Weight: 620g / 21.86oz
