BONAEVER for Raspberry Pi 4 B 3 B+ Camera Module Automatic IR-Cut Switching Day/Night Vision Video Module Adjustable Focus 5MP OV5647 Sensor 1080p HD Webcam for Raspberry Pi 2/3 Model B Model A A+

Features:

High Quality -- 100% brand new and in good condition,with high quality ,great performance, solid construction.

Camera Specifications -- The camera is capable of 2592 x 1944 pixel static images,and also supports 1080 p @ 30 fps, 720 p @ 60 fps and 640 x480 p 60/90 video recording,with 5MP OV5647 1080p webcam sensor

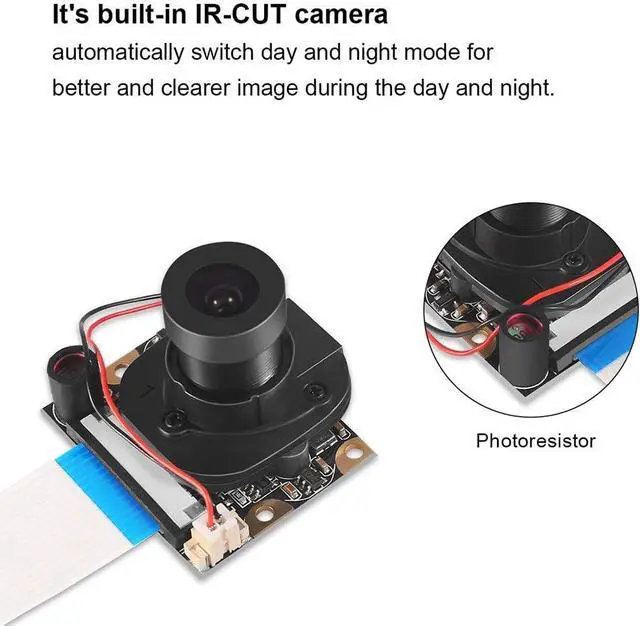

IR-CUT Camera -- It's built-in IR-CUT camera,automatically switch day and night mode for better and clearer image during the day and night.

Compatible with Raspberry Pi camera module kit compatible with Raspberry Pi model B/B+/A+/4/3/2/1

CSI Interface -- This interface uses the dedicated CSI interface, via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor

Specifications:

CCD size: 1/4 inch
Aperture(F): 1.8
Focal Length: 3.6 mm (adjustable)
Field of View: 72 degrees
Preferred Sensor Resolution: 1080p
Support 3.3V power output
Supports connecting infrared LED or flash LED
4 screw holes whiche are used for a fixed position

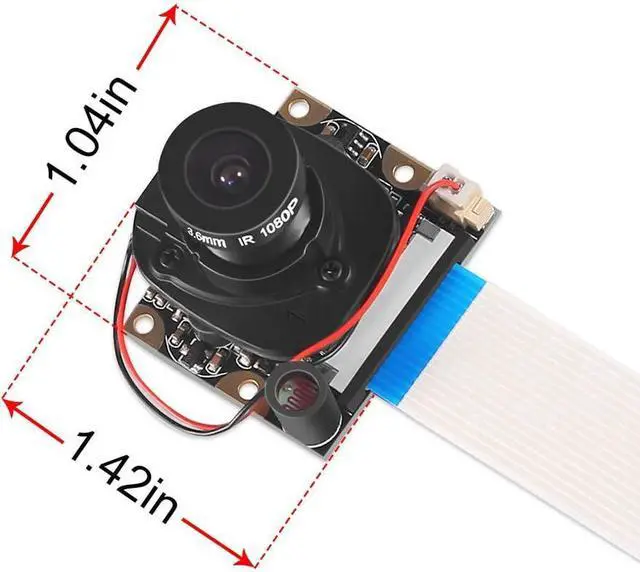

Dimension: 1.42inch x1.04inch x0.94inch

Adjust the focal length :

The lens screws in and out to adjust it.

The camera is capable of 2592 x 1944 pixel static images,and also supports 1080 p @ 30 fps, 720 p @ 60 fps and 640 x480 p 60/90 video recording,with 5MP OV5647 1080p webcam sensor.

The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.

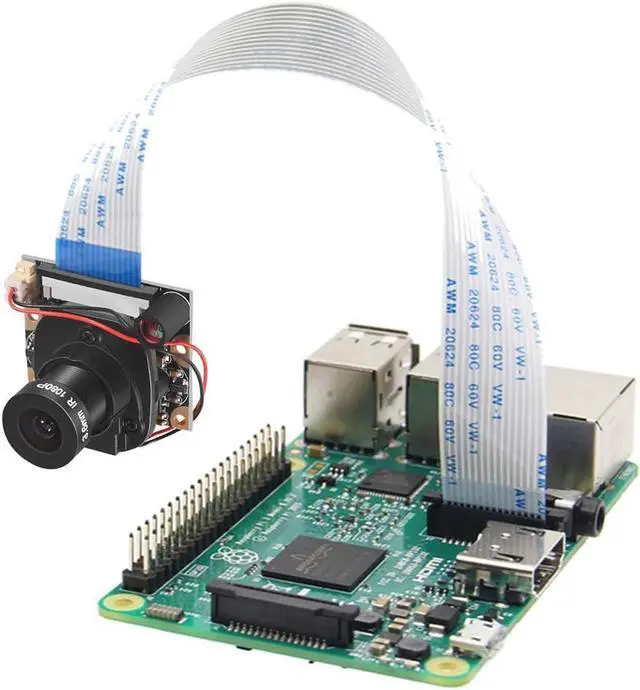

Raspberry Pi computer with a Camera Module port
All current models of Raspberry Pi have a port for connecting the Camera Module.

Note: If you want to use a Raspberry Pi Zero, you need a Camera Module ribbon cable that fits the Raspberry Pi Zero’s smaller Camera Module port.

Ensure your Raspberry Pi is turned off.

1.Locate the Camera Module port
2.Gently pull up on the edges of the port’s plastic clip
3.Insert the Camera Module ribbon cable; make sure the cable is the right way round
4.Push the plastic clip back into place

Start up your Raspberry Pi. Go to the main menu and open the Raspberry Pi Configuration tool.

Select the Interfaces tab and ensure that the camera is enabled

Reboot your Raspberry Pi.
