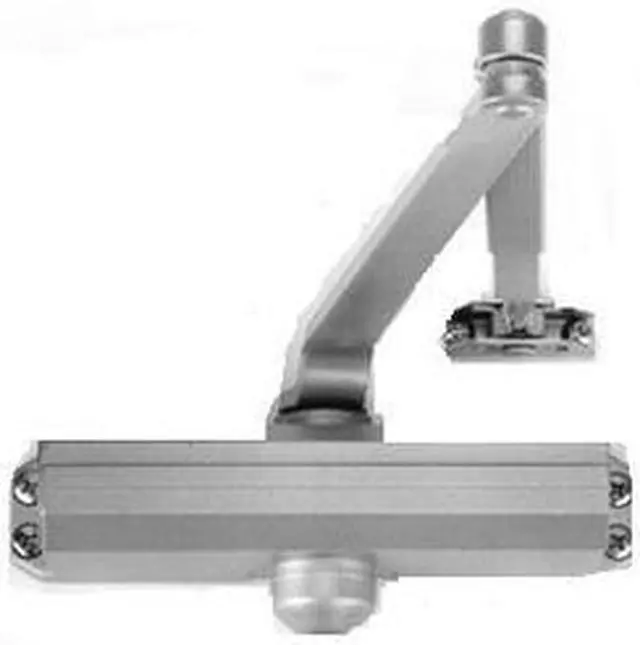

Norton, 1604BC-689, Aluminum, Hydraulic Door Closer #4, Tri Style Drop Plate, Triple Valve Back Check

Norton, 1604BC-689, Aluminum 689, Hydraulic Door Closer #4, Tri Style Drop Plate, Triple Valve Back Check. The 1600BC/1601 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

The 1600BC closer features 3 speed controls for closing, latching and backcheck. Non handed and using the same template as many other national brands, including the Parker 500, 950 and the Yale 50, the Norton 1600BC is a rack and pinion action door closer with all temperature hydraulics in an aluminum housing. Separate controls adjust, at any time, all three closing, latching and backcheck speeds. A fully adjustable model with back check.

Features:
1600BC: Sized spring #4
Non handed
Rack and pinion design
Cast aluminum body
2-7/8" (73mm) projection
1-3/8" (35mm) diameter piston
5/8" (16mm) diameter pinion journals
Standard, separate and independent, latch, sweep and backcheck intensity valves
Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
All standard arm applications allow doors to swing 180°, conditions permitting
Staked valves
