Phanteks AMP 1000W V2 80PLUS Gold, ATX Power Supply, 12VHPWR Included, Fully Modular, Hybrid Mode, Silent fan, Revolt PRO LINK Certified

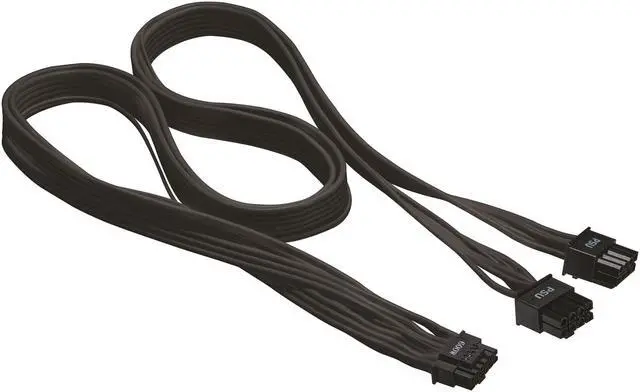

- New 12VHPWR Cable included for next gen GPU
- 80PLUS Gold Certified – High efficiency operation with lower operating cost
- Compact size with a Fully Modular design for easy and clean installation
- Revolt PRO Link Certified to power the most powerful systems with Phanteks Revolt PRO
- Hybrid Fanless Mode for ultimate silent performance
+
+
Specs
Reviews (11)
Learn more about the Phanteks PH-P1000G_02
| Brand | Phanteks |
|---|---|
| Series | AMP Series |
| Model | PH-P1000G_02 |
| Color | Black |
|---|---|
| Type | ATX |
| Maximum Power | 1000 W |
| Fans | 1 x 120mm Fluid Dynamic Bearing Fan |
| Main Connector | 24Pin |
| PCI-Express Connector | 5 x 6+2-Pin |
| SATA Power Connector | 4 |
| Max PSU Length | 220 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) OCP (Over Current Protection) OTP (Over Temperature Protection) No-Load protection Reset Protection |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13- 6.5A |
| Output | 12V@83A, 5V@25A, 3.3V@25A, -12V@0.3A, +5VSB@3A |
| MTBF | >100,000 hrs at 25 degree celsius, excluding DC Fan |
| Connectors | 1x 18Pin+10Pin MB 24P (610mm) 2x 8pin CPU 4+4P (650mm) 1x 12VHPWR GPU 16+4P (750mm) 3x 8pin PCI-E 6+2P/6+2P(750mm-675mm/75mm) 2x 6pin 4SATA 90° (860mm-410mm/150mm/150mm/150mm) 1x 6pin 2SATA 180° (450mm-300/150mm) 1x 6pin 3Molex (690mm-450mm/120mm/120mm) 1x 6pin 2Molex (470mm-350/120mm) 1x 4pin 1Molex to SATA (300-150mm/150mm) |
| Features | - Ultra-High Efficiency, 80 PLUS Gold Certified - Revolt PRO Link Certified - Gold-Plated High Current Terminals - 120mm Fluid Dynamic Bearing Fan - Ultra-High Power Density, Compact Size - Silent Hybrid Fan Control - Multi-GPU Support |
|---|
| Dimensions | 5.5" x 5.9" x 3.4" |
|---|---|
| Weight | 3.66 lbs |
| Package Content | 1x PH-P1000G 80+ Gold fully modular Power Supply 1x Power cord 1x User’s manual 1x PSU Bag 1x Cable Bag 1x Zip tie bag 1x Screw Pack 1x Velcro Pack |
|---|
| First Listed on Newegg | August 11, 2024 |
|---|
